Model Whirlpool FGP215KQ1 20`` GAS FREESTANDING RANGE ELECTRONIC IGNITION ST – Common Parts & Diagrams

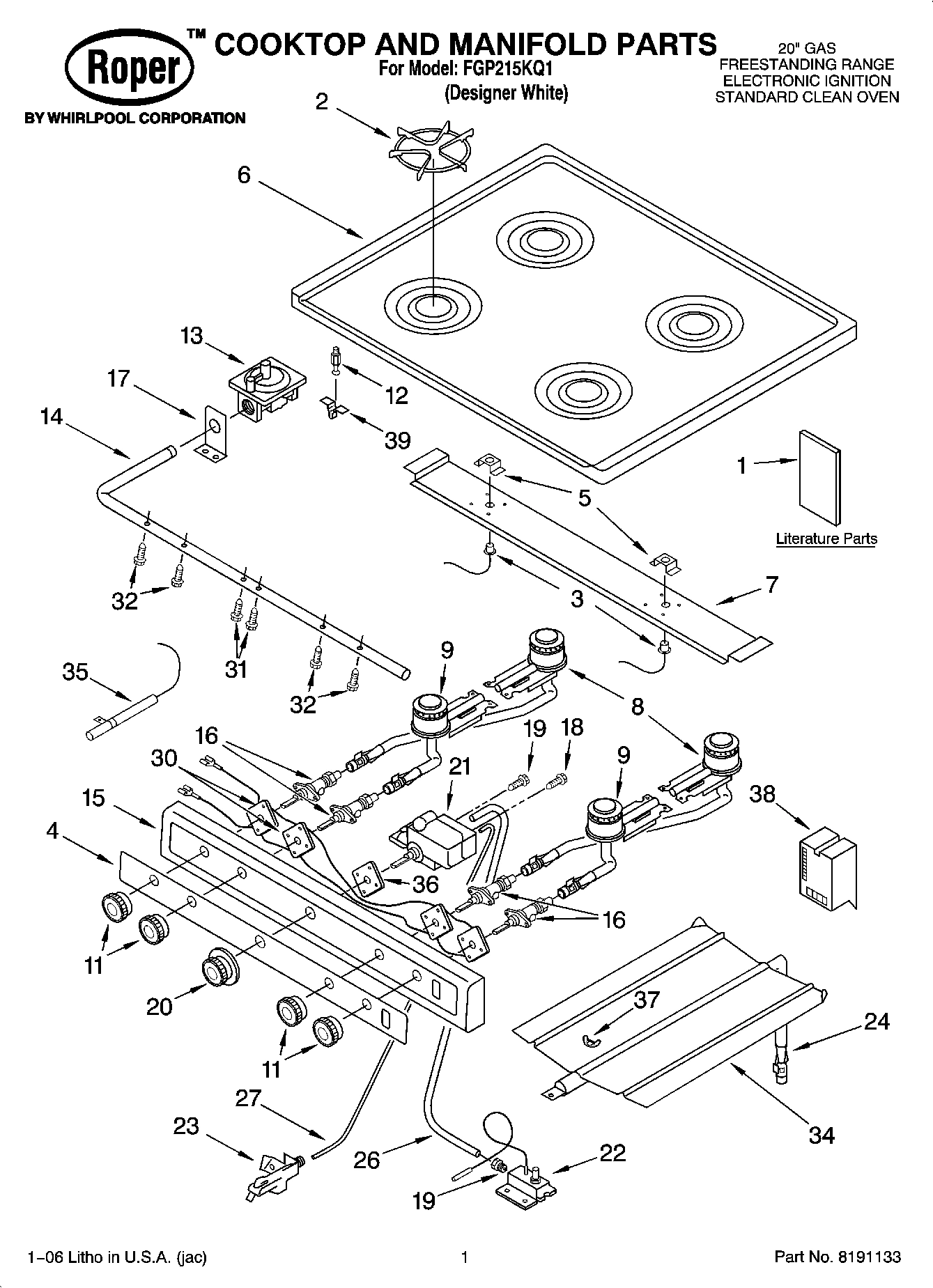

01 - COOKTOP AND MANDIFOLD PARTS

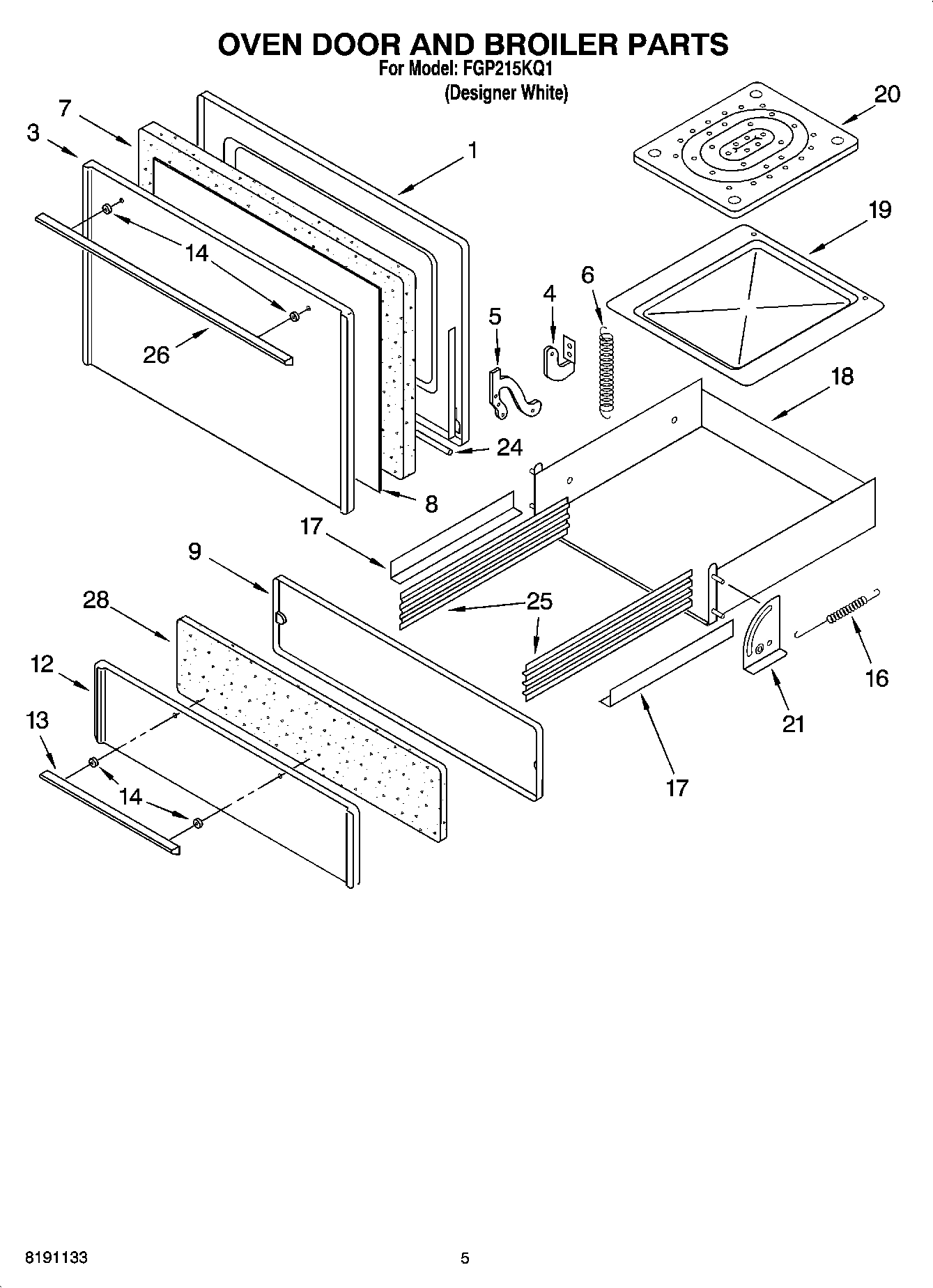

03 - OVEN DOOR AND BROILER PARTS

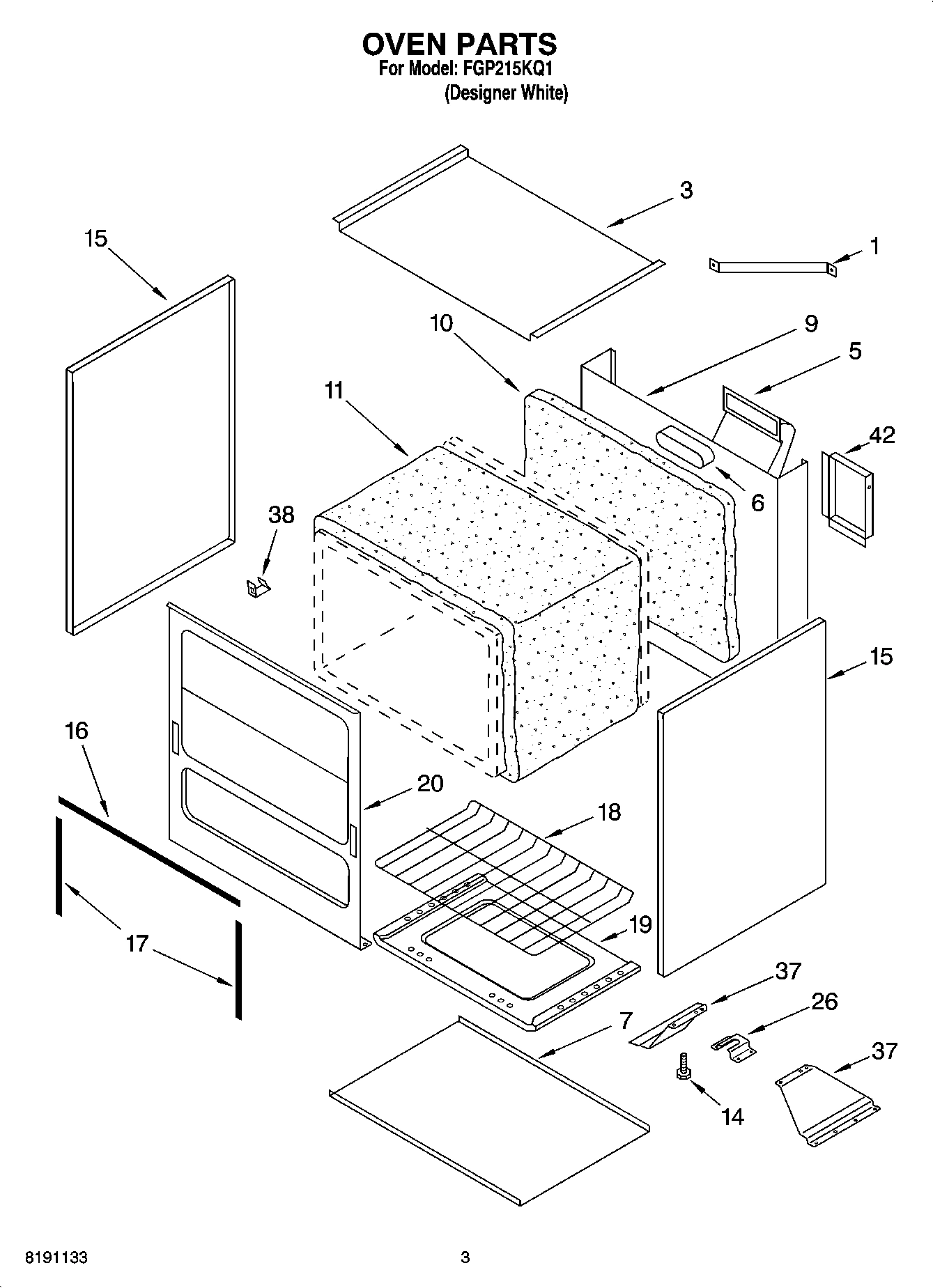

02 - OVEN PARTS

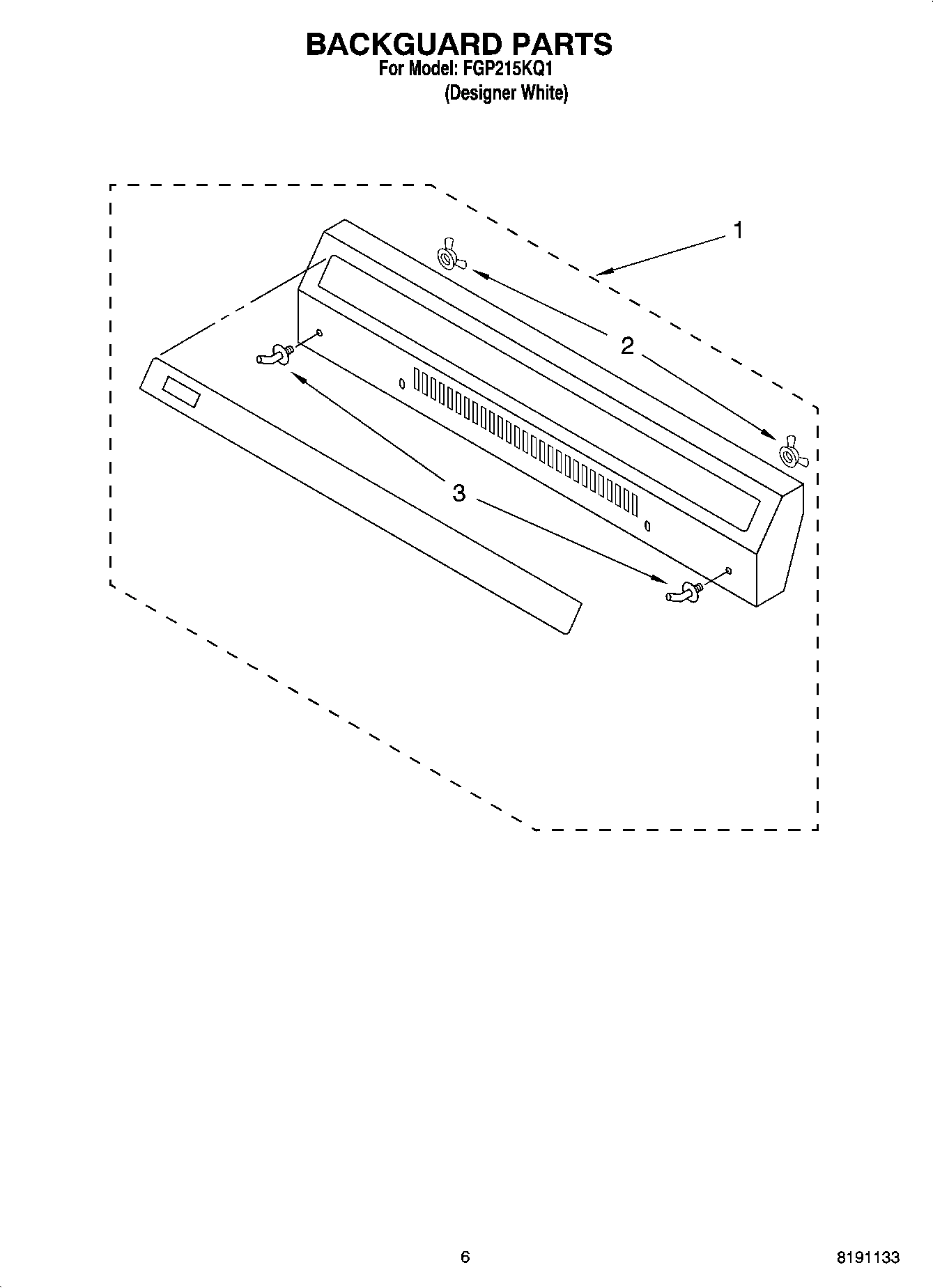

04 - BACKGUARD PARTS
Common parts from model Whirlpool FGP215KQ1 20`` GAS FREESTANDING RANGE ELECTRONIC IGNITION ST
1
Liner, Door WPL 8189585 Contact Us For Availability
1
Brace, Back WPL 4364212 Contact Us For Availability
1
Backguard WPL 4364446 Contact Us For Availability
2
Wingnut, 10-24 WPL 4364046 Contact Us For Availability
3
Panel, Oven Door WPL 8189800 Contact Us For Availability
3
Bottom, Burner Box WPL 4364267 Contact Us For Availability
3
Hinge Pin (2) WPL 4364102 Contact Us For Availability
4
Overlay, Manifold WPL 8189744 Contact Us For Availability
4
Bearing, Hinge (Left) WPL 4364237 Contact Us For Availability
4
Bearing, Hinge (Right) WPL 4364238 Contact Us For Availability
5
Cover, Pilot WPL 4364150 Contact Us For Availability
5
Screw, 8-18 x 3/8 WPL 4364151 Contact Us For Availability
5
Hinge, Door (Left) WPL 4364235 Contact Us For Availability
5
Hinge, Door (Right) WPL 4364236 Contact Us For Availability
5
Flue Box WPL 4364268 Contact Us For Availability
6
Cooktop WPL 4364266 Contact Us For Availability
6
Spring, Door WPL 4364234 Contact Us For Availability
6
Ring, Flue Box WPL 4364075 Contact Us For Availability
7
Support, Burner WPL 4364262 Contact Us For Availability
7
Insulation, Door WPL 4364284 Contact Us For Availability
7
Bottom, Main WPL 4364199 Contact Us For Availability
8
Burner, Top Rear WPL 4364260 Contact Us For Availability
8
Panel, Inner Door WPL 4364285 Contact Us For Availability
9
Burner, Top Front WPL 4364261 Contact Us For Availability
9
Liner, Brlr Drawer WPL 4364276 Contact Us For Availability
9
Main Back WPL 4364269 Contact Us For Availability
10
Insulation, Back WPL 4364204 Contact Us For Availability
11
Knob, Burner WPL 4364480 Contact Us For Availability
11
Insulation, Wrap WPL 4364205 Contact Us For Availability
12
Strike Pin W/Nut WPL 4364157 Contact Us For Availability
12
Panel, Broiler Door WPL 4364379 Contact Us For Availability
13
Pressure Regulator WPL 4364159 Contact Us For Availability
13
Handle, Drawer WPL 4364399 Contact Us For Availability
14
Pipe, Manifold WPL 4364263 Contact Us For Availability
14
Spacer, Handle WPL 4364055 Contact Us For Availability
14
Screw, 10-24 x 3/8 WPL 4364057 Contact Us For Availability
14
Leveler Leg (4) WPL 4364080 Contact Us For Availability
15
Panel, Manifold (Includes 4) WPL 4364449 Contact Us For Availability
15
Panel, Side WPL 4364201 Contact Us For Availability
16
Gasket, Oven Top WPL 4364084 Contact Us For Availability
16
Valve, Burner (Includes No.32) WPL 4364162 Contact Us For Availability
16
Spring, Broiler WPL 4364060 Contact Us For Availability
17
Support, Manifold WPL 4364264 Contact Us For Availability
17
Runner, Drawer (Left) WPL 4364061 Contact Us For Availability
17
Runner, Drawer (Right) WPL 4364062 Contact Us For Availability
17
Gasket, Oven Side WPL 4364208 Contact Us For Availability
18
Loxit Fitting 3/16 WPL 4364124 Contact Us For Availability
18
Liner, Broiler WPL 4364273 Contact Us For Availability
18
Rack, Oven WPL 4364210 Contact Us For Availability
19
Loxit Fitting 3/8`` WPL 4364164 Contact Us For Availability
19
Broiler Pan WPL 4364216 Contact Us For Availability
19
Bottom, Oven WPL 4364272 Contact Us For Availability
20
Knob, Thermostat WPL 4364478 Contact Us For Availability
20
Grille, Broiler WPL 4364065 Contact Us For Availability
20
Frame, Front WPL 4364209 Contact Us For Availability
21
Thermostat, Oven (Includes No. 31) WPL 4364166 Contact Us For Availability
21
Hinge, Broiler (Left) WPL 4364066 Contact Us For Availability
21
Hinge, Broiler (Right) WPL 4364067 Contact Us For Availability
21
Hinge, Broiler (Screw, 10-24 x 3/8) WPL 4364068 Contact Us For Availability
22
Screw, 10-12 x 1/2 WPL 4364153 Contact Us For Availability
22
Valve, Safety WPL 4364168 Contact Us For Availability
23
Pilot, Oven Burner WPL 4364169 Contact Us For Availability
24
Burner, Oven WPL 4364170 Contact Us For Availability
24
Screw, 10-24 x 5/8 WPL 4364171 Contact Us For Availability
24
Rod, Oven Door WPL 4364233 Contact Us For Availability
25
Glide, Broiler Pan WPL 4364123 Contact Us For Availability
26
Tubing, Oven WPL 4364038 Contact Us For Availability
26
3/8`` O.D. WPL ARI57458A6 Contact Us For Availability
26
Handle, Oven Door WPL 4364394 Contact Us For Availability
27
Tubing, Pilot WPL 4364039 Contact Us For Availability
27
3/16`` O.D. WPL ARI57459A3 Contact Us For Availability
28
Insulation, Broiler Drawer WPL 4364275 Contact Us For Availability
30
Harness, Switch Includes Switches WPL 8189754 Contact Us For Availability
31
Bolt, Thermostat WPL 4364167 Contact Us For Availability
32
Bolt, Valve Mtg. WPL 4364173 Contact Us For Availability
34
Flame Spreader WPL 4364042 Contact Us For Availability
35
Screw, 6-32 x 1/4 WPL 4364043 Contact Us For Availability
35
Electrode, Oven WPL 4364044 Contact Us For Availability
36
Switch, Thermostat WPL 4364045 Contact Us For Availability
37
Support, Side (Left) WPL 4364214 Contact Us For Availability
37
Support, Side (Right) WPL 4364215 Contact Us For Availability
38
Spark Module WPL 4364047 Contact Us For Availability
38
CLIP, THERMOBULB WPL 4364130 Contact Us For Availability
39
CATCH, STRIKEPIN WPL 4364158 Contact Us For Availability
42
Wire Bushing WPL 4364095 Contact Us For Availability
42
Power Cord WPL 4364099 Contact Us For Availability
42
Strain Relief WPL 4364100 Contact Us For Availability
42
Box, Power WPL 4364279 Contact Us For Availability
42
Thermostat Wire WPL 4364282 Contact Us For Availability
42
Following Parts Not Illustrated WPL ARI57460A1 Contact Us For Availability
× ![]()
