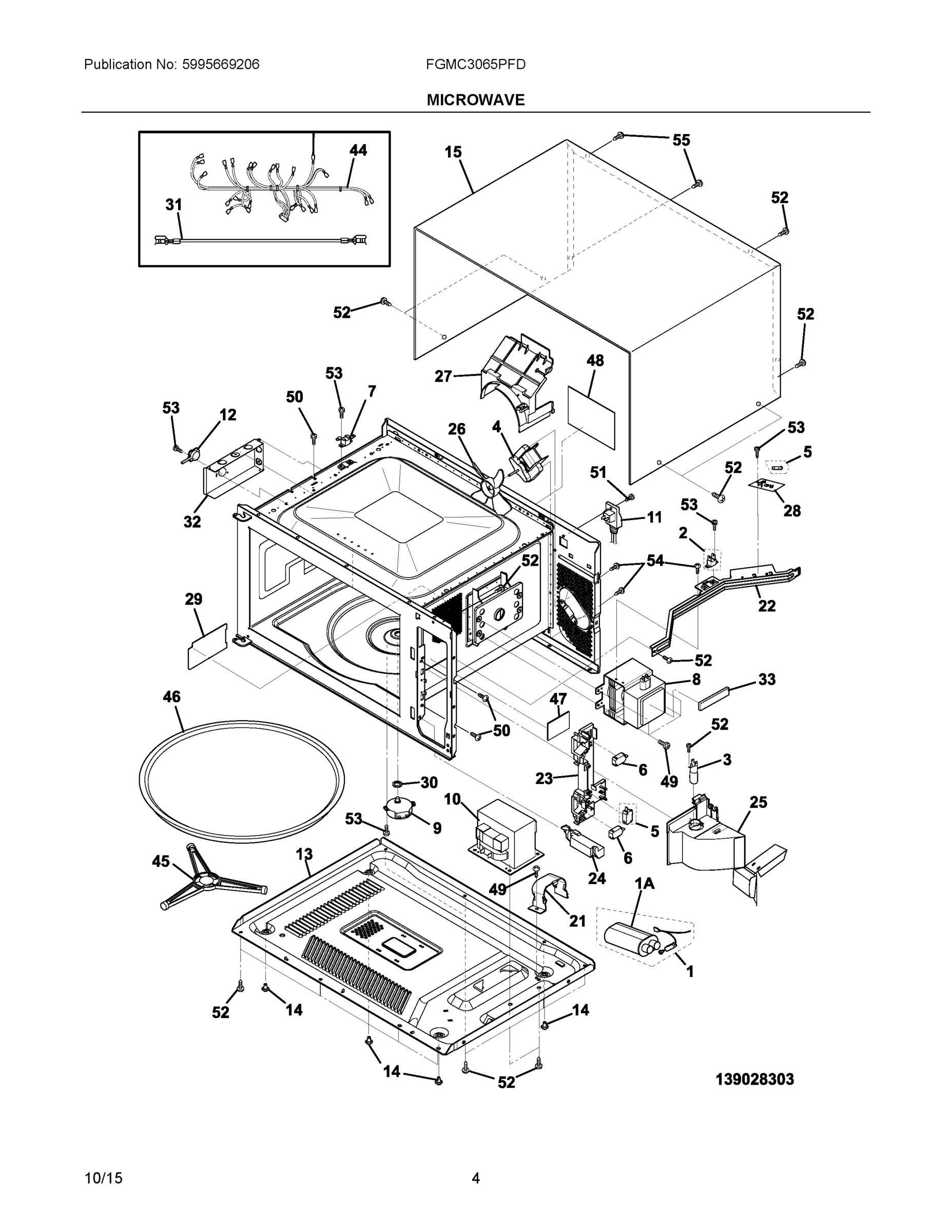

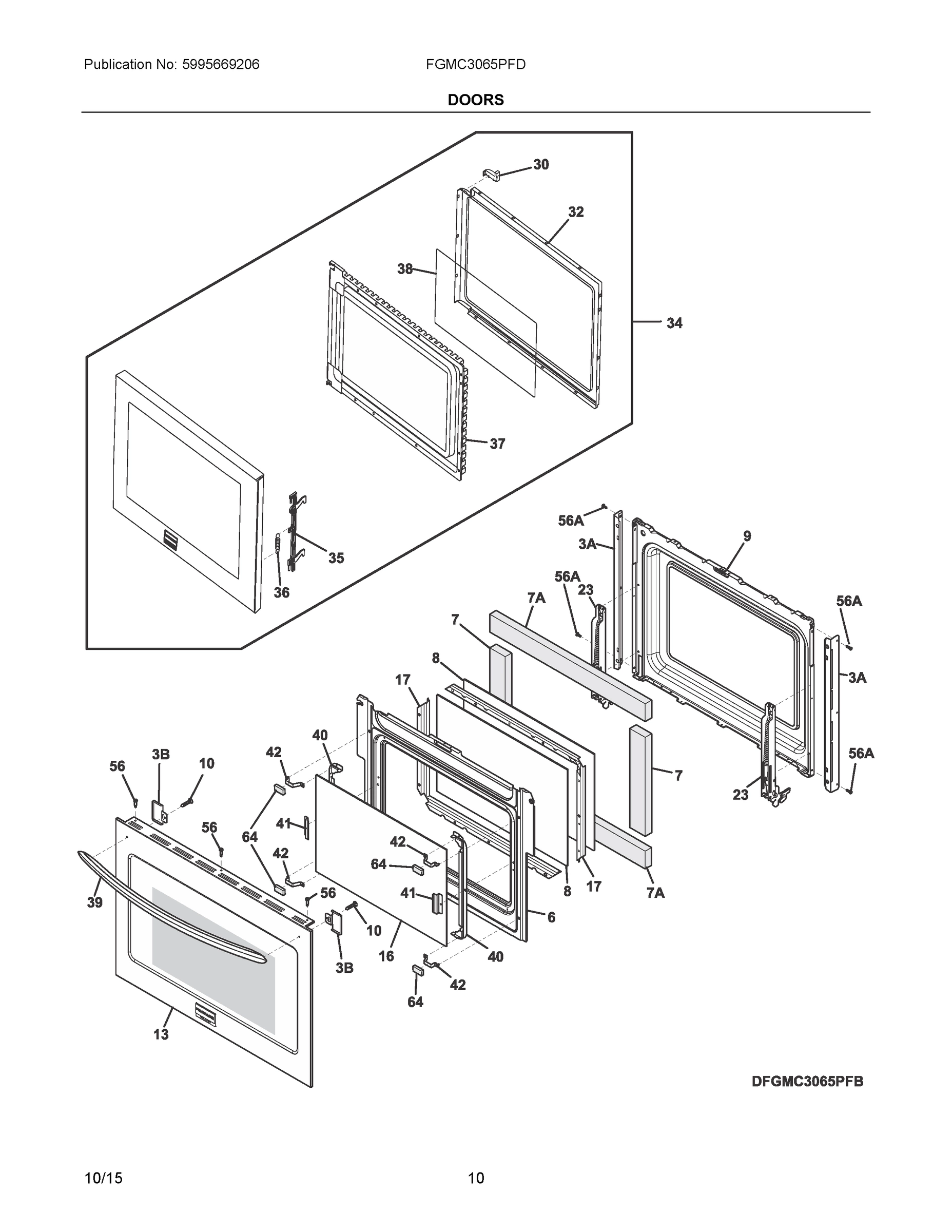

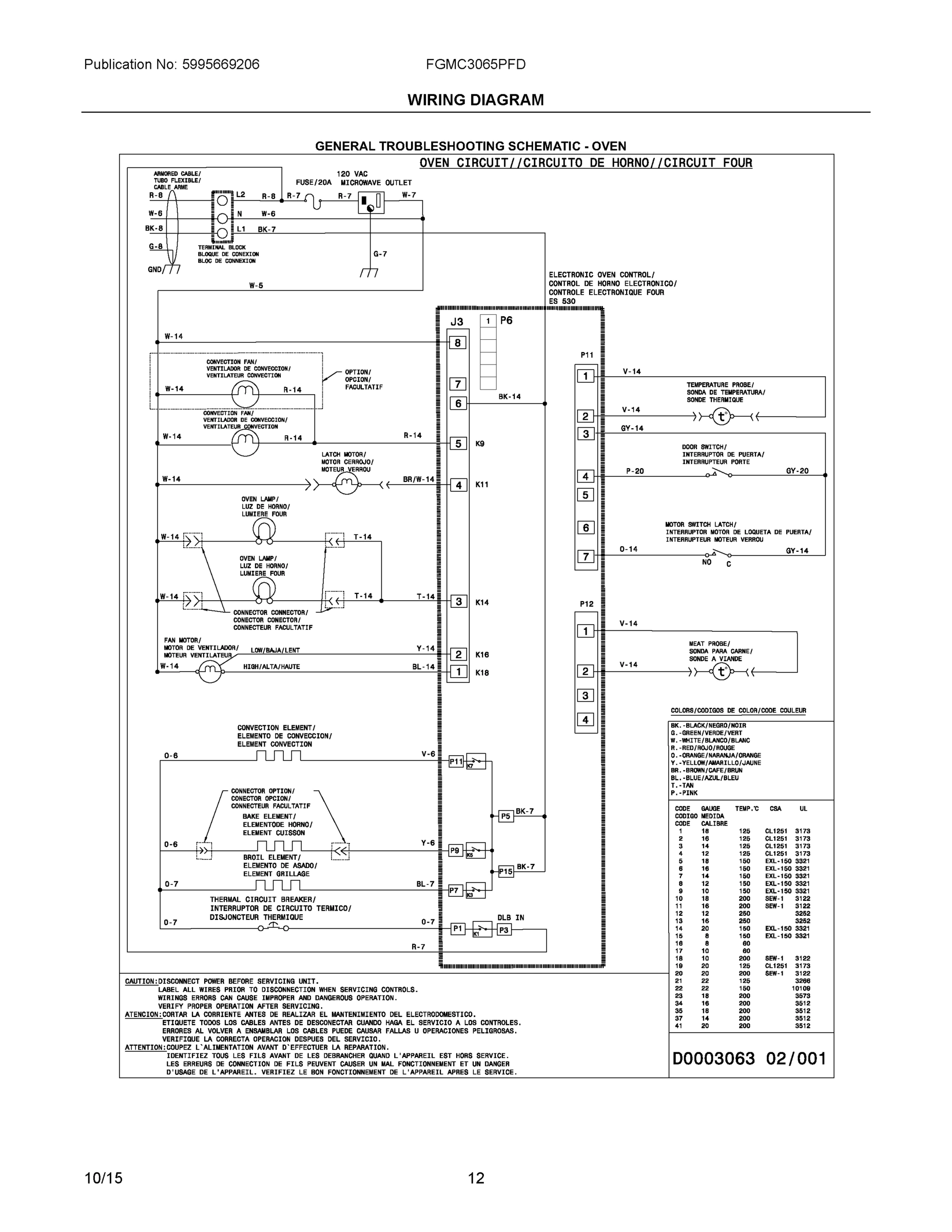

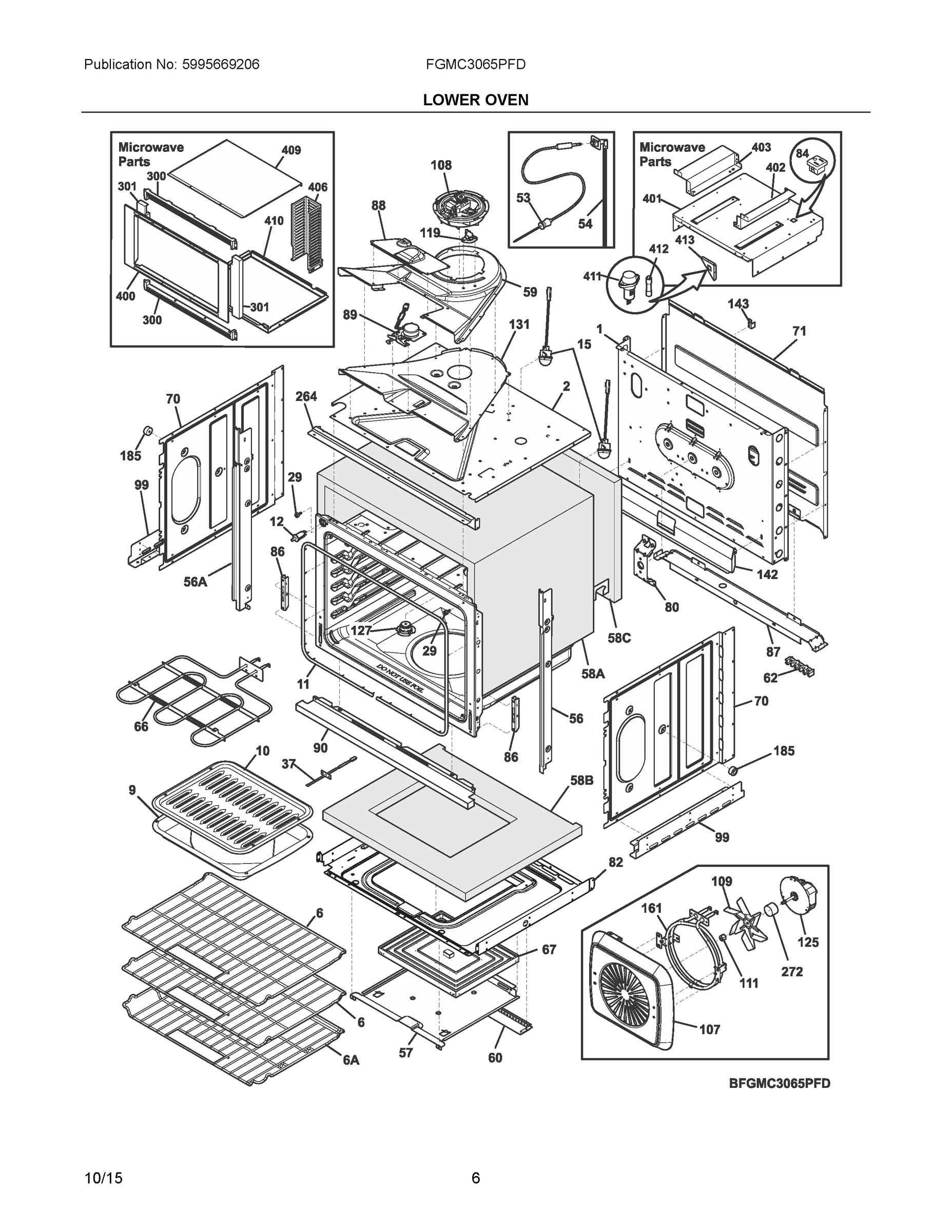

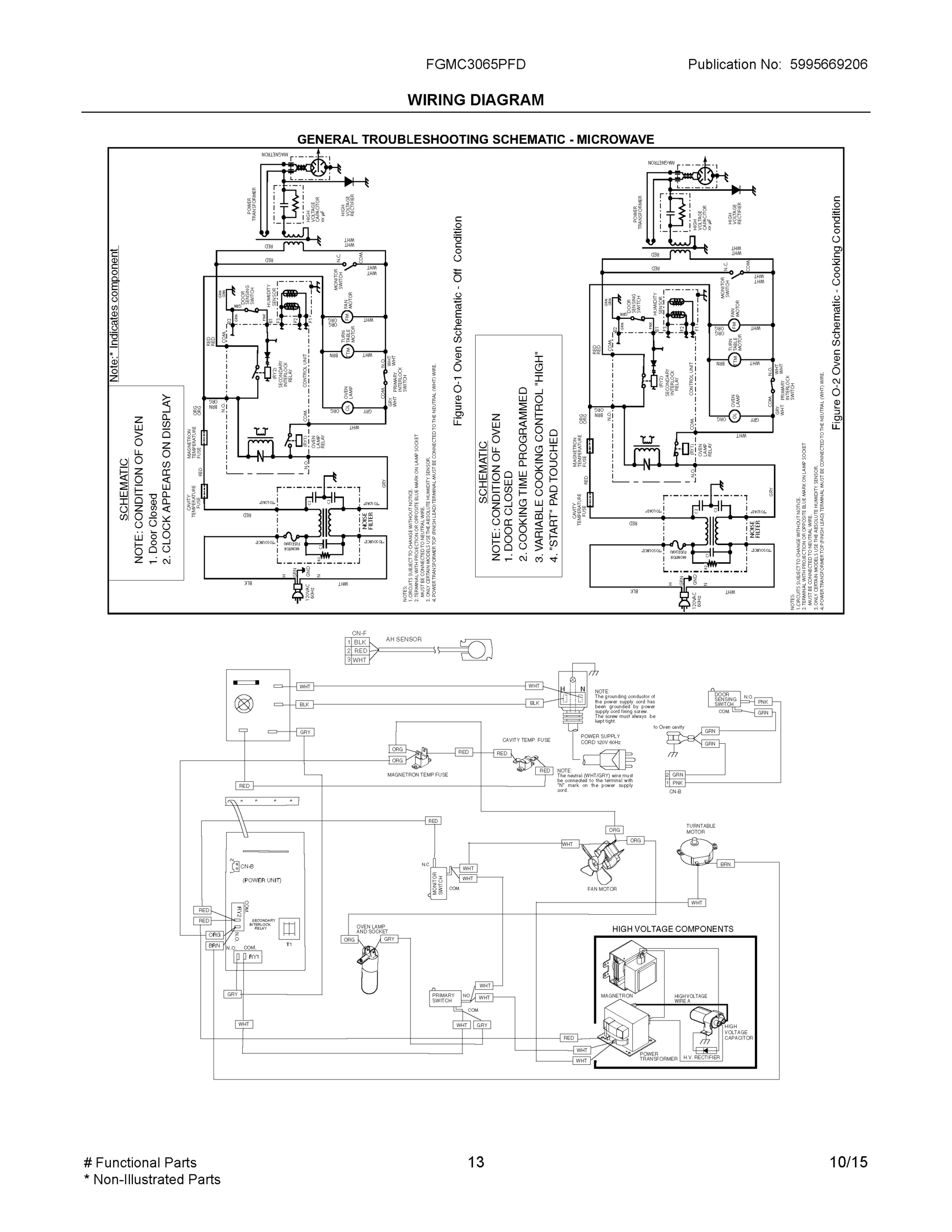

Model Electrolux FGMC3065PFD MICROWAVE – Common Parts &amp; Diagrams

1

CONTROL PANEL ASSEMBLY, STEEL/GLASS, STAINLES WCI 139038825 Contact Us For Availability

1A

5304487566 Frigidaire Microwave Capacitor In Stock WCI 5304487566 $77.53

2

139028107 Frigidaire Shield Backorder WCI 139028107 $38.99

2

5303319550 Frigidaire Microwave Fuse Backorder WCI 5303319550 $74.11

2

5304503763 Frigidaire Controller Backorder WCI 5304503763 $246.69

3A

139014401 Frigidaire Oven Trim Backorder WCI 139014401 $19.47

3B

COVER, REAR DOOR, BLACK, (2) WCI 318262111 Contact Us For Availability

4

5304493152 Frigidaire Microwave Motor Backorder WCI 5304493152 $54.19

5

5303319559 Frigidaire Microwave Fuse and Swit Backorder WCI 5303319559 $53.99

6

139006905 Frigidaire Oven Baffle Backorder WCI 139006905 $71.70

6

5304493153 Frigidaire Microwave Door Switch In Stock WCI 5304493153 $41.84

6

RACK, OVEN, W/HANDLE WCI 139011600 Contact Us For Availability

6A

139012400 Frigidaire Oven Rack Backorder WCI 139012400 $103.79

7

318372017 Frigidaire Insulation Backorder WCI 318372017 $10.39

7

5304440780 Frigidaire Microwave Fuse Backorder WCI 5304440780 $54.24

7A

318372016 Frigidaire Insulation Backorder WCI 318372016 $11.32

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $73.95

8

5304521745 Frigidaire Microwave Magnetron In Stock WCI 5304521745 $138.45

9

139000411 Frigidaire Oven Liner Backorder WCI 139000411 $87.63

9

318138801 Frigidaire Oven Pan Backorder WCI 318138801 $24.43

10

316082001 Frigidaire Oven Insert Backorder WCI 316082001 $31.01

10

5304414648 Frigidaire Oven Screw In Stock WCI 5304414648 $9.06

10

5304473321 Frigidaire Microwave Transformer Backorder WCI 5304473321 $151.65

11

5304478937 Frigidaire Microwave Power Cord Backorder WCI 5304478937 $43.47

11

807545502 Frigidaire Oven Seal Backorder WCI 807545502 $86.33

12

5304440785 Frigidaire Microwave Sensor Backorder WCI 5304440785 $35.91

13

5304515669 Frigidaire Door Assembly Backorder WCI 5304515669 $252.32

15

5304528790 Frigidaire Lamp Assembly Appliance In Stock WCI 5304528790 $13.57

15

CABINET, OUTER CASING, BLACK WCI 5304478940 Contact Us For Availability

16

316446401 Frigidaire Oven Glass In Stock WCI 316446401 $73.97

16

5304474853 Frigidaire Microwave Control Board Backorder WCI 5304474853 $225.54

17

CONTROL PANEL ASSEMBLY, STAINLESS/BLACK WCI 5304493447 Contact Us For Availability

18

5304462915 Frigidaire Microwave Push Button Backorder WCI 5304462915 $61.84

19

5304440831 Frigidaire Microwave Spring Assemb Backorder WCI 5304440831 $12.68

23

316575915 Frigidaire Oven Hinge Backorder WCI 316575915 $97.44

23

5304503439 Frigidaire Microwave Latch Hook In Stock WCI 5304503439 $38.31

28

5304492543 Frigidaire Microwave Electronic No Backorder WCI 5304492543 $49.84

29

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $7.69

30

BUSHING, MOTOR SHAFT, TURNTABLE WCI 5304467718 Contact Us For Availability

30

WCI 5304442145 WCI 5304442145 Contact Us For Availability

32

5304440861 Frigidaire Microwave Choke Cover Backorder WCI 5304440861 $45.26

33

CUSHION, MAGNETRON PAD WCI 5304478949 Contact Us For Availability

34

5304493449 Frigidaire Microwave Door Assembly Backorder WCI 5304493449 $191.47

35

5304441893 Frigidaire Microwave Latch Backorder WCI 5304441893 $31.25

36

5304440316 Frigidaire Microwave Spring Assemb In Stock WCI 5304440316 $38.57

37

5304504897 Frigidaire Oven Temperature Sensor In Stock WCI 5304504897 $27.16

39

316554010 Frigidaire Stainless Steel Handle In Stock WCI 316554010 $88.78

40

318242702 Frigidaire Oven Bracket Assembly Backorder WCI 318242702 $11.78

41

318370602 Frigidaire Oven Bracket Backorder WCI 318370602 $8.15

42

318382302 Frigidaire Bracket Backorder WCI 318382302 $30.36

44

5304499758 Frigidaire Microwave Wiring Harnes Backorder WCI 5304499758 $82.40

45

5304467717 Frigidaire Microwave Glass Tray Su In Stock WCI 5304467717 $75.45

46

5304529482 Frigidaire Glass Tray Assembly In Stock WCI 5304529482 $67.22

52

SCREW, 4 MM X 12 MM WCI 5304451553 Contact Us For Availability

53

5304504202 Frigidaire Red Meat Temperature Pr Backorder WCI 5304504202 $71.26

54

139017203 Frigidaire Assembly Receptacle Backorder WCI 139017203 $94.20

56A

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $9.06

57

807988901 Frigidaire Oven Panel Backorder WCI 807988901 $41.84

59

139027600 Frigidaire Oven Duct Backorder WCI 139027600 $54.23

66

5304521498 Frigidaire Element Backorder WCI 5304521498 $51.52

67

318601604 Frigidaire Oven Bake Element In Stock WCI 318601604 $103.53

70

139000601 Frigidaire Oven Shield Backorder WCI 139000601 $42.55

84

5304517286 Frigidaire Outlet Assembly Backorder WCI 5304517286 $53.77

86

318561100 Frigidaire Receptacle Backorder WCI 318561100 $12.67

87

139020100 Frigidaire Oven Bracket Backorder WCI 139020100 $18.10

88

5304506964 Frigidaire Oven Cover Backorder WCI 5304506964 $15.40

89

139021302 Frigidaire Oven Motor Backorder WCI 139021302 $90.76

90

139008713 Frigidaire Oven Trim Backorder WCI 139008713 $85.03

99

318256201 Frigidaire Oven Bracket Backorder WCI 318256201 $36.22

107

139013903 Frigidaire Oven Vent Hood Cover Backorder WCI 139013903 $27.16

108

318575612 Frigidaire Oven Cooling Fan Motor In Stock WCI 318575612 $136.65

109

318398302 Frigidaire Stove Oven Range Convect In Stock WCI 318398302 $15.38

111

316136600 Frigidaire Oven Range Lock Nut Backorder WCI 316136600 $12.20

119

318578506 Frigidaire Oven High Limit Thermost In Stock WCI 318578506 $32.71

125

139008502 Frigidaire Oven Motor Assembly In Stock WCI 139008502 $85.80

127

139042600 Frigidaire Tube Assembly Backorder WCI 139042600 $27.62

131

139027700 Frigidaire Oven Duct Backorder WCI 139027700 $46.16

161

139006500 Frigidaire Oven Element Backorder WCI 139006500 $30.25

264

139017601 Frigidaire Oven Trim Backorder WCI 139017601 $28.53

272

139021700 Frigidaire Oven Tube Backorder WCI 139021700 $11.32

300

TRIM, MICROWAVE FRAME, BLACK, TOP/BOTTOM WCI 318925001 Contact Us For Availability

301

TRIM, MICROWAVE FRAME, BLACK, SIDES, (2) WCI 318925101 Contact Us For Availability

400

FRAME, MICROWAVE, STAINLESS WCI 318930203 Contact Us For Availability

401

PLATE, SUPPORT, 30", MICROWAVE WCI 139085502 Contact Us For Availability

402

BRACKET, BASE PAD, RH WCI 318276204 Contact Us For Availability

403

BRACKET, BASE PAD, LH WCI 318276206 Contact Us For Availability

316021105 Frigidaire Oven Screw Backorder WCI 316021105 $7.23

318165800 Frigidaire Oven Door Glass Spacer w Backorder WCI 318165800 $11.32

5304470882 Frigidaire Oven Screw Backorder WCI 5304470882 $8.60

5304490877 Frigidaire Oven Harness Backorder WCI 5304490877 $85.03

5304506955 Frigidaire Assembly Harness Backorder WCI 5304506955 $100.30

5304517285 Frigidaire Assembly Harness Backorder WCI 5304517285 $23.11

316001017 Frigidaire Screw Backorder WCI 316001017 $1.83

316205500 Frigidaire Oven Nut In Stock WCI 316205500 $7.25

316418900 Frigidaire Oven Screw Backorder WCI 316418900 $9.06

318946500 Frigidaire Oven Light Bulb Range/Wa Backorder WCI 318946500 $33.97

WCI 318231870 WCI 318231870 Contact Us For Availability

WCI 5303131766 WCI 5303131766 Contact Us For Availability

NIB

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $9.06

NIB

5303289910 Frigidaire Oven Screw Backorder WCI 5303289910 $3.61

NIB

5303323130 Frigidaire Oven Screw In Stock WCI 5303323130 $9.50
