Model Electrolux FGHT2055VF0 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams
01 - COVER SHEET
02 - DOORS

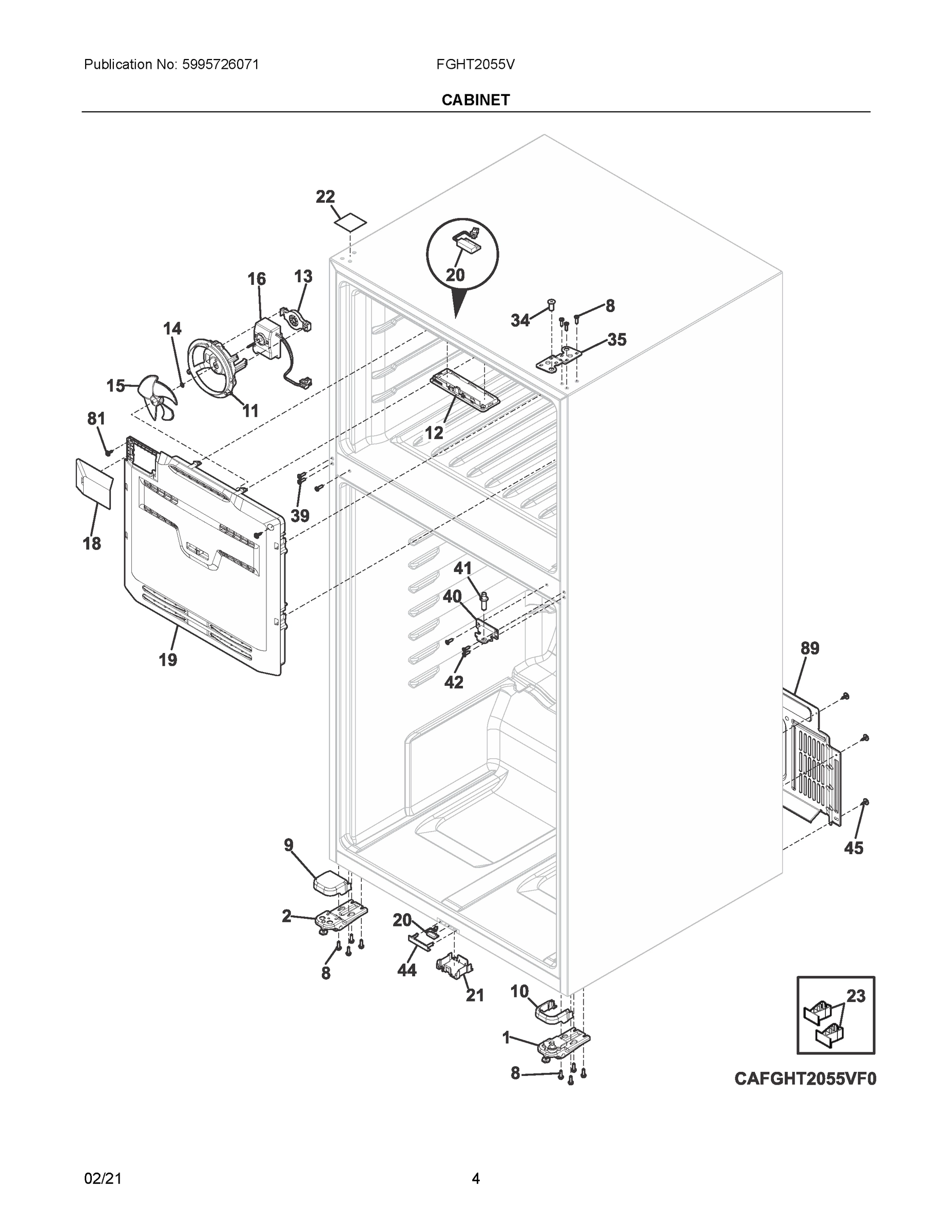

03 - CABINET

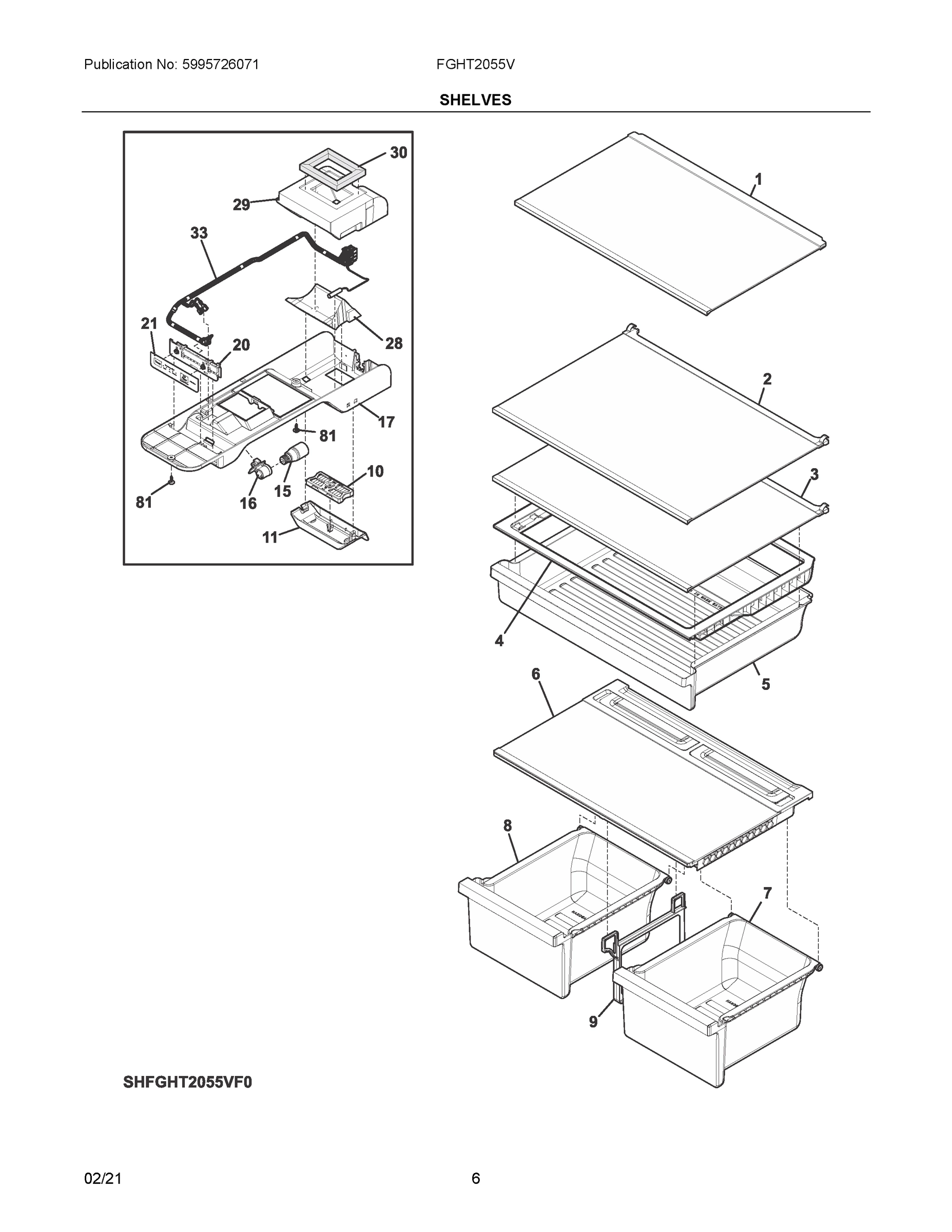

04 - SHELVES

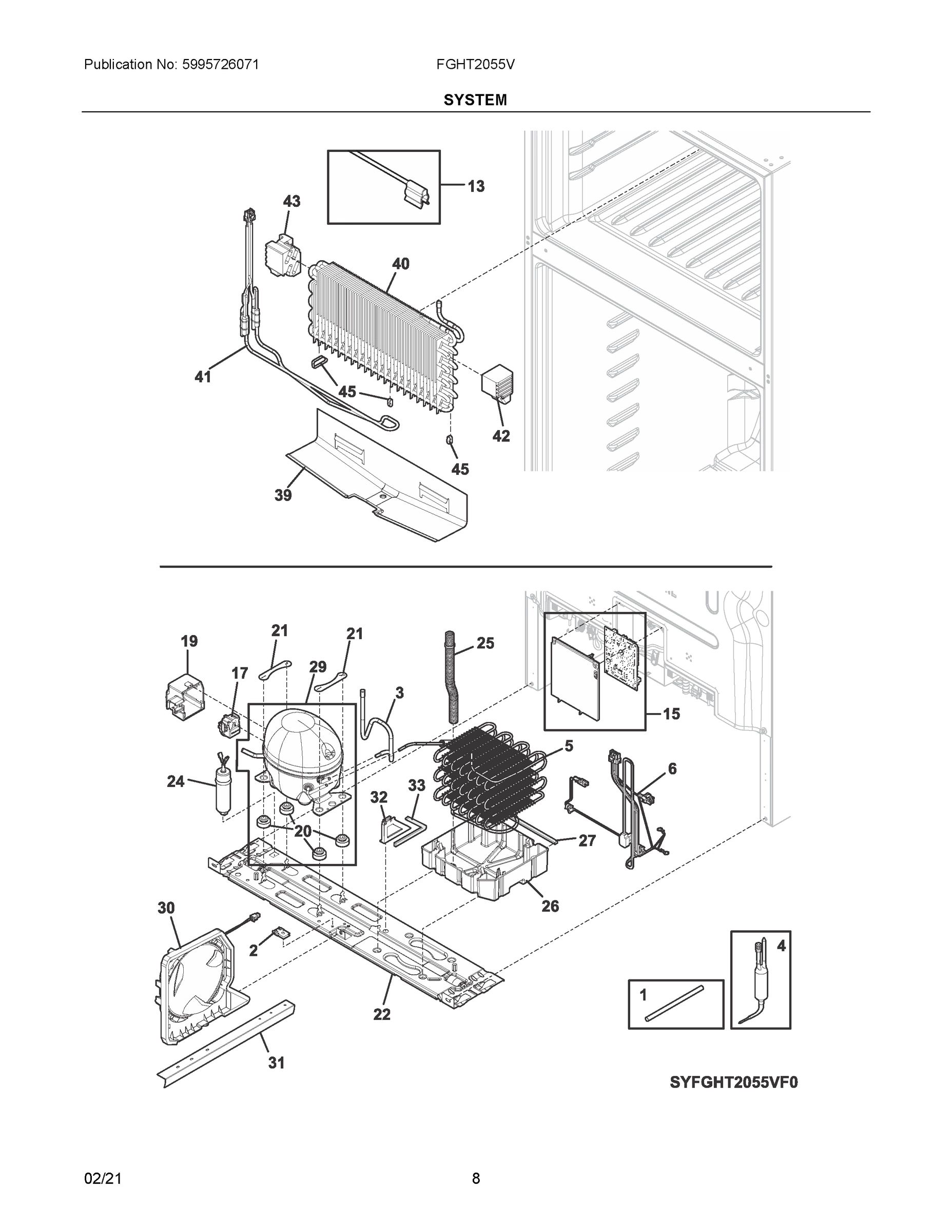

05 - SYSTEM

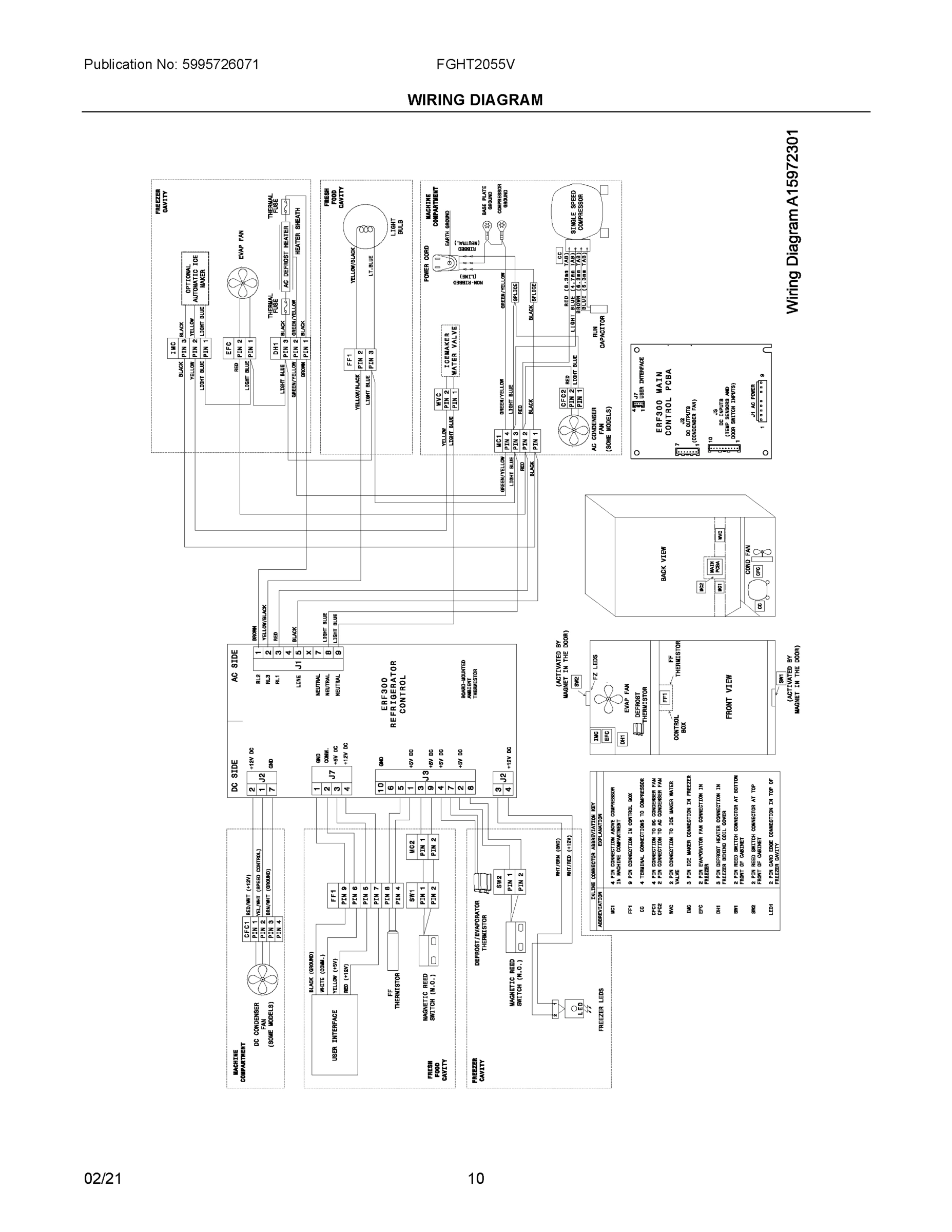

06 - WIRING DIAGRAM
Common parts from model Electrolux FGHT2055VF0 REFRIGERATOR, TOP MOUNT
1
NAMEPLATE, CHROME, FRIG GALLERY WCI 5304512150 Contact Us For Availability
1
TUBE, PROCESS WCI 5304522289 Contact Us For Availability
2
HINGE ASSEMBLY, BOTTOM, LH WCI 5304519776 Contact Us For Availability
2
CLAMP, WIRING HARNESS, GALV STEEL, STRN RELIE WCI 5304456288 Contact Us For Availability
4
FILTER, DRIER, SERVICE WCI A19676501 Contact Us For Availability
6
HARNESS, WIRING, MACHINE COMPT. WCI 5304519649 Contact Us For Availability
8
SCREW, HEX WSH HD QUAD, M5 X 16 WCI 5304522279 Contact Us For Availability
9
BEARING, HINGE, GRAY WCI 5304522194 Contact Us For Availability
9
COVER, HINGE, GRAY, LOWER, NON-HINGED WCI 5304522221 Contact Us For Availability
10
COVER, HINGE SIDE, GRAY, LOWER WCI 5304522246 Contact Us For Availability
11
HOOK, DOOR CLOSER, GRAY WCI 5304522238 Contact Us For Availability
11
SHROUD, EVAPORATOR FAN WCI 5304519752 Contact Us For Availability
12
LIGHT ASSEMBLY, LED, 1X, W/LENS, PCB, HARN WCI 5304524656 Contact Us For Availability
12
SCREW, 8-18 X 1.25 WCI 241953905 Contact Us For Availability
14
MAGNET, REED SWITCH WCI 5304519044 Contact Us For Availability
15
BULB, LIGHT, E17/12 LED WCI 5304522314 Contact Us For Availability
15
PC BOARD ASSEMBLY, MAIN, W/HOUSING WCI 5304528864 Contact Us For Availability
16
MOTOR, EVAPORATOR FAN, BLOWER WCI 242219206 Contact Us For Availability
16
SOCKET, LED LIGHT WCI 5304522315 Contact Us For Availability
17
STARTER, COMPRESSOR, TSD 2.1 WCI 5304522269 Contact Us For Availability
18
COVER, I/M CONNECTOR WCI 5304519662 Contact Us For Availability
19
COVER ASSEMBLY, EVAPORATOR, W/FRZ SLIDE WCI 5304519654 Contact Us For Availability
19
COVER WCI 5304528888 Contact Us For Availability
20
GROMMET, COMPRESSOR WCI 5304522323 Contact Us For Availability
21
COVER, HOUSING, REED SWITCH WCI 5304523792 Contact Us For Availability
21
CLAMP, COMPRESSOR WCI 5304524607 Contact Us For Availability
22
BASE ASSEMBLY, COMPRESSOR, W/ROLLERS WCI 5304519667 Contact Us For Availability
24
CAPACITOR WCI 5304528894 Contact Us For Availability
25
TUBE, DRAIN EXTENSION WCI 5304519743 Contact Us For Availability
26
PAN, DRAIN WCI 5304519674 Contact Us For Availability
27
SEAL, FOAM, DRAIN PAN WCI 5304519750 Contact Us For Availability
28
DIFFUSER, CONTROL BOX, BOTTOM WCI 5304522317 Contact Us For Availability
30
FAN ASSEMBLY, CONDENSER, W/SHROUD-FOAM WCI 5304522173 Contact Us For Availability
31
BAFFLE, DIVIDER, HIGH SIDE WCI 5304524032 Contact Us For Availability
32
BAFFLE, DRAIN PAN, AIR BLOCK WCI 5304519745 Contact Us For Availability
33
SEAL, FOAM, AIR BLOCK WCI 5304519751 Contact Us For Availability
39
TROUGH, EVAP DRAIN WCI 5304519679 Contact Us For Availability
40
EVAPORATOR, ASSEMBLY WCI 5304522324 Contact Us For Availability
40
HINGE, DOOR, GRAY, CENTER WCI 5304522100 Contact Us For Availability
41
HEATER, DEFROST WCI 5304522325 Contact Us For Availability
41
PIN, CENTER HINGE, DOOR WCI 5304519642 Contact Us For Availability
42
SUPPORT, EVAPORATOR, RH WCI 5304522326 Contact Us For Availability
43
SUPPORT, EVAPORATOR, LH WCI 5304522327 Contact Us For Availability
89
ACCESS COVER, REAR WCI 5304522114 Contact Us For Availability
NI
SCREW, HEX HD, #8-18 X 5/8 WCI 241500305 Contact Us For Availability
NIA
SCREW, HX WASH HD, M4.2 X 12 WCI 5304519765 Contact Us For Availability
× ![]()
