Model Electrolux FGHT1846QE3 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams
01 - COVER SHEET

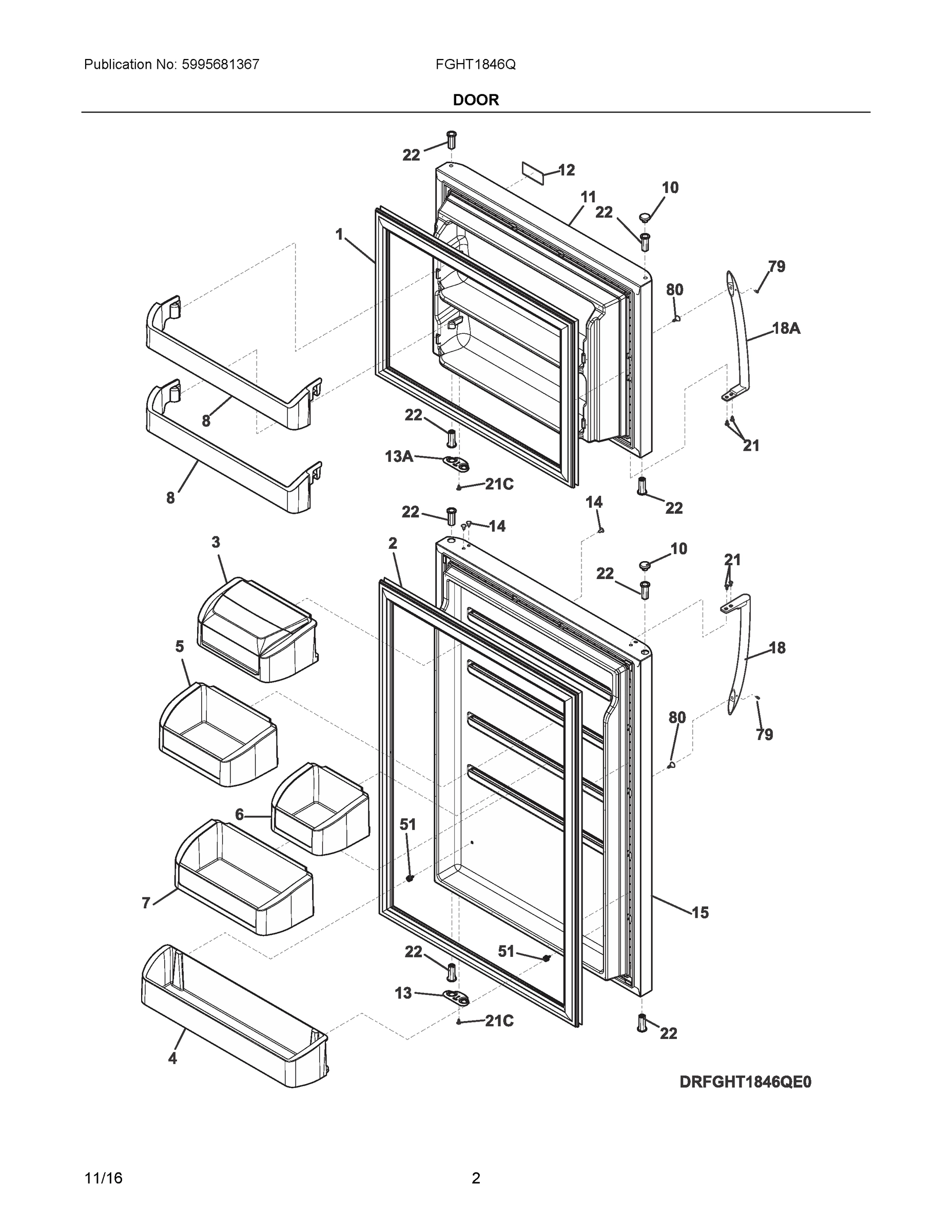

02 - DOOR

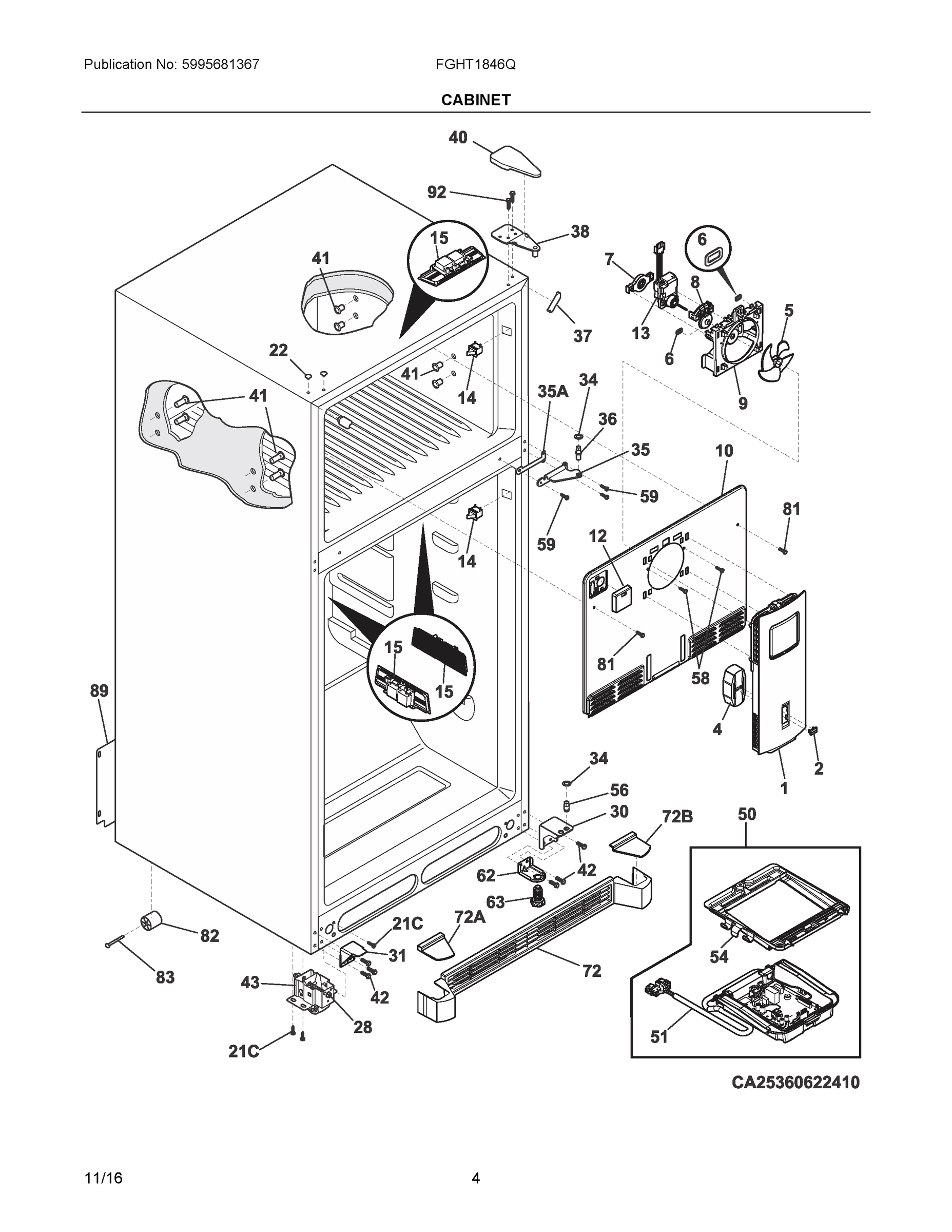

03 - CABINET

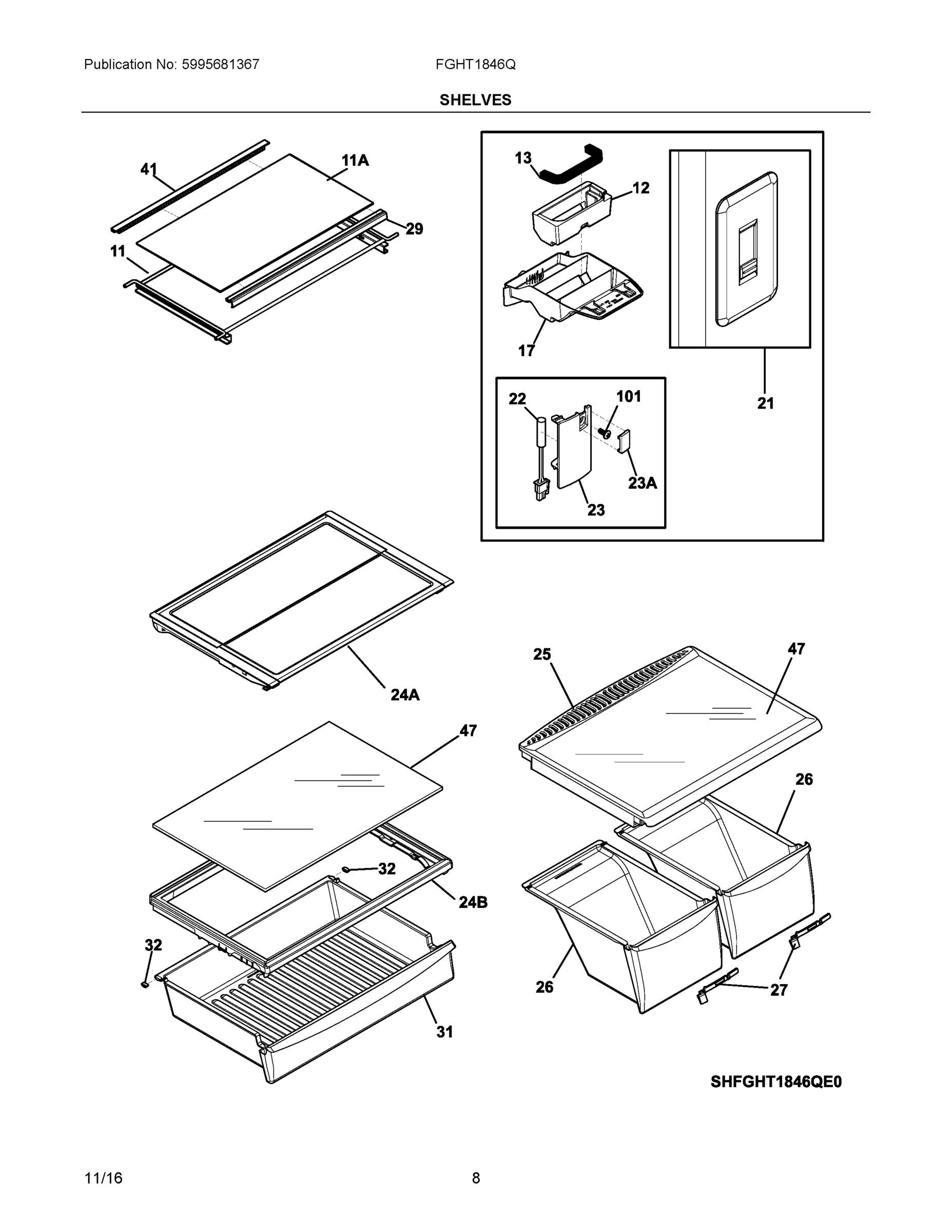

04 - SHELVES

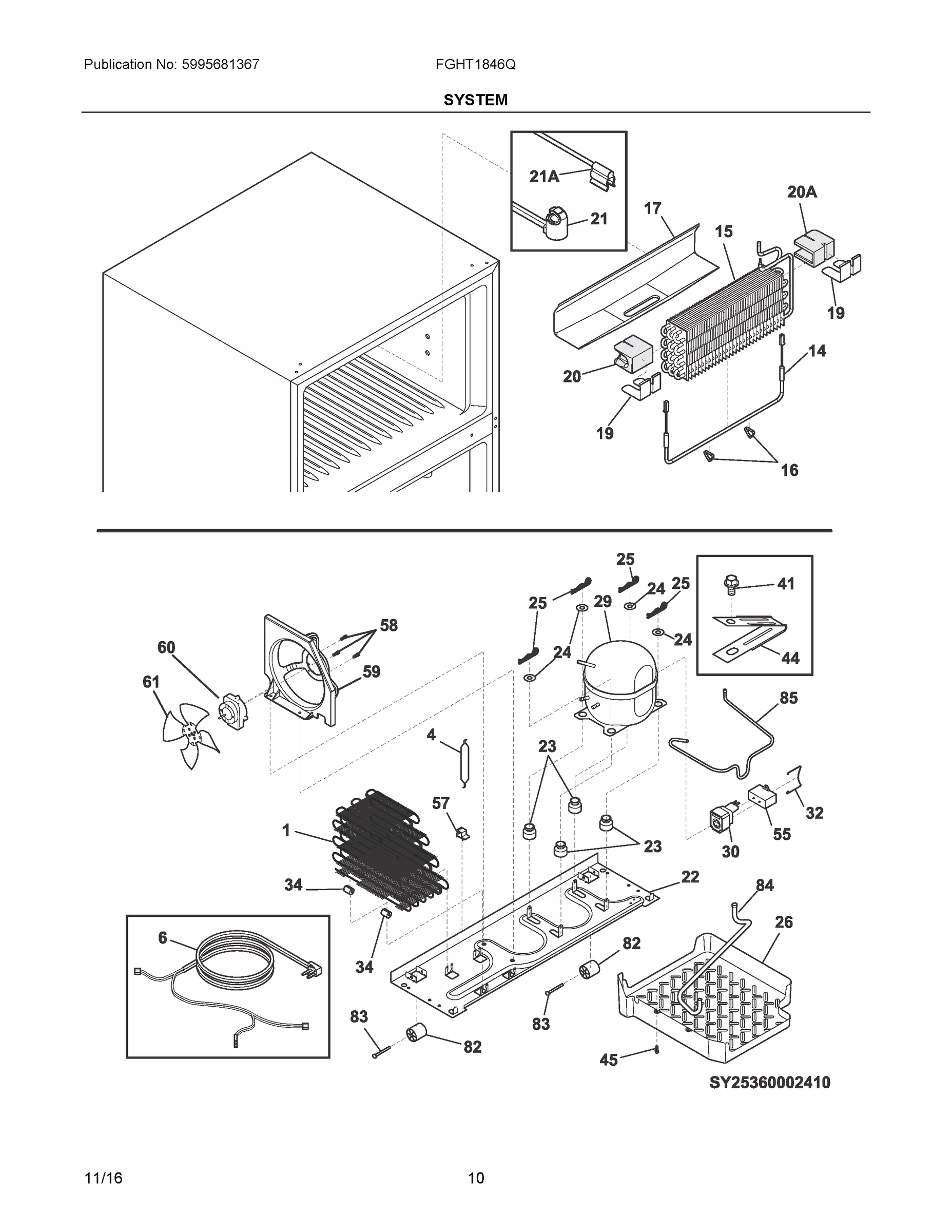

05 - SYSTEM

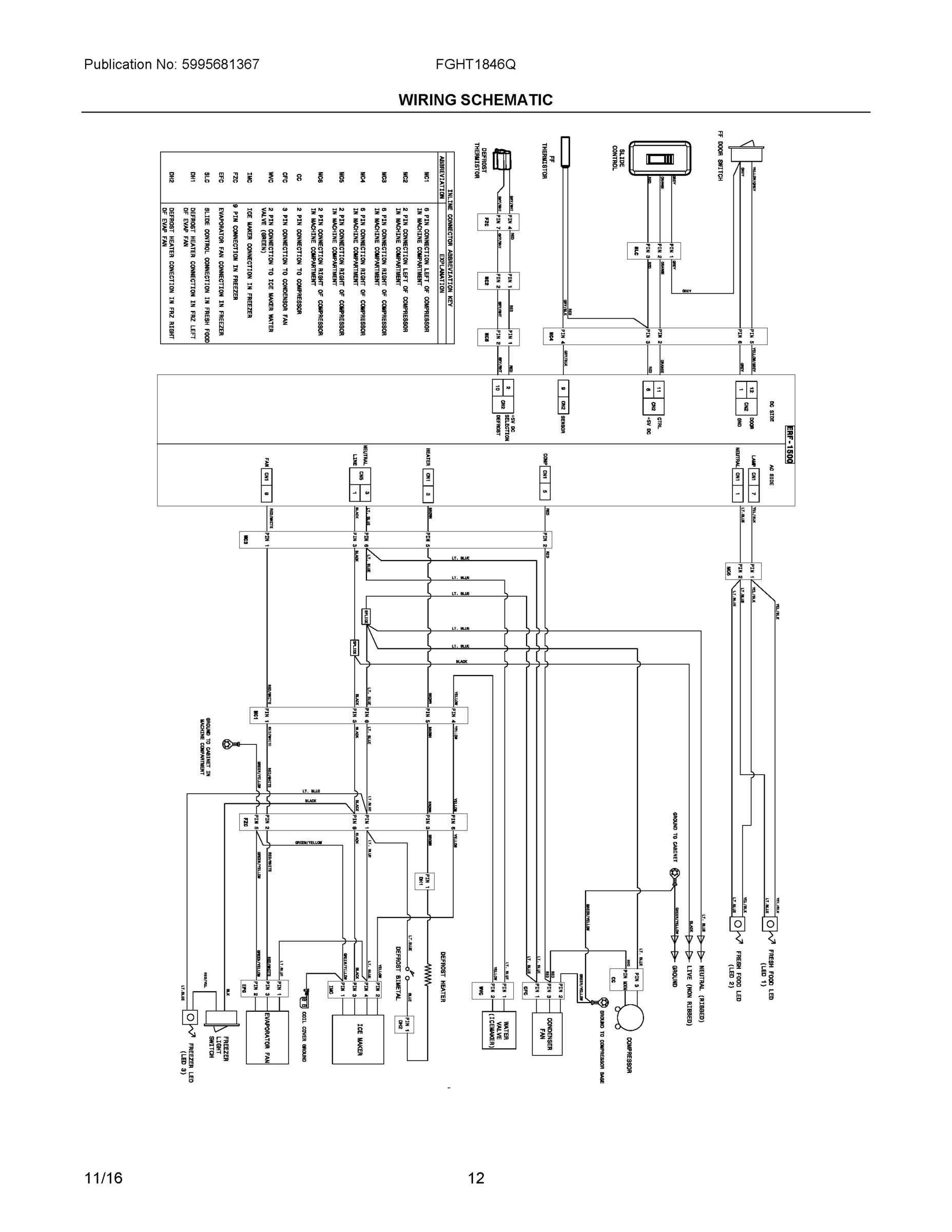

06 - WIRING SCHEMATIC

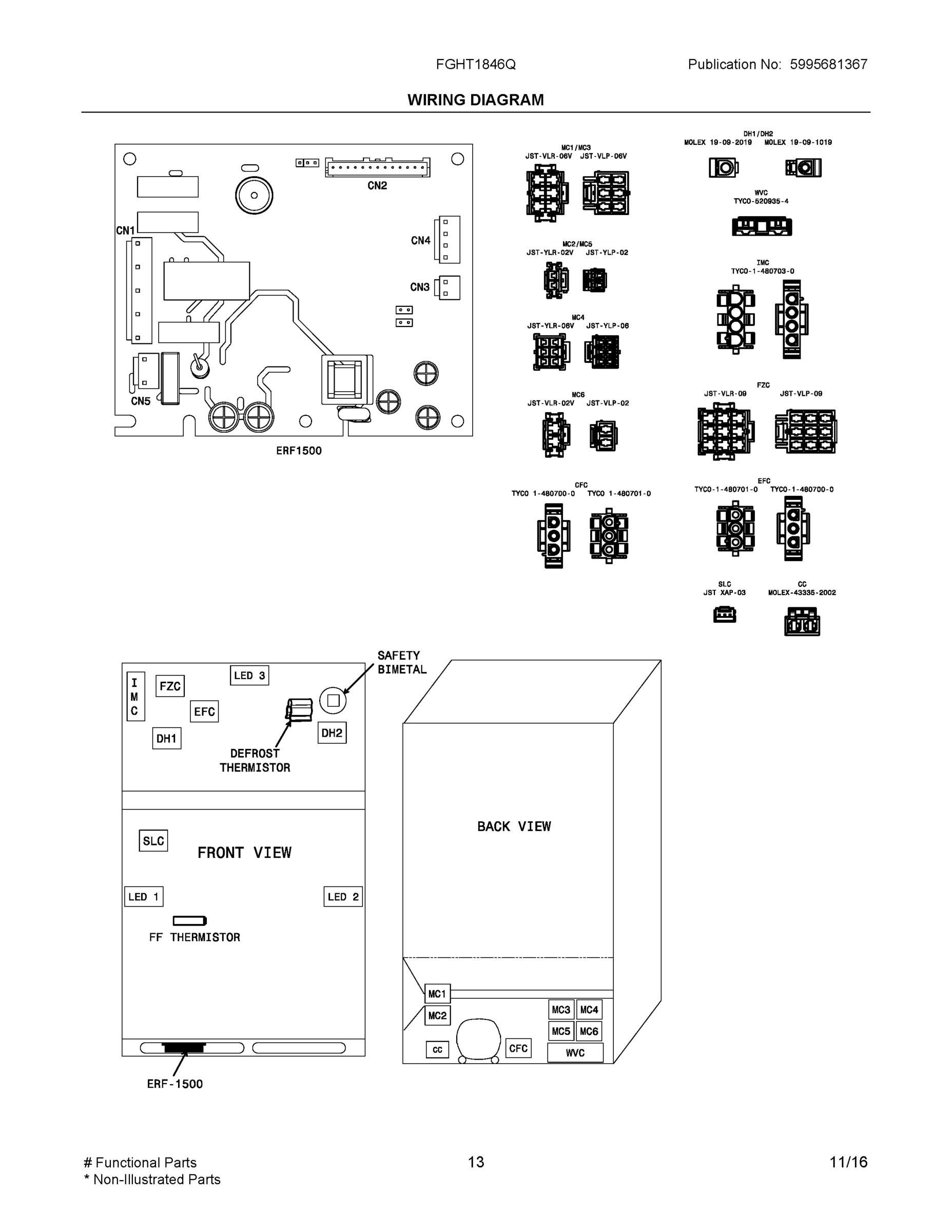

07 - WIRING DIAGRAM
Common parts from model Electrolux FGHT1846QE3 REFRIGERATOR, TOP MOUNT
1
GASKET-FRZR DOOR, BLACK, MAGNETIC WCI 242193209 Contact Us For Availability
1
WCI 5304502821 WCI 5304502821 Contact Us For Availability
1
WCI 242230902 WCI 242230902 Contact Us For Availability
2
GASKET-REFR DOOR, BLACK, MAGNETIC WCI 242193212 Contact Us For Availability
2
WCI 242229401 WCI 242229401 Contact Us For Availability
4
WCI 5304498927 WCI 5304498927 Contact Us For Availability
5
WCI 242219302 WCI 242219302 Contact Us For Availability
5
WCI 242308201 WCI 242308201 Contact Us For Availability
6
WCI 5304497413 WCI 5304497413 Contact Us For Availability
6
WCI 241872713 WCI 241872713 Contact Us For Availability
7
WCI 242287501 WCI 242287501 Contact Us For Availability
8
WCI 242237301 WCI 242237301 Contact Us For Availability
8
WCI 5304498909 WCI 5304498909 Contact Us For Availability
9
WCI 242229301 WCI 242229301 Contact Us For Availability
10
WCI 242239304 WCI 242239304 Contact Us For Availability
10
PLUG-BUTTON, BLACK, HINGE BRG HOLE WCI 240381303 Contact Us For Availability
11
WCI 240437409 WCI 240437409 Contact Us For Availability
11
WCI 242087802 WCI 242087802 Contact Us For Availability
11A
WCI 242087902 WCI 242087902 Contact Us For Availability
12
WCI 242015201 WCI 242015201 Contact Us For Availability
12
WCI 242249201 WCI 242249201 Contact Us For Availability
13A
DOOR STOP, BLACK, FRZR WCI 240312415 Contact Us For Availability
14
WCI 241554901 WCI 241554901 Contact Us For Availability
14
PLUG-BUTTON, BLACK WCI 240494003 Contact Us For Availability
15
WCI 5303918274 WCI 5303918274 Contact Us For Availability
15
WCI 5304498911 WCI 5304498911 Contact Us For Availability
15
WCI 5304499329 WCI 5304499329 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
WCI 241801301 WCI 241801301 Contact Us For Availability
17
WCI 5304498968 WCI 5304498968 Contact Us For Availability
19
SHIELD, HEAT, EVAP BLOCK WCI 242320401 Contact Us For Availability
21
WCI 242249002 WCI 242249002 Contact Us For Availability
21
SCREW, TRUSS HD QUAD, 10 X 16, BLACK WCI 240383408 Contact Us For Availability
22
WCI 5304507147 WCI 5304507147 Contact Us For Availability
22
WCI 215774918 WCI 215774918 Contact Us For Availability
22
BASE-COMPRESSOR, W/ROLLERS WCI 241665606 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
23
WCI 241842301 WCI 241842301 Contact Us For Availability
24
WCI 241812301 WCI 241812301 Contact Us For Availability
24A
WCI 808469701 WCI 808469701 Contact Us For Availability
25
WCI 242201802 WCI 242201802 Contact Us For Availability
25
WCI 242037701 WCI 242037701 Contact Us For Availability
26
WCI 241920605 WCI 241920605 Contact Us For Availability
26
WCI 242218505 WCI 242218505 Contact Us For Availability
30
WCI 241941005 WCI 241941005 Contact Us For Availability
31
WCI 242322201 WCI 242322201 Contact Us For Availability
32
CLIP-SLIDE, PAN WCI 240349801 Contact Us For Availability
32
CLAMP, ELEC CONT MTG, COMPRESSOR WCI 297030500 Contact Us For Availability
34
WASHER, HINGE, NYLON, (2) WCI 240311303 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
35
BRACKET-CTR HINGE, BLACK WCI 240313803 Contact Us For Availability
35A
SPACER-HINGE, CENTER, BLACK WCI 240336803 Contact Us For Availability
37
WCI 242161202 WCI 242161202 Contact Us For Availability
38
WCI 240313703 WCI 240313703 Contact Us For Availability
40
COVER-UPPER HINGE, BLACK WCI 240354404 Contact Us For Availability
41
WCI 5304500407 WCI 5304500407 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
43
WCI 5304499445 WCI 5304499445 Contact Us For Availability
47
INSERT-PAN COVER, 23.82" X 15.50", GLASS WCI 240350608 Contact Us For Availability
51
WCI 809170801 WCI 809170801 Contact Us For Availability
54
WCI 807854301 WCI 807854301 Contact Us For Availability
55
WCI 297286803 WCI 297286803 Contact Us For Availability
56
WCI 240516502 WCI 240516502 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
59
WCI 242050604 WCI 242050604 Contact Us For Availability
59
SCREW-#10-32 X 3/4, BLACK WCI 240442707 Contact Us For Availability
60
WCI 242018301 WCI 242018301 Contact Us For Availability
61
WCI 241639502 WCI 241639502 Contact Us For Availability
72
WCI 5304498916 WCI 5304498916 Contact Us For Availability
72A
WCI 5304498920 WCI 5304498920 Contact Us For Availability
72B
WCI 5304498921 WCI 5304498921 Contact Us For Availability
79
SCREW-SET, 10-32 X .500 IN WCI 218755402 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
81
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
84
TUBE-DRAIN, RUBBER, LOWER WCI 240500801 Contact Us For Availability
85
WCI 5304502967 WCI 5304502967 Contact Us For Availability
89
WCI 241733911 WCI 241733911 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
101
SCREW, QUAD HILO, #8-18 X 0.380 WCI 241953902 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE WCI 5303918263 Contact Us For Availability
NI
HOT TUBE REPAIR KIT, SERVICE WCI 5303918222 Contact Us For Availability
NI
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
NI
SCREW, HEX WSHR HD, 8-15A X 0.500 WCI 218843801 Contact Us For Availability
NIA
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
NIA
SPACER, SHELF WCI 5303299664 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
NIA
PLUG, ROUND, FOAM, ICE MAKER, WATER INLET WCI 241586701 Contact Us For Availability
NIB
WCI 218515401 WCI 218515401 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
× ![]()
