Model Electrolux FGHD2455LF1A DISHWASHER, BUILT-IN, 24 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL

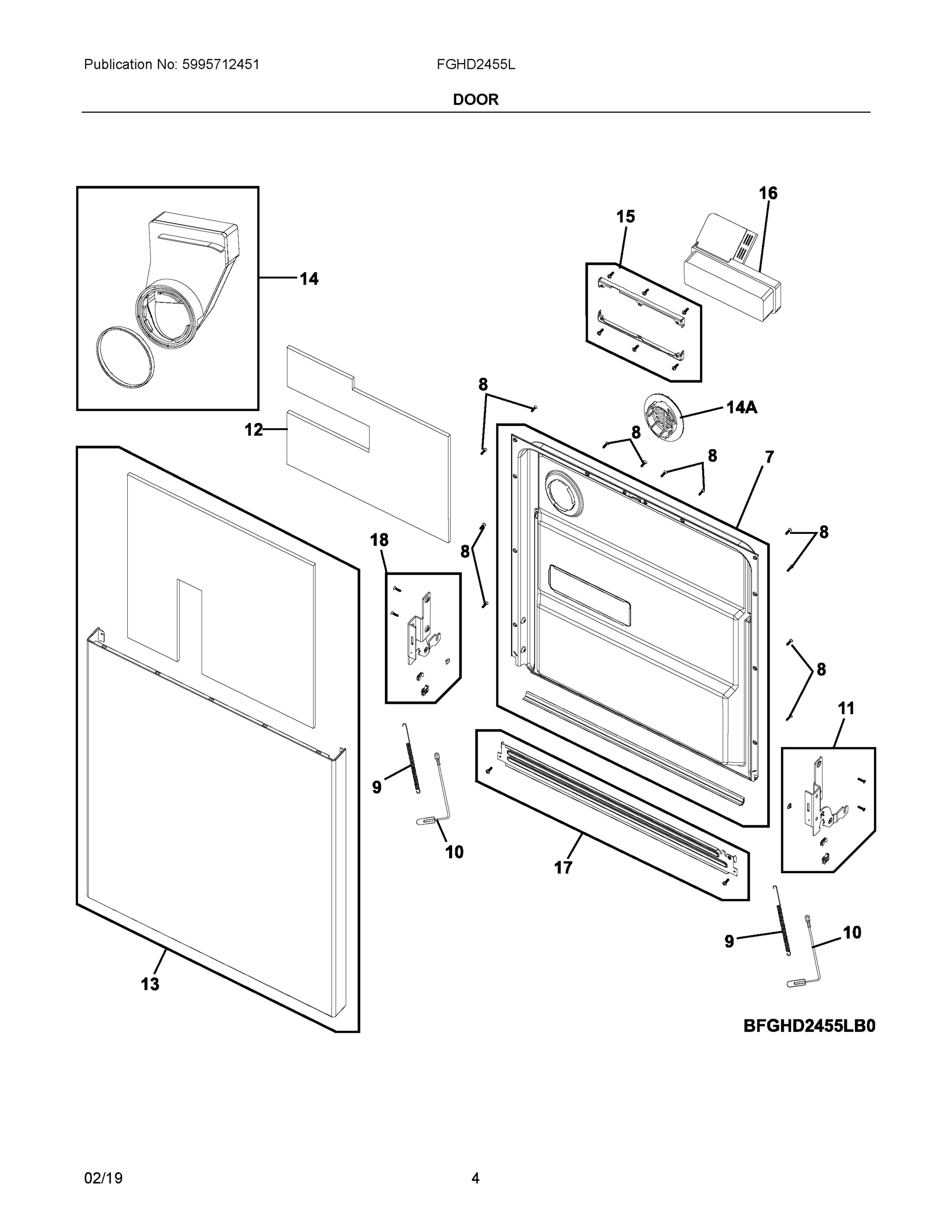

03 - DOOR

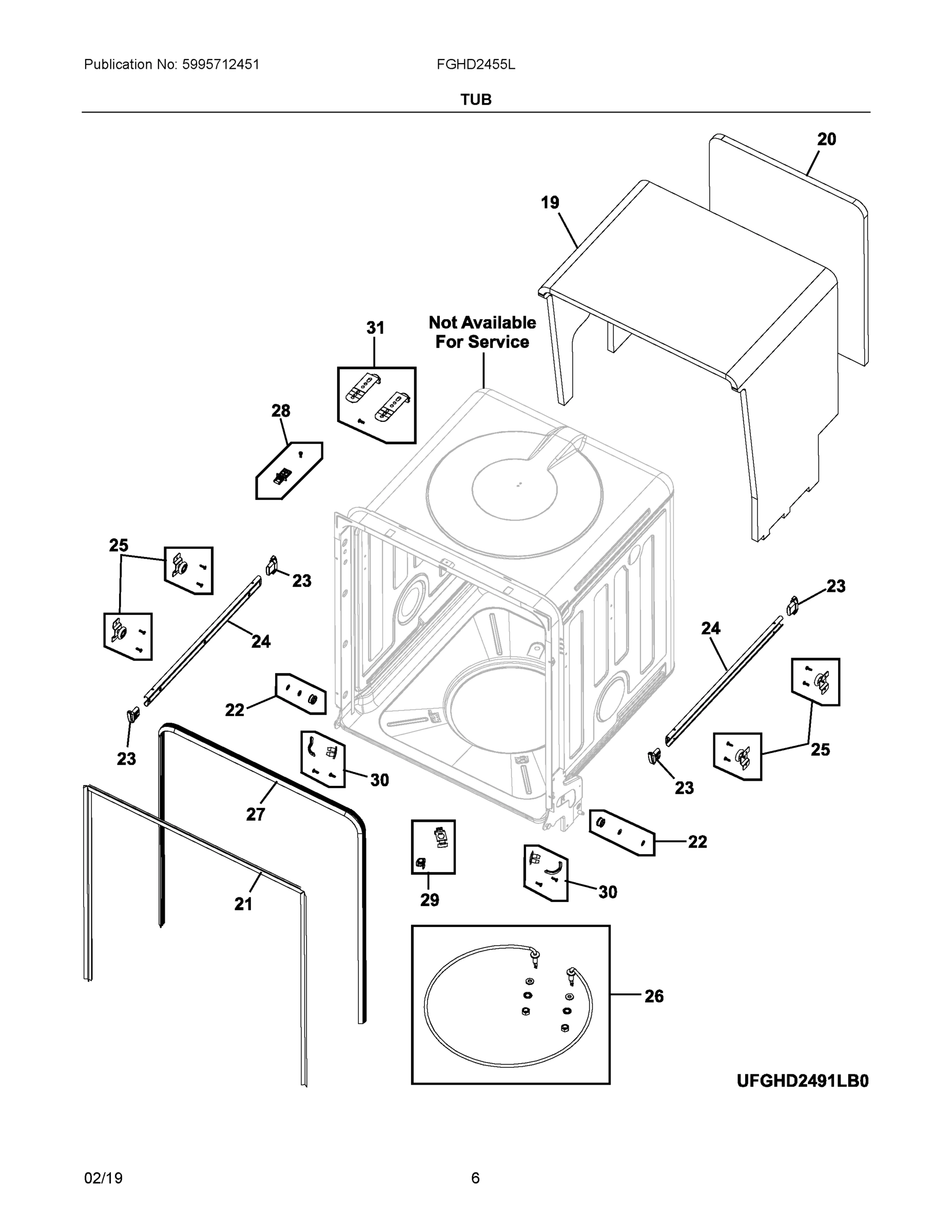

04 - TUB

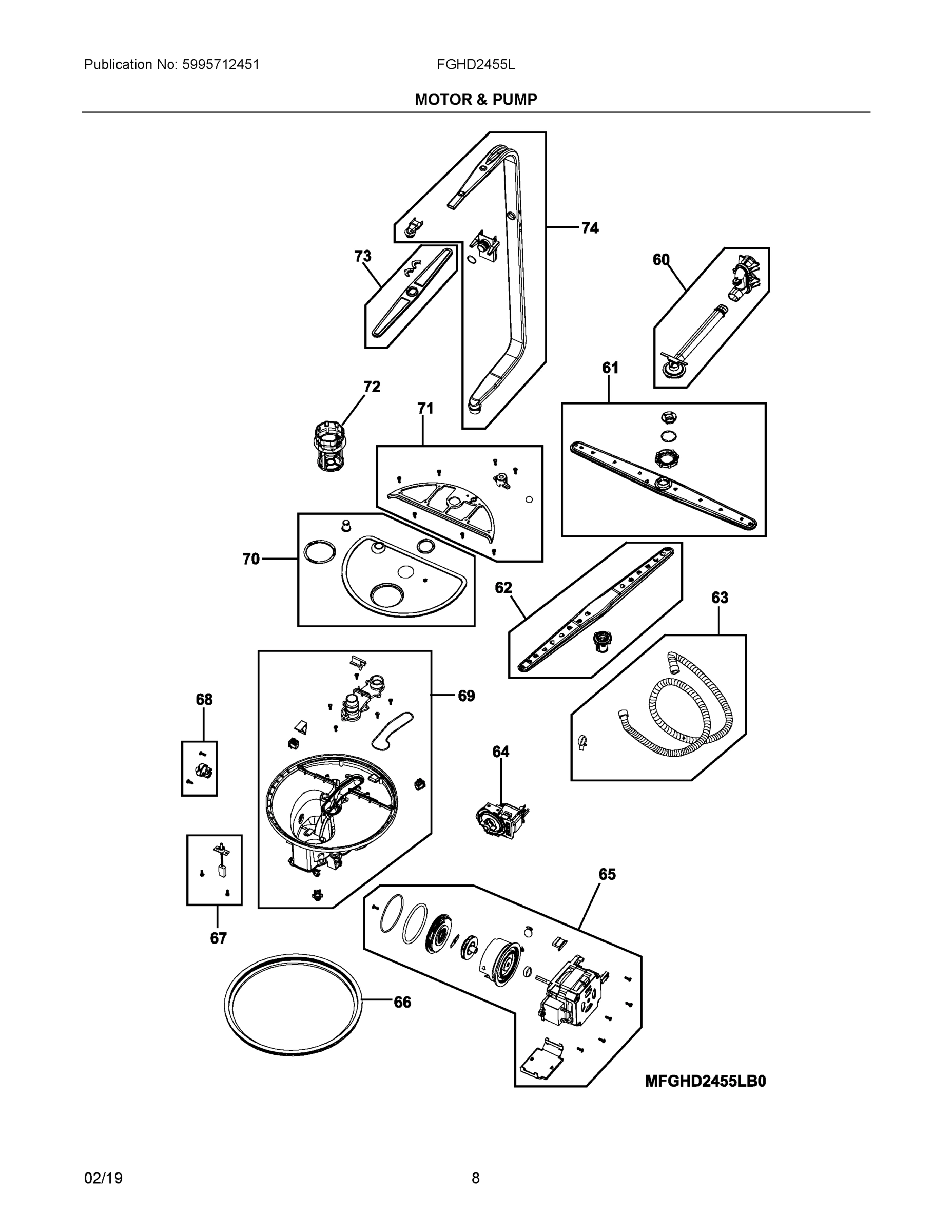

05 - MOTOR & PUMP
06 - FRAME

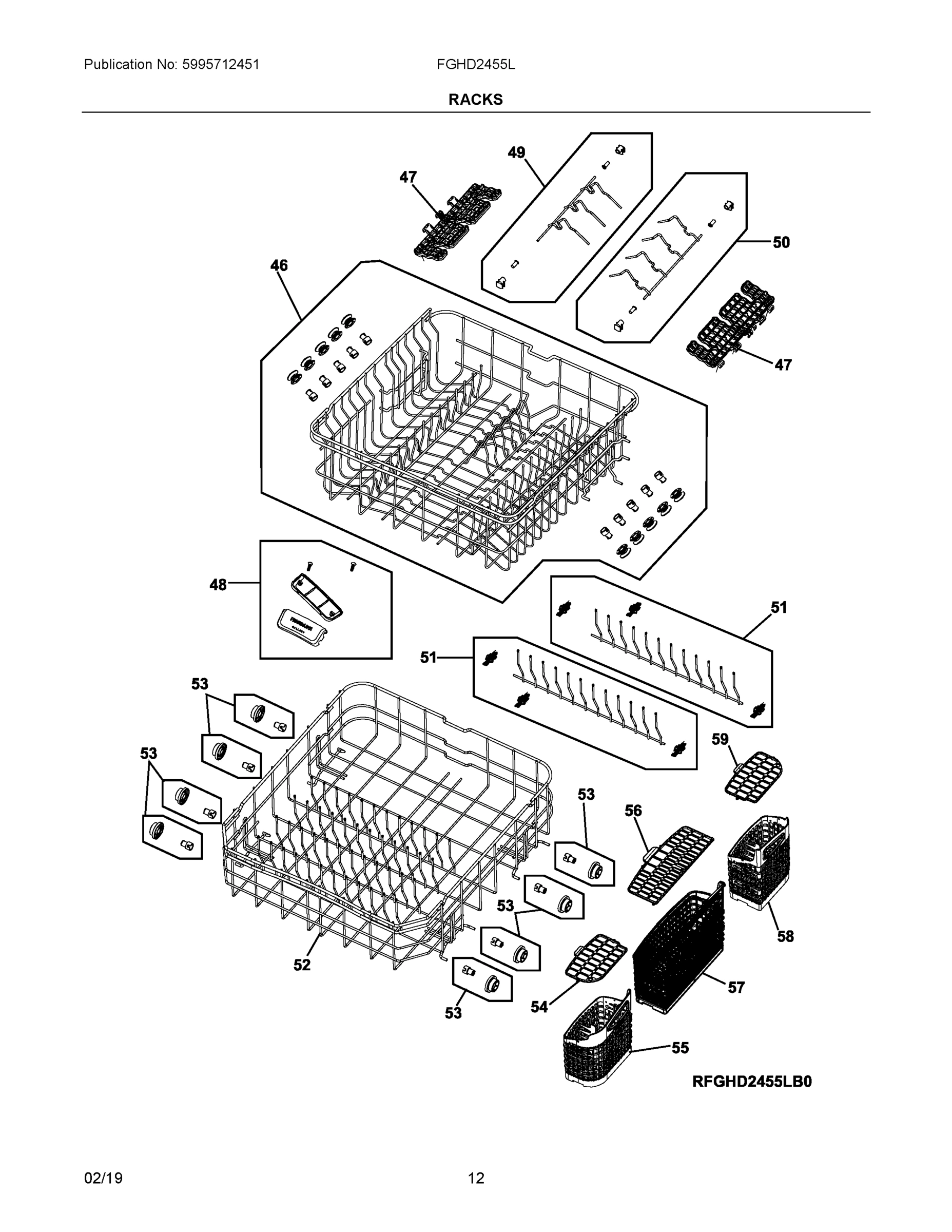

07 - RACKS
Common parts from model Electrolux FGHD2455LF1A DISHWASHER, BUILT-IN, 24 INCH
2
GASKET, PCB COVER WCI 5304475568 Contact Us For Availability
3
PC BOARD ASSEMBLY, MAIN, W/SCREWS WCI 5304480721 Contact Us For Availability
6
CONSOLE ASSEMBLY, BLACK, W/OVERLAY WCI 5304480725 Contact Us For Availability
7
LINER ASSEMBLY, DOOR, INNER, W/MASTIC WCI 5304480727 Contact Us For Availability
11
HINGE ASSEMBLY, RH, W/SCREWS-SPACER WCI 5304475583 Contact Us For Availability
12
INSULATION, DOOR LINER WCI 5304475584 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, STAINLESS, W/INSULATION WCI 5304480750 Contact Us For Availability
14
VENT ASSEMBLY, DOOR WCI 5304480726 Contact Us For Availability
14A
CONNECTOR, DOOR VENT WCI 5304480723 Contact Us For Availability
18
HINGE ASSEMBLY, LH, W/SCREWS-SPACER WCI 5304475590 Contact Us For Availability
19
INSULATION, BLANKET, TOP & SIDES WCI 5304475591 Contact Us For Availability
20
INSULATION, BLANKET, BACK WCI 5304475592 Contact Us For Availability
23
CAP, RACK SLIDE, (4) WCI 5304475595 Contact Us For Availability
24
SLIDE, UPPER RACK, (2) WCI 5304475596 Contact Us For Availability
28
STRIKE ASSEMBLY, LATCH, W/SCREWS WCI 5304475600 Contact Us For Availability
29
THERMOSTAT ASSEMBLY, HI LIMIT, W/BRACKET WCI 5304475601 Contact Us For Availability
30
MOUNTING KIT, SIDE, W/SCREWS WCI 5304475602 Contact Us For Availability
33
HOSE ASSEMBLY, PRESSURE SWITCH, W/CLAMPS WCI 5304475605 Contact Us For Availability
34
SWITCH, PRESSURE WCI 5304475606 Contact Us For Availability
35
HOSE ASSEMBLY, WATER VALVE, W/CLAMPS WCI 5304475607 Contact Us For Availability
36
VALVE ASSEMBLY, WATER, W/SCREWS WCI 5304475608 Contact Us For Availability
38
KICKPLATE ASSEMBLY, BLACK, W/SCREWS WCI 5304475610 Contact Us For Availability
43
COVER ASSEMBLY, JUNCTION BOX, W/SCREW WCI 5304475615 Contact Us For Availability
45
LEG, LEVELING, (4) WCI 5304475617 Contact Us For Availability
46
RACK ASSEMBLY, UPPER, W/ROLLERS WCI 5304480732 Contact Us For Availability
49
FENCE ASSEMBLY, LH, W/BUSHINGS WCI 5304480734 Contact Us For Availability
50
FENCE ASSEMBLY, RH, W/BUSHINGS WCI 5304480735 Contact Us For Availability
56
COVER, MIDDLE BASKET WCI 5304475629 Contact Us For Availability
60
DUCT ASSEMBLY, SPRAY ARM, MIDDLE WCI 5304480739 Contact Us For Availability
61
SPRAY ARM ASSEMBLY, MIDDLE WCI 5304480740 Contact Us For Availability
62
SPRAY ARM ASSEMBLY, LOWER WCI 5304480741 Contact Us For Availability
65
MOTOR ASSEMBLY, WASH, W/SCREWS-SEALS WCI 5304475637 Contact Us For Availability
66
GASKET, SUMP WCI 5304475638 Contact Us For Availability
67
SENSER ASSEMBLY, THERMISTOR, W/SCREWS WCI 5304475639 Contact Us For Availability
71
FILTER ASSEMBLY, FINE, W/SCREWS WCI 5304475643 Contact Us For Availability
73
SPRAY ARM ASSEMBLY, UPPER WCI 5304480744 Contact Us For Availability
× ![]()
