Model Electrolux FGHB2866PP5A REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE – Common Parts & Diagrams
01 - COVER SHEET
02 - FREEZER DRAWER, BASKETS

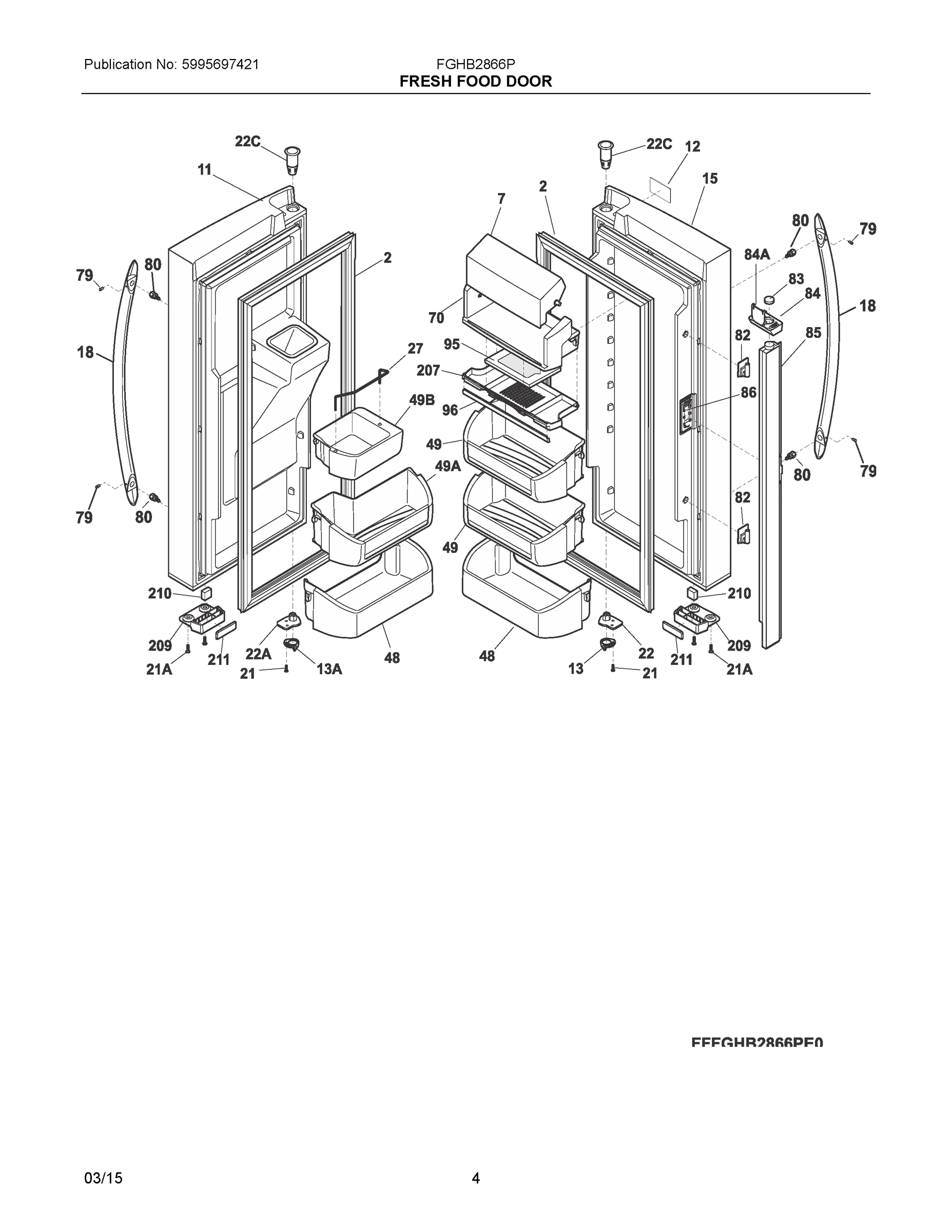

03 - FRESH FOOD DOOR

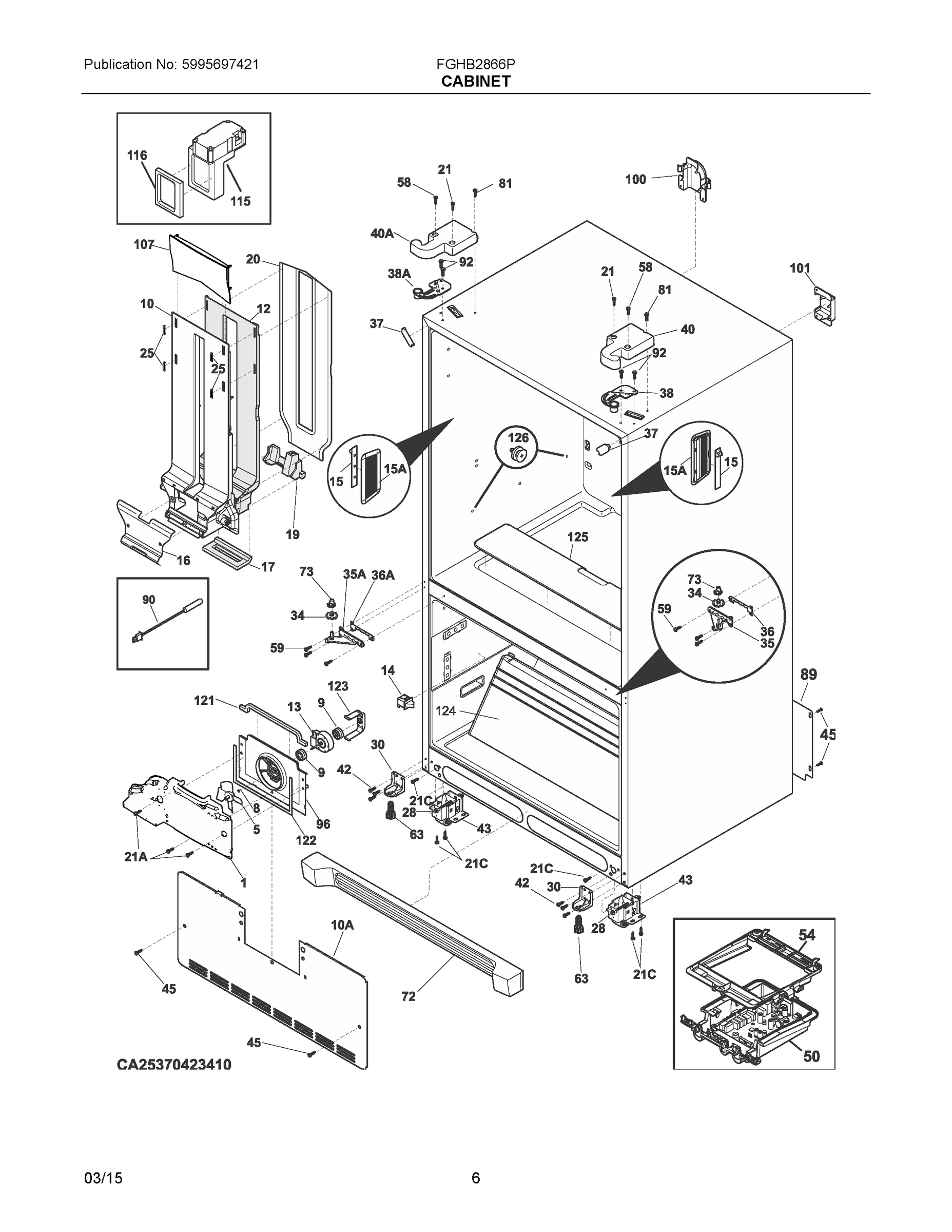

04 - CABINET

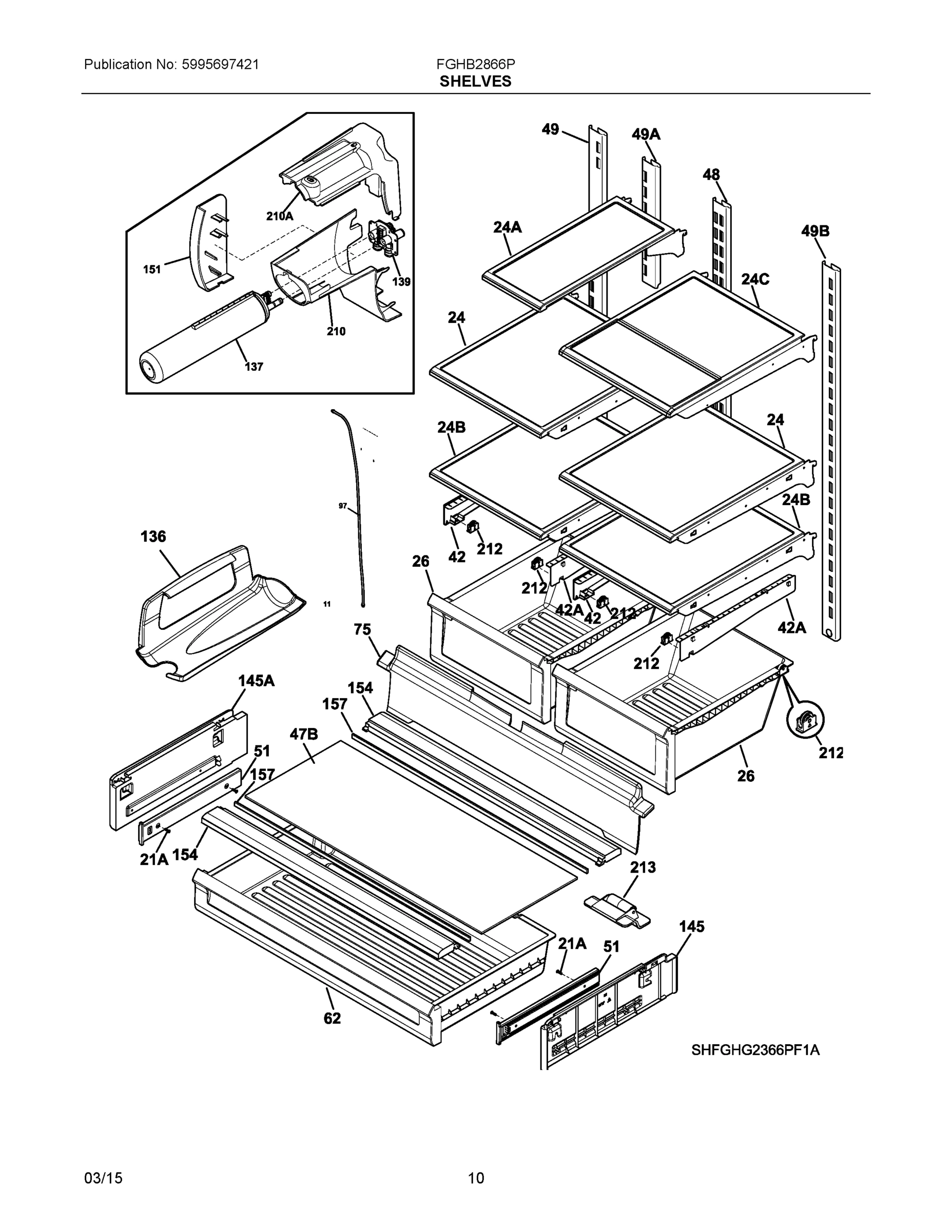

05 - SHELVES

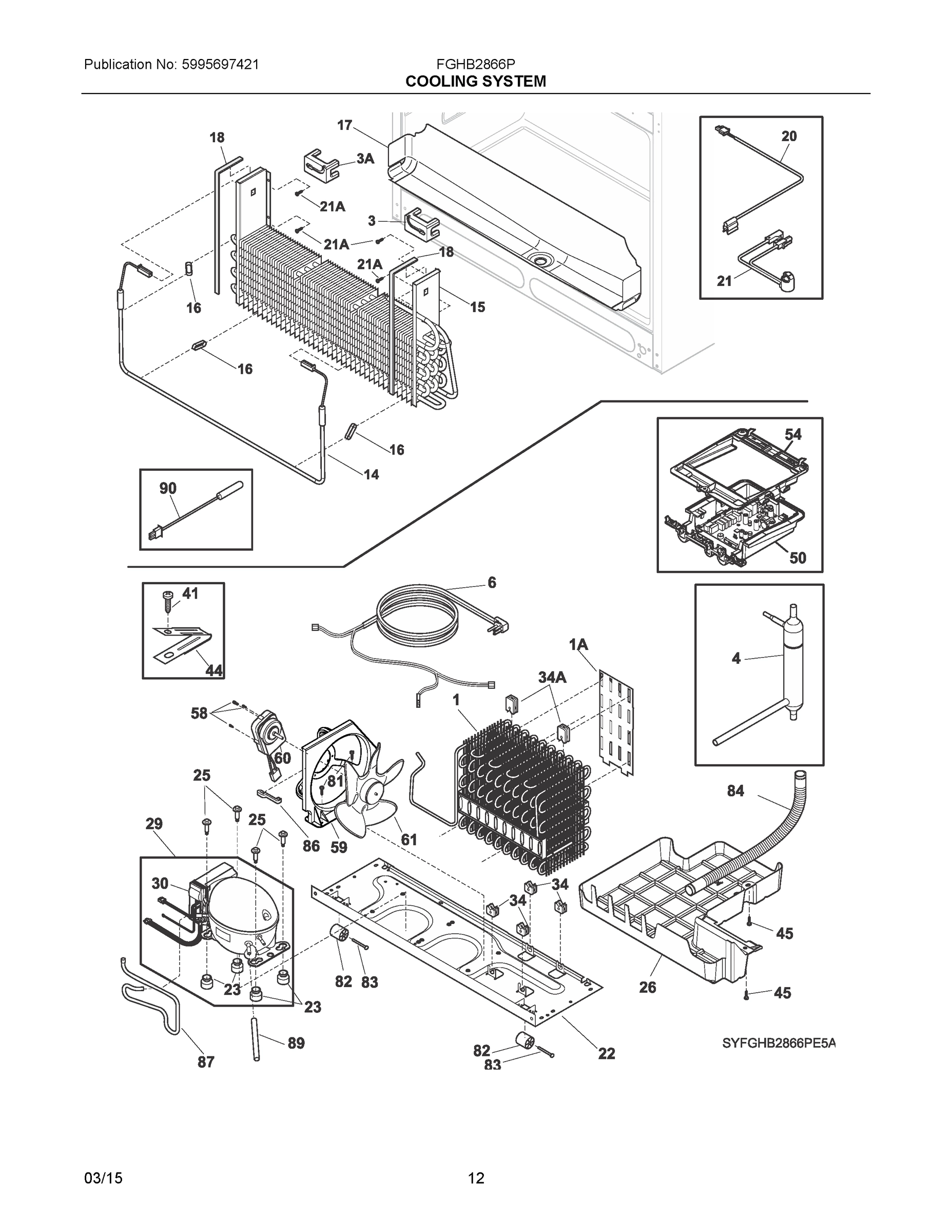

06 - COOLING SYSTEM

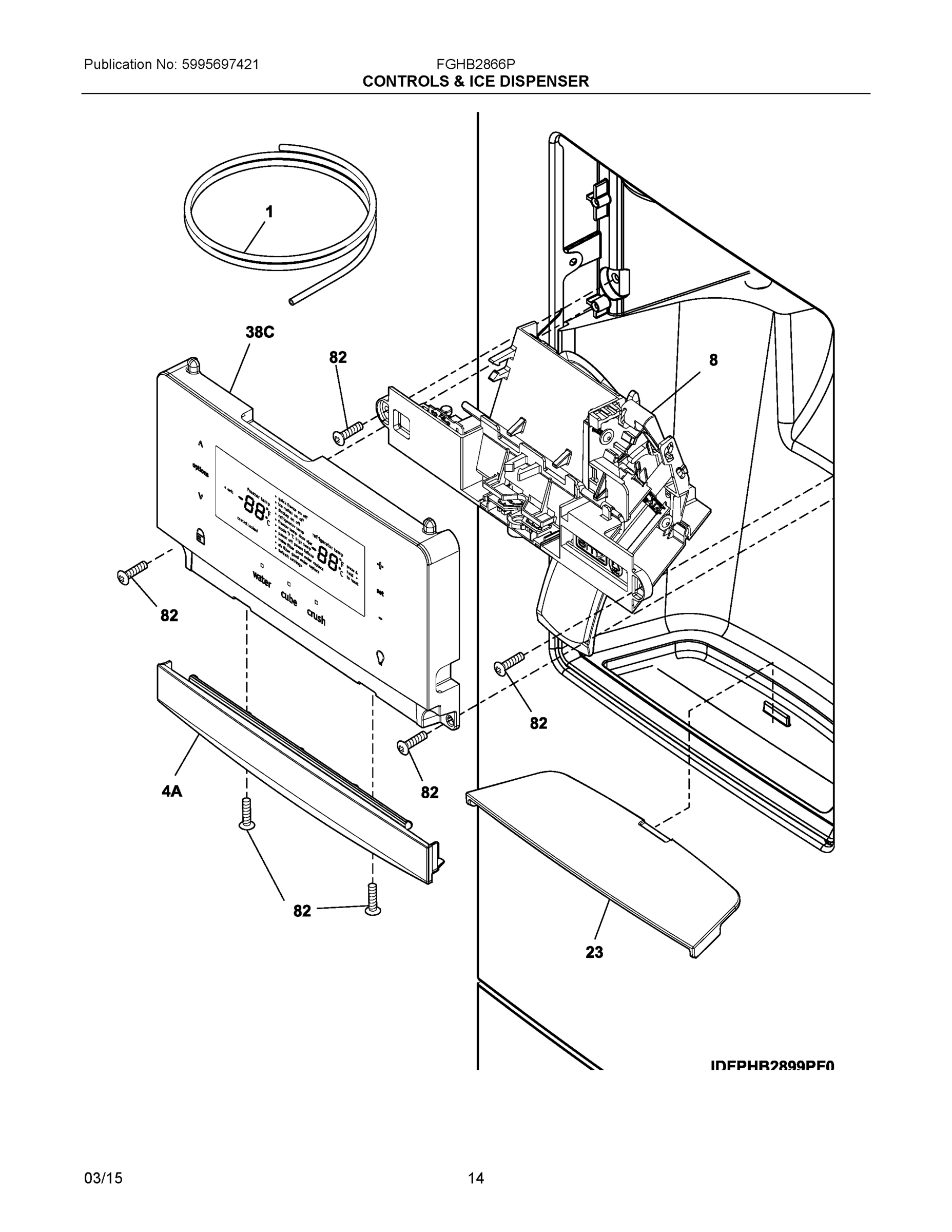

07 - CONTROLS & ICE DISPENSER

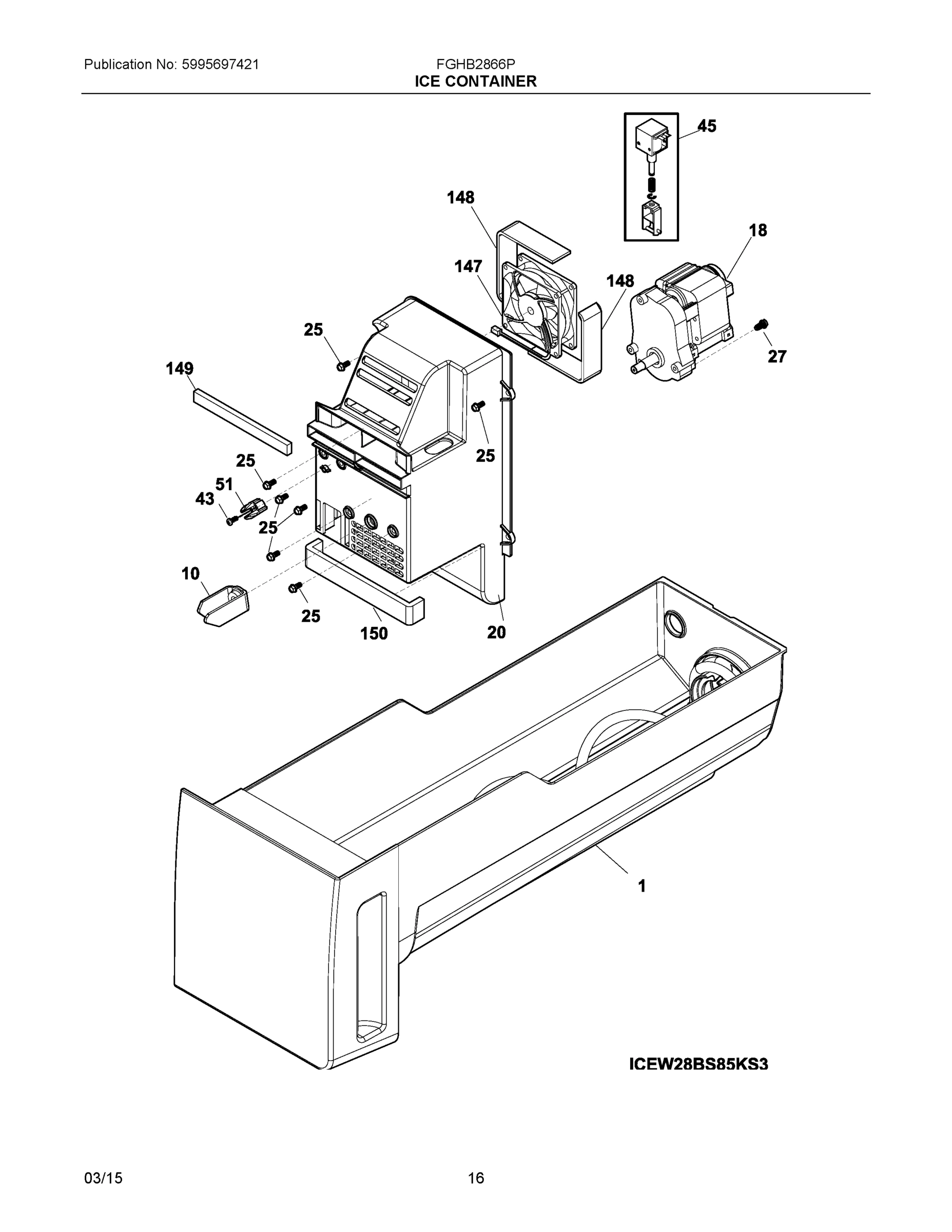

08 - ICE CONTAINER

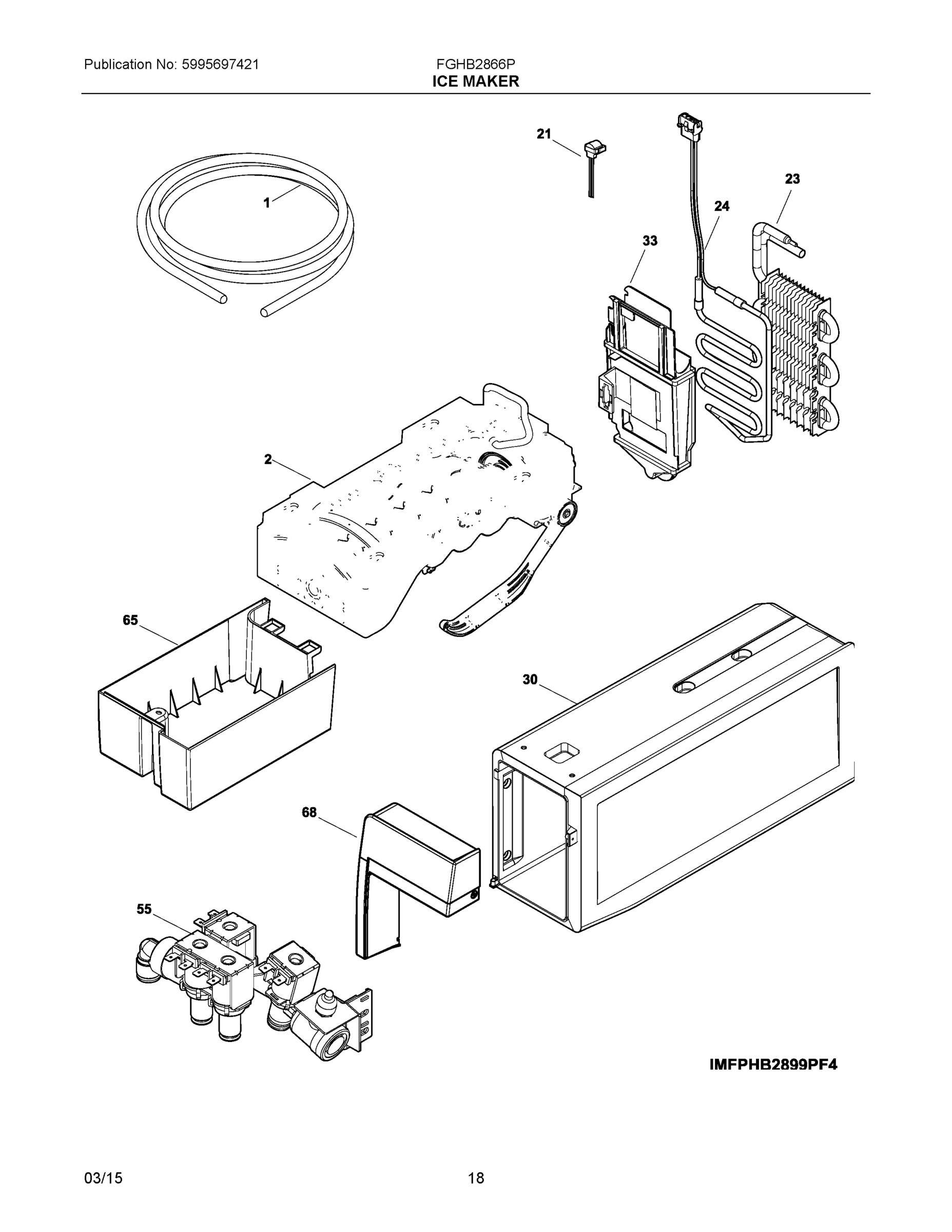

09 - ICE MAKER
10 - WIRING DIAGRAM

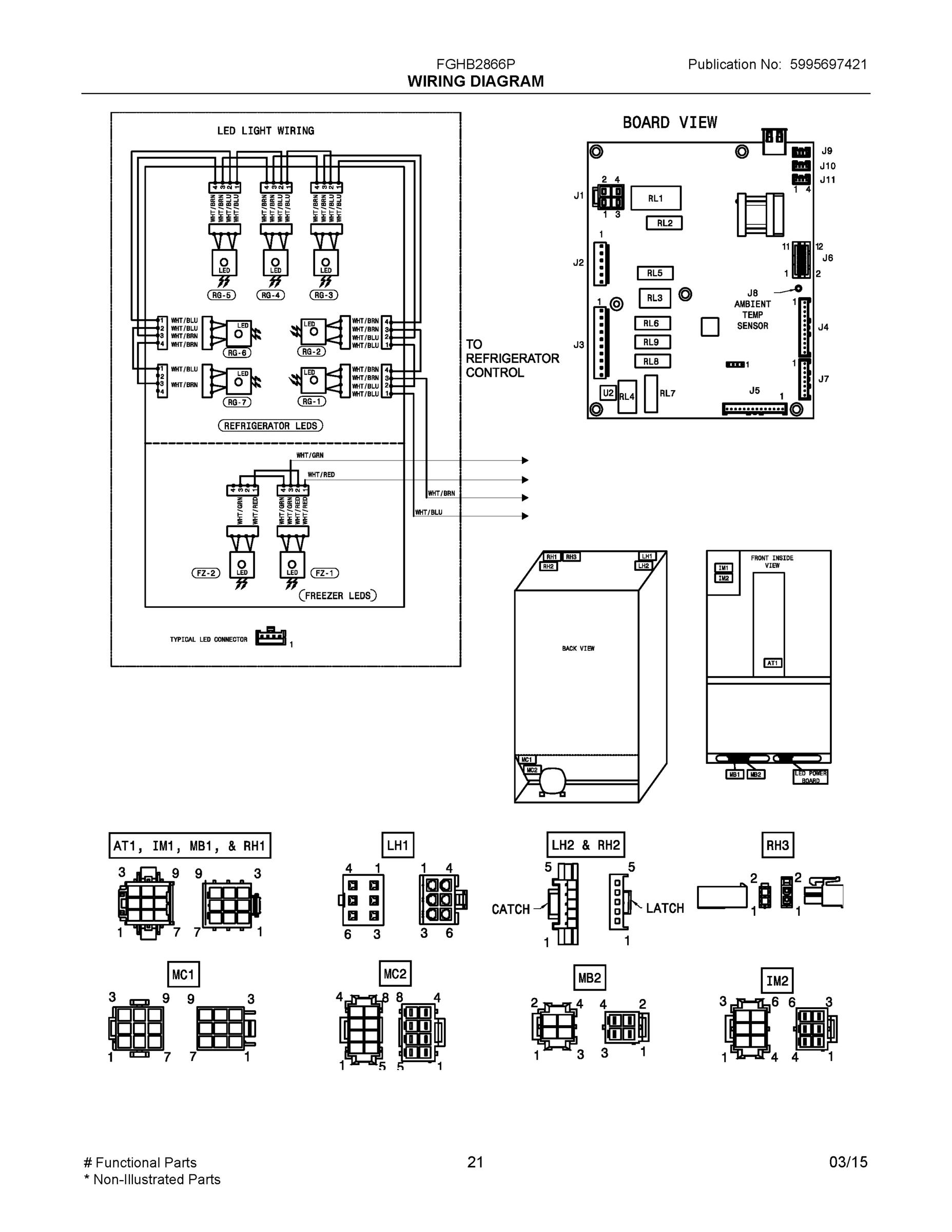

11 - WIRING DIAGRAM
Common parts from model Electrolux FGHB2866PP5A REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE
1
ICE CONTAINER ASSY, W/MOVING PARTS WCI 242093006 Contact Us For Availability
1
CONDENSER WCI 241862903 Contact Us For Availability
4A
TRIM, FACADE, STAINLESS WCI 242194301 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
8
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
9
BUSHING, MOTOR MOUNTING WCI 241518301 Contact Us For Availability
10
BAR-DRIVE WCI 241829001 Contact Us For Availability
10
COVER-AIR DUCT WCI 242072002 Contact Us For Availability
10A
COVER-EVAP COIL, LOWER WCI 241860402 Contact Us For Availability
11
DOOR-FRZR, WHITE, COMPLETE ASSY WCI 241987913 Contact Us For Availability
12
LABEL-NAMEPLATE WCI 242015201 Contact Us For Availability
12
INSULATION-AIR DUCT WCI 242072401 Contact Us For Availability
13
DOOR STOP, REFRIG RH, PLATED WCI 241868401 Contact Us For Availability
13A
DOOR STOP, REFR LH, PLATED WCI 241868402 Contact Us For Availability
14
DEFROST HEATER KIT, 28' WCI 5303918410 Contact Us For Availability
14
SWITCH-LIGHT/LAMP, FRZR DOOR WCI 242060202 Contact Us For Availability
15
EVAPORATOR KIT, C/D FDBM WCI 5303918569 Contact Us For Availability
15
LIGHT BOARD, 3 LED CLUSTER WCI 242196204 Contact Us For Availability
15
DOOR-REFR, WHITE WCI 241988040 Contact Us For Availability
15A
LENS, 3 LED CLUSTER WCI 242202701 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
16
COVER-DAMPER WCI 242072101 Contact Us For Availability
17
GASKET-AIR DUCT WCI 241928201 Contact Us For Availability
17
TROUGH-DRAIN WCI 241791201 Contact Us For Availability
18
MOTOR-AUGER WCI 241816602 Contact Us For Availability
18
GASKET, CLOSED CELL WCI 241860101 Contact Us For Availability
18
HANDLE-DOOR, WHITE WCI 242029402 Contact Us For Availability
19
SUPPORT-EPS DAMPER WCI 242072601 Contact Us For Availability
20
THERMISTOR, DEFROST TEMP WCI 808137001 Contact Us For Availability
20
HOUSING-AIR HANDLER, GEN II IM WCI 242095702 Contact Us For Availability
20
COVER-AIR DUCT, REAR WCI 242072201 Contact Us For Availability
21
THERMOSTAT-DEFROST, DEFROST, ICEMAKER EVAP WCI 5303918568 Contact Us For Availability
21
SCREW, TRUSS HD QUAD, #10-16 X .500, WHITE WCI 240383407 Contact Us For Availability
21
SCREW, 10-32 X 1/2 WCI 241732101 Contact Us For Availability
21
SCREW, 10-32 X 0.750 WCI 242017501 Contact Us For Availability
21A
SCREW, HEX WASHER HEAD, 8-18AB X 1.250, SPACE WCI 218362501 Contact Us For Availability
21C
SCREW, TRUSS HEAD, #10-32 X 1/4, ZINC WCI 241899703 Contact Us For Availability
22
CAM, UPPER HINGE, RH WCI 242075601 Contact Us For Availability
22A
CAM, UPPER HINGE, LH WCI 242075602 Contact Us For Availability
22C
BEARING, HINGE, TOP WCI 241760401 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
23
EVAPORATOR KIT WCI 5303918567 Contact Us For Availability
23
SUMP, DISPENSER, WHITE WCI 242176501 Contact Us For Availability
24
HEATER-DEFROST WCI 242094802 Contact Us For Availability
24
SHELF-"SPILL-SAFE", CANTILEVER, SLIDING WCI 242068701 Contact Us For Availability
24A
SCREW, TRUSS HD QUAD, #10-16 X .750, ZINC WCI 240383412 Contact Us For Availability
24A
SHELF-"SPILL-SAFE", CANTILEVER, 1/4 WIDTH, FL WCI 242200501 Contact Us For Availability
24B
SHELF-"SPILL-SAFE", FIXED WCI 242068703 Contact Us For Availability
24C
SHELF-"SPILL-SAFE", CANTILEVER, HALF WIDTH, S WCI 242235501 Contact Us For Availability
25
CLIP, AIR VENT WCI 241949502 Contact Us For Availability
25
SCREW-COMPRESSOR MTG, 1/4-28 X 1.16, (4) WCI 240491503 Contact Us For Availability
26
PAN-CRISPER WCI 241801802 Contact Us For Availability
27
RETAINER, TALL BOTTLE WCI 241752703 Contact Us For Availability
30
BRACKET-ANTI TIP WCI 241778701 Contact Us For Availability
33
HOUSING-EVAPORATOR WCI 242094401 Contact Us For Availability
34
WASHER, HINGE, NYLON, (2) WCI 241868301 Contact Us For Availability
36
SPACER, DOOR, LOWER RH WCI 241868201 Contact Us For Availability
36A
SPACER, DOOR, LOWER LH WCI 241868202 Contact Us For Availability
38
BRACKET-UPPER HINGE, RH WCI 241761301 Contact Us For Availability
38A
BRACKET-UPPER HINGE, LH WCI 241761302 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
42
SUPPORT, CRSPR PAN ROLLE WCI 242067901 Contact Us For Availability
42A
SUPPORT, CRSPR PAN ROLLE WCI 242067801 Contact Us For Availability
43
SCREW WCI 241641502 Contact Us For Availability
47B
GLASS, DELI COVER WCI 242082303 Contact Us For Availability
48
BIN-DOOR, PSEUDO, WHITE WCI 242071401 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER WCI 242122101 Contact Us For Availability
49
BIN-DOOR, GALLON WCI 242037201 Contact Us For Availability
49
CHANNEL-SHELF MTG, SIDE, LH WCI 242122202 Contact Us For Availability
49A
BIN-DOOR, 2-LITER WCI 242037202 Contact Us For Availability
49A
BASKET-FRZR, UPPER WCI 241780810 Contact Us For Availability
49A
CHANNEL-SHELF MTG, CENTER, ICEMAKER SHELF WCI 242122001 Contact Us For Availability
49B
BIN-DOOR, DISPENSER WCI 242011701 Contact Us For Availability
49B
CHANNEL-SHELF MTG, SIDE, RH WCI 242122301 Contact Us For Availability
51
SLIDE, DELI, (2) WCI 242197901 Contact Us For Availability
51
PIN-ANTI TWIST BKT GEN II IM WCI 242095501 Contact Us For Availability
51A
SLIDE ASSEMBLY, BASKET, RH, FREEZER DRAWER WCI 241894223 Contact Us For Availability
52A
SLIDE ASSEMBLY, BASKET, LH, FREEZER DRAWER WCI 241894224 Contact Us For Availability
54
SUPPORT, HOUSING, MAIN BOARD WCI 807854301 Contact Us For Availability
55
VALVE-WATER, QUAD SOLENOID WCI 242253002 Contact Us For Availability
58
SCREW WCI 241853202 Contact Us For Availability
59A
SHROUD-COND FAN WCI 241946106 Contact Us For Availability
60
MOTOR-CONDENSER FAN WCI 242018301 Contact Us For Availability
62
PAN-DELI WCI 242096802 Contact Us For Availability
63
SCREW, LEVELING FOOT, PLASTIC, ADJUSTABLE WCI 216396900 Contact Us For Availability
65
COVER, WIRING WCI 808456301 Contact Us For Availability
68
COVER, -FRONT, BUCKET TRIM WCI 242095002 Contact Us For Availability
72
GRILLE/KICK WCI 242054803 Contact Us For Availability
73
WCI 242075701 WCI 242075701 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
81
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
82
HINGE-MULLION, UPPER/LOWER, FLIPPER WCI 241779401 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR WCI 240335202 Contact Us For Availability
82
SCREW, #8 - 18 X .380 WCI 241953902 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
83
MAGNET, FREEZER DRAWER WCI 241812202 Contact Us For Availability
84
GUIDE-MULLION, MAGNET COVER, FLIPPER WCI 808274201 Contact Us For Availability
84A
COVER-MULLION, MAGNET COVER WCI 242190501 Contact Us For Availability
85
FLIPPER MULLION ASSEMBLY, W/HEATER WCI 241778808 Contact Us For Availability
85
DIVIDER, BASKET, LOWER WCI 242130901 Contact Us For Availability
85A
SUPPORT-BEAM, DIVIDER, LOWER BASKET WCI 242139301 Contact Us For Availability
85B
SUPPORT-BEAM WCI 241872203 Contact Us For Availability
86
SPACER-COND TUBE, BLACK WCI 240409302 Contact Us For Availability
87
TUBE-CONNECTOR, SUCTION WCI 241871501 Contact Us For Availability
89
BRACKET-FREEZER DRAWER WCI 241972302 Contact Us For Availability
89
TUBE-PROCESS WCI 215346900 Contact Us For Availability
90
BAR-TIMING WCI 242136901 Contact Us For Availability
92
WCI 241710601 WCI 241710601 Contact Us For Availability
93
WCI 241835501 WCI 241835501 Contact Us For Availability
96
WCI 241860601 WCI 241860601 Contact Us For Availability
100
WCI 242157601 WCI 242157601 Contact Us For Availability
101
WCI 242157801 WCI 242157801 Contact Us For Availability
102
BLOCK-HANDLE MTG WCI 242029301 Contact Us For Availability
102
WCI 242157501 WCI 242157501 Contact Us For Availability
103
SCREW, #10 AB FLAT HD WCI 242077302 Contact Us For Availability
105
TRIM-BASKET WCI 242116801 Contact Us For Availability
107
WCI 241963102 WCI 241963102 Contact Us For Availability
116
WCI 241518601 WCI 241518601 Contact Us For Availability
123
WCI 242135301 WCI 242135301 Contact Us For Availability
125
WCI 242071201 WCI 242071201 Contact Us For Availability
136
DISPENSER-CAN, WHITE WCI 241657701 Contact Us For Availability
148
GASKET WCI 242095406 Contact Us For Availability
151
COVER-WATER FILTER WCI 242069701 Contact Us For Availability
154
SUPPORT WCI 242082401 Contact Us For Availability
157
BEAM-CRISPER COVER WCI 241872201 Contact Us For Availability
207
HOUSING-AIR FILTER WCI 242047901 Contact Us For Availability
209
HOUSING, MAGNET, WHITE WCI 242291001 Contact Us For Availability
210
MAGNET, DOOR WCI 241779101 Contact Us For Availability
210
HOUSING-WATER FILTR WCI 241983816 Contact Us For Availability
211
BUMPER, RUBBER, WHITE WCI 241979601 Contact Us For Availability
212
ROLLER ASSEMBLY, CRISPER PAN WCI 242236801 Contact Us For Availability
213
ROLLER ASSY, DELI PAN WCI 242010901 Contact Us For Availability
NI
KIT, DSPNSR HEATER, AC WCI 5303918596 Contact Us For Availability
NI
WCI 240494001 WCI 240494001 Contact Us For Availability
NI
CONNECTOR-WATER, STRAIGHT, 5/16 TO 1/4 WCI 241503901 Contact Us For Availability
NI
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
NI
BUMPER, FLIPPER MULLION WCI 242068601 Contact Us For Availability
NI
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 WCI 241500303 Contact Us For Availability
NI
SCREW, SER HEX WASH HD, 1/4-20 X 5/8, (4) WCI 242146401 Contact Us For Availability
NI
SCREW, 8-18 X 1/2 WCI 242015001 Contact Us For Availability
NI
HARNESS-DISPENSER, GROUNDING WCI 241510904 Contact Us For Availability
NI
WCI 241947701 WCI 241947701 Contact Us For Availability
NI
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL WCI 240396801 Contact Us For Availability
NIA
SCREW WCI 241695904 Contact Us For Availability
NIA
TUBE-WATER, ICE MOLD FILL, BLACK, EXTENSION WCI 241844403 Contact Us For Availability
NIA
WCI 218252201 WCI 218252201 Contact Us For Availability
NIA
WCI 242141401 WCI 242141401 Contact Us For Availability
NIA
INSULATION, I/CONTAINER FRT WCI 242096001 Contact Us For Availability
NIA
WCI 241842301 WCI 241842301 Contact Us For Availability
NIA
HARNESS-WIRING, AIR HANDLER WCI 242095805 Contact Us For Availability
NIA
SCREW, QUAD HILO, #8-18 WCI 241953908 Contact Us For Availability
NIA
WCI 241860111 WCI 241860111 Contact Us For Availability
NIA
WCI 242036801 WCI 242036801 Contact Us For Availability
NIA
PIN-LOCK WCI 242011101 Contact Us For Availability
NIAA
SCREW, BASKET SLIDES WCI 242039701 Contact Us For Availability
NIAB
WCI 241860104 WCI 241860104 Contact Us For Availability
NIAC
WCI 241860105 WCI 241860105 Contact Us For Availability
NIB
TUBE-WATER, 1/4 - 36", GREEN WCI 241964707 Contact Us For Availability
NIB
WCI 240346701 WCI 240346701 Contact Us For Availability
NIB
WCI 242004802 WCI 242004802 Contact Us For Availability
NIB
WCI 218515401 WCI 218515401 Contact Us For Availability
NIB
SCREW-SHOULDER WCI 240363602 Contact Us For Availability
NIC
TUBE-WATER, 5/16 - 67", NATURAL WCI 241965906 Contact Us For Availability
NIC
WCI 242072501 WCI 242072501 Contact Us For Availability
NIH
WCI 242220204 WCI 242220204 Contact Us For Availability
× ![]()
