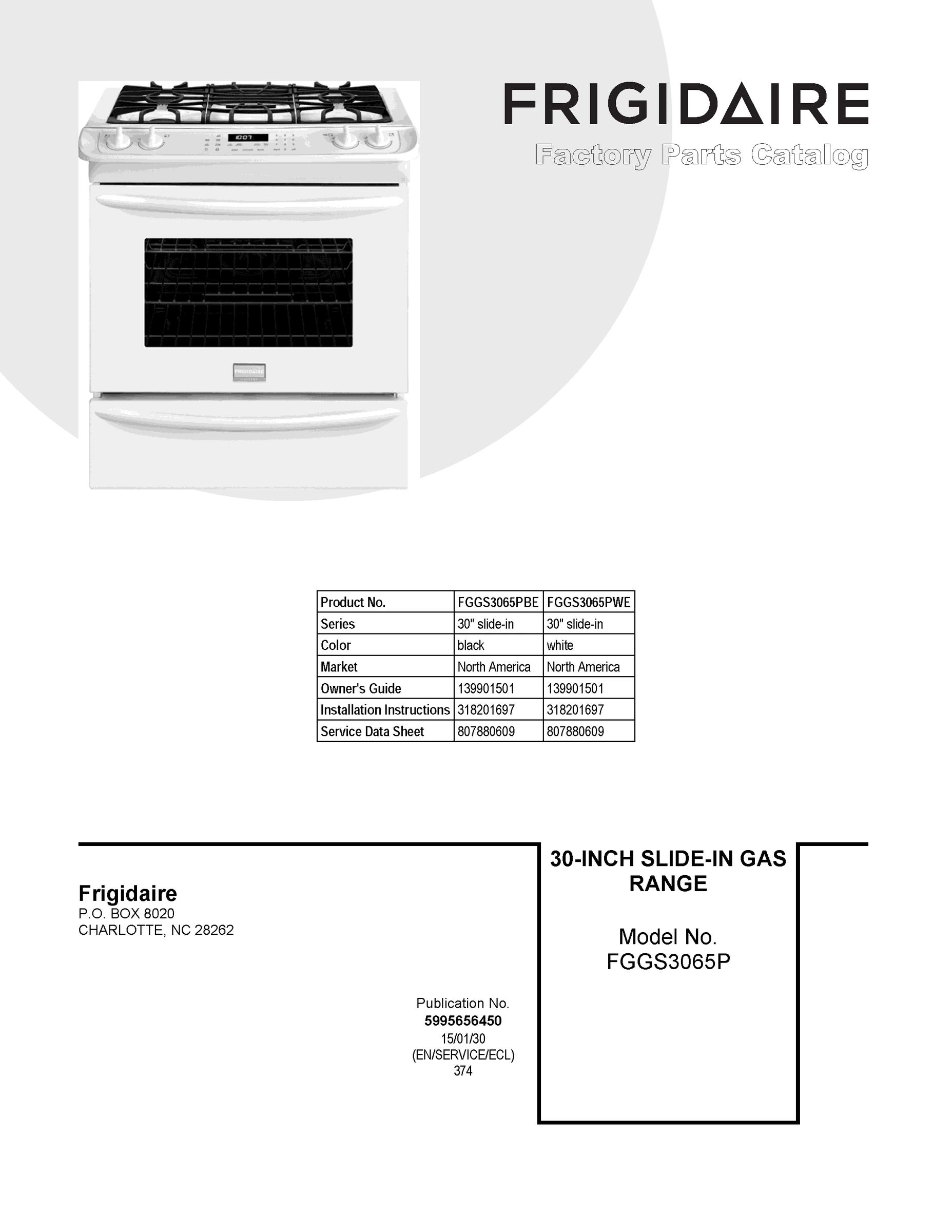

Model Electrolux FGGS3065PWE GAS RANGE – Common Parts & Diagrams

1

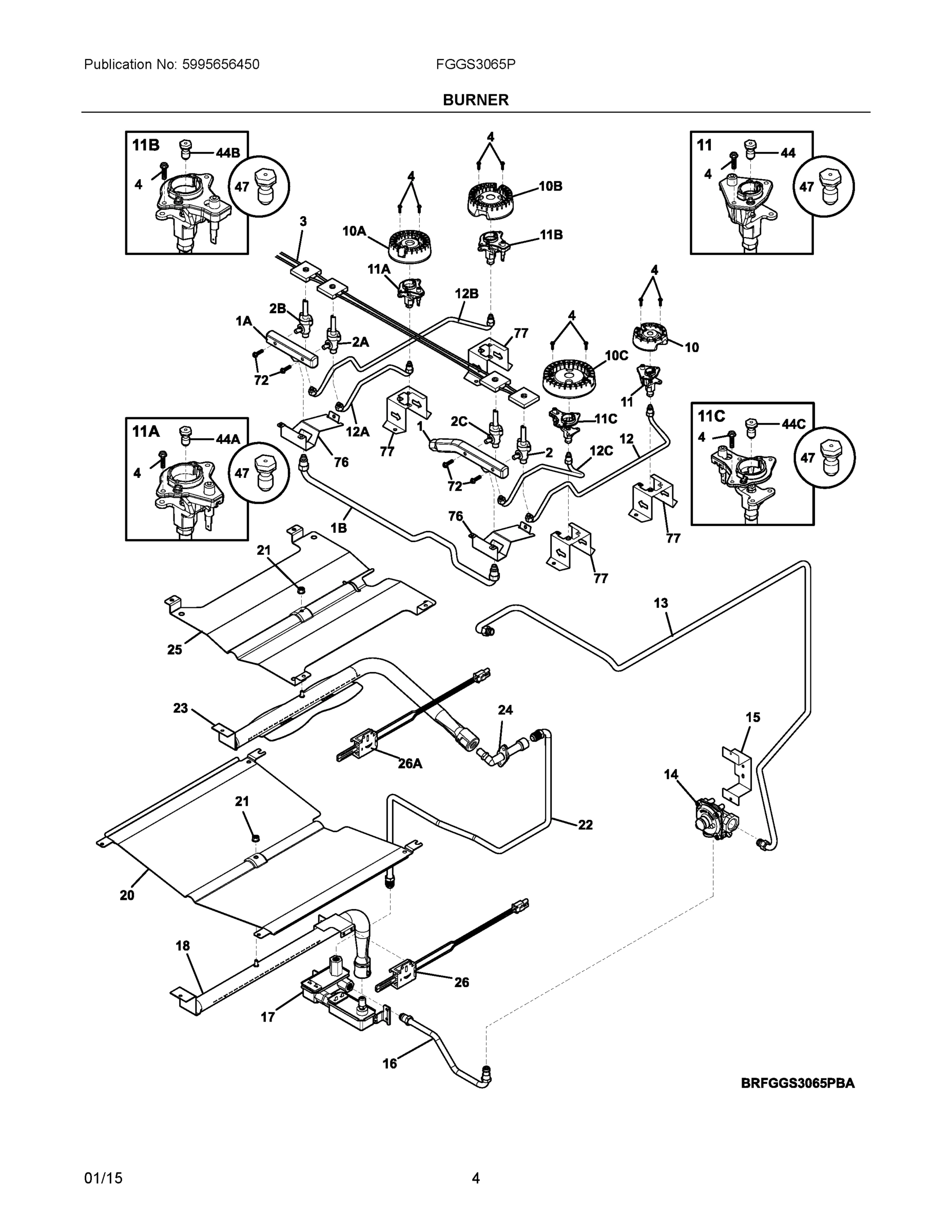

MANIFOLD, RIGHT SIDE
MANIFOLD, RIGHT SIDE WCI 318913400 Contact Us For Availability
View on Model
1A
MANIFOLD, PIPE, LH
MANIFOLD, PIPE, LH WCI 318907200 Contact Us For Availability
View on Model
1B
TUBE, CONNECTION, MANIFOLD
TUBE, CONNECTION, MANIFOLD WCI 318913500 Contact Us For Availability
View on Model
2
VALVE, TOP BURNER, 5K
VALVE, TOP BURNER, 5K WCI 318915700 Contact Us For Availability
View on Model
2A
VALVE, TOP BURNER, 9.5K
VALVE, TOP BURNER, 9.5K WCI 318915701 Contact Us For Availability
View on Model
2B
VALVE, TOP BURNER, 14K
VALVE, TOP BURNER, 14K WCI 318915703 Contact Us For Availability
View on Model
2C
VALVE, TOP BURNER, 16K/17K
VALVE, TOP BURNER, 16K/17K WCI 318915704 Contact Us For Availability
View on Model
3

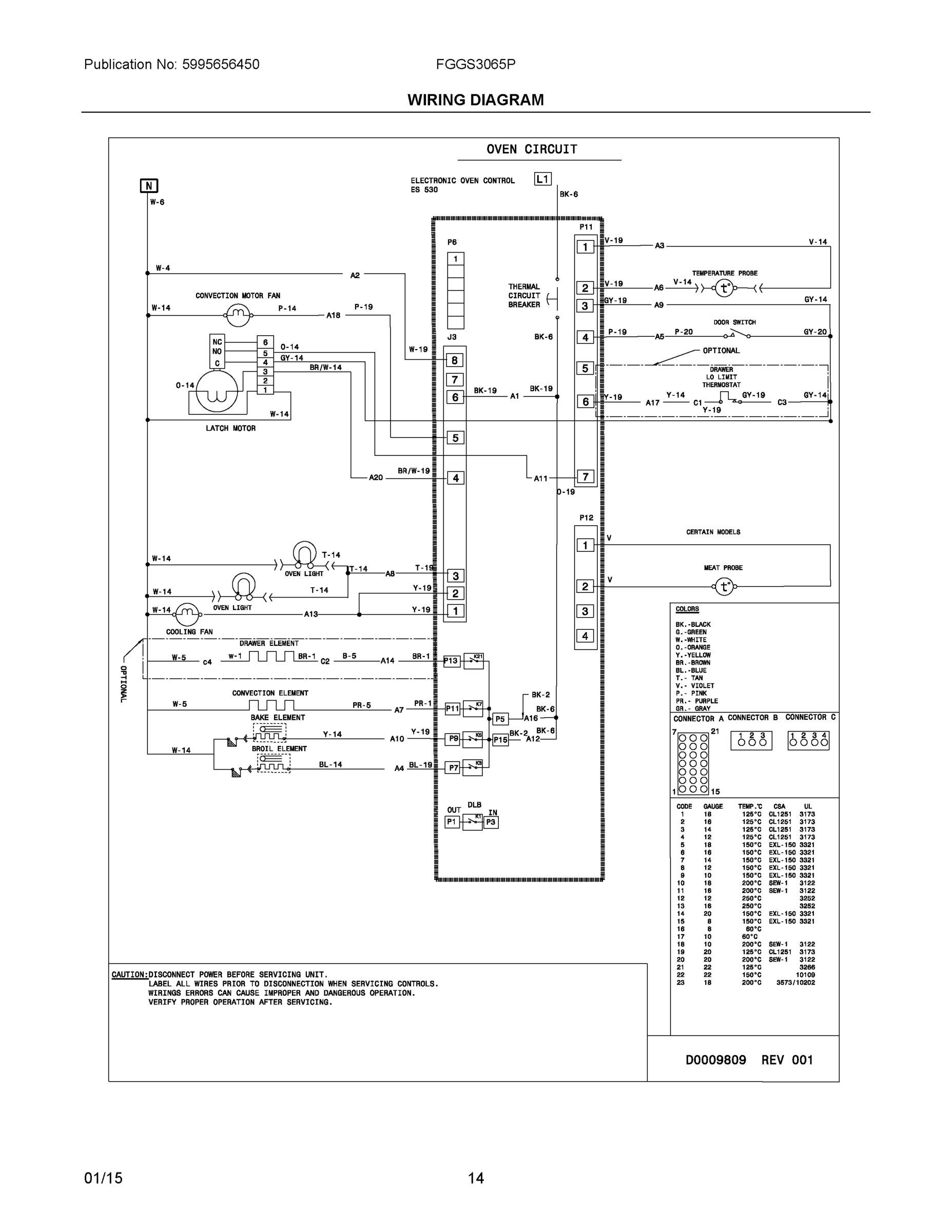

WIRING HARNESS, W/IGNTR SWITCH
WIRING HARNESS, W/IGNTR SWITCH WCI 318232659 Contact Us For Availability
View on Model
4
SUPPORT, AUTO RACK, (2)
SUPPORT, AUTO RACK, (2) WCI 318927600 Contact Us For Availability
View on Model
10
SCREW, WAFER HEAD, 10-24 X 1.81, (2), HANDLE
SCREW, WAFER HEAD, 10-24 X 1.81, (2), HANDLE WCI 316001002 Contact Us For Availability
View on Model
11

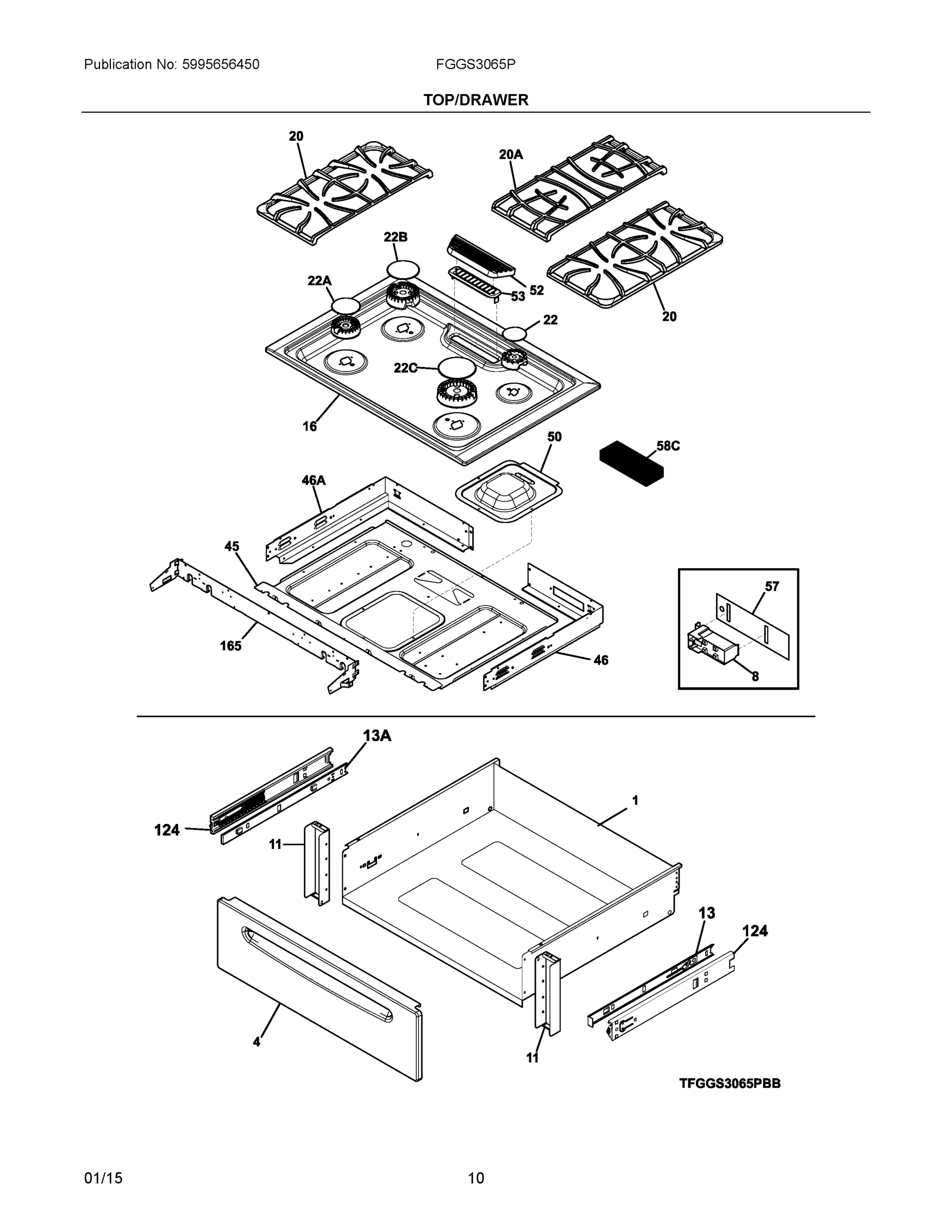

BRACKET, DRAWER SUPPORT, (2)
BRACKET, DRAWER SUPPORT, (2) WCI 318298600 Contact Us For Availability
View on Model
13
GLIDE, WARMER, INNER RH
GLIDE, WARMER, INNER RH WCI 318259504 Contact Us For Availability
View on Model
13A
GLIDE, WARMER, INNER LH
GLIDE, WARMER, INNER LH WCI 318259505 Contact Us For Availability
View on Model
16
TUBE, REGULATOR VALVE
TUBE, REGULATOR VALVE WCI 318289500 Contact Us For Availability
View on Model
18

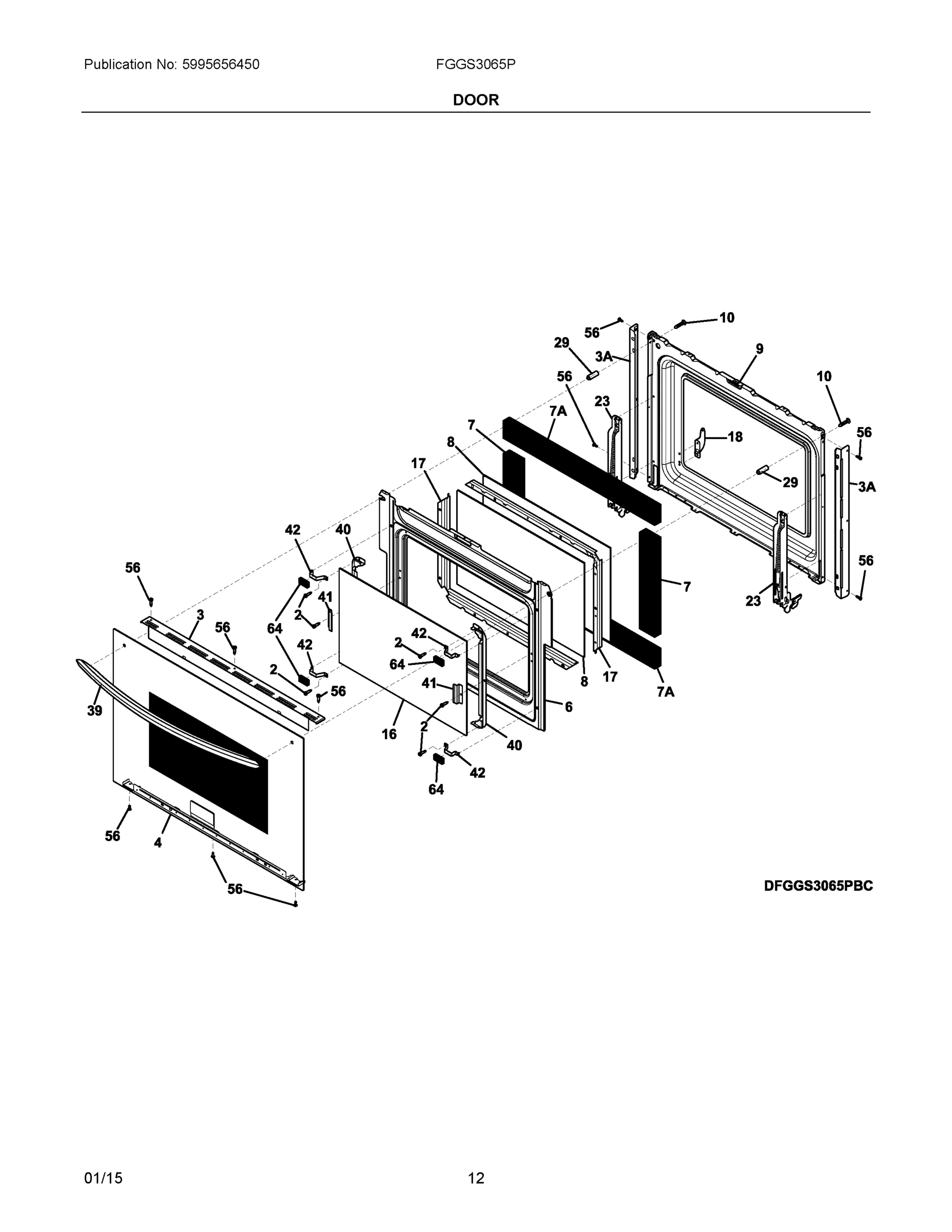

LINK, DOOR, (2), AUTO RACK
LINK, DOOR, (2), AUTO RACK WCI 316547900 Contact Us For Availability
View on Model
23

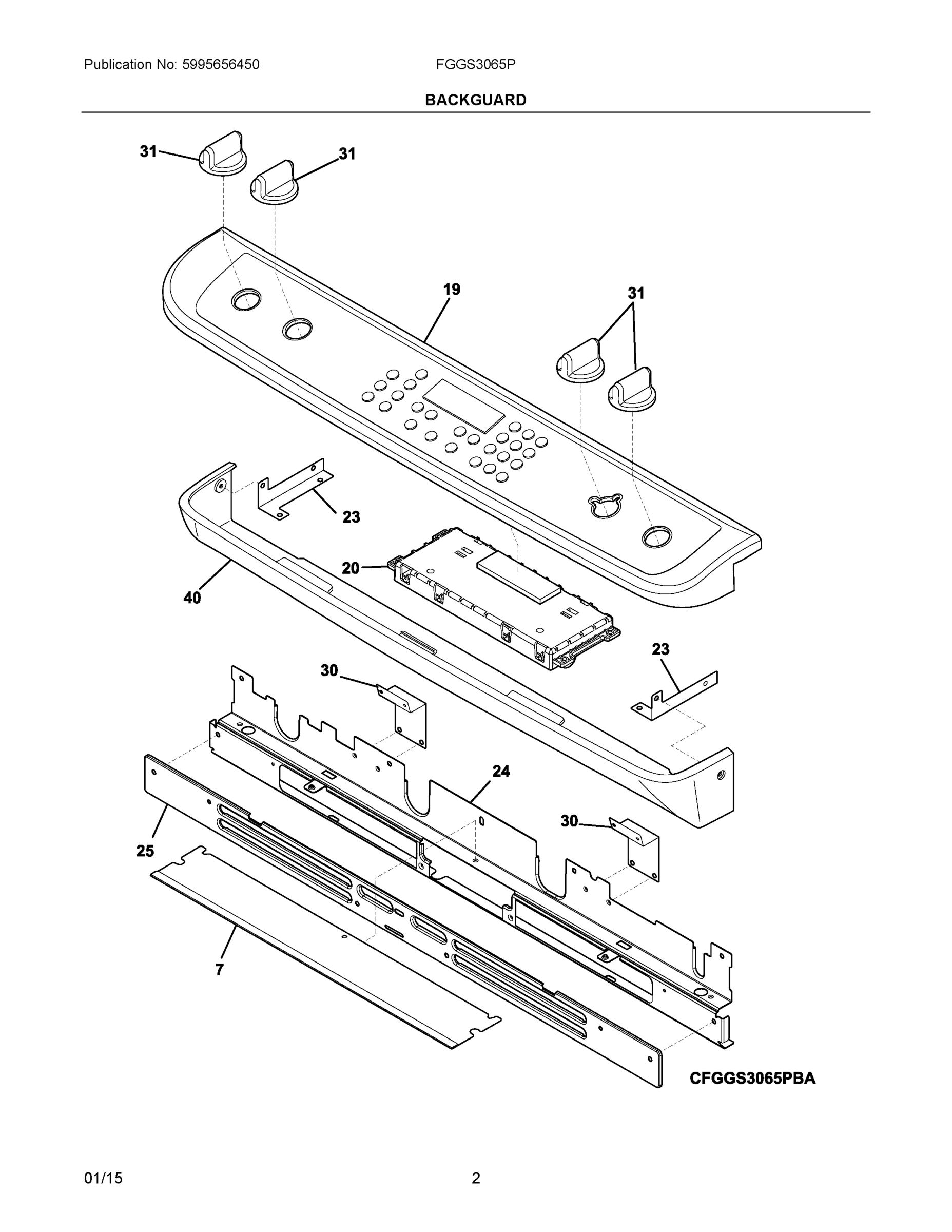

BRACKET, CONTROL MTG, (2)
BRACKET, CONTROL MTG, (2) WCI 318921300 Contact Us For Availability
View on Model
24
ELBOW, MIXER
ELBOW, MIXER WCI 316409703 Contact Us For Availability
View on Model
25
BAFFLE, BROIL BURNER
BAFFLE, BROIL BURNER WCI 316401301 Contact Us For Availability
View on Model
39
HANDLE, DOOR/DRAWER, WHITE
HANDLE, DOOR/DRAWER, WHITE WCI 318927400 Contact Us For Availability
View on Model
40
PANEL, SERVICE, WHITE
PANEL, SERVICE, WHITE WCI 318912900 Contact Us For Availability
View on Model
50
PANEL, SERVICE, FAN
PANEL, SERVICE, FAN WCI 318578803 Contact Us For Availability
View on Model
76
BRACKET, MANIFOLD, (2)
BRACKET, MANIFOLD, (2) WCI 318906703 Contact Us For Availability
View on Model
90
PANEL, FILLER, WHITE, RH
PANEL, FILLER, WHITE, RH WCI 318296902 Contact Us For Availability
View on Model
97
WCI  808743401
WCI 808743401 WCI 808743401 Contact Us For Availability
View on Model
124
GLIDE, DRAWER, OUTER/RH & LH, (2)
GLIDE, DRAWER, OUTER/RH & LH, (2) WCI 318330600 Contact Us For Availability
View on Model
165
DEFLECTOR, BOX, FRONT
DEFLECTOR, BOX, FRONT WCI 318913300 Contact Us For Availability
View on Model
200
FRAME & WHEEL ASSEMBLY, BLACK
FRAME & WHEEL ASSEMBLY, BLACK WCI 318335600 Contact Us For Availability
View on Model
