Model Electrolux FGF366CSF RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGAURD

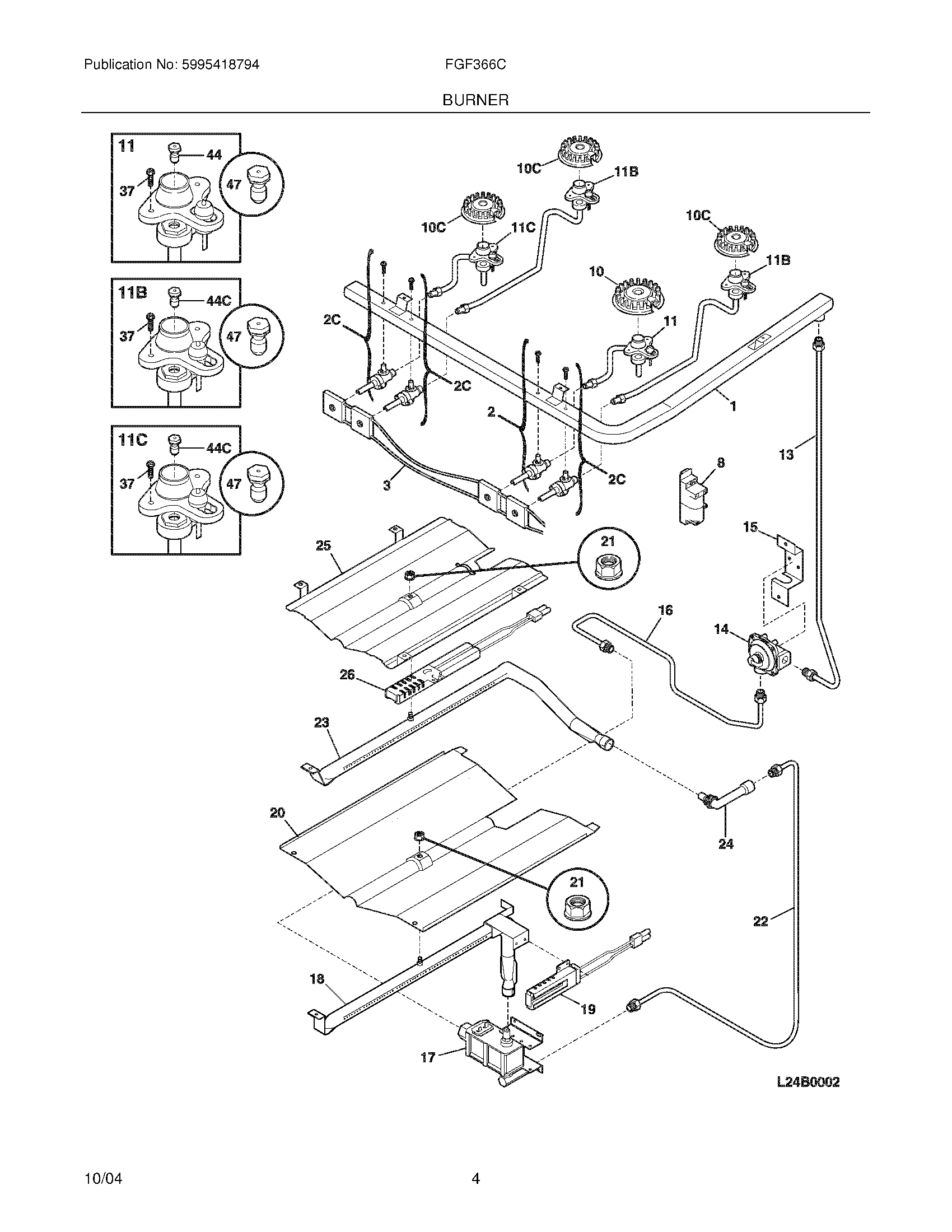

05 - BURNER

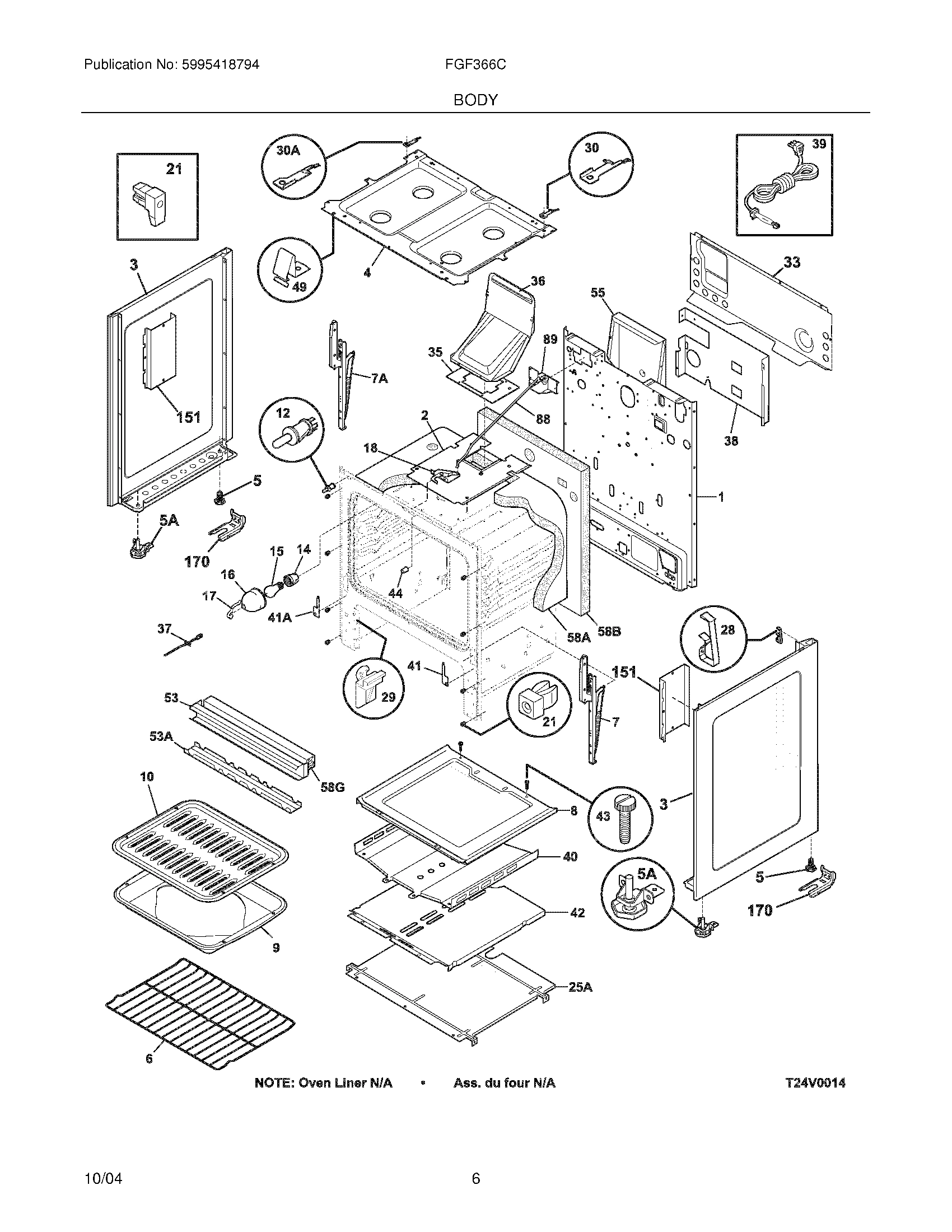

07 - BODY

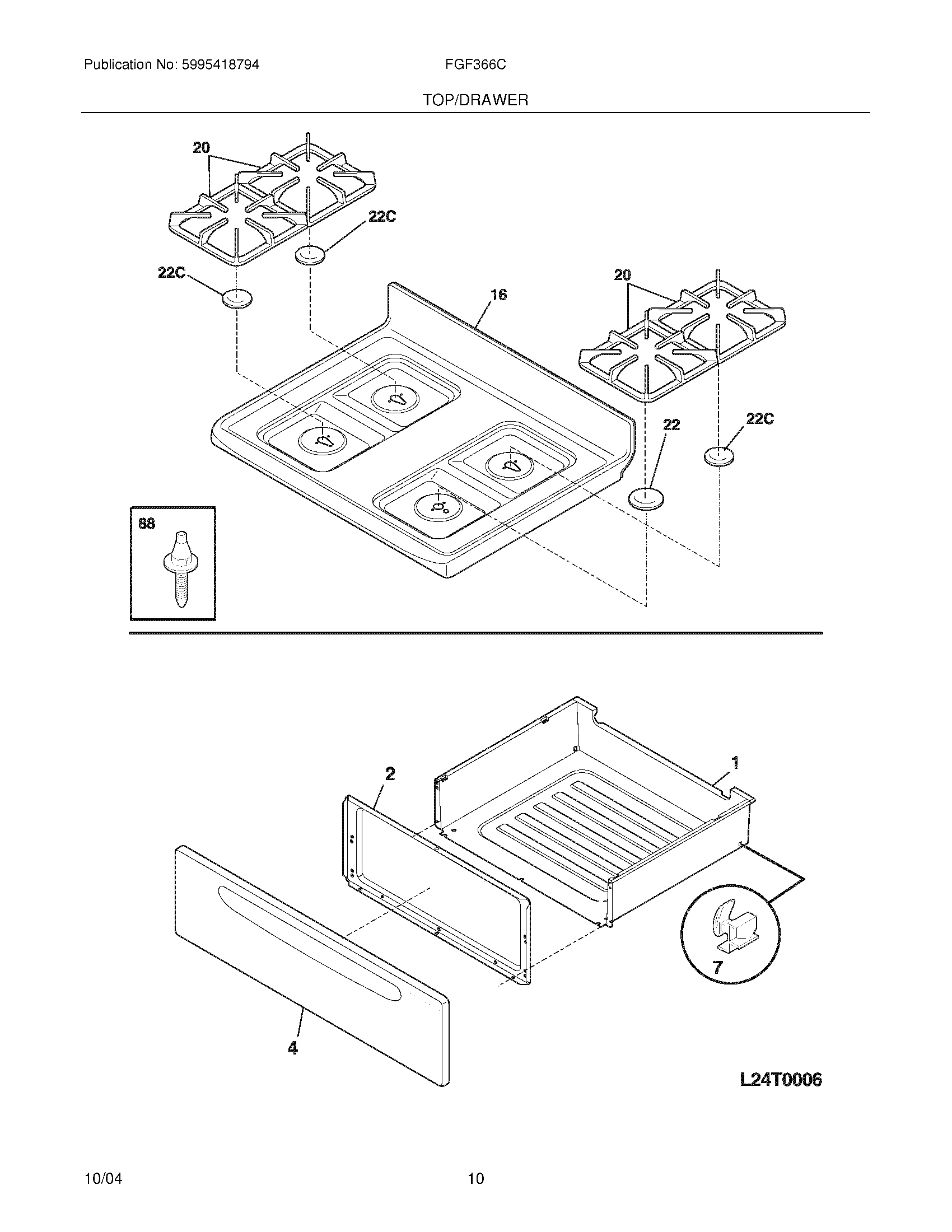

09 - TOP/DRAWER

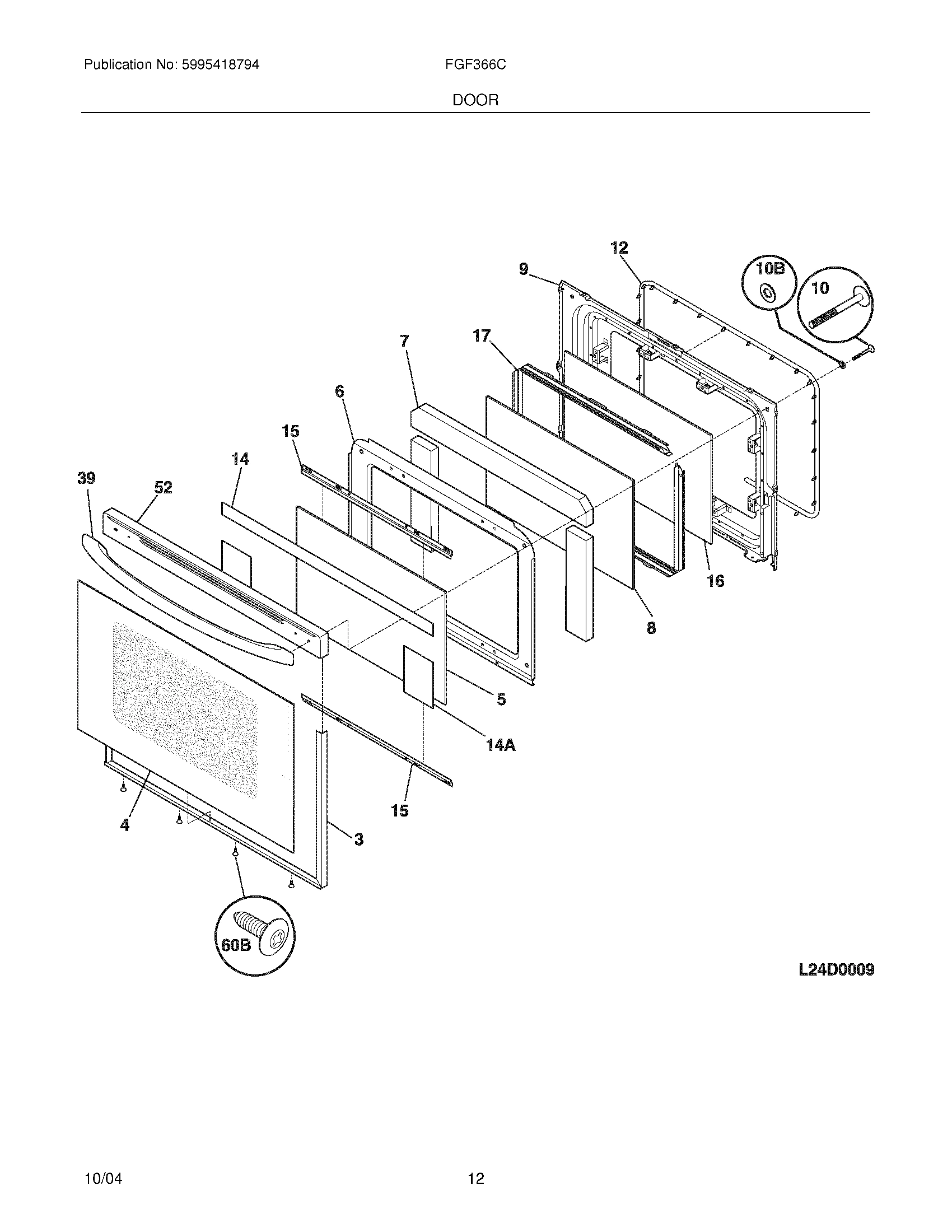

11 - DOOR

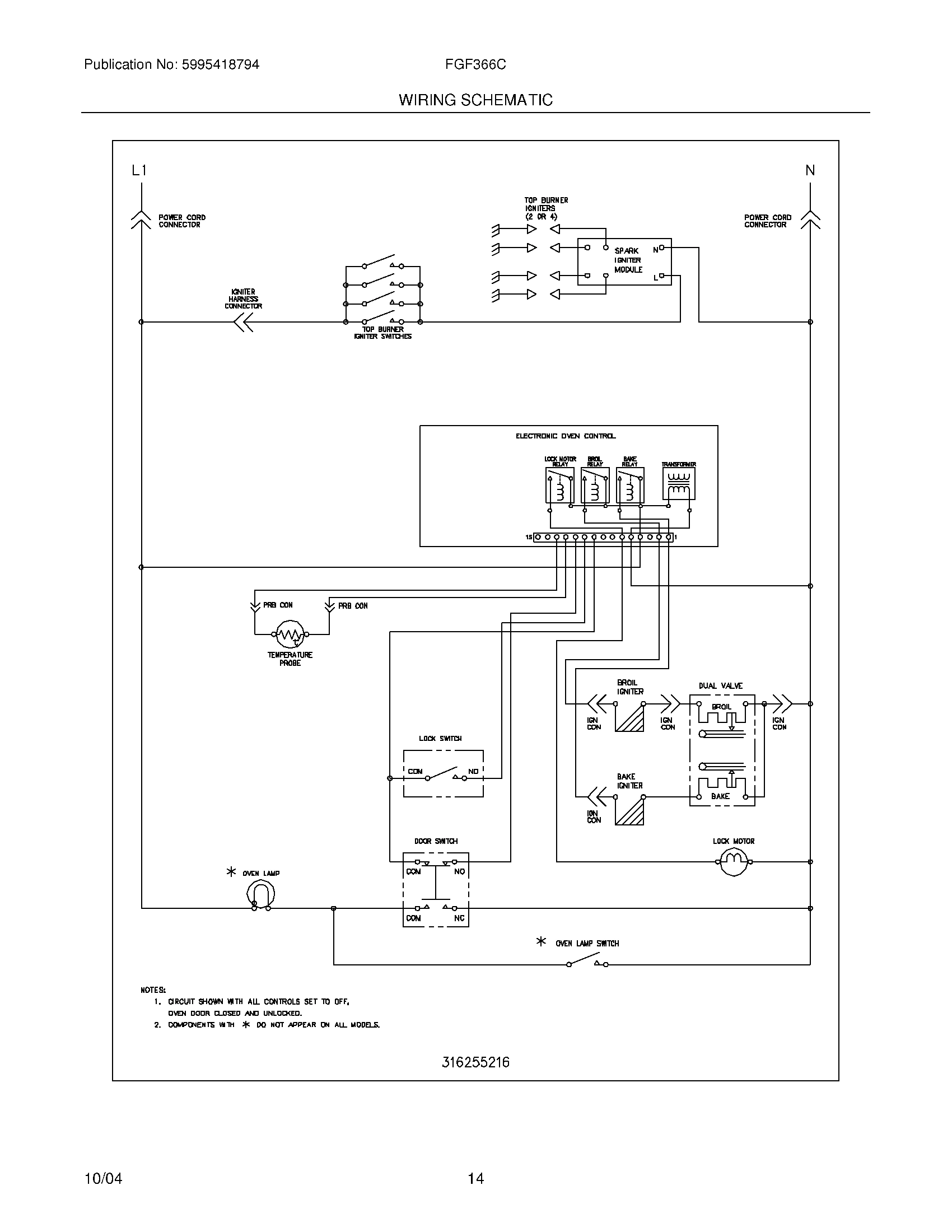

12 - WIRING SCHEMATIC

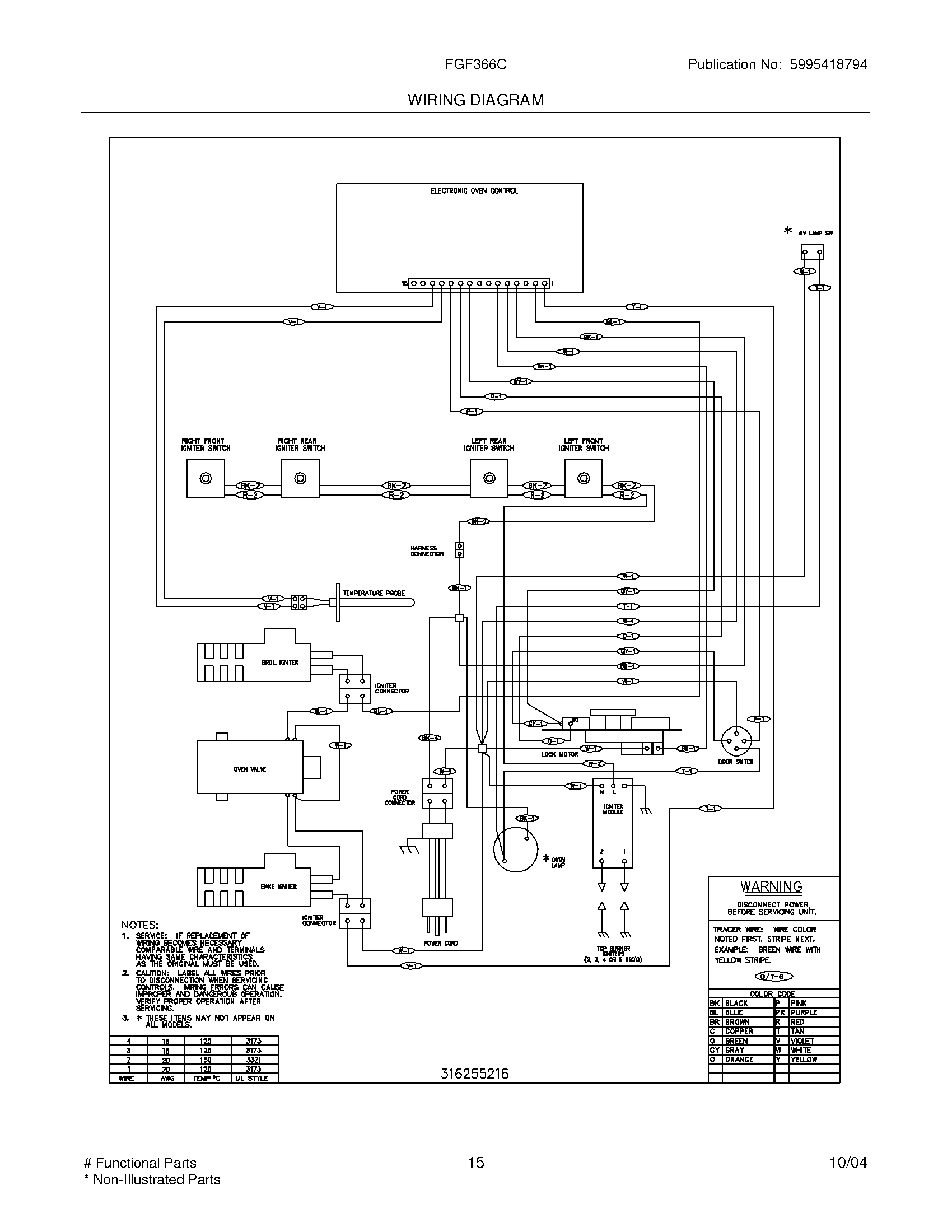

13 - WIRING DIAGRAM
Common parts from model Electrolux FGF366CSF RANGE
1
WCI 316011503 WCI 316011503 Contact Us For Availability
2
WCI 5303935236 WCI 5303935236 Contact Us For Availability
2C
WCI 5303935234 WCI 5303935234 Contact Us For Availability
3
WCI 316219004 WCI 316219004 Contact Us For Availability
3
WCI 5303935192 WCI 5303935192 Contact Us For Availability
4
WCI 5303935201 WCI 5303935201 Contact Us For Availability
6
Rack,oven WCI 316067902 Contact Us For Availability
7
Glide,drawer ,rear WCI 3051163 Contact Us For Availability
7
WCI 316216500 WCI 316216500 Contact Us For Availability
7
Insulation,oven door WCI 316236700 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
10
WCI 316223400 WCI 316223400 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10B
WCI 316008401 WCI 316008401 Contact Us For Availability
10C
WCI 316212400 WCI 316212400 Contact Us For Availability
12
WCI 316209901 WCI 316209901 Contact Us For Availability
13
WCI 316207000 WCI 316207000 Contact Us For Availability
14
WCI 316116400 WCI 316116400 Contact Us For Availability
15
WCI 316220214 WCI 316220214 Contact Us For Availability
16
WCI 316117501 WCI 316117501 Contact Us For Availability
17
WCI 5303208499 WCI 5303208499 Contact Us For Availability
17
WCI 316087500 WCI 316087500 Contact Us For Availability
17
Spacer,door glass ,(2) WCI 316117701 Contact Us For Availability
18
WCI 316269000 WCI 316269000 Contact Us For Availability
18
WCI 316213900 WCI 316213900 Contact Us For Availability
19
Ignitor,oven kit ,w/nut & instr WCI 5303935066 Contact Us For Availability
20
WCI 316202401 WCI 316202401 Contact Us For Availability
20A
WCI 316220804 WCI 316220804 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
WCI 316219901 WCI 316219901 Contact Us For Availability
22C
WCI 316213501 WCI 316213501 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
29
GLIDE-DRAWER, FRONT WCI 3051162 Contact Us For Availability
30
WCI 316217700 WCI 316217700 Contact Us For Availability
36
WCI 316220000 WCI 316220000 Contact Us For Availability
37
Screw,assy mtg ,ignitor/orifice WCI 316240600 Contact Us For Availability
41
WCI 316233400 WCI 316233400 Contact Us For Availability
42
WCI 316270601 WCI 316270601 Contact Us For Availability
44
WCI 316237900 WCI 316237900 Contact Us For Availability
44
Spacer,oven door WCI 316246500 Contact Us For Availability
44C
Orifice,top burner ,9.5K WCI 316237902 Contact Us For Availability
58A
WCI 316047708 WCI 316047708 Contact Us For Availability
58G
INSULATION, MAIN FRONT WCI 08067973 Contact Us For Availability
NI
WCI 316253700 WCI 316253700 Contact Us For Availability
NI
Screw,hex head cup pt ,8-18 x 0.375 ,black WCI 316021105 Contact Us For Availability
NI
Screw,wafer head `8-32T x 0.500 ,black WCI 5303285179 Contact Us For Availability
NI
SCREW, 10-16 X .486 WCI 316089500 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
NI
WCI 316401500 WCI 316401500 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
× ![]()
