Model Electrolux FGF324BHWD RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

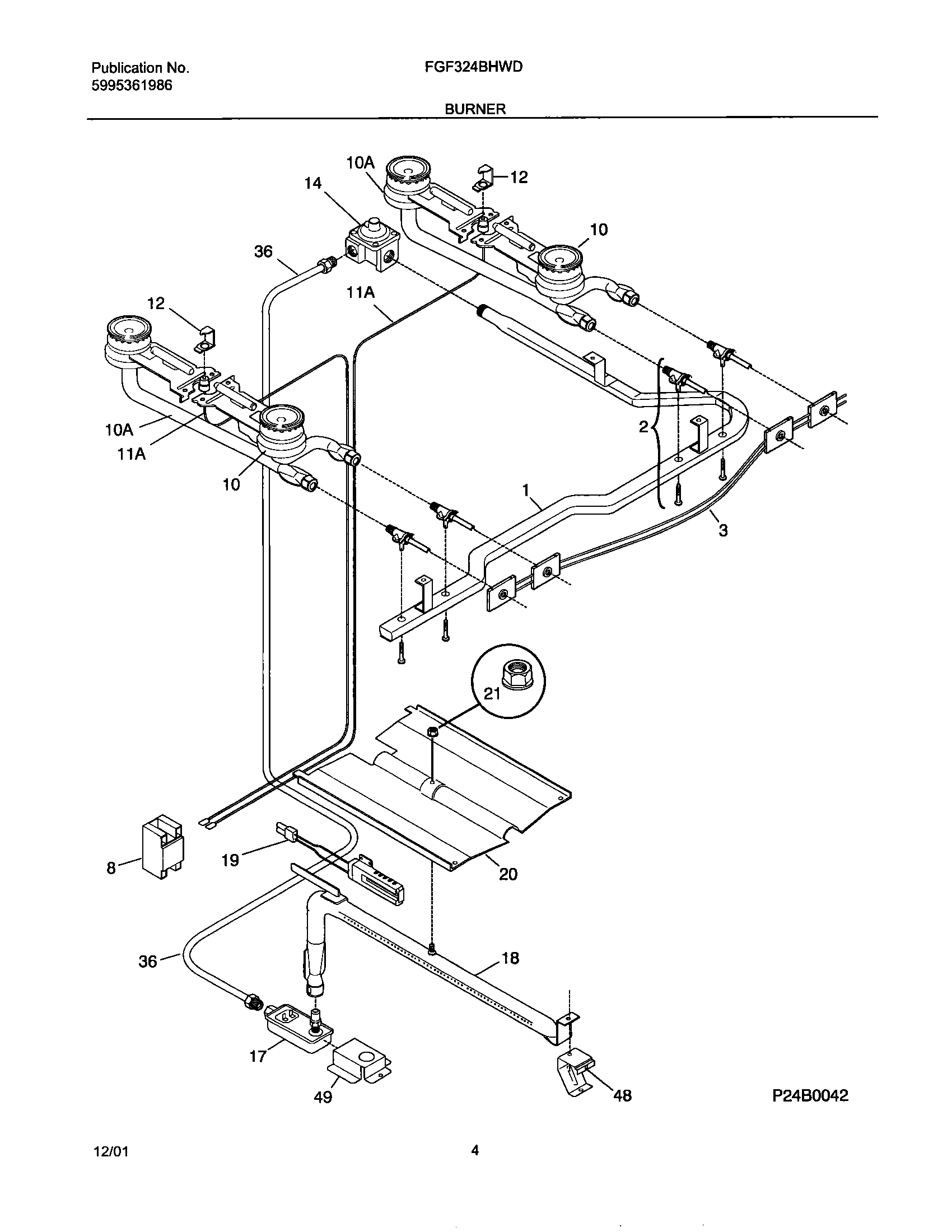

05 - BURNER

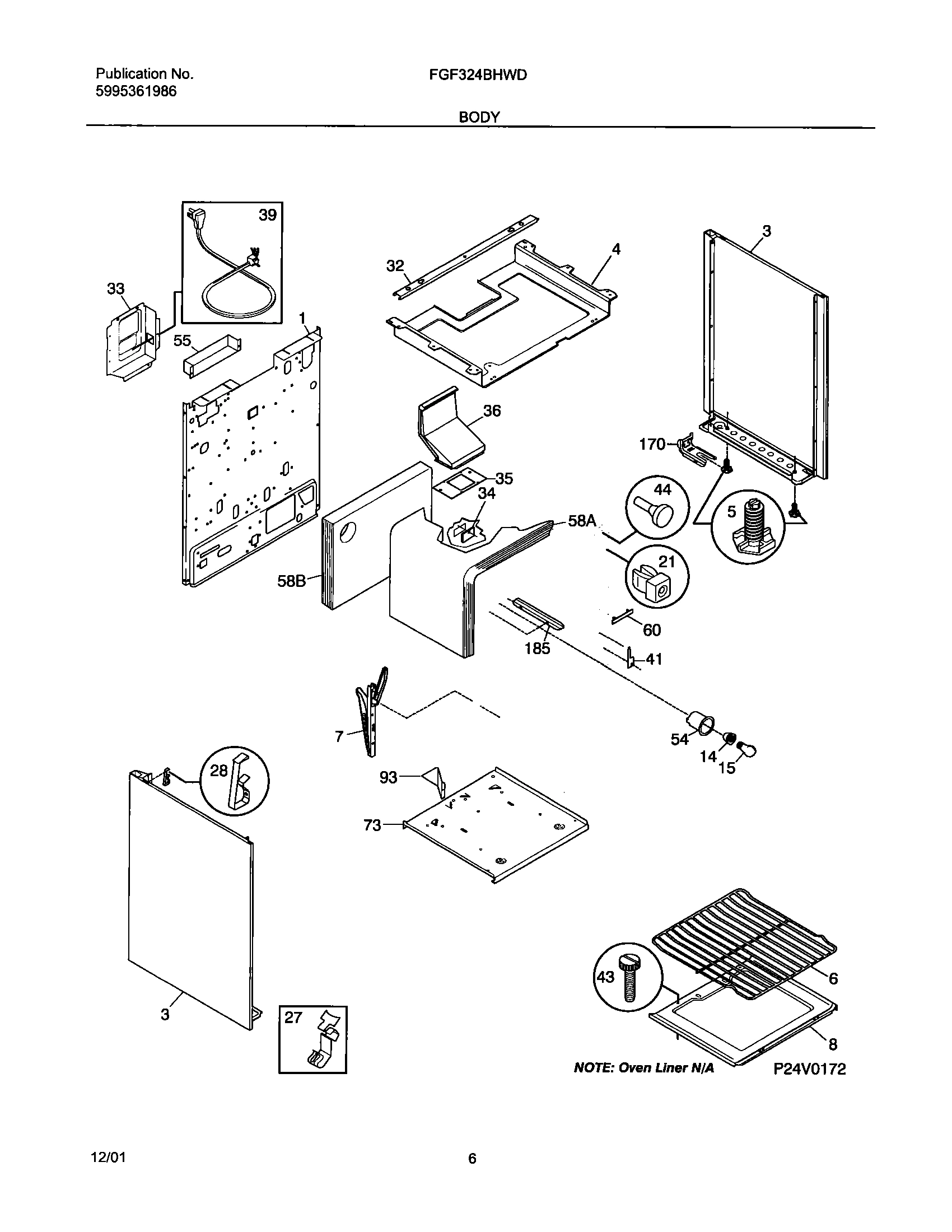

07 - BODY

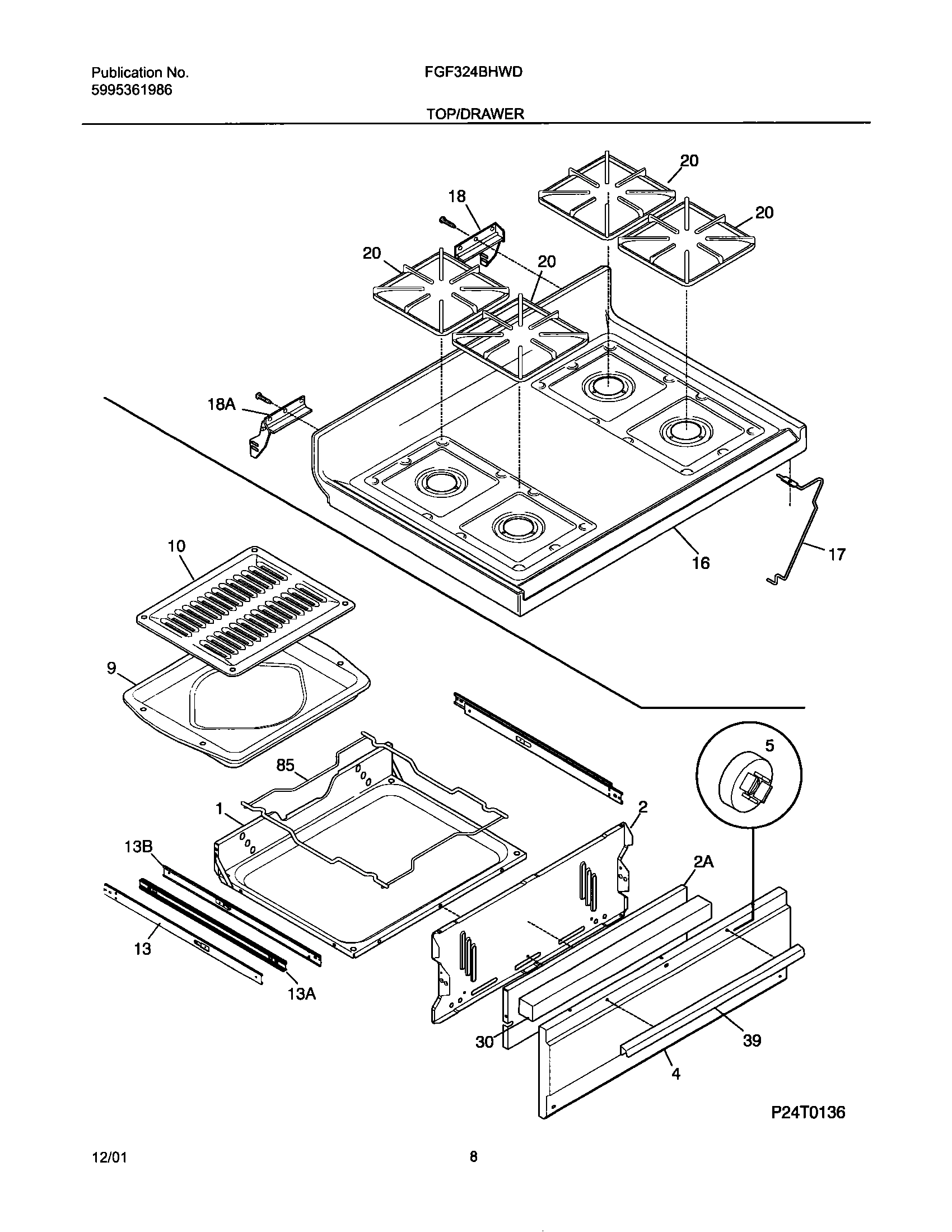

09 - TOP/DRAWER

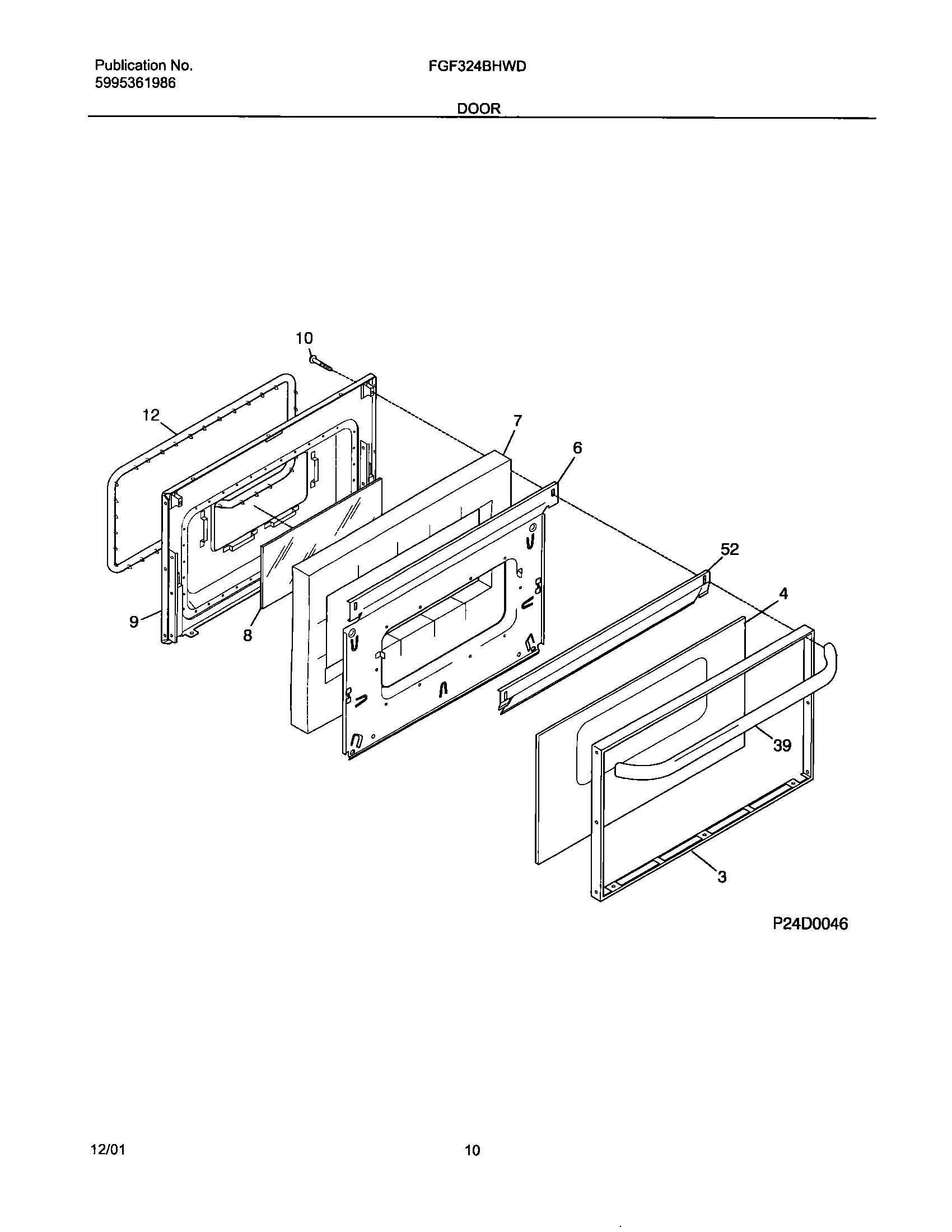

11 - DOOR

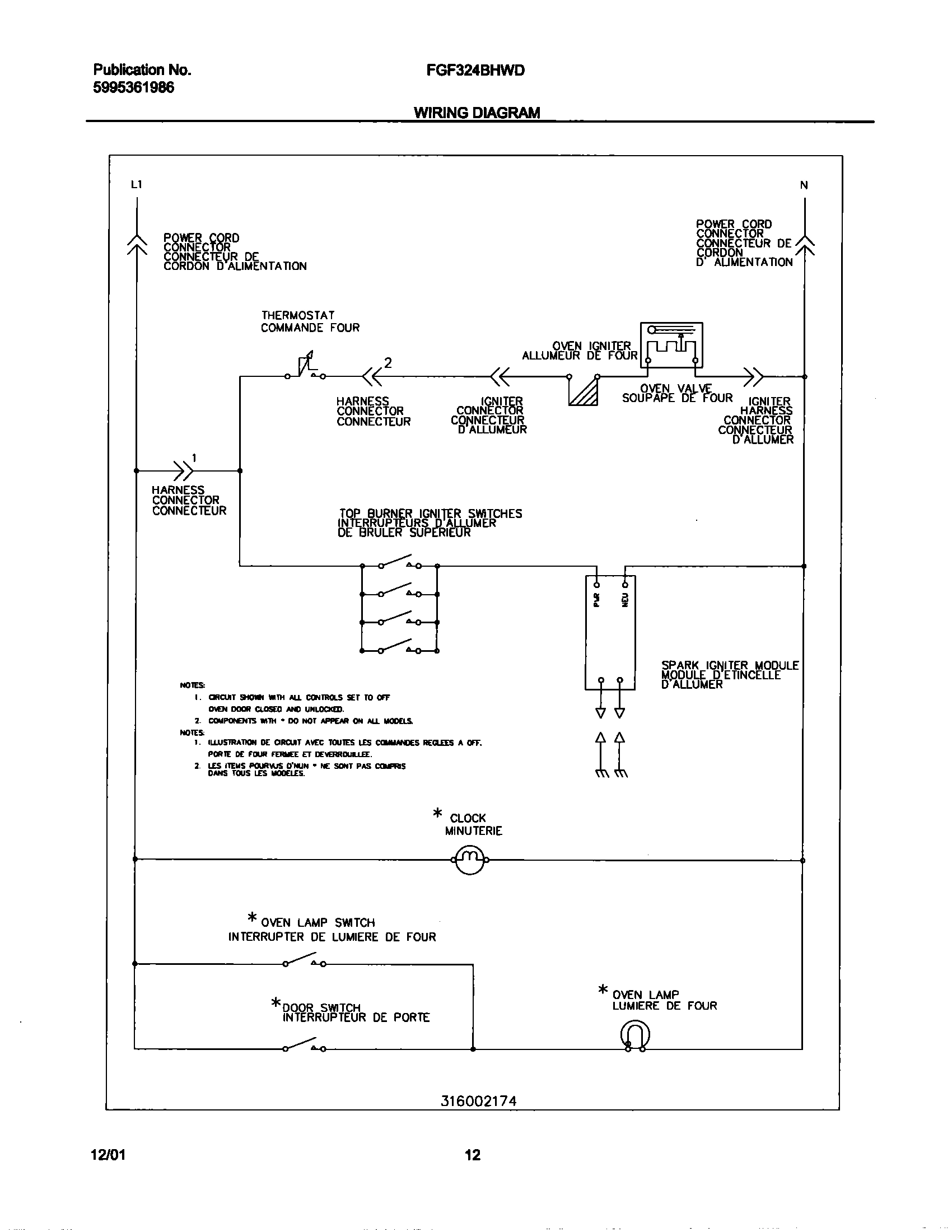

12 - WIRING DIAGRAM
Common parts from model Electrolux FGF324BHWD RANGE
1
WCI 316110201 WCI 316110201 Contact Us For Availability
2
WCI 5303935189 WCI 5303935189 Contact Us For Availability
3
WCI 316001828 WCI 316001828 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
WCI 316129100 WCI 316129100 Contact Us For Availability
6
Rack,oven WCI 316067902 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
Screw,wafer hd sq dr ,10-24T x 2.00 ,handle m WCI 5303280308 Contact Us For Availability
11A
WCI 316081705 WCI 316081705 Contact Us For Availability
12
SEAL-OVEN DOOR, NON SELF-CLEAN WCI 5303202011 Contact Us For Availability
12
RETAINER-IGNITOR WCI 3016993 Contact Us For Availability
13B
WCI 316111501 WCI 316111501 Contact Us For Availability
14
WCI 316116400 WCI 316116400 Contact Us For Availability
14
WCI 316091705 WCI 316091705 Contact Us For Availability
17
WCI 3203459 WCI 3203459 Contact Us For Availability
17
Rod,support ,main top WCI 316057601 Contact Us For Availability
18
WCI 316114300 WCI 316114300 Contact Us For Availability
19
Ignitor,oven kit ,w/nut & instr WCI 5303935066 Contact Us For Availability
20
WCI 316113200 WCI 316113200 Contact Us For Availability
21
Nut,hex head sems WCI 5303013272 Contact Us For Availability
21
WCI 3014099 WCI 3014099 Contact Us For Availability
27
Clip,thermo bulb mtg WCI 5303284616 Contact Us For Availability
29
Button,clock/timer ,black WCI 5303272305 Contact Us For Availability
32
WCI 316109506 WCI 316109506 Contact Us For Availability
34
Plate,cover WCI 3018607 Contact Us For Availability
36
WCI 316065004 WCI 316065004 Contact Us For Availability
36
WCI 316109507 WCI 316109507 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
WCI 3131903 WCI 3131903 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
73
WCI 316109902 WCI 316109902 Contact Us For Availability
85
WCI 316115600 WCI 316115600 Contact Us For Availability
170
WCI 316112500 WCI 316112500 Contact Us For Availability
NI
WCI 316008401 WCI 316008401 Contact Us For Availability
NI
Screw,hex head cup pt ,8-18 x 0.375 ,black WCI 316021105 Contact Us For Availability
NI
Screw,wafer head `8-32T x 0.500 ,black WCI 5303285179 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
NI
Screw`hex ,8-18 x 3/8 `nick `(3) `regulator b WCI 316021104 Contact Us For Availability
NI
Screw,wafer hd sq dr ,8-18AB x 0.5 WCI 5303271648 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 WCI 5303280311 Contact Us For Availability
NI
WCI 316132100 WCI 316132100 Contact Us For Availability
NI
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
× ![]()
