Model Electrolux FGF316WGTC RANGE – Common Parts & Diagrams

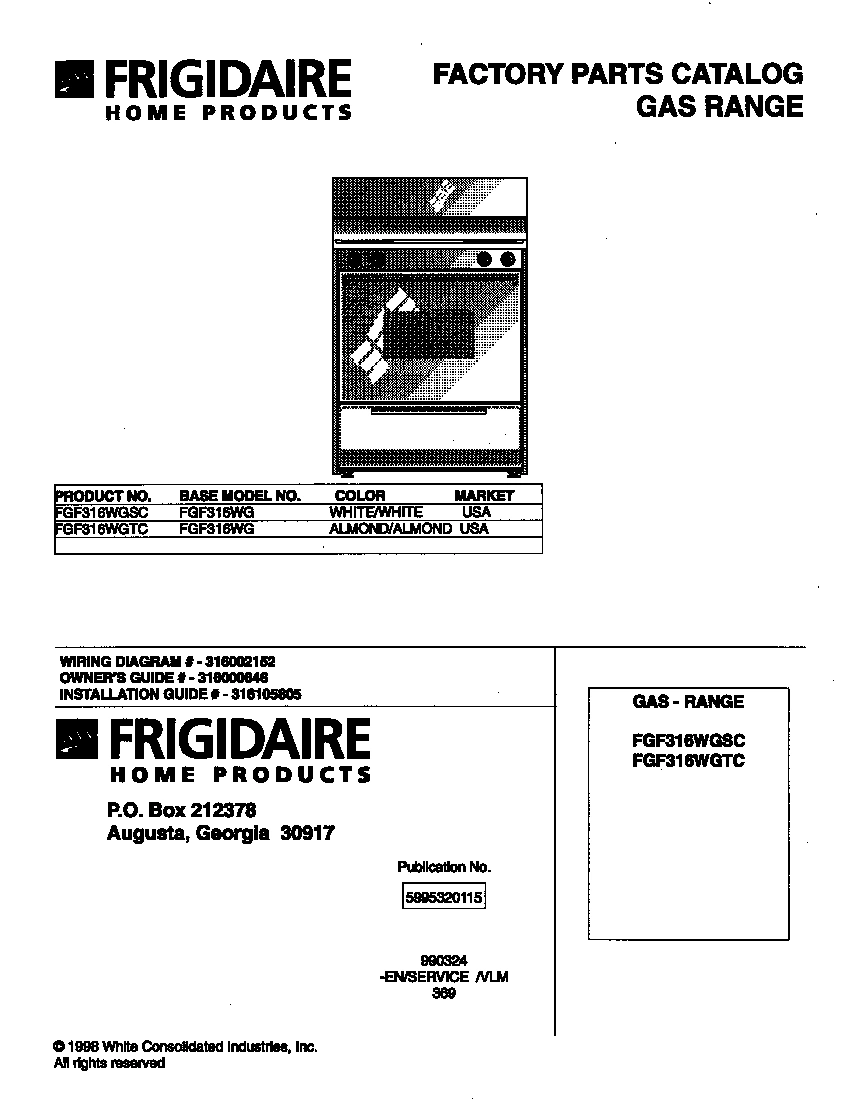

01 - COVER

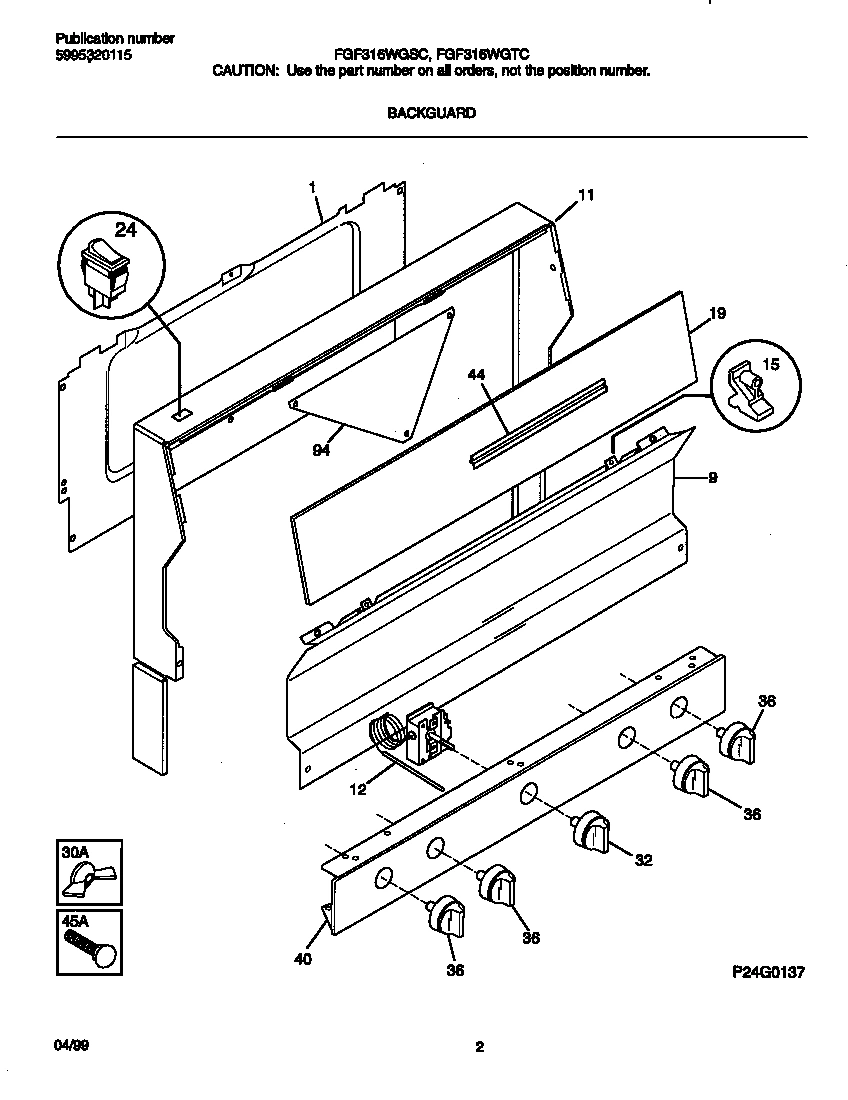

02 - BACKGUARD

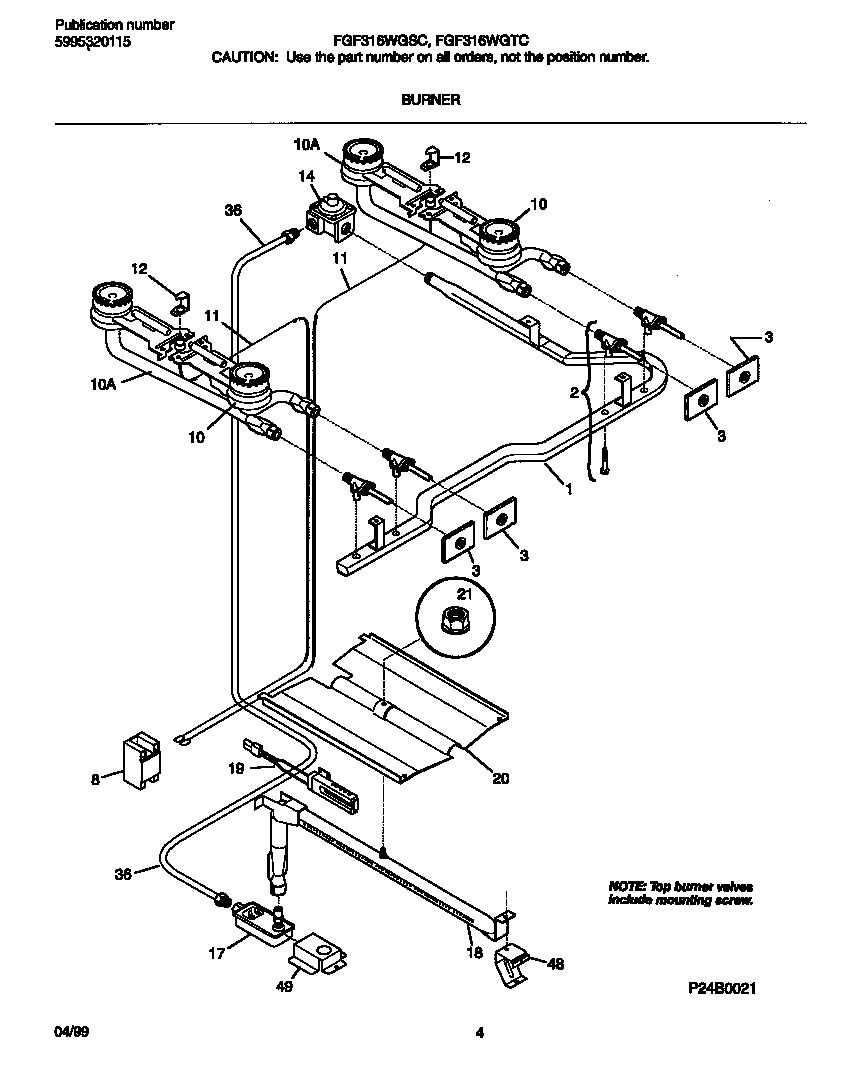

03 - BURNER

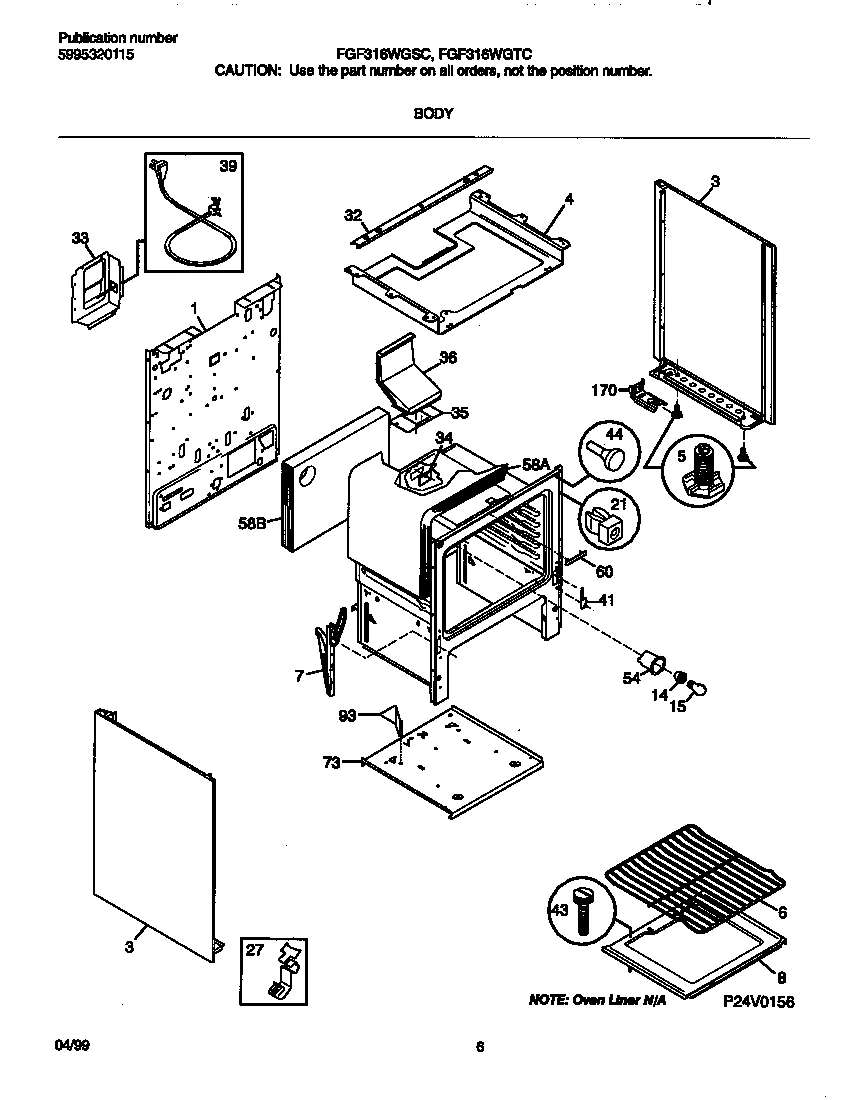

04 - BODY

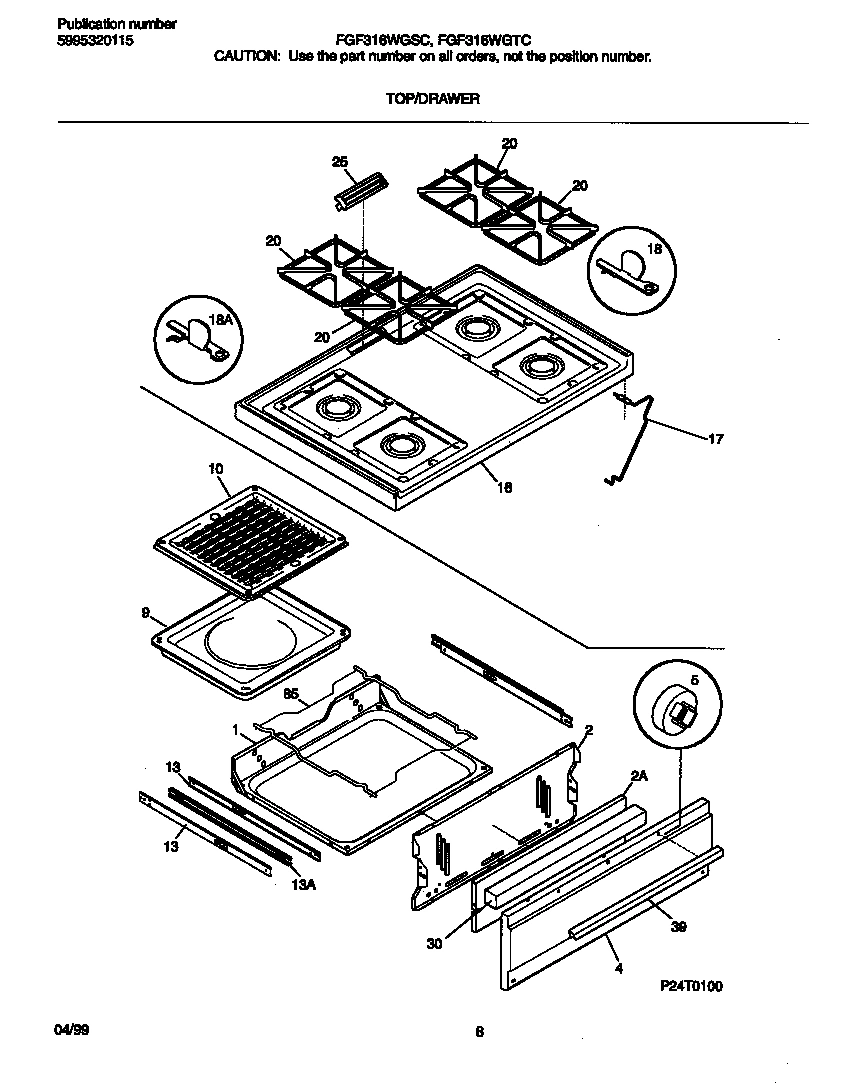

05 - TOP/DRAWER

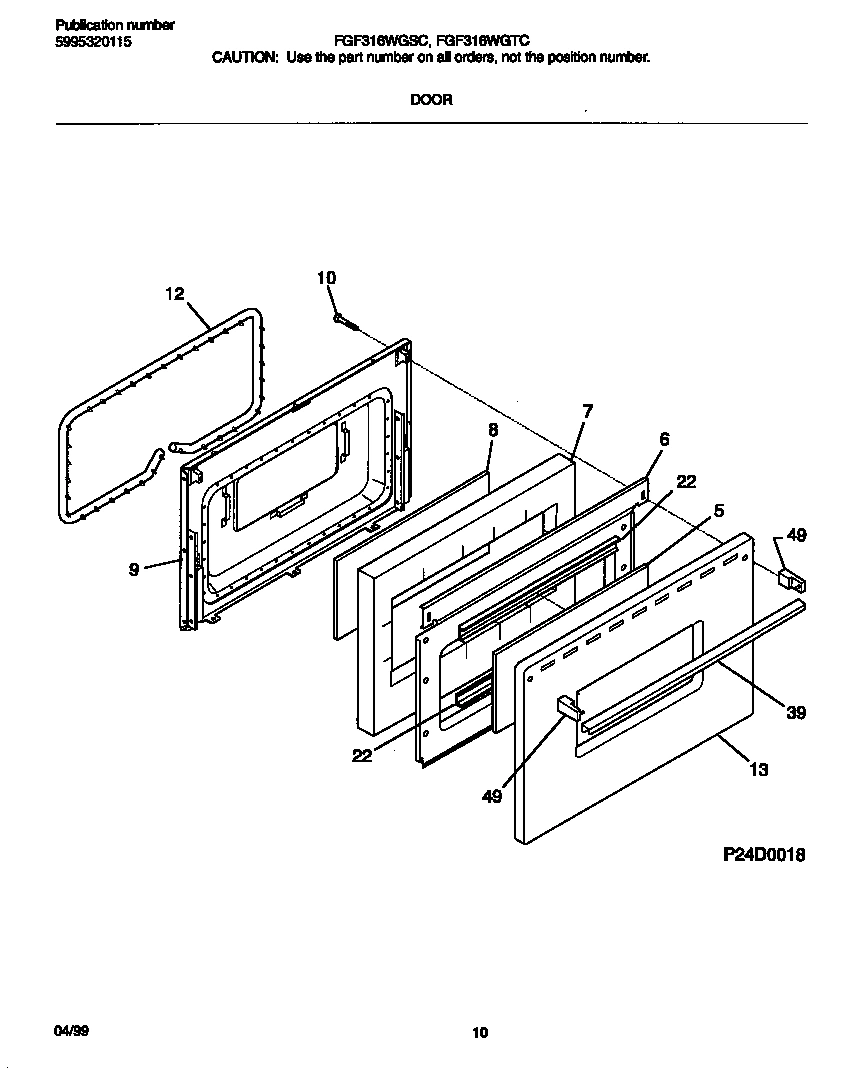

06 - DOOR

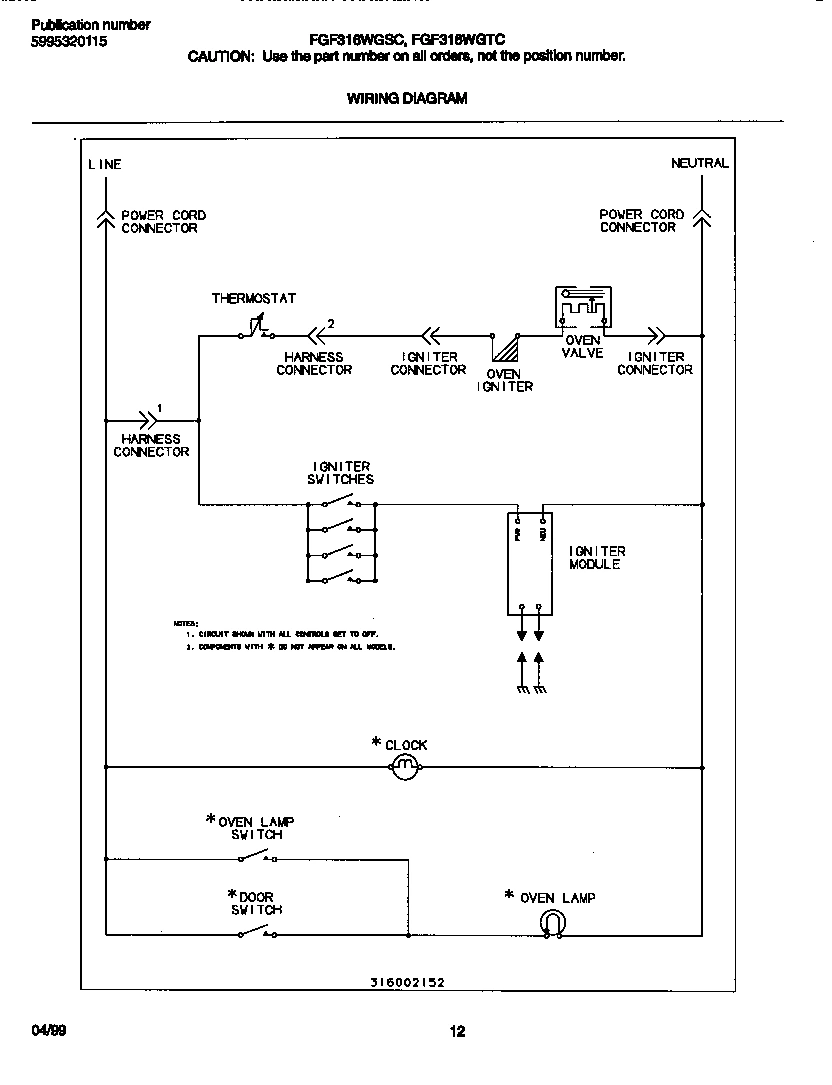

07 - WIRING DIAGRAM
Common parts from model Electrolux FGF316WGTC RANGE
*07321
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*07337
WCI 316072100 WCI 316072100 Contact Us For Availability
*07341
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
1
CARRIAGE, BROILER WCI 316110201 Contact Us For Availability
2
WCI 316110101 WCI 316110101 Contact Us For Availability
2
WCI 316110800 WCI 316110800 Contact Us For Availability
4
WCI 316056206 WCI 316056206 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
5
WCI 316050301 WCI 316050301 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
8
WCI 5303912606 WCI 5303912606 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
11
WCI 316081701 WCI 316081701 Contact Us For Availability
13
WCI 316111501 WCI 316111501 Contact Us For Availability
13
GLIDE-DRAWER,OUTER WCI 316111500 Contact Us For Availability
13
GLIDE-DRAWER,INNER WCI 316111600 Contact Us For Availability
13
PANEL, OVEN DOOR, ALMOND WCI 3017096 Contact Us For Availability
14
WCI 316082900 WCI 316082900 Contact Us For Availability
16
MAIN TOP,ALMOND WCI 316104402 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
20
WCI 316088900 WCI 316088900 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
Retainer,glass ,(2) ,angle WCI 5303272476 Contact Us For Availability
25
COVER-VENT,METAL ,CHROME WCI 316104500 Contact Us For Availability
30
WCI 316111400 WCI 316111400 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 316083000 WCI 316083000 Contact Us For Availability
39
WCI 316019508 WCI 316019508 Contact Us For Availability
39
HANDLE-DOOR, ALMOND , OVEN WCI 316020205 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
49
End Cap,handle ,almond ,(2) WCI 316020103 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
73
WCI 316109901 WCI 316109901 Contact Us For Availability
85
WCI 316115600 WCI 316115600 Contact Us For Availability
93
SHIELD,METAL ,GALVANIZED ,IGNITOR WCI 316110000 Contact Us For Availability
185
WCI 316112900 WCI 316112900 Contact Us For Availability
× ![]()
