Model Electrolux FGEF4085TSB RANGE/OVEN, ELECTRIC, FREESTANDING, 40 INCH – Common Parts & Diagrams
01 - COVER SHEET

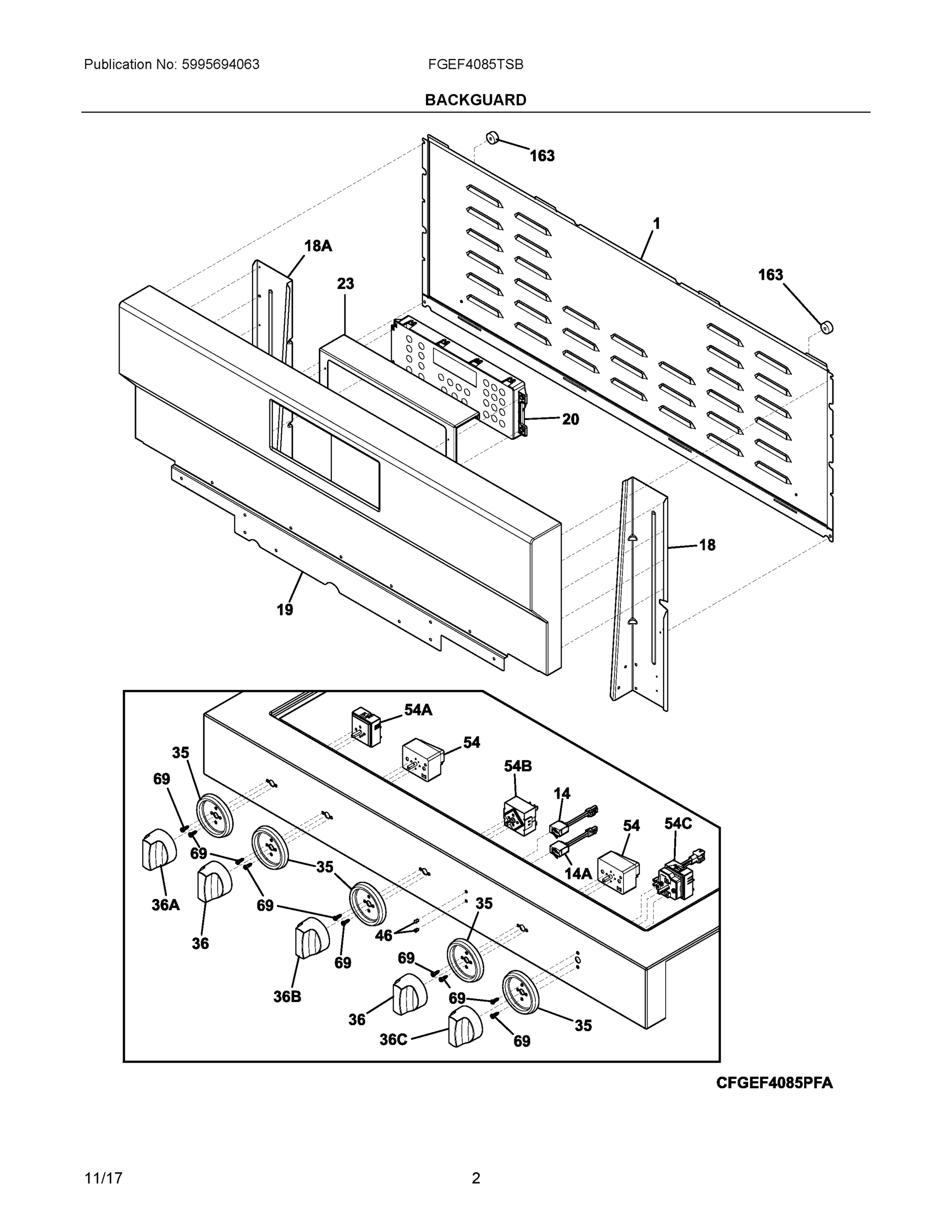

02 - BACKGUARD

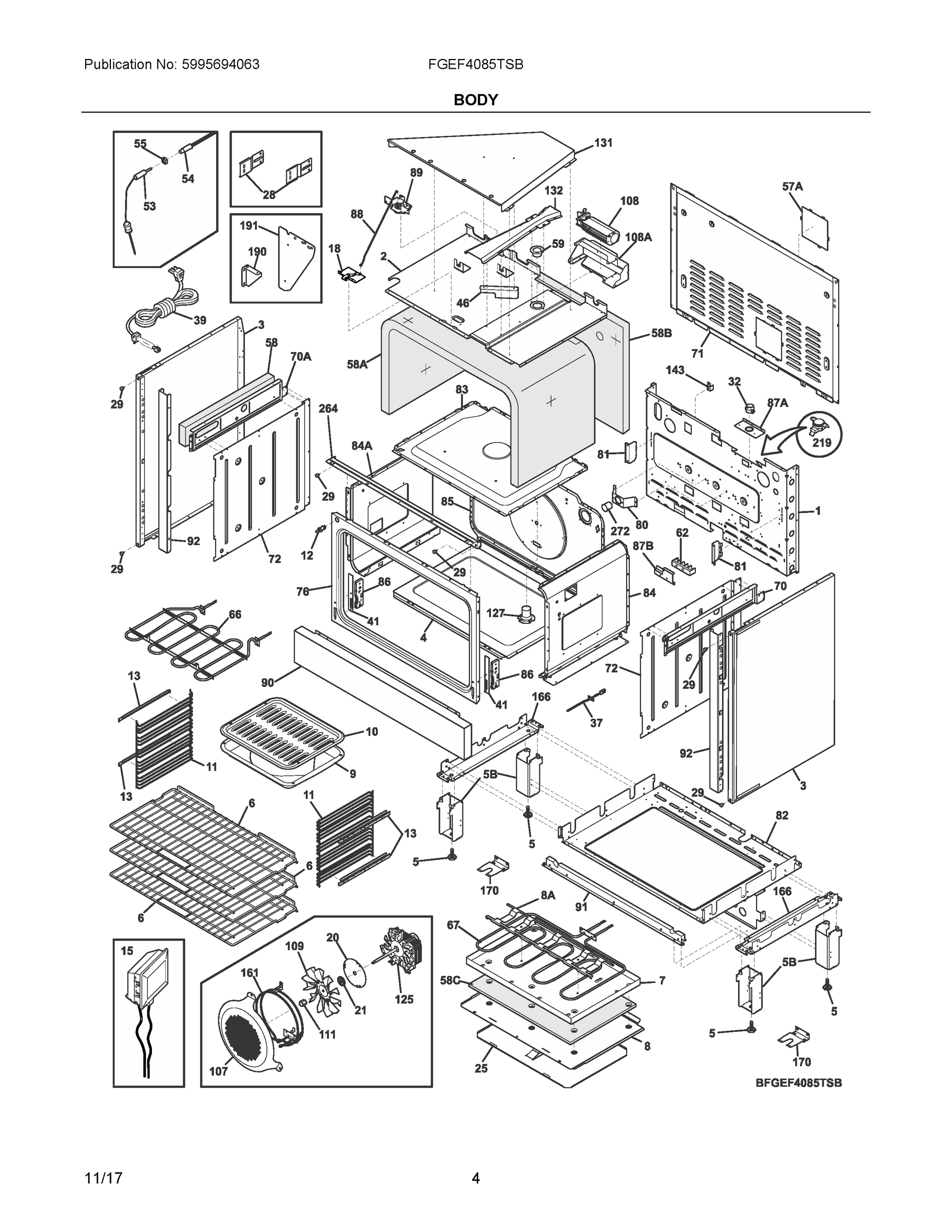

03 - BODY

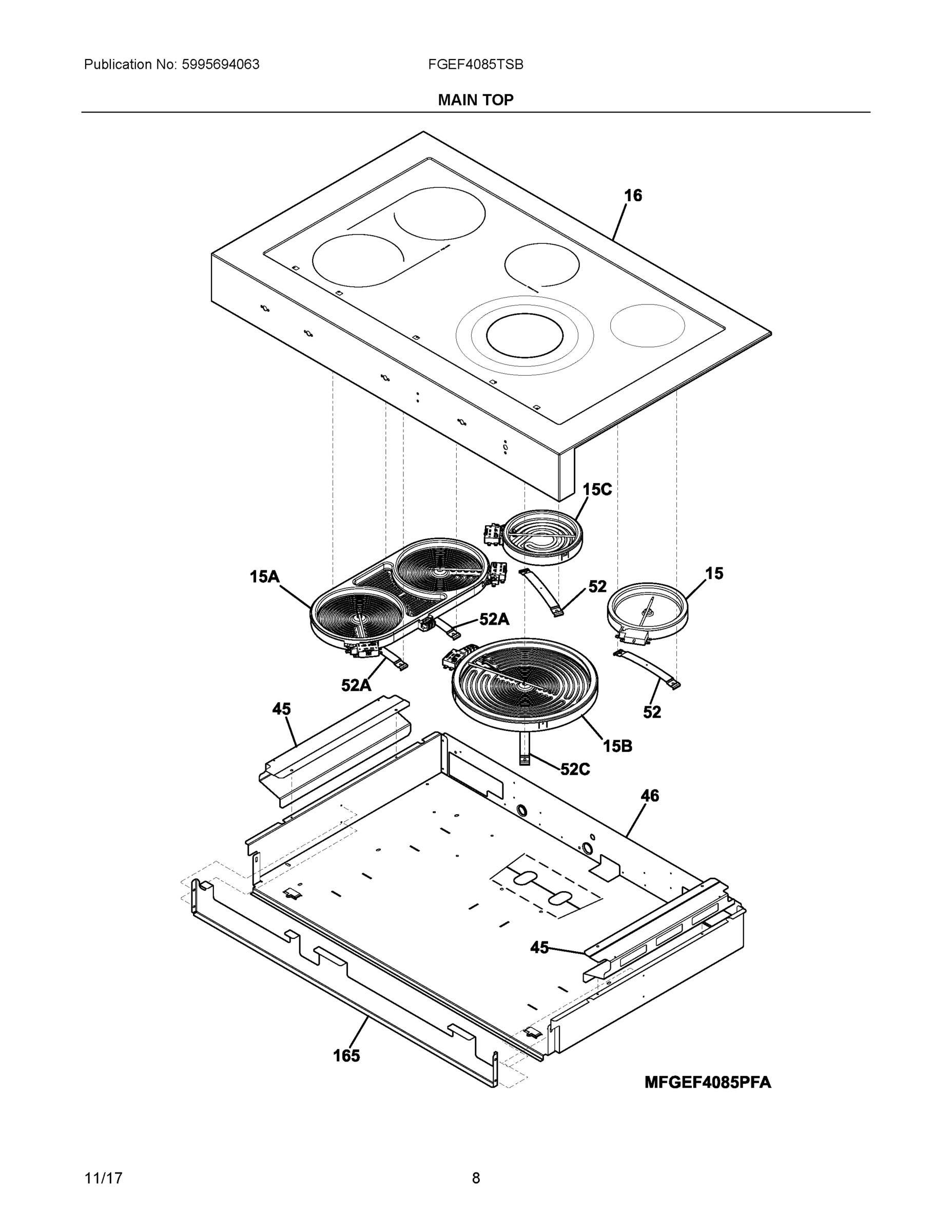

04 - MAIN TOP

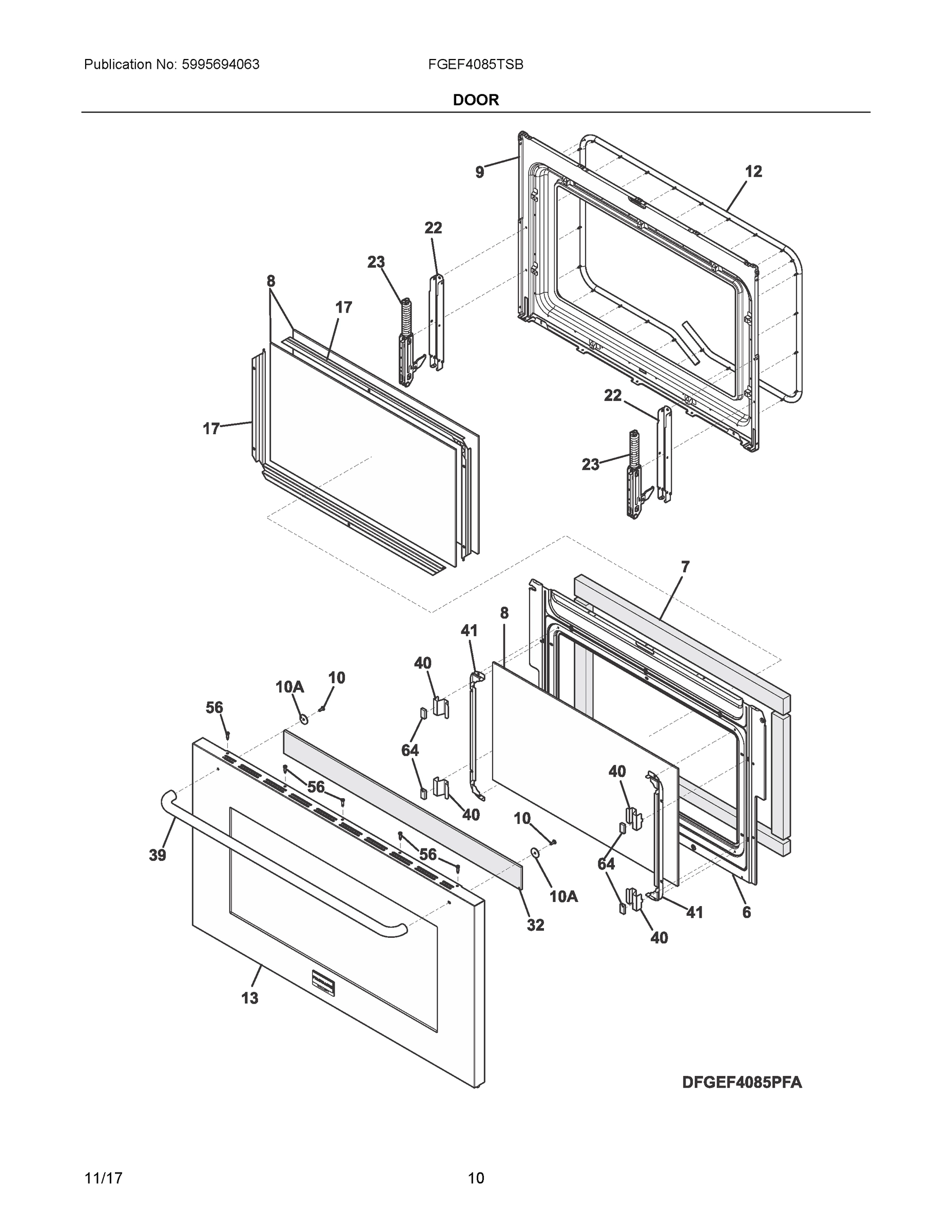

05 - DOOR

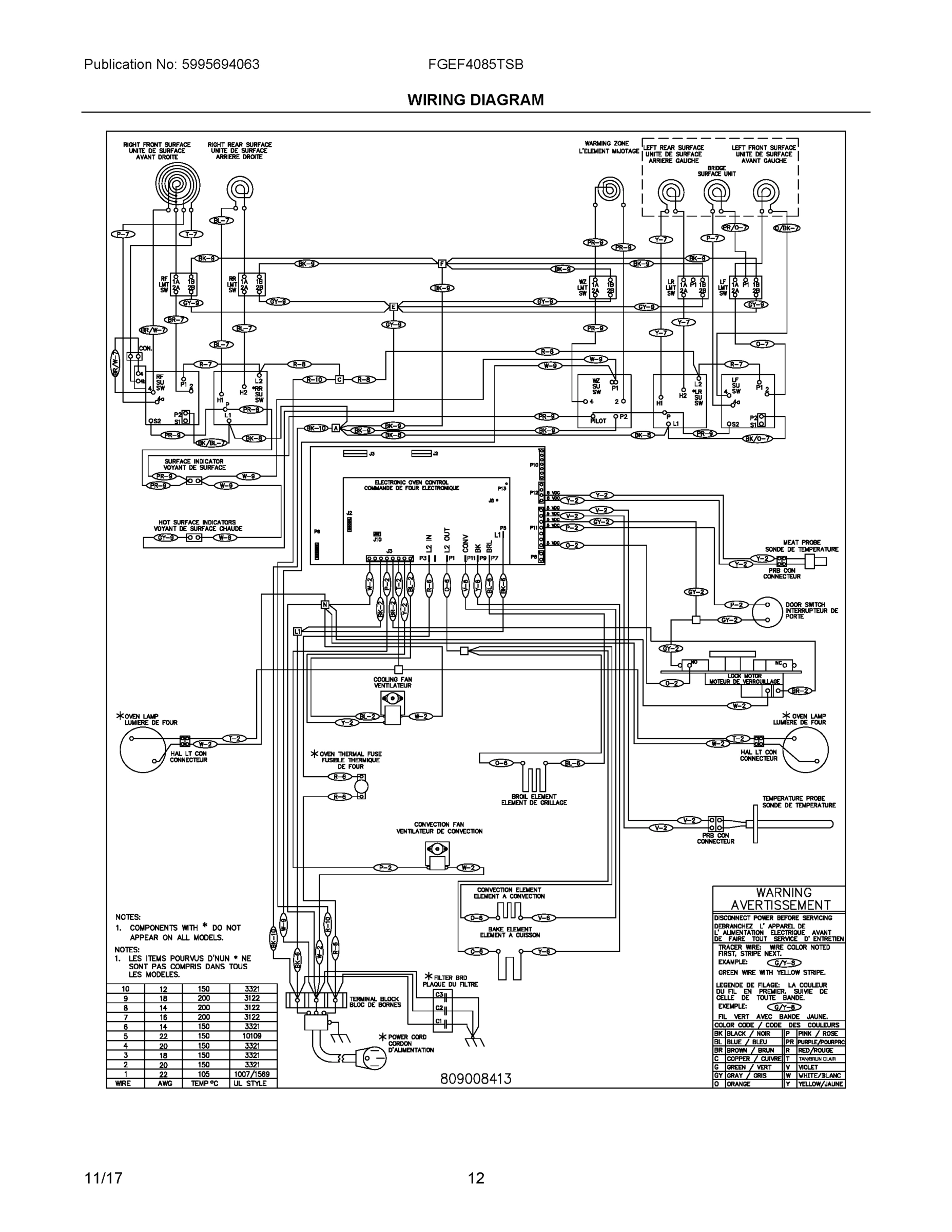

06 - WIRING DIAGRAM

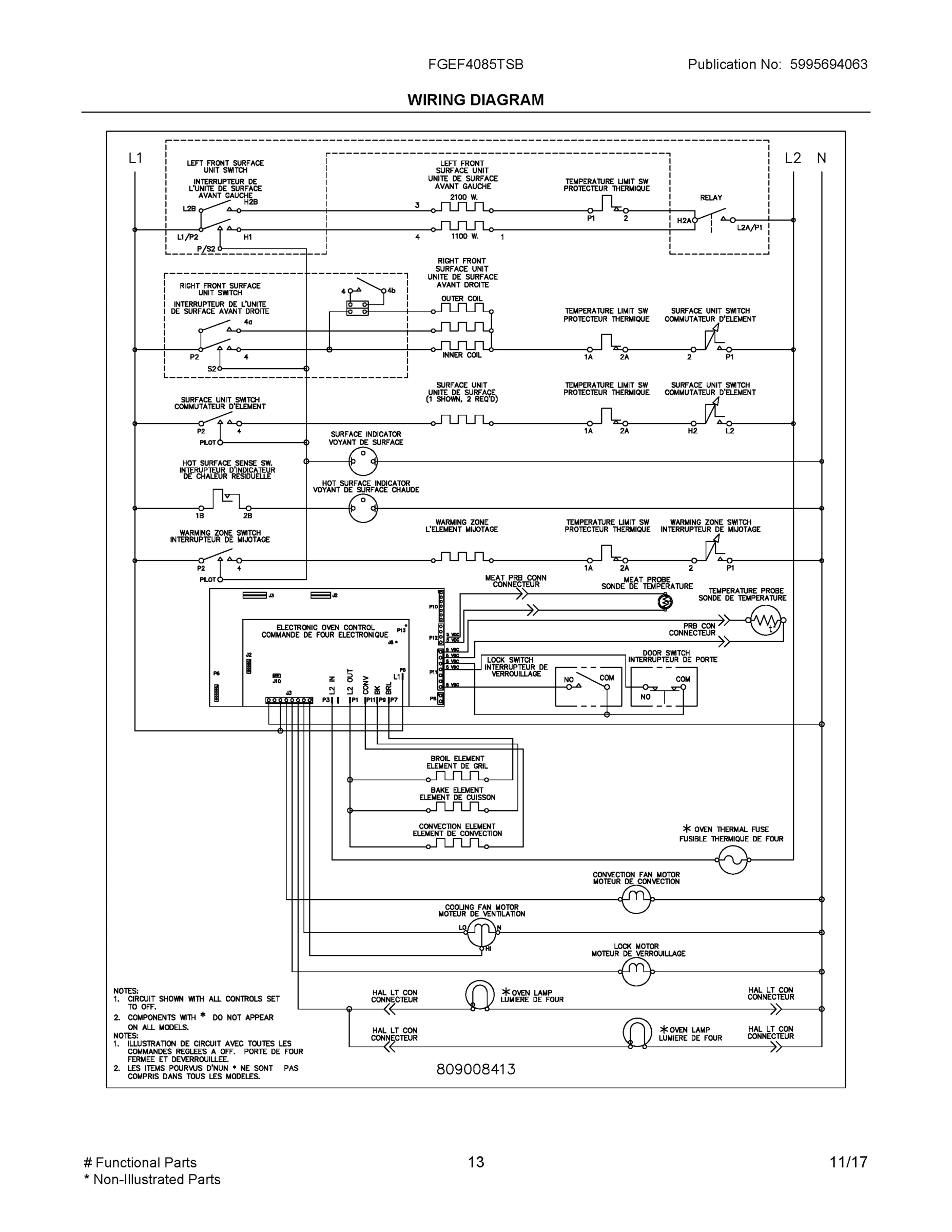

07 - WIRING DIAGRAM
Common parts from model Electrolux FGEF4085TSB RANGE/OVEN, ELECTRIC, FREESTANDING, 40 INCH
3
PANEL, BODYSIDE, BLACK WCI 807310002 Contact Us For Availability
5
SCREW, LEVELING WCI 318175506 Contact Us For Availability
6
BAFFLE, DOOR WCI 318260552 Contact Us For Availability
7
INSULATION ASSY., DOOR WCI 807354901 Contact Us For Availability
8
GLASS, OVEN DOOR, HEAT BARRIER, (2) WCI 318212250 Contact Us For Availability
9
PAN, BROILER, SLATE BLUE OPTIONAL ACCESSORY WCI 316081902 Contact Us For Availability
10
INSERT, BROILER PAN, SLATE BLUE OPTIONAL ACCE WCI 316082002 Contact Us For Availability
10A
WASHER, HANDLE SCREW WCI 5304498487 Contact Us For Availability
11
LADDER ASSEMBLY, KIT, NICKEL, W/2 LADDERS WCI 808713925 Contact Us For Availability
12
SEAL, OVEN DOOR WCI 5304504355 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, STAINLESS, W/BADGE WCI 5304509012 Contact Us For Availability
15
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15
LAMP ASSEMBLY, HALOGEN, 26" HARNESS, W/G9 40W WCI 139001800 Contact Us For Availability
15A
ELEMENT, BRIDGE, 1800/2600W WCI 807219901 Contact Us For Availability
15B
ELEMENT, TRIPLE, 1200/2000/3000W, 6"/9"/12" WCI 318297810 Contact Us For Availability
16
MAIN TOP, ASSEMBLY, BLACK/STAINLESS WCI 5304509013 Contact Us For Availability
17
SPACER, DOOR GLASS, (2) WCI 318376403 Contact Us For Availability
18
LATCH ASSEMBLY, OVEN DOOR WCI 316405800 Contact Us For Availability
19
PANEL, BACKGUARD, STAINLESS WCI 5304504336 Contact Us For Availability
20
CONTROL ASSEMBLY, ELECTRONIC, ES536W1, BLACK, WCI 139058401 Contact Us For Availability
20
PLATE, RETAINER WCI 318389400 Contact Us For Availability
21
SEAL, RING WCI 318389000 Contact Us For Availability
22
RETAINER, HINGE WCI 318353803 Contact Us For Availability
23
HINGE ASSY, (2) WCI 318244307 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
32
INSULATION, DOOR SKIN WCI 5304508568 Contact Us For Availability
35
SKIRT, KNOB, STAINLESS WCI 808312201 Contact Us For Availability
37
SENSOR, OVEN TEMP PROBE WCI 5304504897 Contact Us For Availability
39
HANDLE, DOOR, STAINLESS WCI 318039813 Contact Us For Availability
40
BRACKET, GLASS, (4) WCI 318364701 Contact Us For Availability
41
BRACKET, GLASS RETAINER WCI 5304508554 Contact Us For Availability
45
BRACKET, SIDE SUPPORT WCI 807328401 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
46
BOX, BURNER WCI 807353603 Contact Us For Availability
52
SPRING, ELEMENT MTG, SMALL WCI 318122006 Contact Us For Availability
52A
SPRING, ELEMENT MTG, 1800W/3000W WCI 318122008 Contact Us For Availability
52C
SPRING, ELEMENT MTG, 1200W/1800W WCI 318122011 Contact Us For Availability
53
PROBE, MEAT TEMP, RED WCI 5304504202 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
54A
SWITCH, INFINITE RADIAN, DUAL WCI 316238201 Contact Us For Availability
54B
SWITCH, INFINITE, WARMER WCI 5304508926 Contact Us For Availability
54C
SWITCH, INFINITE, TRIPLE WCI 5304490134 Contact Us For Availability
55
NUT, MOUNTING WCI 316247700 Contact Us For Availability
56
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
64
SPACER, GLASS, FOAM WCI 318165800 Contact Us For Availability
67
ELEMENT, BAKE, 3000W WCI 318254905 Contact Us For Availability
86
WCI 318241406 WCI 318241406 Contact Us For Availability
90
WCI 807340201 WCI 807340201 Contact Us For Availability
108
WCI 318073028 WCI 318073028 Contact Us For Availability
108A
WCI 5304508574 WCI 5304508574 Contact Us For Availability
109
WCI 318398302 WCI 318398302 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
127
WCI 318357002 WCI 318357002 Contact Us For Availability
131
WCI 808220301 WCI 808220301 Contact Us For Availability
132
WCI 318347800 WCI 318347800 Contact Us For Availability
143
WCI 318172904 WCI 318172904 Contact Us For Availability
161
WCI 318255511 WCI 318255511 Contact Us For Availability
165
SUPPORT, COOKTOP GLASS WCI 5304508549 Contact Us For Availability
166
WCI 318352550 WCI 318352550 Contact Us For Availability
170
WCI 316112006 WCI 316112006 Contact Us For Availability
190
WCI 318368404 WCI 318368404 Contact Us For Availability
191
WCI 5304508570 WCI 5304508570 Contact Us For Availability
219
WCI 318004902 WCI 318004902 Contact Us For Availability
264
WCI 318257753 WCI 318257753 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
HARNESS, WIRING, SURFACE ELEMENT, & INDICTR L WCI 5304508558 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NI
WCI 5304508555 WCI 5304508555 Contact Us For Availability
NIA
WCI 318946400 WCI 318946400 Contact Us For Availability
NIA
WCI 316021108 WCI 316021108 Contact Us For Availability
NIA
WCI 5303310510 WCI 5303310510 Contact Us For Availability
NIA
WCI 318373001 WCI 318373001 Contact Us For Availability
NIA
SCREW, SELF TAPPING, 8-18 X 11/32, (4) WCI 807597603 Contact Us For Availability
NIA
WCI 5304481623 WCI 5304481623 Contact Us For Availability
NIA
WCI 5304504339 WCI 5304504339 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
NIB
WCI 5304463707 WCI 5304463707 Contact Us For Availability
NIB
WCI 5304508569 WCI 5304508569 Contact Us For Availability
NIC
WCI 316542202 WCI 316542202 Contact Us For Availability
× ![]()
