Model Electrolux FGEF302TPFA ELECTRIC RANGE – Common Parts & Diagrams

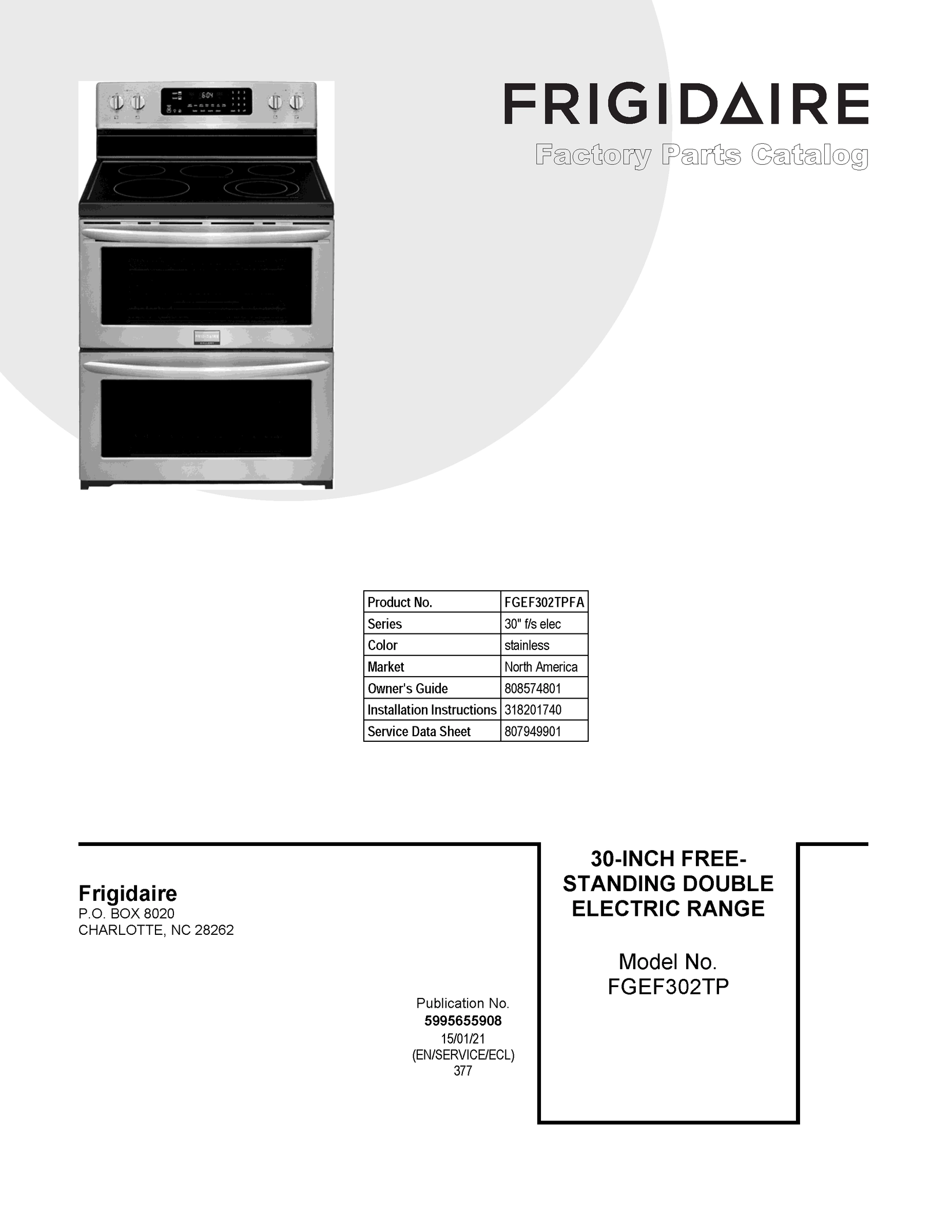

01 - COVER SHEET

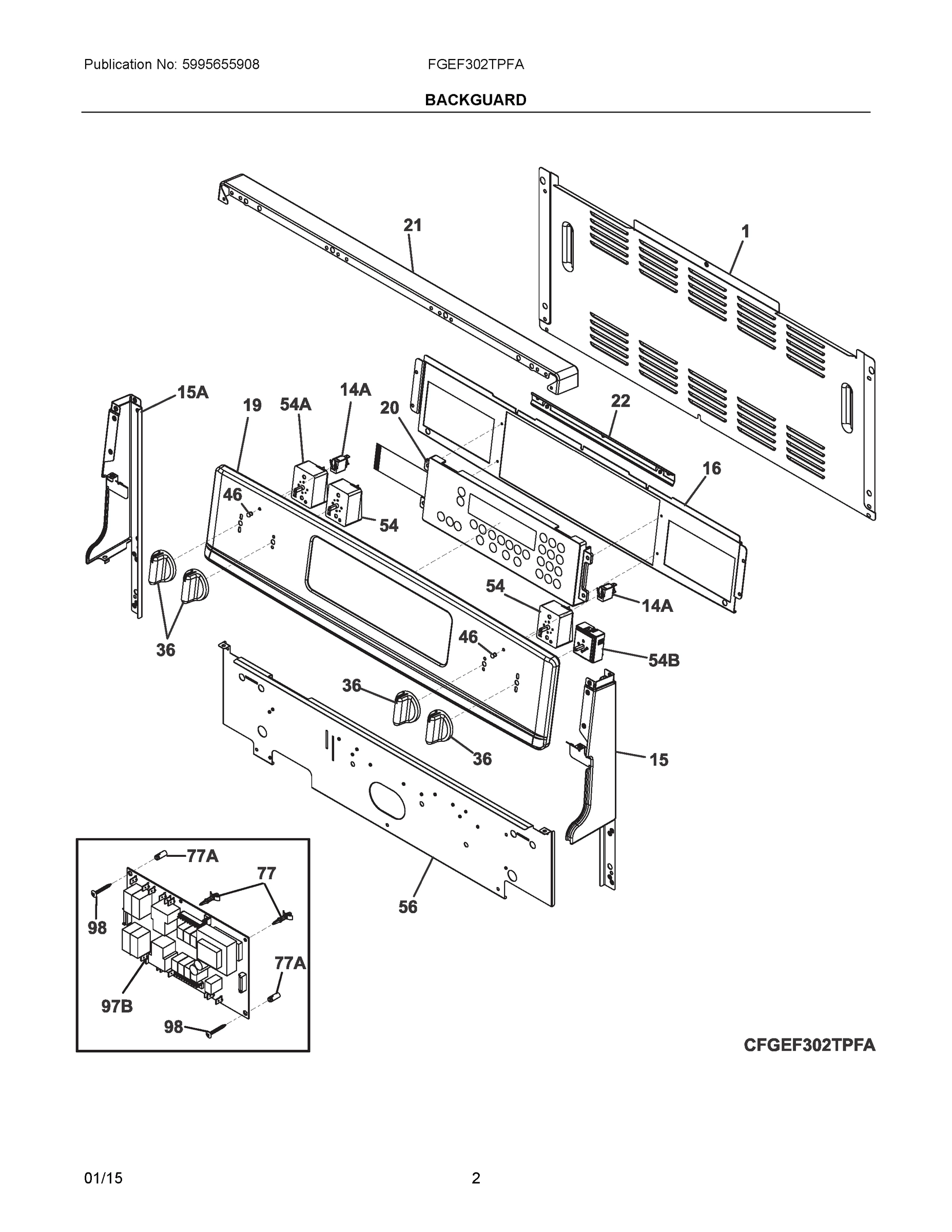

02 - BACKGUARD

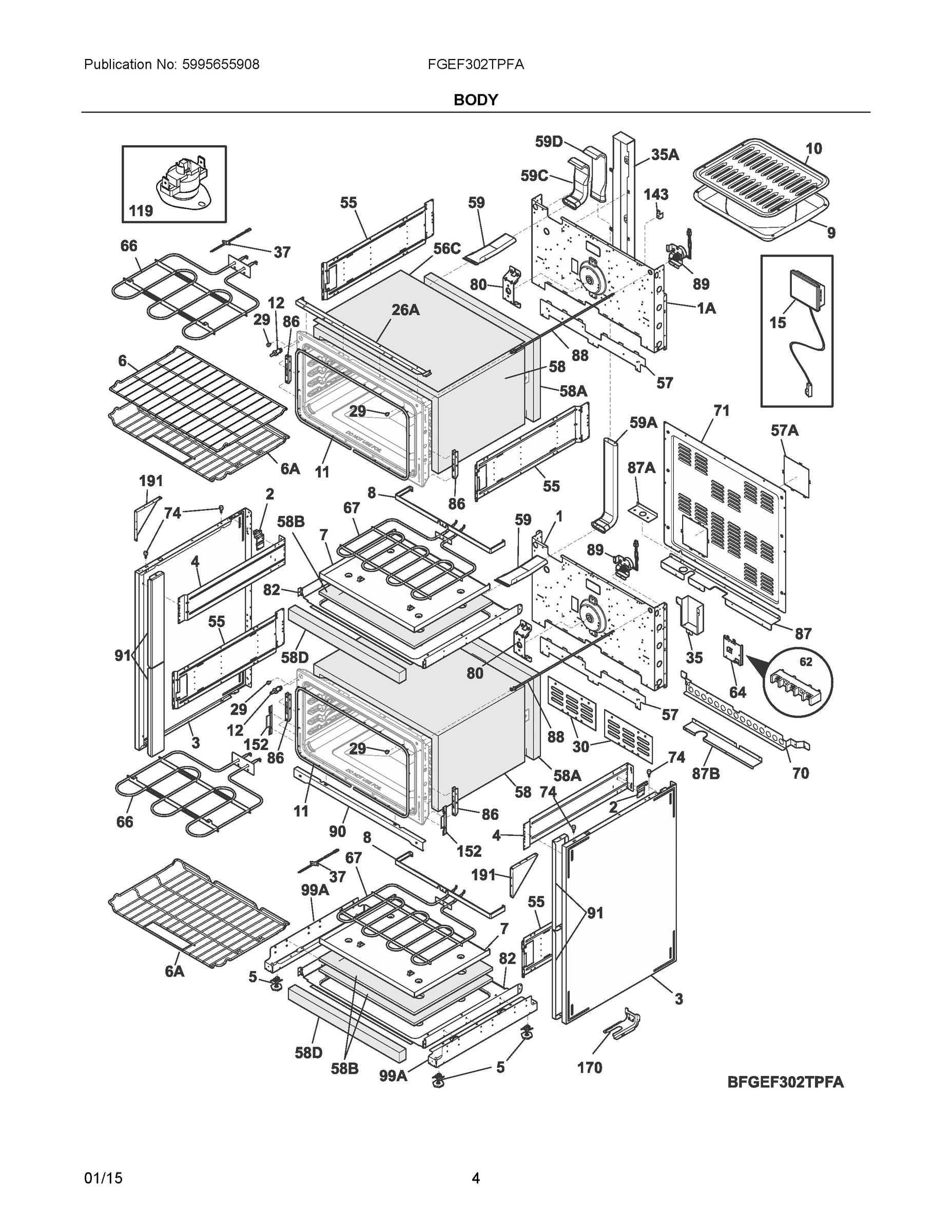

03 - BODY

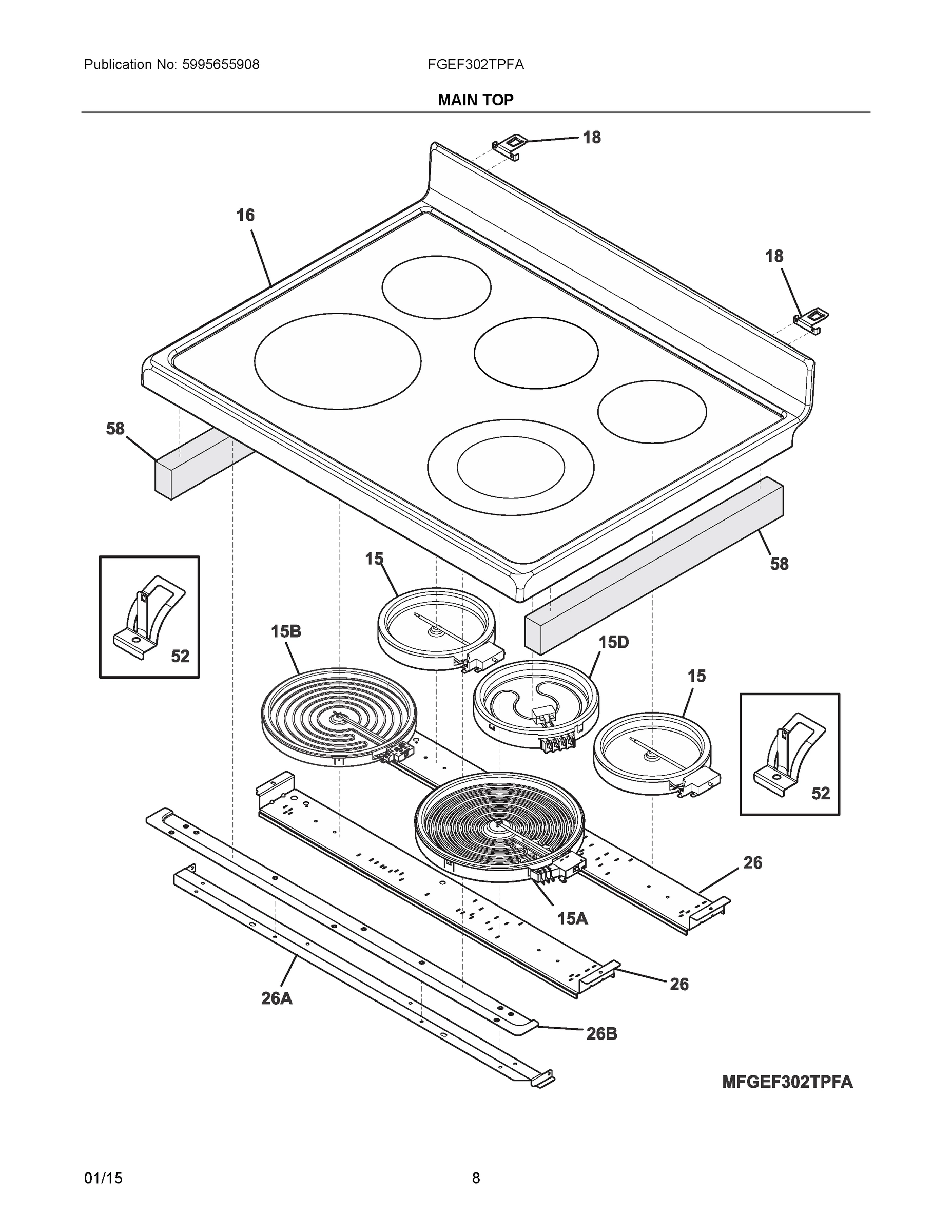

04 - MAIN TOP

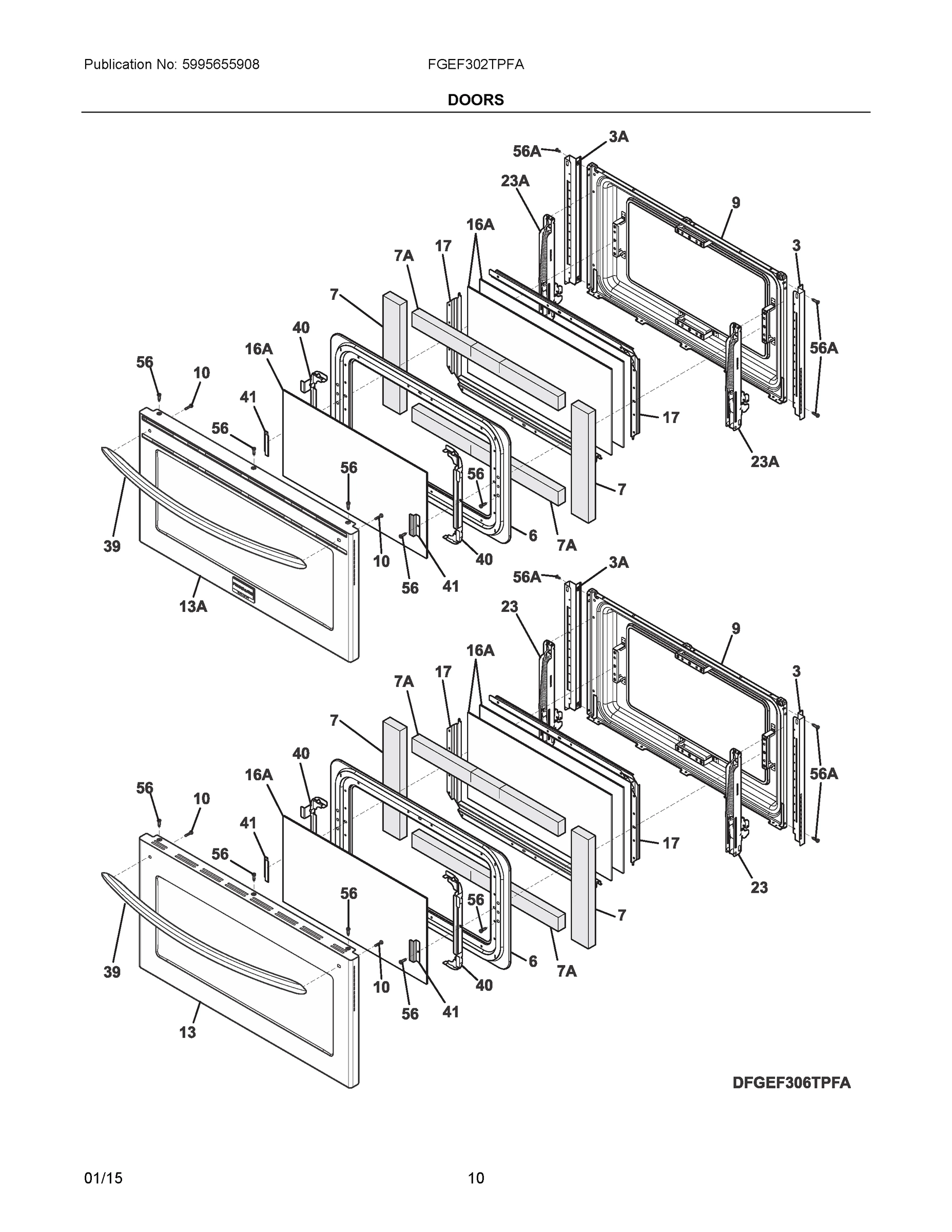

05 - DOORS

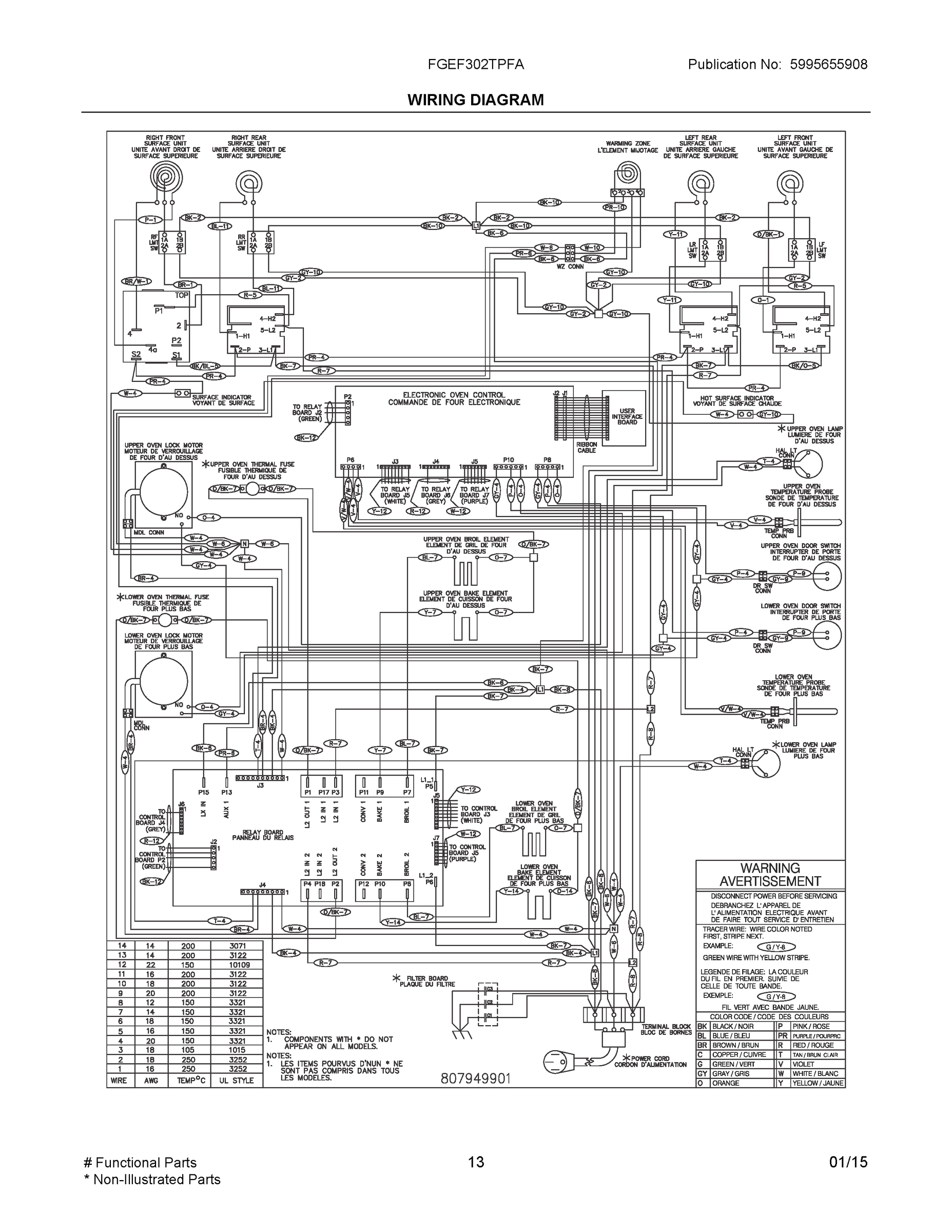

06 - WIRING DIAGRAM
07 - WIRING DIAGRAM
Common parts from model Electrolux FGEF302TPFA ELECTRIC RANGE
1
SHIELD, REAR WALL WCI 316557600 Contact Us For Availability
6
WCI 807045901 WCI 807045901 Contact Us For Availability
6A
RACK, OVEN, OFFSET, W/HANDLE WCI 139012400 Contact Us For Availability
7
WCI 318372017 WCI 318372017 Contact Us For Availability
7A
WCI 808949801 WCI 808949801 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 318138801 Contact Us For Availability
9
WCI 807939102 WCI 807939102 Contact Us For Availability
11
WCI 139098502 WCI 139098502 Contact Us For Availability
12
SWITCH, OVEN LIGHT, DOOR FRAME WCI 316445500 Contact Us For Availability
13
WCI 807939204 WCI 807939204 Contact Us For Availability
13A
WCI 807939203 WCI 807939203 Contact Us For Availability
14A
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
15
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15
WCI 139001800 WCI 139001800 Contact Us For Availability
15B
ELEMENT, SURFACE, 9", 2500 W, RADIANT WCI 316135401 Contact Us For Availability
16
WCI 139033848 WCI 139033848 Contact Us For Availability
16A
GLASS, OVEN DOOR, HEAT BARRIER, HBII WCI 318212216 Contact Us For Availability
18
HINGE BRACKET, MAINTOP, (2) WCI 316436600 Contact Us For Availability
19
WCI 316572446 WCI 316572446 Contact Us For Availability
20
WCI 139092903 WCI 139092903 Contact Us For Availability
23
WCI 316575940 WCI 316575940 Contact Us For Availability
23A
WCI 316575939 WCI 316575939 Contact Us For Availability
29
SPACER, OVEN DOOR WCI 316517600 Contact Us For Availability
36
WCI 316564407 WCI 316564407 Contact Us For Availability
36A
KNOB, TOP VALVE, STAINLESS, (5) WCI 316564509 Contact Us For Availability
40
RETAINER, GLASS, OVEN, (4) WCI 318642900 Contact Us For Availability
41
WCI 318370602 WCI 318370602 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
52
CLIP, ELEMENT MTG WCI 316461700 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
54B
SWITCH, INFINITE RADIAN, DUAL WCI 316238201 Contact Us For Availability
59
VENT TUBE, ASSEMBLY, W/CATALYST WCI 316208401 Contact Us For Availability
67
WCI 139211601 WCI 139211601 Contact Us For Availability
77A
SPACER WCI 316114100 Contact Us For Availability
86
RECEPTACLE, HINGE, (2) WCI 318561100 Contact Us For Availability
88
ROD, LATCH, W/BUSHING WCI 318250207 Contact Us For Availability
89
MOTOR, LATCH ASSY, W/BRKT & SWITCH WCI 318095967 Contact Us For Availability
90
WCI 318405203 WCI 318405203 Contact Us For Availability
97B
WCI 316443947 WCI 316443947 Contact Us For Availability
119
SWITCH, THERMAL WCI 318004902 Contact Us For Availability
170
ANTI TIP KIT, ASSEMBLY, W/TEMPLATE WCI 318584501 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SPACER, GLASS, FOAM WCI 318165800 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 316303501 WCI 316303501 Contact Us For Availability
NI
SCREW, TRUSS SQDR, 8A X 1" WCI 5303289910 Contact Us For Availability
NIA
WCI 318946400 WCI 318946400 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIA
SCREW, 6-20 X 0.312 WCI 5308014215 Contact Us For Availability
NIA
SPACER, POWER BOARD WCI 316247900 Contact Us For Availability
NIA
CATALYST, OVEN VENT, CERAMIC WCI 316247300 Contact Us For Availability
NIB
NUT, HEX FLANGE, 3/8 10-32 WCI 316205500 Contact Us For Availability
NIB
WCI 5303311164 WCI 5303311164 Contact Us For Availability
× ![]()
