Model Electrolux FGDS3065PFB RANGE – Common Parts & Diagrams
01 - COVER SHEET

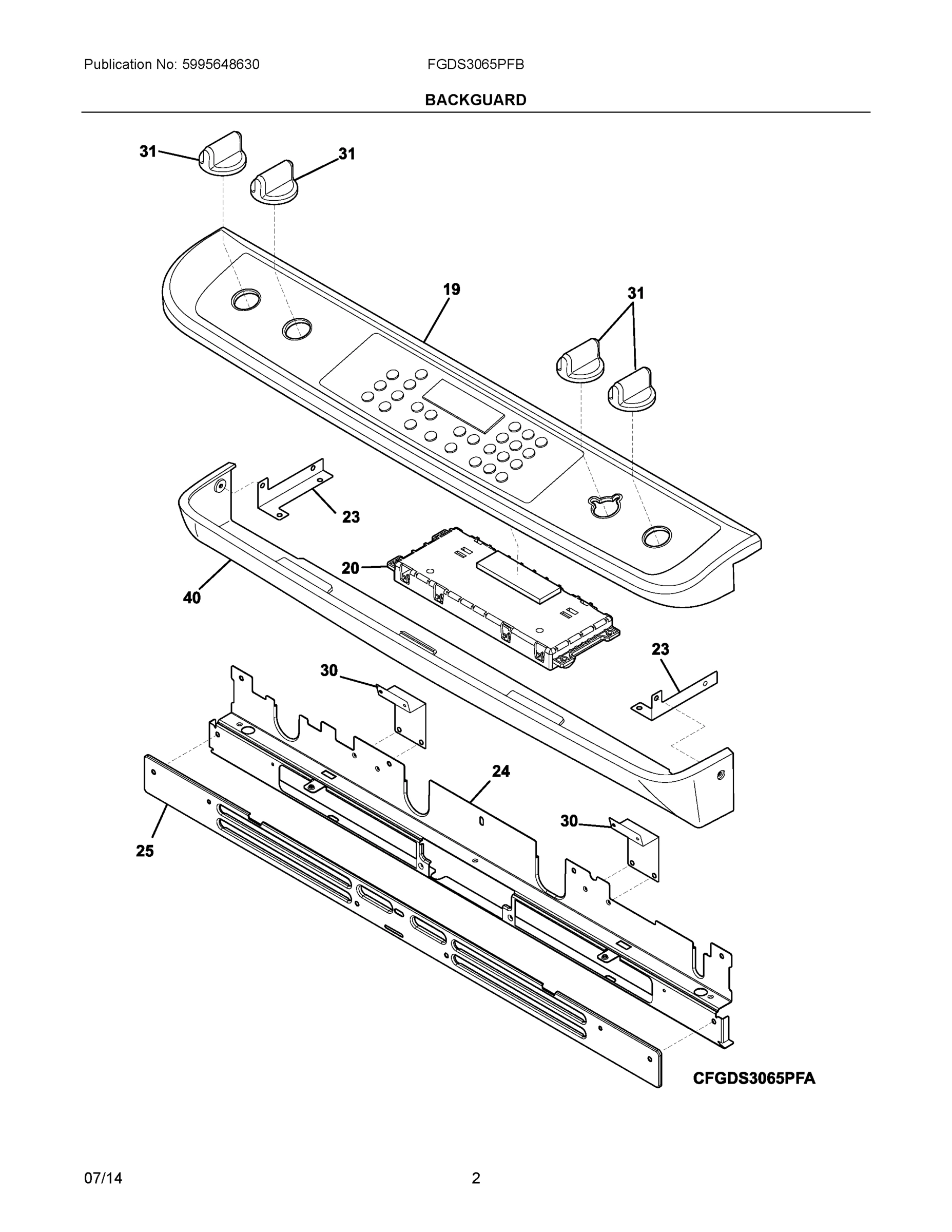

02 - BACKGUARD
03 - BURNER
04 - BODY
05 - TOP/DRAWER
06 - DOOR
07 - WIRING DIAGRAM
08 - WIRING DIAGRAM
Common parts from model Electrolux FGDS3065PFB RANGE
1
MANIFOLD, RIGHT SIDE WCI 318913400 Contact Us For Availability
1A
MANIFOLD, PIPE, LH WCI 318907200 Contact Us For Availability
1B
TUBE, CONNECTION, MANIFOLD WCI 318913500 Contact Us For Availability
2
VALVE, TOP BURNER, 5K WCI 318915700 Contact Us For Availability
2A
VALVE, TOP BURNER, 9.5K WCI 318915701 Contact Us For Availability
2B
VALVE, TOP BURNER, 14K WCI 318915703 Contact Us For Availability
2C
VALVE, TOP BURNER, 16K/17K WCI 318915704 Contact Us For Availability
3
WIRING HARNESS, W/IGNTR SWITCH WCI 318232659 Contact Us For Availability
3A
WCI 139014401 WCI 139014401 Contact Us For Availability
3B
COVER, REAR DOOR, BLACK, (2) WCI 318262111 Contact Us For Availability
4
SUPPORT, AUTO RACK, (2) WCI 318927600 Contact Us For Availability
6A
RACK, OVEN, OFFSET, W/HANDLE WCI 139012400 Contact Us For Availability
7
WCI 318372017 WCI 318372017 Contact Us For Availability
7
BOX, BAKE ELEMENT WCI 318297303 Contact Us For Availability
7A
WCI 318372016 WCI 318372016 Contact Us For Availability
8
PANEL, SERVICE WCI 318359500 Contact Us For Availability
8A
BRACKET, BAKE ELEMENT WCI 318313601 Contact Us For Availability
9
LINER, OVEN DOOR WCI 139000423 Contact Us For Availability
9
PAN, BROILEROPTIONAL ACCESS0RY WCI 318138801 Contact Us For Availability
10
BURNER, SEALED, 5K WCI 316438200 Contact Us For Availability
10A
BURNER, SEALED, 9.5K WCI 316558300 Contact Us For Availability
10B
BURNER, SEALED, 14K WCI 316438600 Contact Us For Availability
10C
BURNER, SEALED, 17K WCI 316438400 Contact Us For Availability
11
IGNITOR/ORIFICE ASSY., TOP BURNER, 5K, W/HOLD WCI 316540800 Contact Us For Availability
11
WCI 807545502 WCI 807545502 Contact Us For Availability
11
BRACKET, DRAWER SUPPORT, (2) WCI 318298600 Contact Us For Availability
11A
IGNITOR/ORIFICE ASSY., TOP BURNER, 9.5K, W/HO WCI 316540700 Contact Us For Availability
11B
IGNITOR/ORIFICE ASSY., TOP BURNER, 14K, W/HOL WCI 316543206 Contact Us For Availability
11C
IGNITOR/ORIFICE ASSY., TOP BURNER, 17K, W/HOL WCI 316543203 Contact Us For Availability
12B
TUBE, BURNER SUPPLY, LH REAR WCI 318916600 Contact Us For Availability
12C
TUBE, BURNER SUPPLY, RH FRONT WCI 318916700 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, STAINLESS/BLACK, W/TRIM WCI 808950006 Contact Us For Availability
13
GLIDE, WARMER, INNER RH WCI 318259504 Contact Us For Availability
13A
GLIDE, WARMER, INNER LH WCI 318259505 Contact Us For Availability
14
REGULATOR, PRESSURE WCI 318122721 Contact Us For Availability
16
MAINTOP ASSEMBLY, BLACK WCI 318569053 Contact Us For Availability
18
LINK, DOOR, (2), AUTO RACK WCI 316547900 Contact Us For Availability
20A
GRATE, BLACK, CENTER WCI 318560470 Contact Us For Availability
23
BRACKET, CONTROL MTG, (2) WCI 318921300 Contact Us For Availability
25
WCI 139075001 WCI 139075001 Contact Us For Availability
29
SPACER, OVEN DOOR WCI 316517600 Contact Us For Availability
31
KNOB, CONTROL, STAINLESS WCI 316564411 Contact Us For Availability
40
BRACKET, GLASS HOLDER, DOOR, (2) WCI 318242702 Contact Us For Availability
41
WCI 318370602 WCI 318370602 Contact Us For Availability
44
ORIFICE, BURNER, 5K WCI 316527504 Contact Us For Availability
44A
ORIFICE, BURNER, 9.5K WCI 316527500 Contact Us For Availability
44B
ORIFICE, TOP BURNER, 14K WCI 316527513 Contact Us For Availability
44C
ORIFICE, BURNER, 17K WCI 316527509 Contact Us For Availability
47
CONVERSION KIT, LP WCI 318565405 Contact Us For Availability
50
PANEL, SERVICE, FAN WCI 318578803 Contact Us For Availability
54
RECEPTACLE ASSY, MEAT PROBE WCI 139017201 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
64
SPACER WCI 318165800 Contact Us For Availability
72
SCREW, VALVE MTG., 1/4 - 20 WCI 316215600 Contact Us For Availability
76
BRACKET, MANIFOLD, (2) WCI 318906703 Contact Us For Availability
86
RECEPTACLE, HINGE, (2) WCI 318561100 Contact Us For Availability
107
COVER, CONVECTION FAN WCI 139013903 Contact Us For Availability
108
WCI 318575612 WCI 318575612 Contact Us For Availability
111
NUT, FAN RETAINER WCI 316136600 Contact Us For Availability
119
THERMOSTAT, SAFETY WCI 807144901 Contact Us For Availability
124
GLIDE, DRAWER, OUTER/RH & LH, (2) WCI 318330600 Contact Us For Availability
125
MOTOR, CONVECTION FAN WCI 139008500 Contact Us For Availability
127
WCI 139042600 WCI 139042600 Contact Us For Availability
161
ELEMENT, CONVECTION, 2500W WCI 139006500 Contact Us For Availability
165
DEFLECTOR, BOX, FRONT WCI 318913300 Contact Us For Availability
166
BRACKET, BASE SUPPORT, (2) WCI 318298410 Contact Us For Availability
170
WCI 5304486410 WCI 5304486410 Contact Us For Availability
200
FRAME & WHEEL ASSEM WCI 318335600 Contact Us For Availability
272
WCI 139021700 WCI 139021700 Contact Us For Availability
284
WCI 316536100 WCI 316536100 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
WCI 316303501 WCI 316303501 Contact Us For Availability
NI
WIRING HARNESS, IGNITOR WCI 318199776 Contact Us For Availability
NI
WCI 318531701 WCI 318531701 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NI
HARNESS, WIRING, DISPLAY WCI 807633201 Contact Us For Availability
NIA
WCI 318946500 WCI 318946500 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
NIC
WCI 318264200 WCI 318264200 Contact Us For Availability
× ![]()
