Model Electrolux FGC3X8XGSA COOK-TOP – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL/TOP

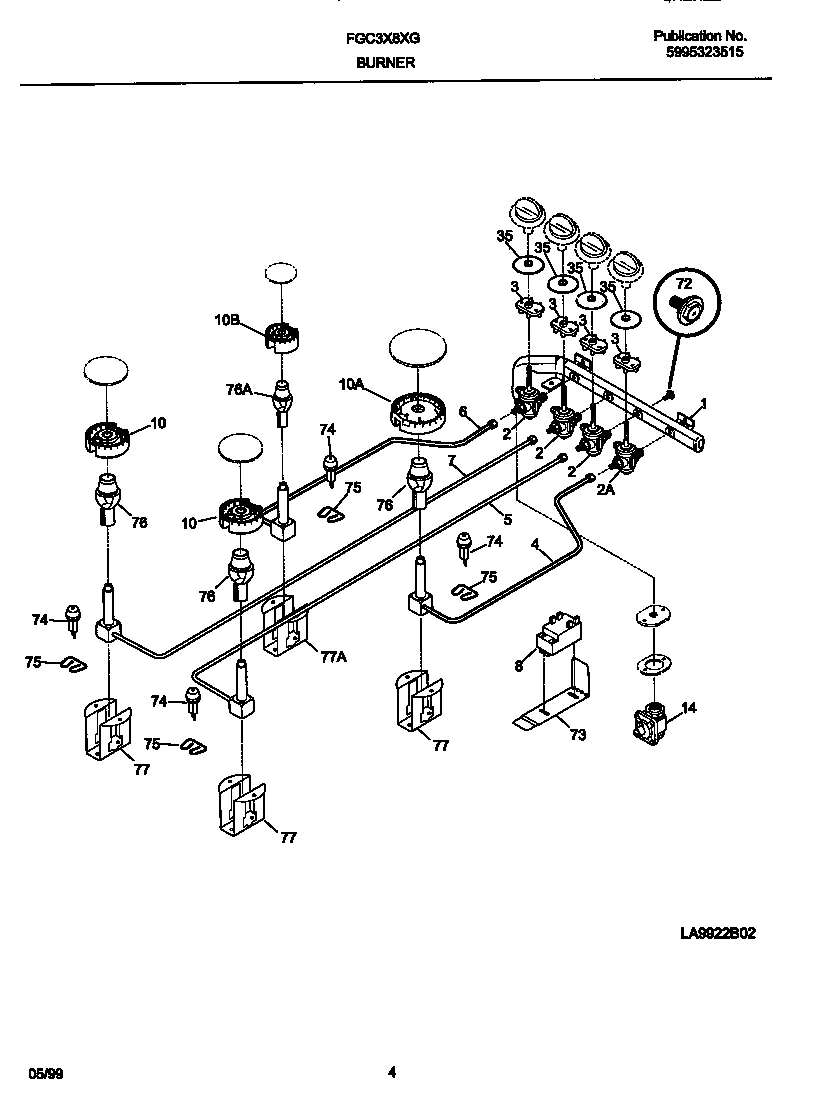

03 - BURNER

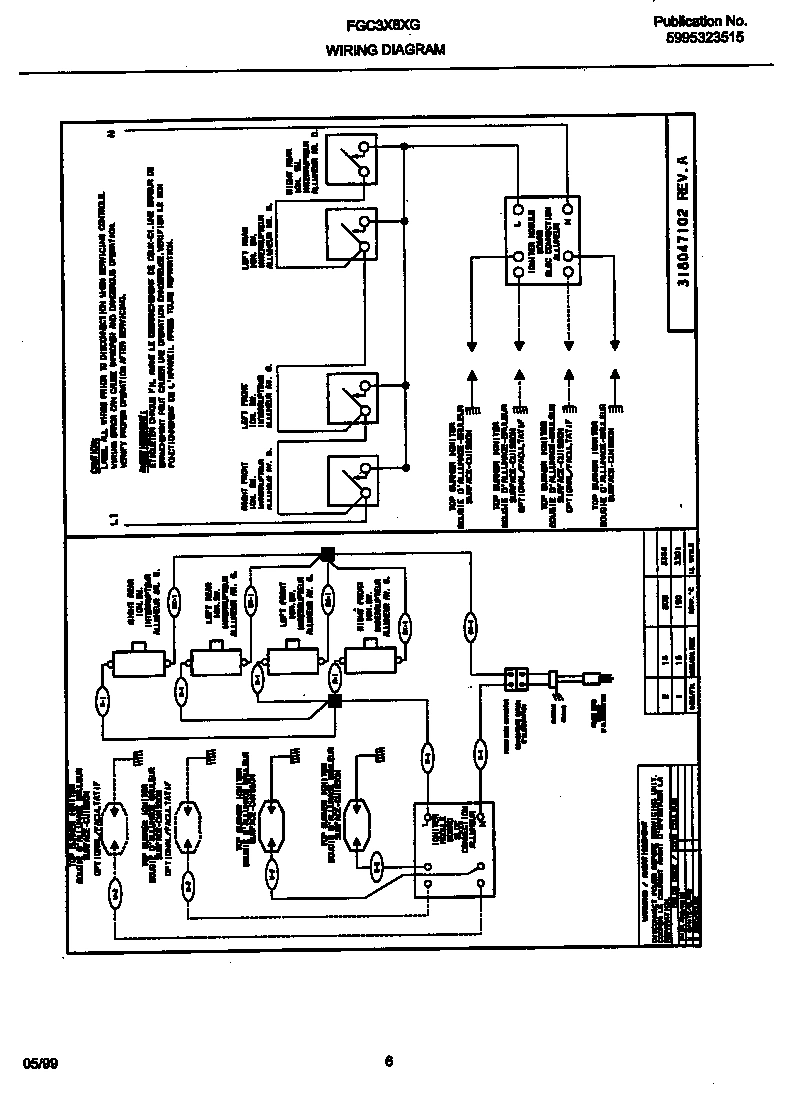

04 - WIRING DIAGRAM
Common parts from model Electrolux FGC3X8XGSA COOK-TOP
*07848
WCI 318127407 WCI 318127407 Contact Us For Availability
1
WCI 318177003 WCI 318177003 Contact Us For Availability
2
VALVE-TOP BURNER WCI 318087001 Contact Us For Availability
2
VALVE-TOP BURNER, 2-POSITION, (3) WCI 5303935042 Contact Us For Availability
3
WCI 316032002 WCI 316032002 Contact Us For Availability
4
TUBE-BURNER,FR WCI 318167703 Contact Us For Availability
5
TUBE-BURNER,FL WCI 318167700 Contact Us For Availability
6
TUBE-BURNER,BR WCI 318167702 Contact Us For Availability
7
TUBE-BURNER,BL WCI 318167701 Contact Us For Availability
10
BURNER-TOP,LARGE RF WCI 318148002 Contact Us For Availability
10
BURNER-TOP MID,LF & LR WCI 318148001 Contact Us For Availability
10
BURNER-TOP SMALL,RR WCI 318148000 Contact Us For Availability
19
BURNER PAN LARGE BLACK,LARGE RF WCI 318168126 Contact Us For Availability
19
BURNER PAN MEDIUM WHITE,MID LR & FL WCI 318168116 Contact Us For Availability
35
WCI 5303307978 WCI 5303307978 Contact Us For Availability
51
WCI 318024200 WCI 318024200 Contact Us For Availability
72
SCREW VALVE <1/4-20X 5/16 WCI 5303323141 Contact Us For Availability
75
WCI 318148800 WCI 318148800 Contact Us For Availability
76
SMALL MIXING TUBE,SMALL RR & LR WCI 318167800 Contact Us For Availability
77
BRACKET-BURNER MTG,MID & LARGE WCI 318112010 Contact Us For Availability
77
BRACKET-BURNER MTG WCI 318112000 Contact Us For Availability
137
SCREW,10-24X1/2 WCI 5303323138 Contact Us For Availability
× ![]()
