Model Electrolux FGC3X8XGBA COOK-TOP – Common Parts & Diagrams

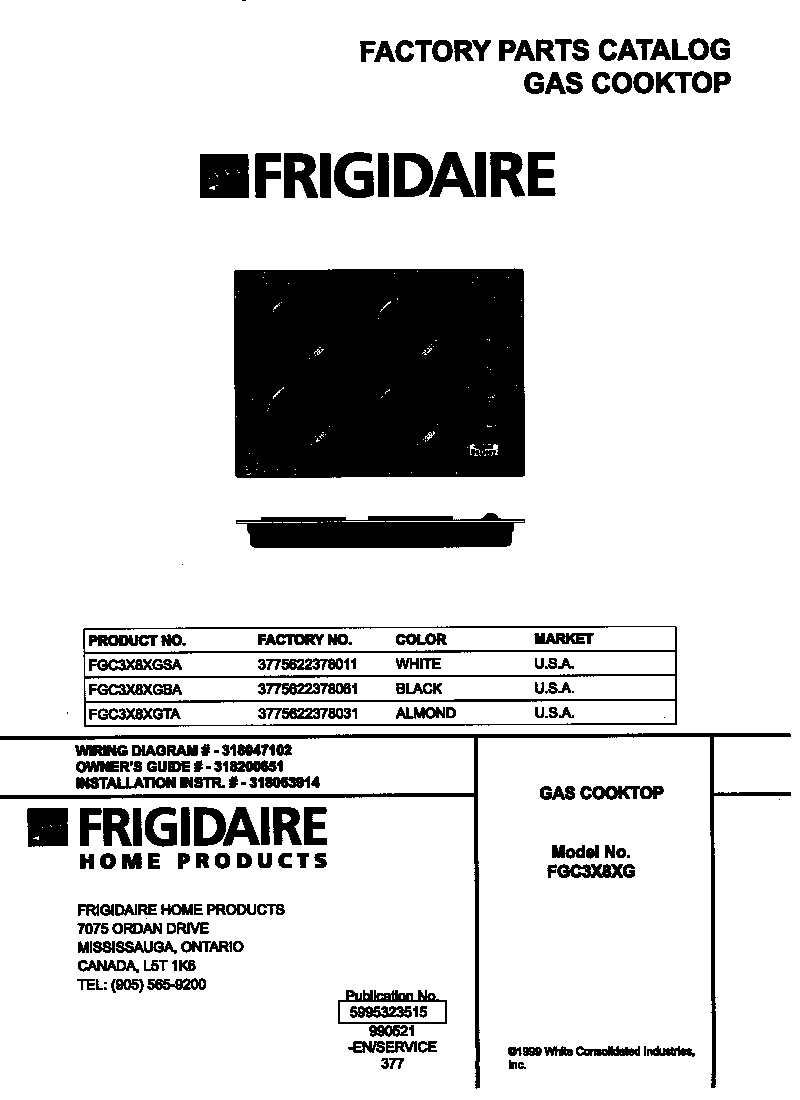

01 - COVER

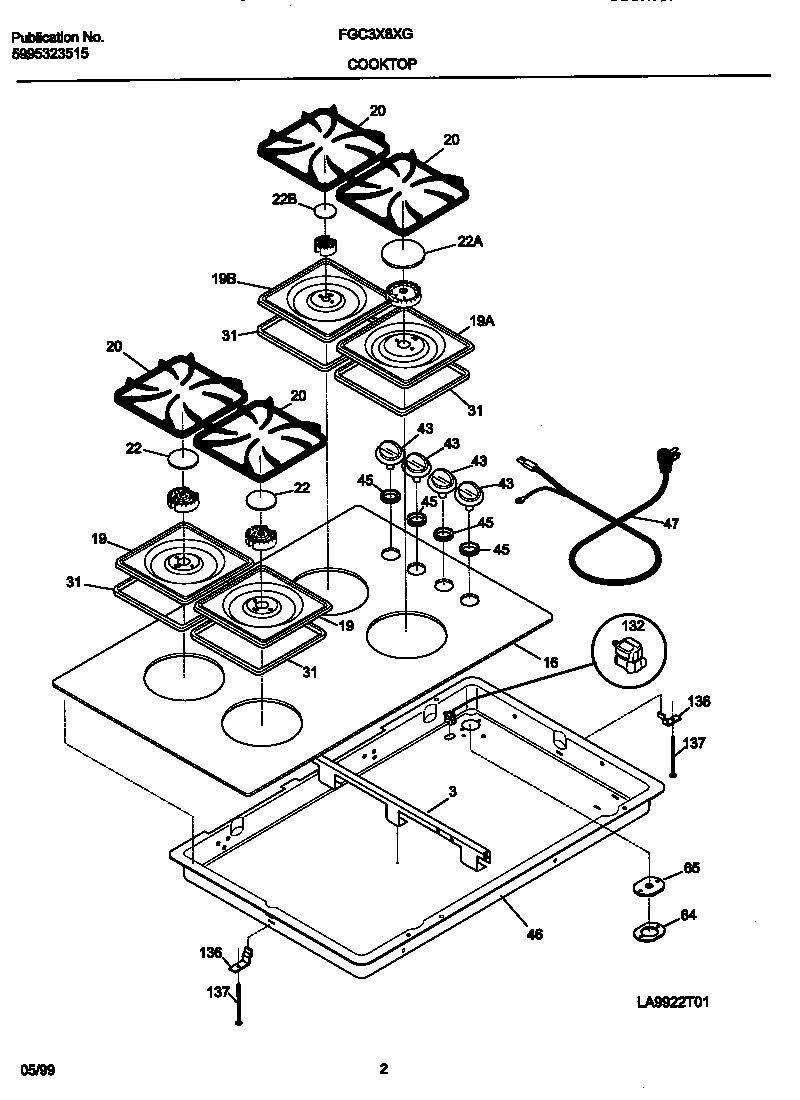

02 - CONTROL PANEL/TOP

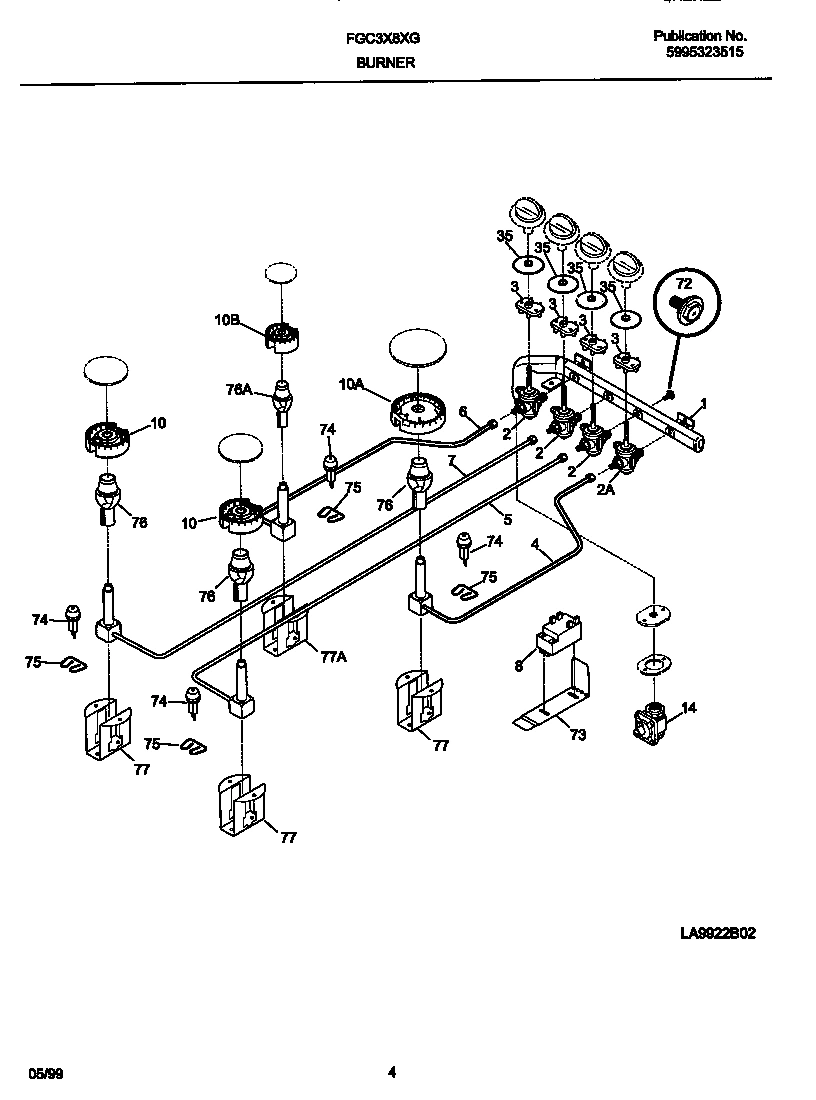

03 - BURNER

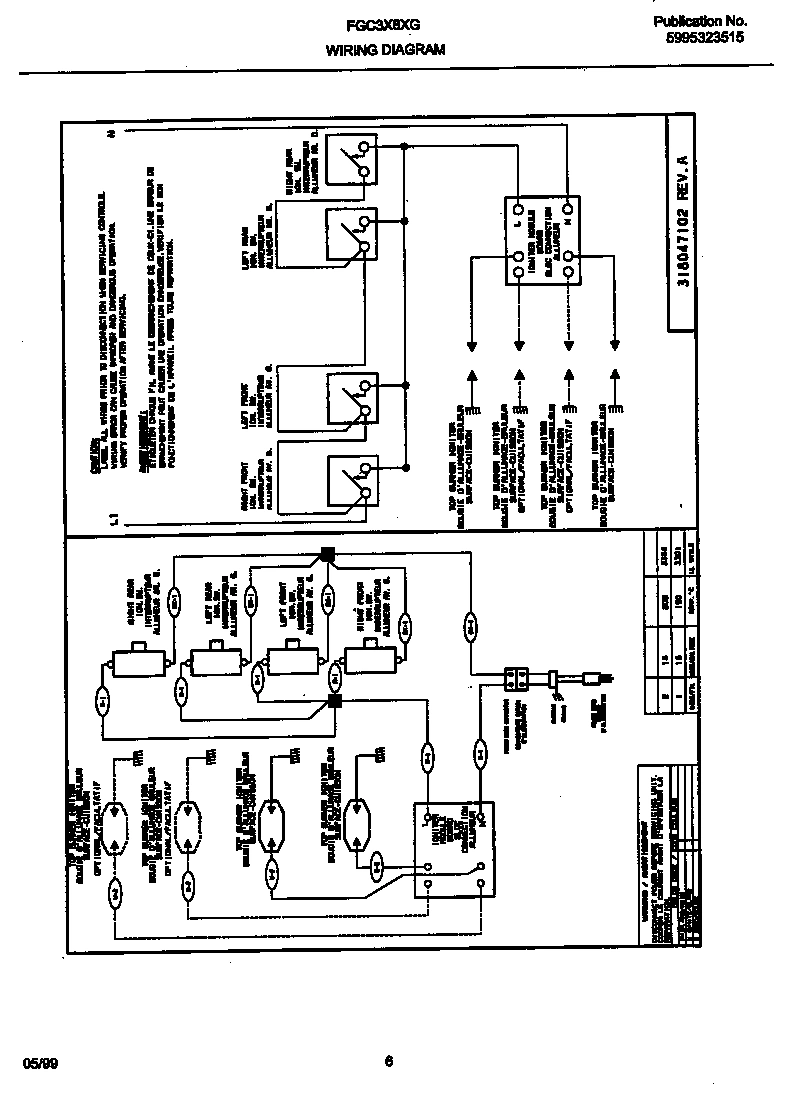

04 - WIRING DIAGRAM
Common parts from model Electrolux FGC3X8XGBA COOK-TOP
*07848
WCI 318127407 WCI 318127407 Contact Us For Availability
1
WCI 318177003 WCI 318177003 Contact Us For Availability
2
VALVE-TOP BURNER WCI 318087001 Contact Us For Availability
2
VALVE-TOP BURNER, 2-POSITION, (3) WCI 5303935042 Contact Us For Availability
3
WCI 316032002 WCI 316032002 Contact Us For Availability
4
TUBE-BURNER,FR WCI 318167703 Contact Us For Availability
5
TUBE-BURNER,FL WCI 318167700 Contact Us For Availability
6
TUBE-BURNER,BR WCI 318167702 Contact Us For Availability
7
TUBE-BURNER,BL WCI 318167701 Contact Us For Availability
10
BURNER-TOP,LARGE RF WCI 318148002 Contact Us For Availability
10
BURNER-TOP MID,LF & LR WCI 318148001 Contact Us For Availability
10
BURNER-TOP SMALL,RR WCI 318148000 Contact Us For Availability
19
BURNER PAN SMALL BLACK,SMALL RR & LR WCI 318168104 No Longer Available
19
BURNER PAN LARGE BLACK,LARGE RF WCI 318168124 Contact Us For Availability
35
WCI 5303307978 WCI 5303307978 Contact Us For Availability
51
WCI 318024200 WCI 318024200 Contact Us For Availability
72
SCREW VALVE <1/4-20X 5/16 WCI 5303323141 Contact Us For Availability
75
WCI 318148800 WCI 318148800 Contact Us For Availability
76
SMALL MIXING TUBE,SMALL RR & LR WCI 318167800 Contact Us For Availability
77
BRACKET-BURNER MTG,MID & LARGE WCI 318112010 Contact Us For Availability
77
BRACKET-BURNER MTG WCI 318112000 Contact Us For Availability
× ![]()
