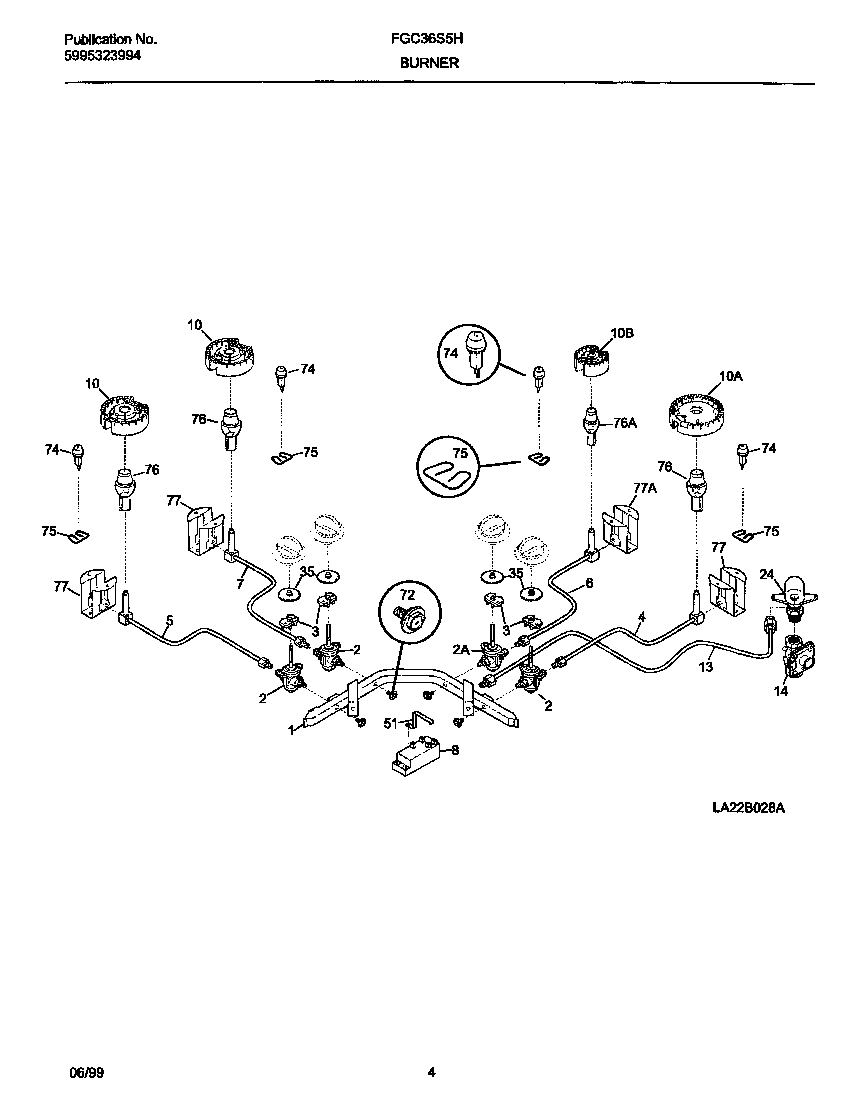

Model Electrolux FGC36S5HBA COOK-TOP – Common Parts & Diagrams

*21084
WCI 318127410
WCI 318127410 WCI 318127410 Contact Us For Availability
View on Model
1
WCI 318177100
WCI 318177100 WCI 318177100 Contact Us For Availability
View on Model
2
VALVE-TOP BURNER
VALVE-TOP BURNER WCI 318087001 Contact Us For Availability
View on Model
2
VALVE-TOP BURNER, 2-POSITION, (3)
VALVE-TOP BURNER, 2-POSITION, (3) WCI 5303935042 Contact Us For Availability
View on Model
3
WCI 316032002
WCI 316032002 WCI 316032002 Contact Us For Availability
View on Model
4
WCI 318167711
WCI 318167711 WCI 318167711 Contact Us For Availability
View on Model
5
WCI 318167708
WCI 318167708 WCI 318167708 Contact Us For Availability
View on Model
6
WCI 318167709
WCI 318167709 WCI 318167709 Contact Us For Availability
View on Model
7
WCI 318167710
WCI 318167710 WCI 318167710 Contact Us For Availability
View on Model
10
BURNER-TOP,LARGE ,13000 BTU ,LARGE RF
BURNER-TOP,LARGE ,13000 BTU ,LARGE RF WCI 318148002 Contact Us For Availability
View on Model
10
BURNER-TOP MID,9100BTU ,LF & LR
BURNER-TOP MID,9100BTU ,LF & LR WCI 318148001 Contact Us For Availability
View on Model
10
BURNER-TOP SMALL,5000BTU ,RR
BURNER-TOP SMALL,5000BTU ,RR WCI 318148000 Contact Us For Availability
View on Model
13
WCI 318054504
WCI 318054504 WCI 318054504 Contact Us For Availability
View on Model
24
WCI 318054000
WCI 318054000 WCI 318054000 Contact Us For Availability
View on Model
35
WCI 5303307978
WCI 5303307978 WCI 5303307978 Contact Us For Availability
View on Model
47
WCI 5303303991
WCI 5303303991 WCI 5303303991 Contact Us For Availability
View on Model
51
WCI 318024200
WCI 318024200 WCI 318024200 Contact Us For Availability
View on Model
72
SCREW VALVE <1/4-20X 5/16
SCREW VALVE <1/4-20X 5/16 WCI 5303323141 Contact Us For Availability
View on Model
75
WCI 318148800
WCI 318148800 WCI 318148800 Contact Us For Availability
View on Model
76
SMALL MIXING TUBE,SMALL RR & LR
SMALL MIXING TUBE,SMALL RR & LR WCI 318167800 Contact Us For Availability
View on Model
77
BRACKET-BURNER MTG,MID & LARGE
BRACKET-BURNER MTG,MID & LARGE WCI 318112010 Contact Us For Availability
View on Model
77
BRACKET-BURNER MTG
BRACKET-BURNER MTG WCI 318112000 Contact Us For Availability
View on Model
88
WCI 318052803
WCI 318052803 WCI 318052803 Contact Us For Availability
View on Model
88
WCI 318052804
WCI 318052804 WCI 318052804 Contact Us For Availability
View on Model
88
WCI 318052805
WCI 318052805 WCI 318052805 Contact Us For Availability
View on Model
130
WCI 318125001
WCI 318125001 WCI 318125001 Contact Us For Availability
View on Model
136
SUPPORT
SUPPORT WCI 5303935029 Contact Us For Availability
View on Model
137
SCREW,10-24X1/2
SCREW,10-24X1/2 WCI 5303323138 Contact Us For Availability
View on Model
