Model Frigidaire FGC30S4HDA COOKTOP – Common Parts & Diagrams
01 - COVER
03 - COOKTOP

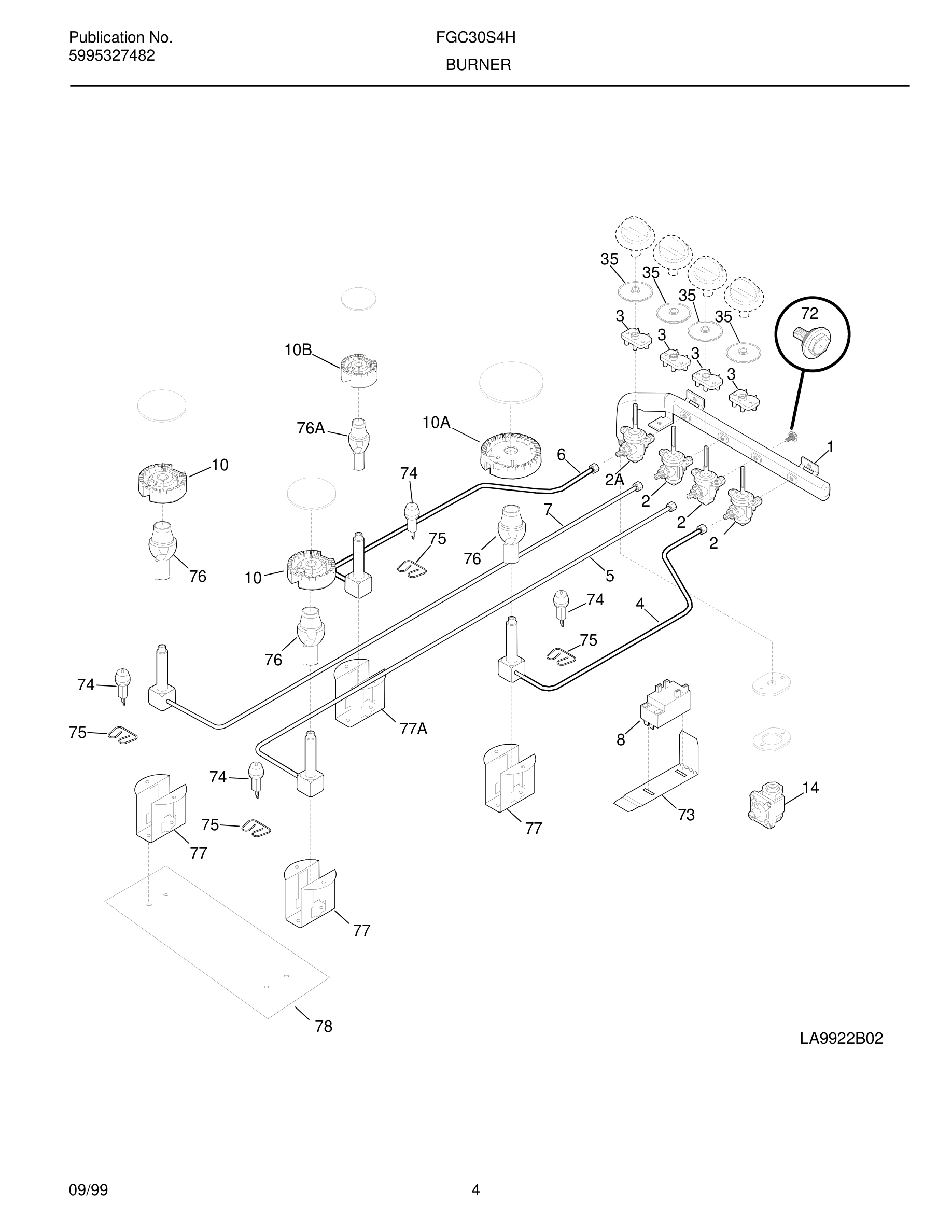

05 - BURNER
06 - WIRING DIAGRAM
Common parts from model Frigidaire FGC30S4HDA COOKTOP
*
LP kit WCI 318127407 Contact Us For Availability
1
Man i fold Pipe WCI 318177003 Contact Us For Availability
2#
Valve-top burner WCI 5303935042 Contact Us For Availability
2A
Valve-top burner WCI 318087001 Contact Us For Availability
3#
Switch-ignitor WCI 316032002 Contact Us For Availability
4#
Tube-burner WCI 318167714 Contact Us For Availability
5#
Tube-burner WCI 318167700 Contact Us For Availability
6
Tube-burner WCI 318167702 Contact Us For Availability
7
Tube-burner WCI 318167701 Contact Us For Availability
10
Me dium burner WCI 318148001 Contact Us For Availability
10A
Large burner WCI 318148002 Contact Us For Availability
10B
Small burner WCI 318148000 Contact Us For Availability
35
Bush ing-insulation WCI 318146300 Contact Us For Availability
72
Screw valve 1/4-20 X 5/16/ WCI 5303323141 Contact Us For Availability
73
Bracket spark mod ule WCI 318024200 Contact Us For Availability
75
Clip WCI 318148800 Contact Us For Availability
76A
Mixing tube WCI 318167800 Contact Us For Availability
77
Bracket burner WCI 318112010 Contact Us For Availability
77A
Bracket-burner WCI 318112000 Contact Us For Availability
78
De flec tor WCI 318106900 Contact Us For Availability
136
Fix a tion sup port WCI 5303935029 Contact Us For Availability
137
Screw, 10-24 X 2 ½/ WCI 5303323138 Contact Us For Availability
× ![]()
