Model Electrolux FGB557CBSB WALL OVEN – Common Parts & Diagrams

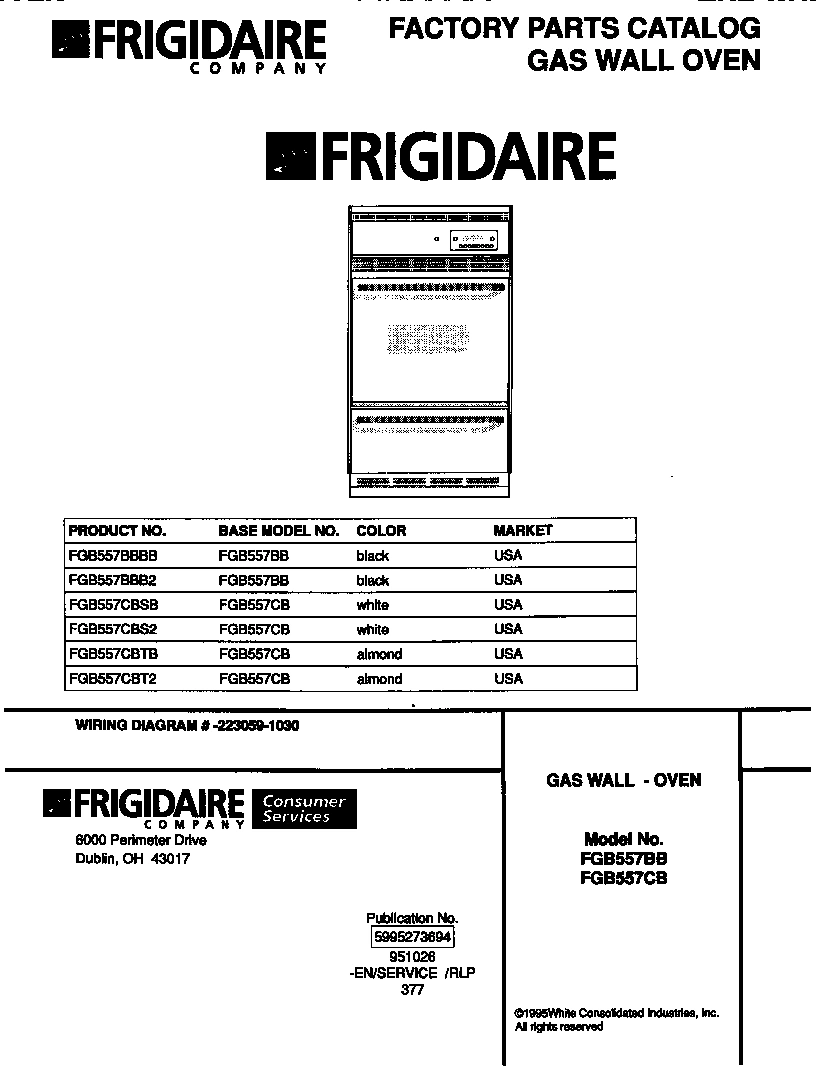

01 - COVER

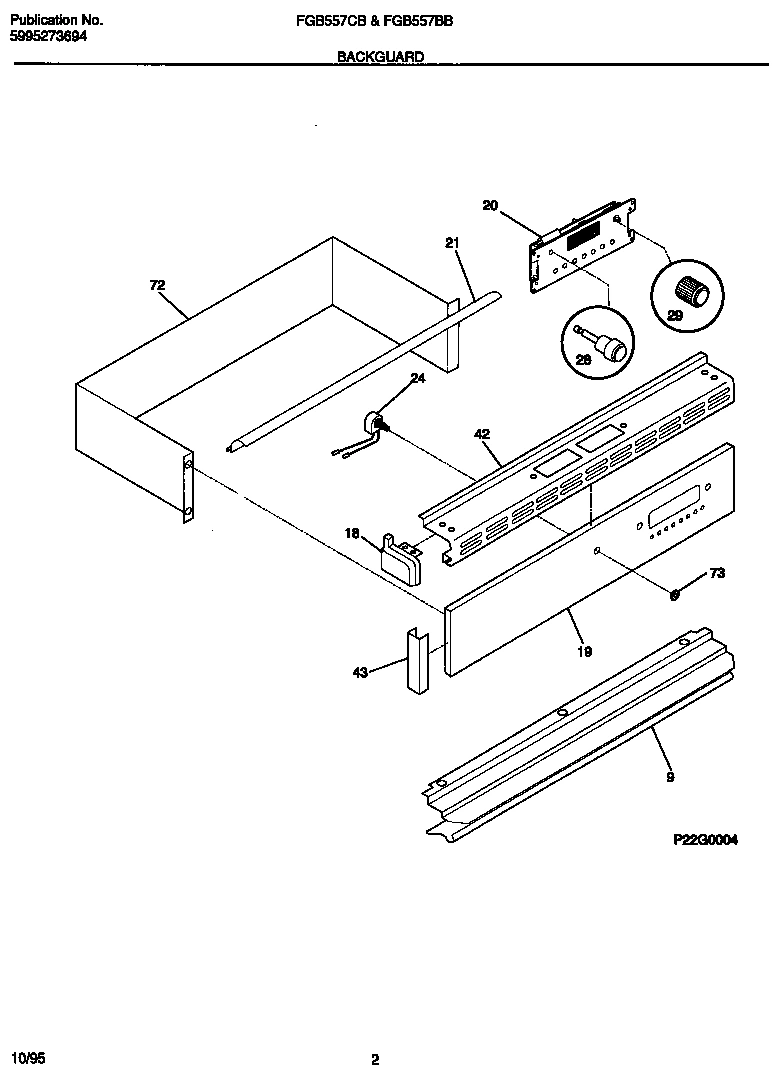

02 - BACKGUARD

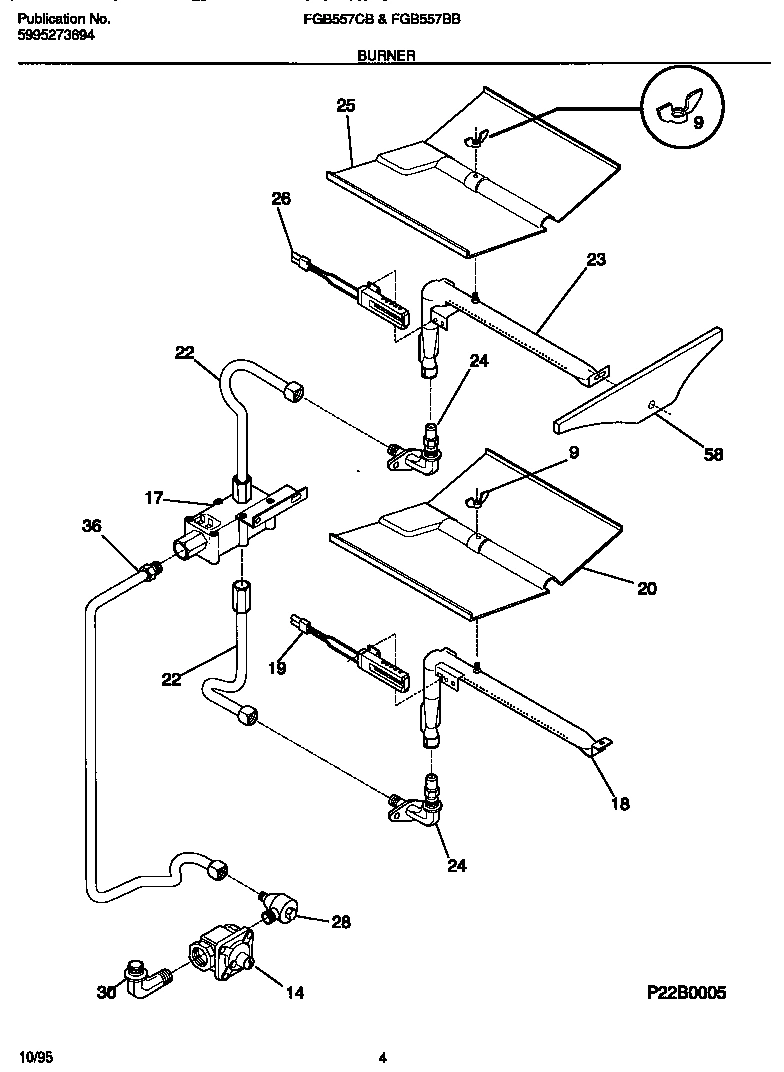

03 - BURNER

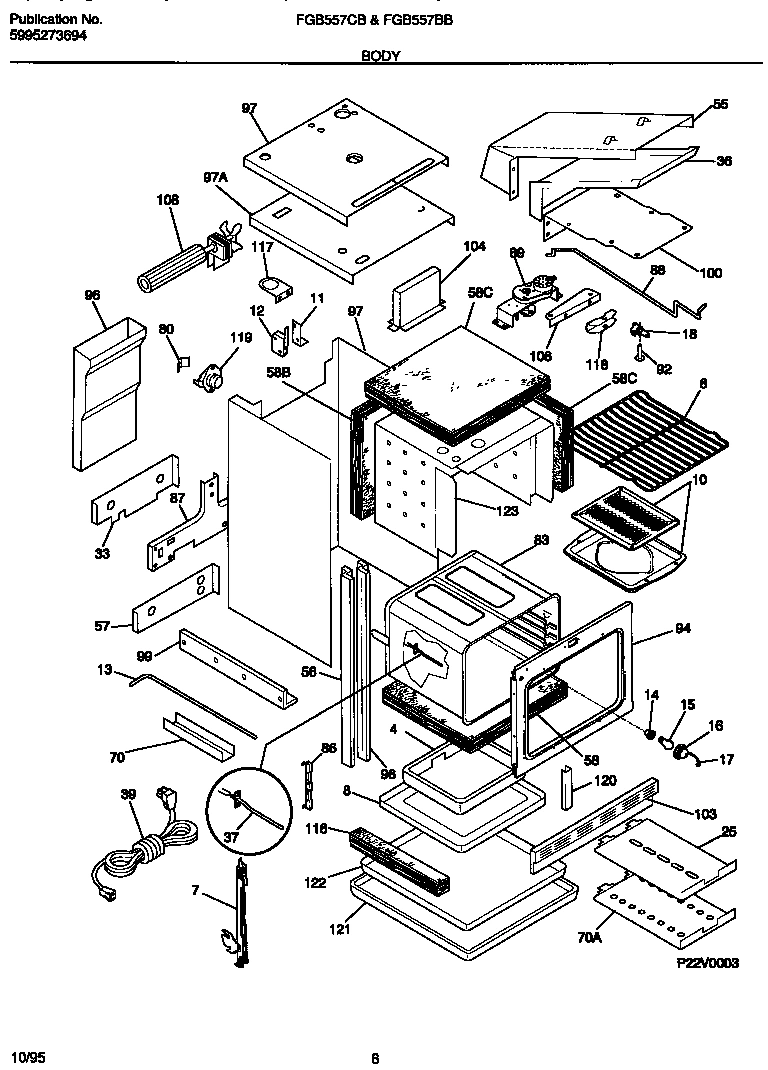

04 - BODY

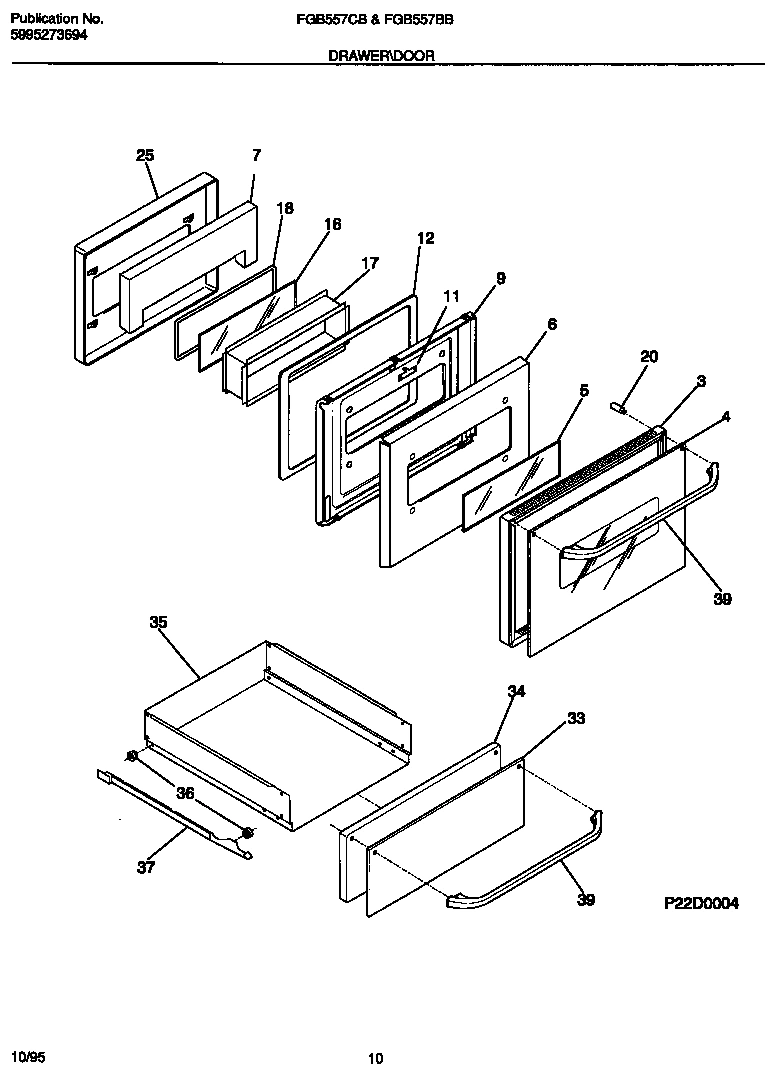

05 - DRAWER/DOOR

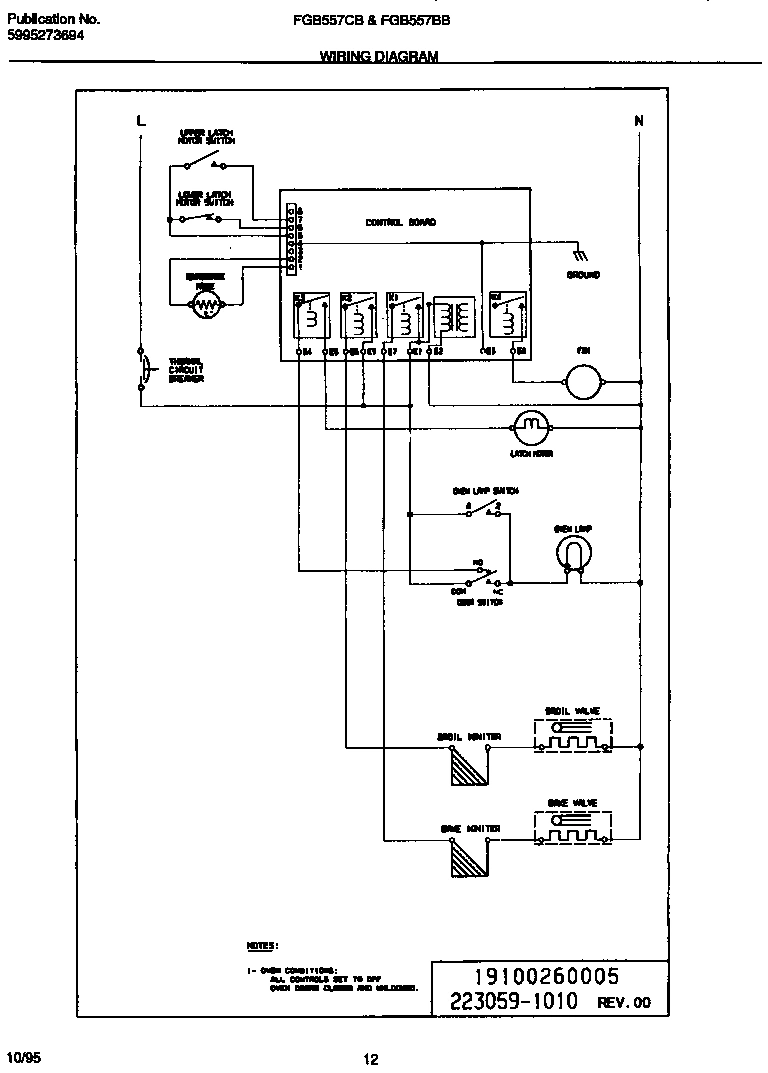

06 - WIRING DIAGRAM
Common parts from model Electrolux FGB557CBSB WALL OVEN
*57165
SPACER-OVEN WCI 3201632 Contact Us For Availability
*57169
WCI 3019069 WCI 3019069 Contact Us For Availability
*57170
ANGLE-BURNER BOX WCI 5303210705 Contact Us For Availability
*57171
WCI 5303210709 WCI 5303210709 Contact Us For Availability
*57172
INSULATION, OVEN BOTTOM WCI 5303210710 Contact Us For Availability
*57173
SHIELD-INSULATION, BASE WCI 5303210851 Contact Us For Availability
*57174
WCI 318119300 WCI 318119300 Contact Us For Availability
*57175
BUTTON, PLUG WCI 3202113 Contact Us For Availability
*57176
COLLAR-GLASS MTG WCI 5303210008 Contact Us For Availability
*57177
REFLECTOR, ALUMINUM FOIL WCI 5303271093 Contact Us For Availability
*57178
WCI 318122101 WCI 318122101 Contact Us For Availability
*57179
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
*57180
TAPE, SEAL, (2) WCI 5303316982 Contact Us For Availability
*57181
SCREW, TRUSS HEAD, 8-18 X 3/8, (4) WCI 08016432 Contact Us For Availability
3
TRIM-OVEN DOOR WCI 5303212560 Contact Us For Availability
4
WCI 5303280375 WCI 5303280375 Contact Us For Availability
4
WCI 5303302707 WCI 5303302707 Contact Us For Availability
5
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303016336 Contact Us For Availability
6
SHELF-OVEN WCI 5303299366 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
7A
HINGE-OVEN DOOR, (2) WCI 316009400 Contact Us For Availability
8
PANEL-OVEN BOTTOM WCI 5303296327 Contact Us For Availability
9
NUT WCI 08007979 Contact Us For Availability
9
WCI 5303301256 WCI 5303301256 Contact Us For Availability
10A
WCI 5303310521 WCI 5303310521 Contact Us For Availability
10B
WCI 5303310520 WCI 5303310520 Contact Us For Availability
11
Bracket,light switch WCI 5303271097 Contact Us For Availability
11
STRIKE PLATE WCI 5301167830 Contact Us For Availability
12
SEAL-OVEN DOOR WCI 3205189 Contact Us For Availability
12A
SWITCH-DOOR WCI 5303275924 Contact Us For Availability
12B
WCI 5303308447 WCI 5303308447 Contact Us For Availability
13A
ROD-LIGHT SWITCH WCI 3202077 Contact Us For Availability
13B
SPRING-ROD (NOT ILLUSTRATED) WCI 3204114 Contact Us For Availability
14
Regulator,pressure WCI 5303210167 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303210001 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
17
SPACER-GLASS WCI 5303210006 Contact Us For Availability
18
LATCH-DOOR WCI 3051648 Contact Us For Availability
18
SEAL-ROPE WCI 3016263 Contact Us For Availability
18B
SCREW-BURNER MTG (NOT ILLUSTRATED) WCI 5303311549 Contact Us For Availability
20
WCI 5303308454 WCI 5303308454 Contact Us For Availability
20
WCI 5303300173 WCI 5303300173 Contact Us For Availability
22
Tubing,valve WCI 5303271092 Contact Us For Availability
23
WCI 5303283132 WCI 5303283132 Contact Us For Availability
24A
MIXER ELBOW, BAKE WCI 5303210786 Contact Us For Availability
24B
MIXER ELBOW, BROILER WCI 5303210807 Contact Us For Availability
25
BAFFLE-BROILER WCI 5303210792 Contact Us For Availability
25
SHIELD-HEAT, LOWER WCI 5303210844 Contact Us For Availability
25
WCI 5303301253 WCI 5303301253 Contact Us For Availability
28
WCI 5303295305 WCI 5303295305 Contact Us For Availability
30
MIXER WCI 5303305657 Contact Us For Availability
33
WCI 5303308464 WCI 5303308464 Contact Us For Availability
33
WCI 5303302719 WCI 5303302719 Contact Us For Availability
34
PANEL-INNER DRW WCI 5303210010 Contact Us For Availability
35
DRAWER-UTILITY WCI 3051058 Contact Us For Availability
36
WCI 5303935079 WCI 5303935079 Contact Us For Availability
36
TUBING-THERMO/SAFETY WCI 5303210796 Contact Us For Availability
36
WCI 3203725 WCI 3203725 Contact Us For Availability
37
PROBE-OVEN TEMP WCI 5303210806 Contact Us For Availability
39
WCI 5303302705 WCI 5303302705 Contact Us For Availability
39A
WCI 5303308453 WCI 5303308453 Contact Us For Availability
39B
CLIP-CABLE (NOT ILLUSTRATED) WCI 3018802 Contact Us For Availability
55
SHIELD-FLUE WCI 5303210822 Contact Us For Availability
56
WCI 5303308459 WCI 5303308459 Contact Us For Availability
57
COVER-ACCESS WCI 5303308476 Contact Us For Availability
58
SHIELD-BROILER WCI 5303296330 Contact Us For Availability
58
WCI 5303210708 WCI 5303210708 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303210713 Contact Us For Availability
58A
INSULATION, TOP & SIDES WCI 5303210707 Contact Us For Availability
58B
INSULATION, OVEN TOP WCI 5303210714 Contact Us For Availability
70
WCI 318071410 WCI 318071410 Contact Us For Availability
70
SHIELD-INSULATION WCI 5303210843 Contact Us For Availability
73
BRACKET, LIGHT SWITCH WCI 5303310393 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
LINER-OVEN ASSY WCI 5303296407 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
87
WCI 5303308443 WCI 5303308443 Contact Us For Availability
88
ROD-LATCH WCI 3016241 Contact Us For Availability
89
MOTOR-LATCH/LOCK WCI 5303269766 Contact Us For Availability
92
STUD - AXLE WCI 5308012004 Contact Us For Availability
94
FRONT-OVEN WCI 5303296326 Contact Us For Availability
96
DUCT-BLOWER WCI 5303210839 Contact Us For Availability
97
WCI 5303210683 WCI 5303210683 Contact Us For Availability
97A
WCI 318066800 WCI 318066800 Contact Us For Availability
97B
WRAPPER, TOP WCI 5303210681 Contact Us For Availability
98A
TRIM-SIDE, INNER, LH WCI 3203665 Contact Us For Availability
98B
TRIM-SIDE, INNER, RH (NOT ILLUSTRATED) WCI 3203664 Contact Us For Availability
100
WCI 5303302715 WCI 5303302715 Contact Us For Availability
103
TRIM-BASE WCI 5303316734 Contact Us For Availability
104
ADAPTER-FLUE WCI 3203730 Contact Us For Availability
106
WCI 5303308461 WCI 5303308461 Contact Us For Availability
108
WCI 318073000 WCI 318073000 Contact Us For Availability
116A
INSULATION-BOTTOM, SIDES, (2) WCI 5303210711 Contact Us For Availability
116B
INSULATION-BOTTOM, TOP (NOT ILLUSTRATED) WCI 5303210712 Contact Us For Availability
117
BRACKET-THERMO PROTECTOR WCI 5303302718 Contact Us For Availability
118
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
119
SWITCH-THERMO WCI 5303210644 Contact Us For Availability
120
WCI 3203688 WCI 3203688 Contact Us For Availability
121
WCI 5303305036 WCI 5303305036 Contact Us For Availability
122
WCI 5303210706 WCI 5303210706 Contact Us For Availability
123
SHIELD-OVEN, TOP & SIDES WCI 3203684 Contact Us For Availability
× ![]()
