Model Electrolux FGB504CHBB WALL OVEN – Common Parts & Diagrams
01 - COVER
02 - CONTROL PANEL

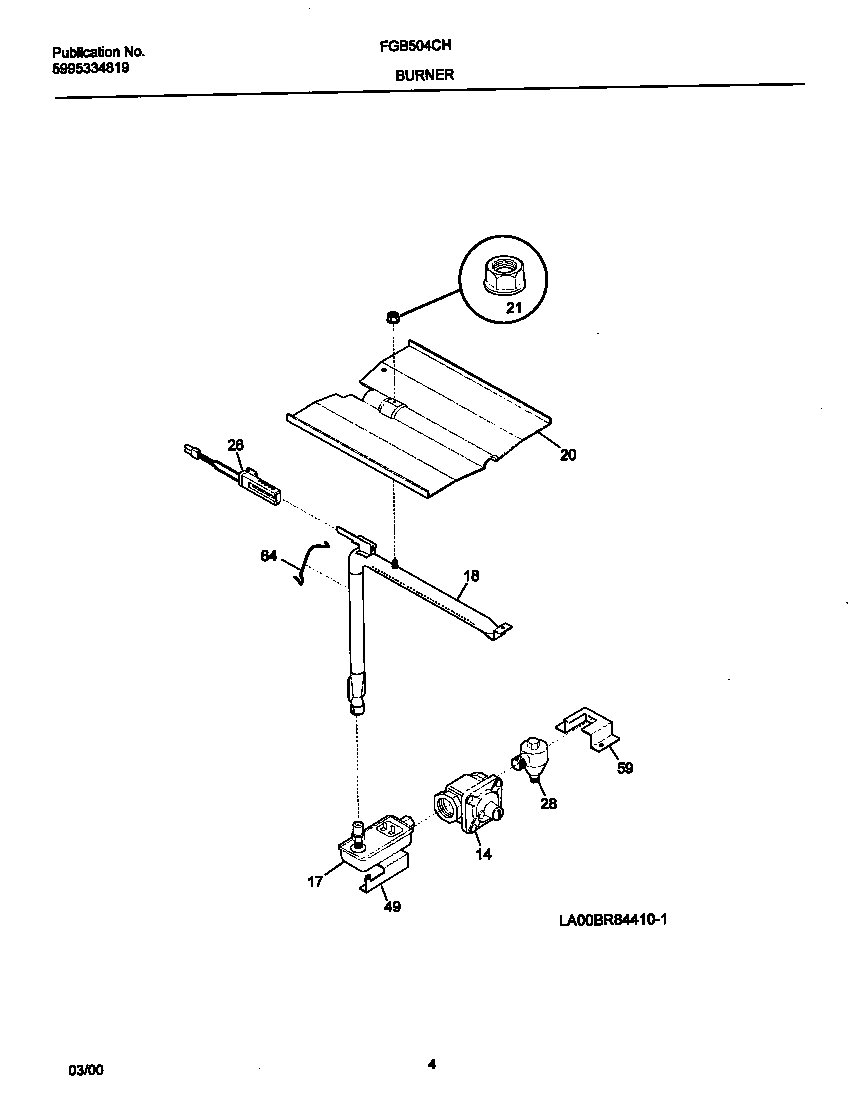

03 - BURNER

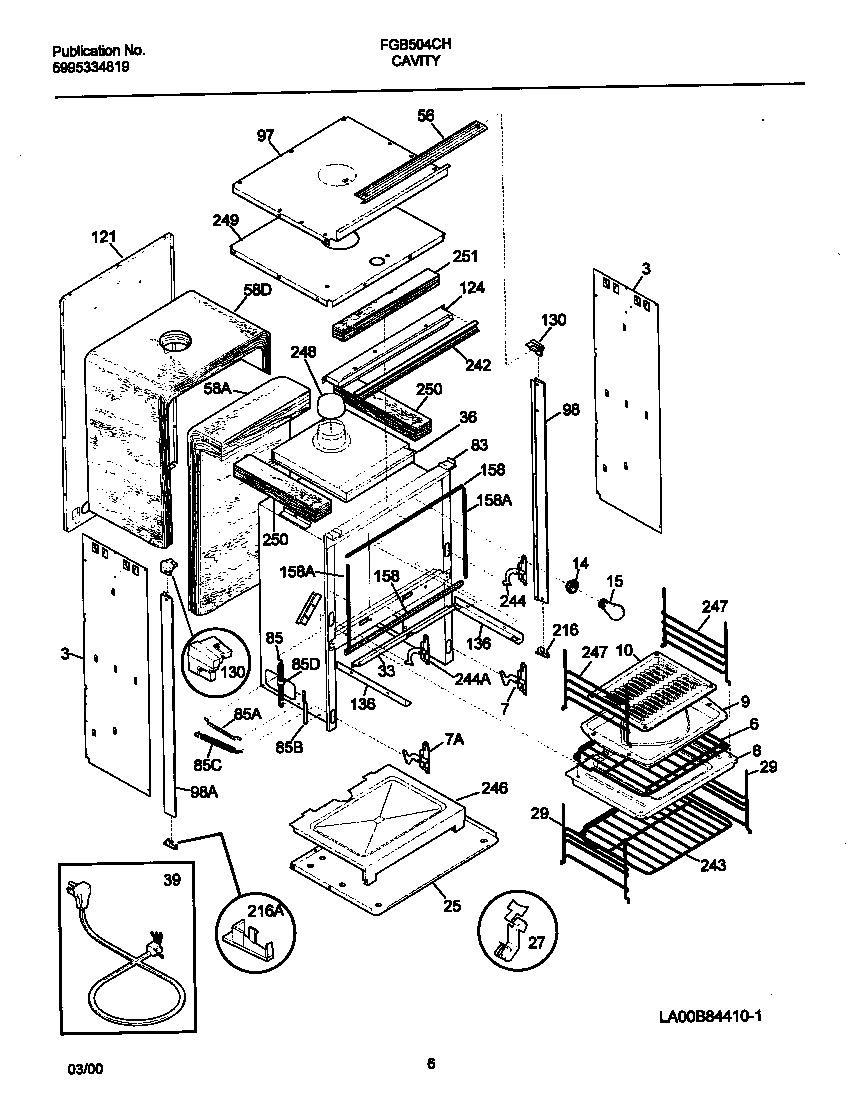

04 - CAVITY

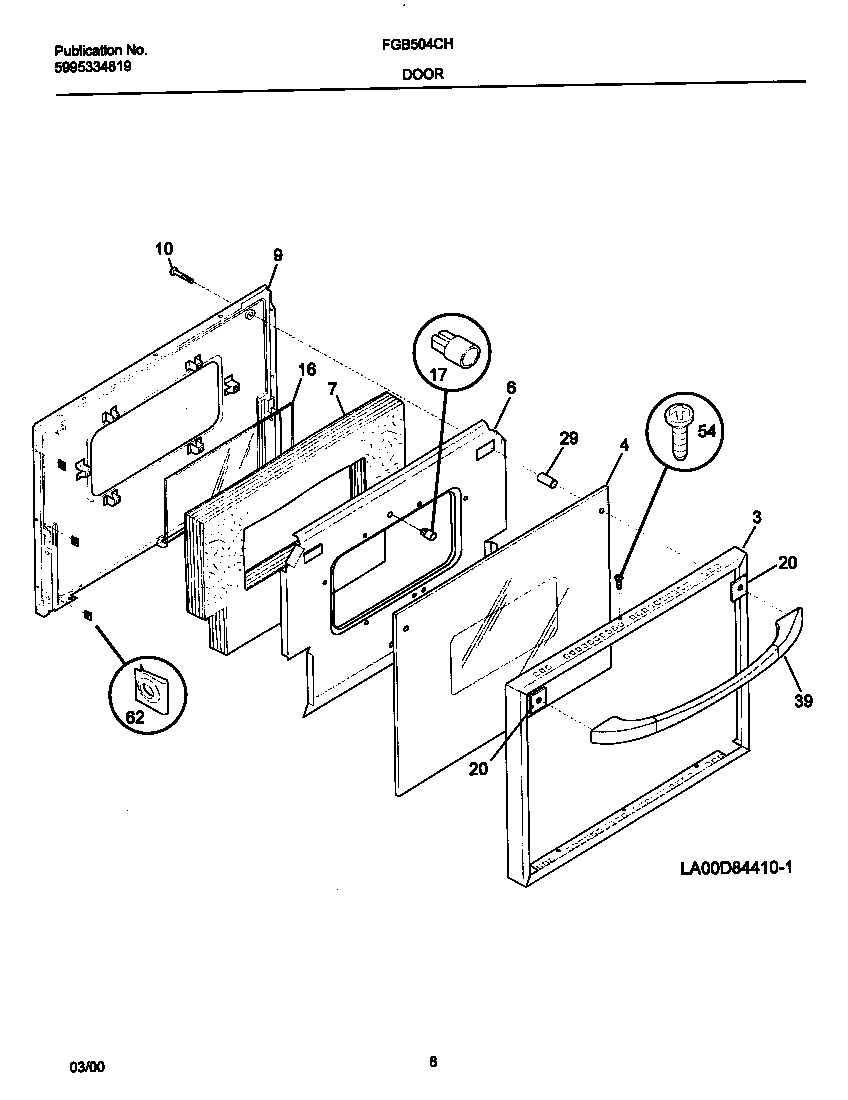

05 - DOOR
06 - WIRING DIAGRAM
Common parts from model Electrolux FGB504CHBB WALL OVEN
*51334
SCREW,TRUSS HEAD ,8-18 X 0.375 ,(4) WCI 08016432 Contact Us For Availability
*51335
WCI 318187000 WCI 318187000 Contact Us For Availability
*51336
SPRING-OVEN DOOR WCI 5303207652 Contact Us For Availability
*51343
WCI 5304400423 WCI 5304400423 Contact Us For Availability
*51344
WCI 5304400428 WCI 5304400428 Contact Us For Availability
*51345
SCREW (8-18 X 1 ) WCI 5304400429 Contact Us For Availability
*51348
WCI 5303323135 WCI 5303323135 Contact Us For Availability
3
TRIM-OVEN DOOR WCI 318026500 Contact Us For Availability
3
WCI 5303317132 WCI 5303317132 Contact Us For Availability
7
HINGE ASS,Y LOWER,RH LOWER WCI 5303298313 Contact Us For Availability
7
WCI 08012158 WCI 08012158 Contact Us For Availability
8
WCI 318136500 WCI 318136500 Contact Us For Availability
9
WCI 5303317977 WCI 5303317977 Contact Us For Availability
10
WCI 5303317976 WCI 5303317976 Contact Us For Availability
12
WCI 318059202 WCI 318059202 Contact Us For Availability
14
Regulator,pressure WCI 5303210167 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
18
WCI 5303207603 WCI 5303207603 Contact Us For Availability
20
WCI 5303317122 WCI 5303317122 Contact Us For Availability
24
SWITCH-LIGHT/LAMP WCI 316090900 Contact Us For Availability
25
WCI 5303317712 WCI 5303317712 Contact Us For Availability
28
WCI 5303295305 WCI 5303295305 Contact Us For Availability
29
GLIDE-BROILER RACK WCI 5303209887 Contact Us For Availability
33
WCI 5303317128 WCI 5303317128 Contact Us For Availability
36
FLUE WCI 5303298341 Contact Us For Availability
39
DOOR-HANDLE WCI 318186101 Contact Us For Availability
49
WCI 5303317124 WCI 5303317124 Contact Us For Availability
56
WCI 318028200 WCI 318028200 Contact Us For Availability
58
WCI 5304400183 WCI 5304400183 Contact Us For Availability
58
WCI 5304400184 WCI 5304400184 Contact Us For Availability
59
WCI 5303317123 WCI 5303317123 Contact Us For Availability
64
RETAINER-OVN BRNR WCI 5303295303 Contact Us For Availability
83
WCI 318109510 WCI 318109510 Contact Us For Availability
85
SPRING-OVEN DOOR,UPPER WCI 5303207651 Contact Us For Availability
85
BRACKET-SPRING,UPPER WCI 5303317126 Contact Us For Availability
85
BRACKET-SPRING,UPPER WCI 318113300 Contact Us For Availability
85
WCI 318166900 WCI 318166900 Contact Us For Availability
85
WCI 5303317711 WCI 5303317711 Contact Us For Availability
97
WRAPPER-TOP WCI 5303317130 Contact Us For Availability
98
TRIM-BODYSIDE,LH WCI 318029000 Contact Us For Availability
98
TRIM-BODYSIDE,RH WCI 318029001 Contact Us For Availability
121
WCI 5303317131 WCI 5303317131 Contact Us For Availability
124
BOX-FLUE WCI 318076801 Contact Us For Availability
130
WCI 318034600 WCI 318034600 Contact Us For Availability
136
WCI 5303317129 WCI 5303317129 Contact Us For Availability
158A
SEAL-DOOR,BLACK ,TOP BROILER WCI 5303207644 Contact Us For Availability
158B
SEAL-SIDE,BAKE OVEN WCI 5303295311 Contact Us For Availability
216
CAP-END BOTTOM,RH WCI 318034500 Contact Us For Availability
216
CAP-END BOTTOM,LH WCI 318034501 Contact Us For Availability
242
TRIM CENTER WCI 318027200 Contact Us For Availability
244B
WCI 3201495 WCI 3201495 Contact Us For Availability
246
WCI 318133600 WCI 318133600 Contact Us For Availability
247
GLIDE-OVEN RACK WCI 3018717 Contact Us For Availability
248
WCI 5303317121 WCI 5303317121 Contact Us For Availability
249
WCI 5304400385 WCI 5304400385 Contact Us For Availability
250
WCI 318106003 WCI 318106003 Contact Us For Availability
251
WCI 318106004 WCI 318106004 Contact Us For Availability
× ![]()
