Model Electrolux FGB500CGB1 WALL OVEN – Common Parts & Diagrams

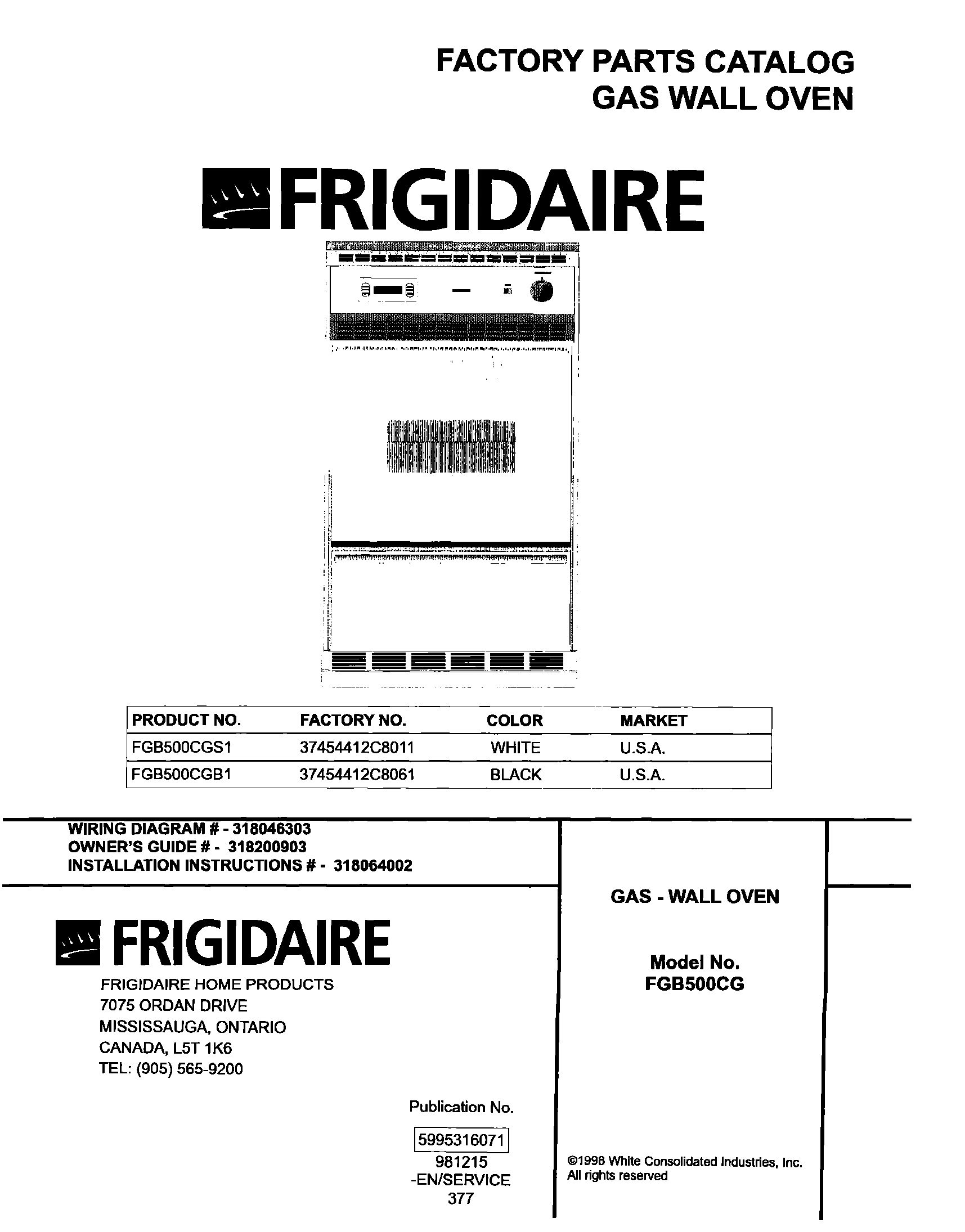

01 - COVER

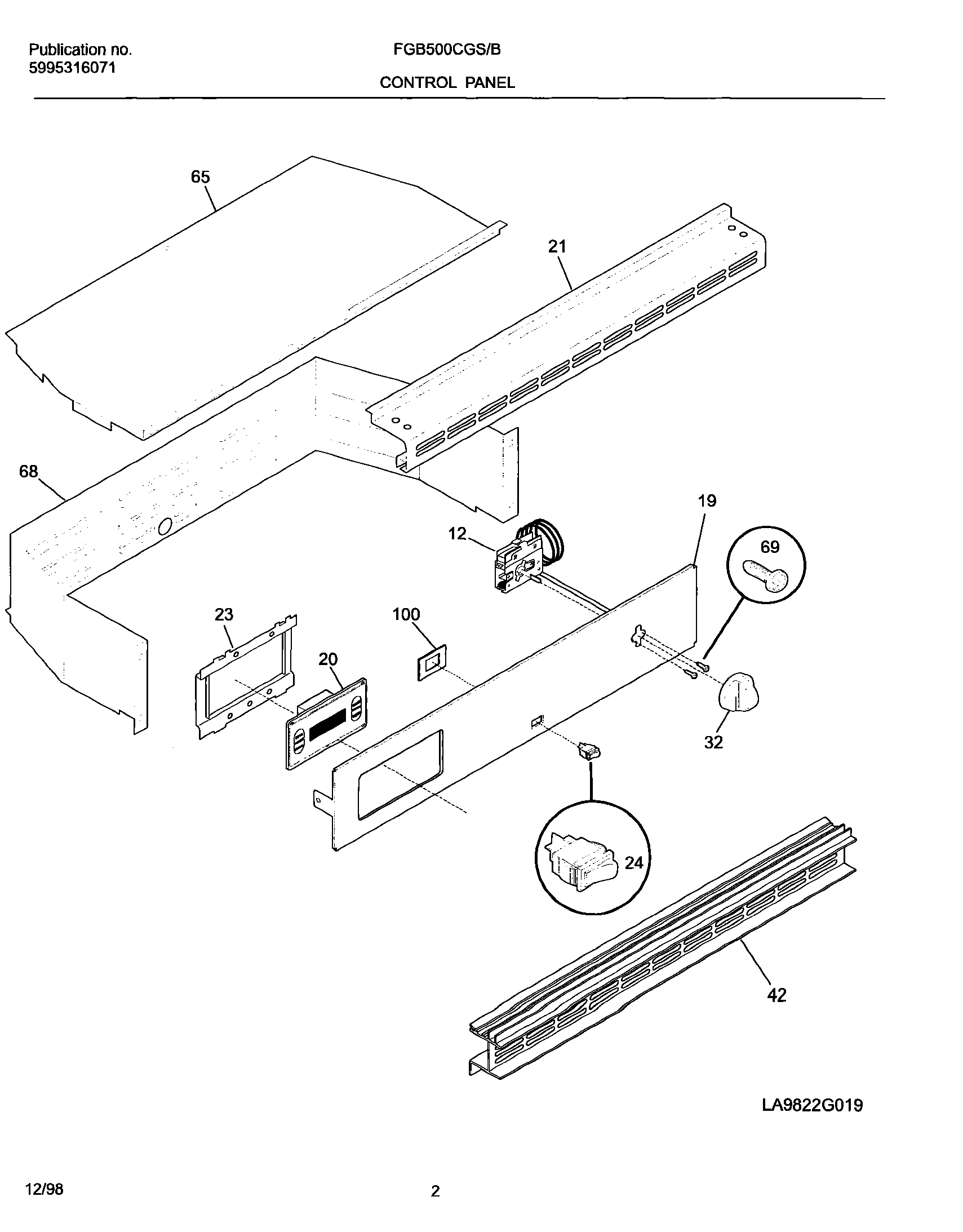

03 - CONTROL PANEL

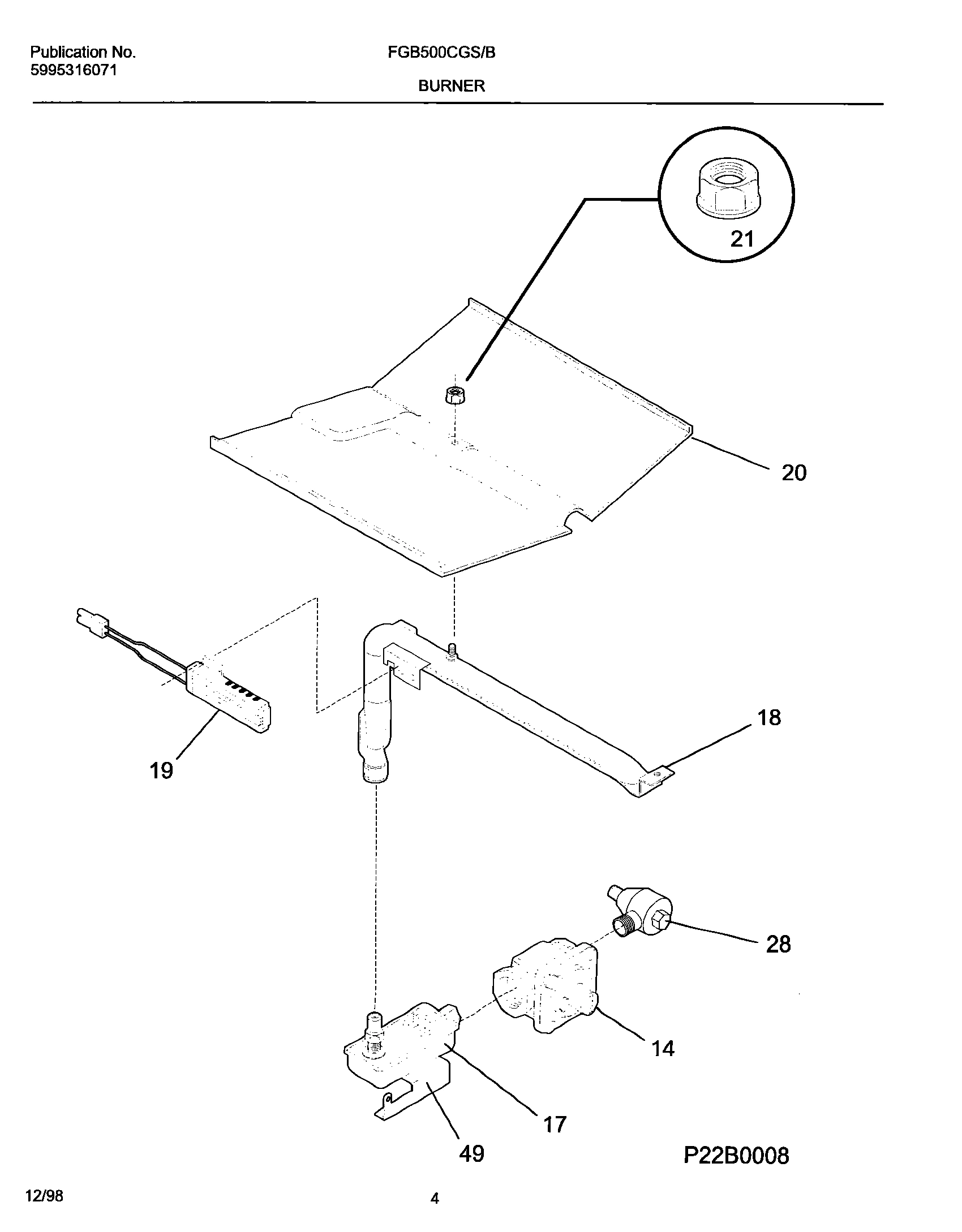

05 - BURNER

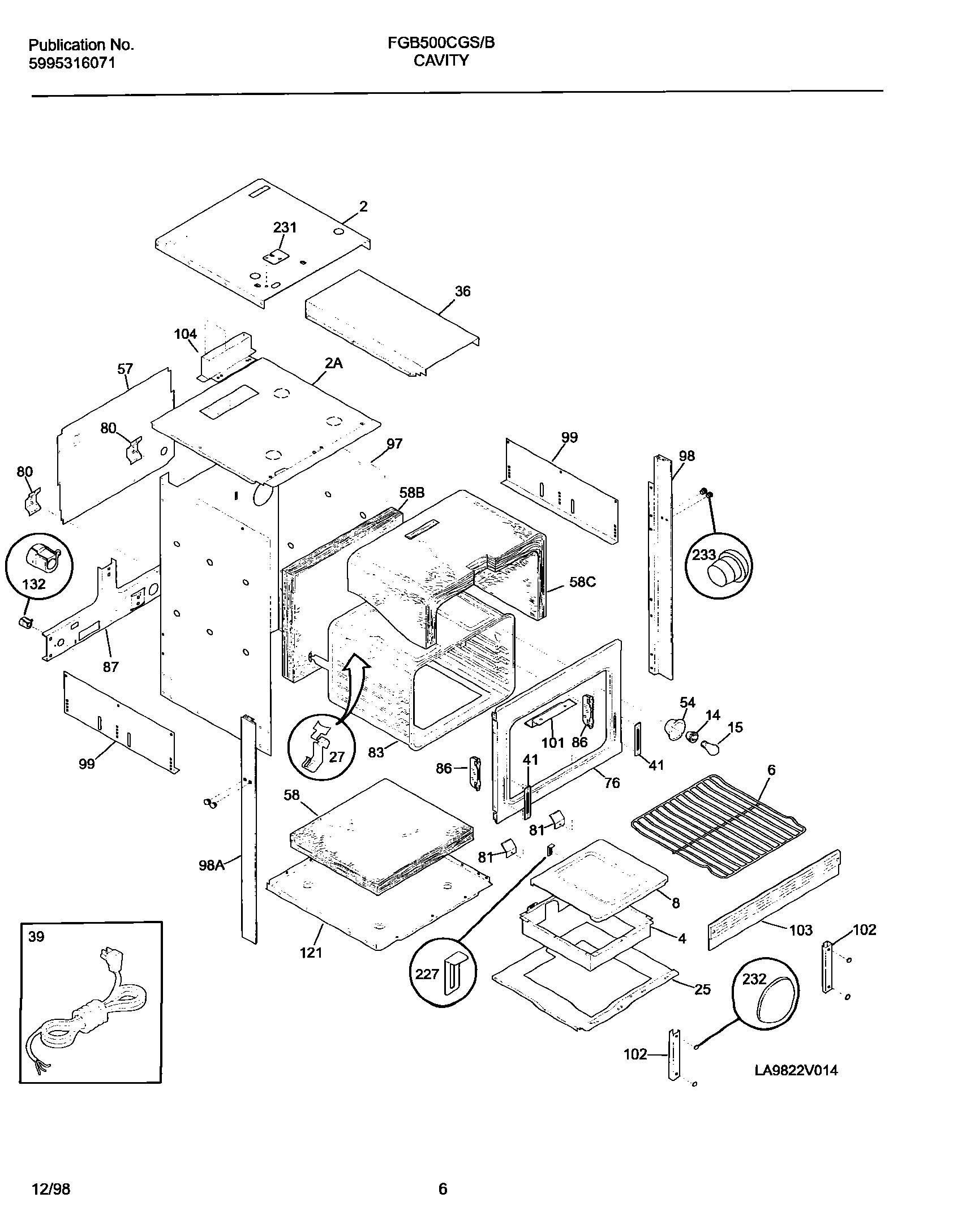

07 - CAVITY

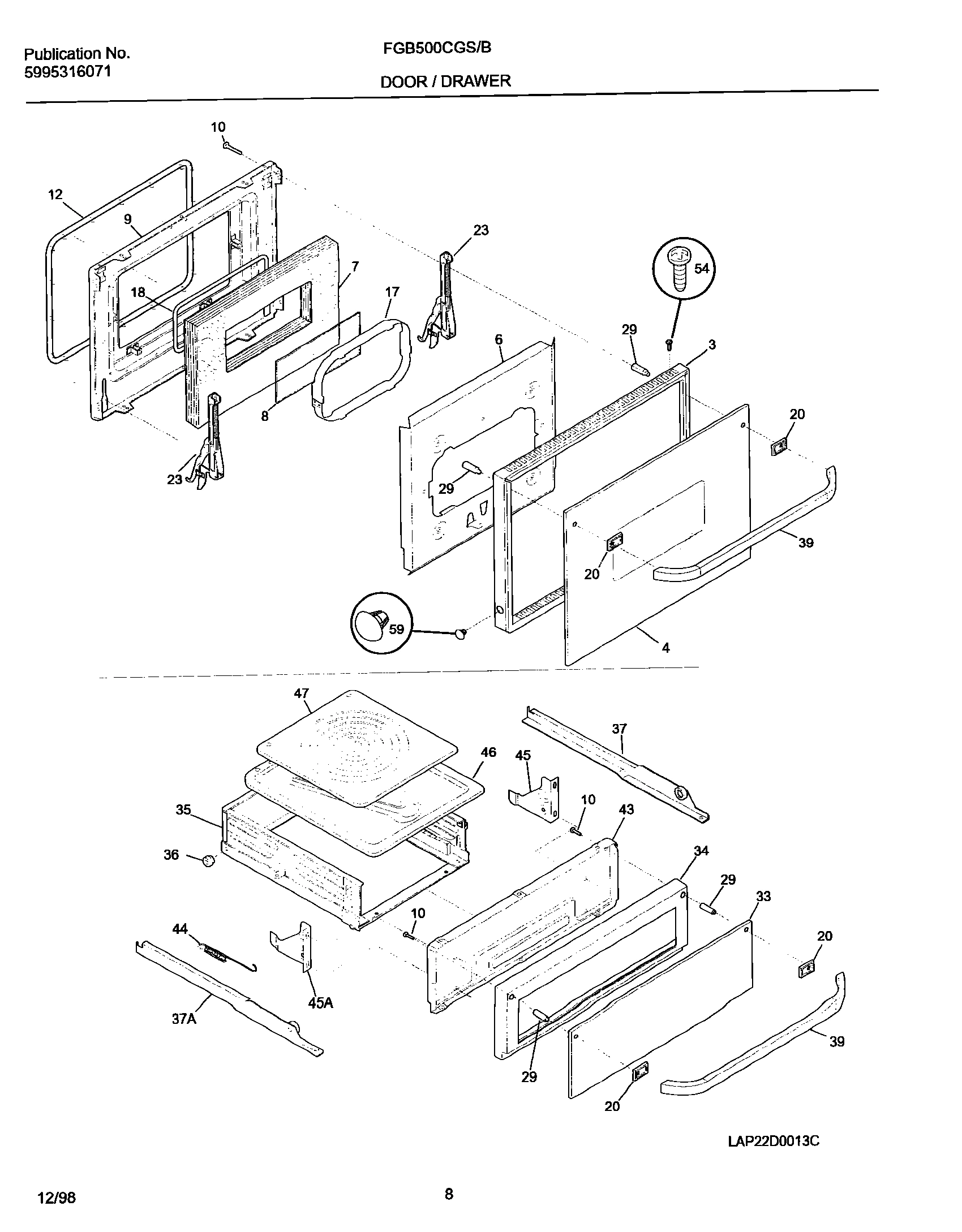

09 - DOOR/DRAWER

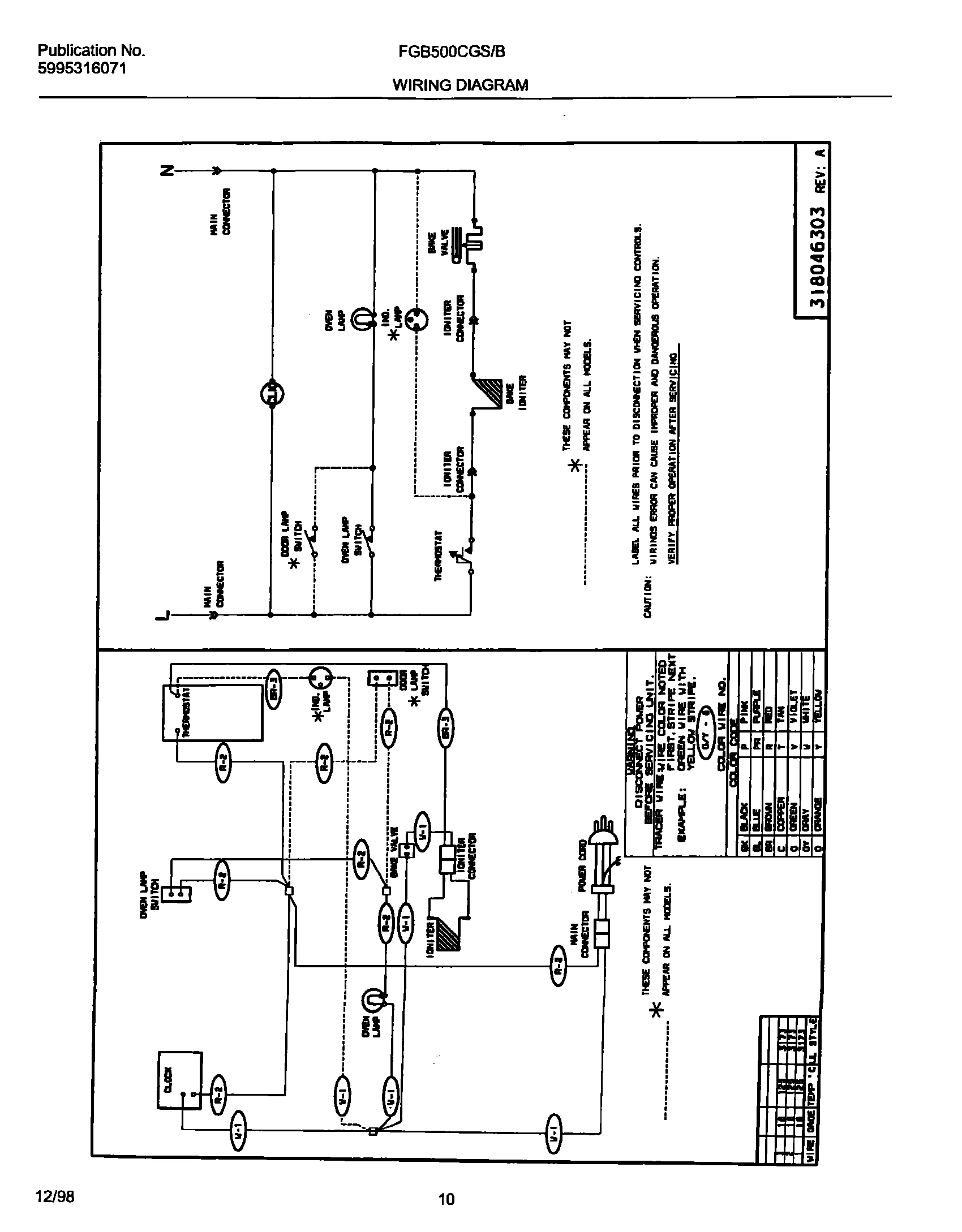

10 - WIRING DIAGRAM
Common parts from model Electrolux FGB500CGB1 WALL OVEN
3
WCI 318026510 WCI 318026510 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK WCI 3202420 Contact Us For Availability
6
WCI 318073600 WCI 318073600 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
8
WCI 318121400 WCI 318121400 Contact Us For Availability
8
WCI 5303323828 WCI 5303323828 Contact Us For Availability
9
WCI 318156604 WCI 318156604 Contact Us For Availability
10
SCREW-HANDLE 10-24 X 2-3/16 WCI 5303311217 Contact Us For Availability
12
SEAL-OVEN DOOR, LOWER WCI 5303316768 Contact Us For Availability
14
Regulator,pressure WCI 5303210167 Contact Us For Availability
17
WCI 3203702 WCI 3203702 Contact Us For Availability
17
SPACER-GLASS, LOWER OVEN WCI 318162601 Contact Us For Availability
18
SEAL-ROPE WCI 5303299723 Contact Us For Availability
20
WCI 3203676 WCI 3203676 Contact Us For Availability
20
SPACER-HANDLE,BLACK WCI 318014300 Contact Us For Availability
21
WCI 318176500 WCI 318176500 Contact Us For Availability
23
WCI 5303325091 WCI 5303325091 Contact Us For Availability
29
SPACER-HANDLE MTG WCI 5303210003 Contact Us For Availability
33
GLASS-DRAWER BLACK WCI 3203715 No Longer Available
34
FRONT FRAME DRAWER WCI 318116000 Contact Us For Availability
36
WCI 5303935079 WCI 5303935079 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
43
WCI 318107800 WCI 318107800 Contact Us For Availability
44
WCI 318088300 WCI 318088300 Contact Us For Availability
45
HINGE-BROILER WCI 318024401 Contact Us For Availability
45A
HINGE-BROILER WCI 318024400 Contact Us For Availability
46
PAN-BROILER WCI 318126200 Contact Us For Availability
47
INSERT-BROILER PAN WCI 318126300 Contact Us For Availability
57
WCI 5303308476 WCI 5303308476 Contact Us For Availability
58
WCI 5303280377 WCI 5303280377 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 5303304703 Contact Us For Availability
58C
WCI 318132600 WCI 318132600 Contact Us For Availability
59
BUTTON, PLUG WCI 3202113 Contact Us For Availability
76
WCI 318056124 WCI 318056124 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
WCI 5303323710 WCI 5303323710 Contact Us For Availability
83
WCI 318089400 WCI 318089400 Contact Us For Availability
86
CHANNEL-HINGE WCI 5303310524 Contact Us For Availability
87
WCI 5303308475 WCI 5303308475 Contact Us For Availability
97
WCI 318066801 WCI 318066801 Contact Us For Availability
98
WCI 318176800 WCI 318176800 Contact Us For Availability
98A
WCI 318176801 WCI 318176801 Contact Us For Availability
101
WCI 5303308474 WCI 5303308474 Contact Us For Availability
102
WCI 3203688 WCI 3203688 Contact Us For Availability
103
TRIM-BASE WCI 5303316735 Contact Us For Availability
104
FLUE BOX ADAPTER WCI 318070200 Contact Us For Availability
121
WCI 318145001 WCI 318145001 Contact Us For Availability
227
WCI 5303323958 WCI 5303323958 Contact Us For Availability
231
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
232
PLUG WCI 5303308473 Contact Us For Availability
233
WCI 318166800 WCI 318166800 Contact Us For Availability
NI
WCI 08002868 WCI 08002868 Contact Us For Availability
× ![]()
