Model Electrolux FGB500CESC WALL OVEN – Common Parts & Diagrams

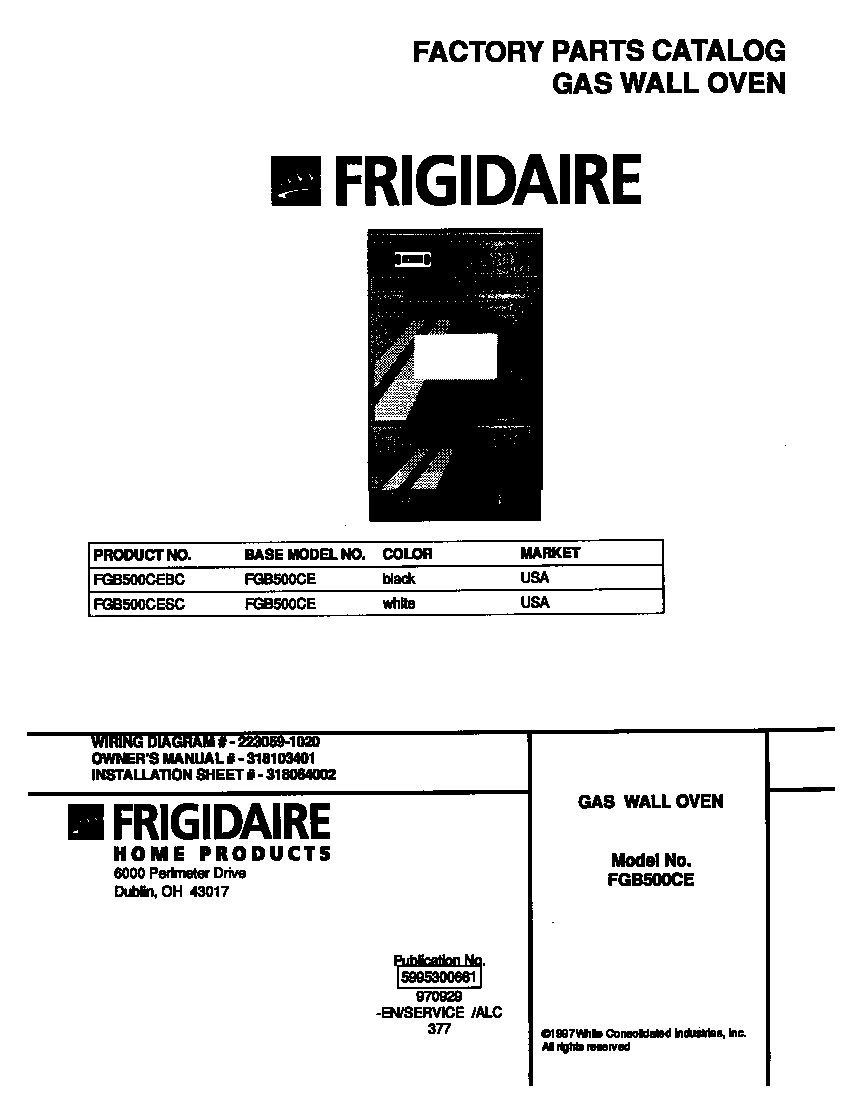

01 - COVER

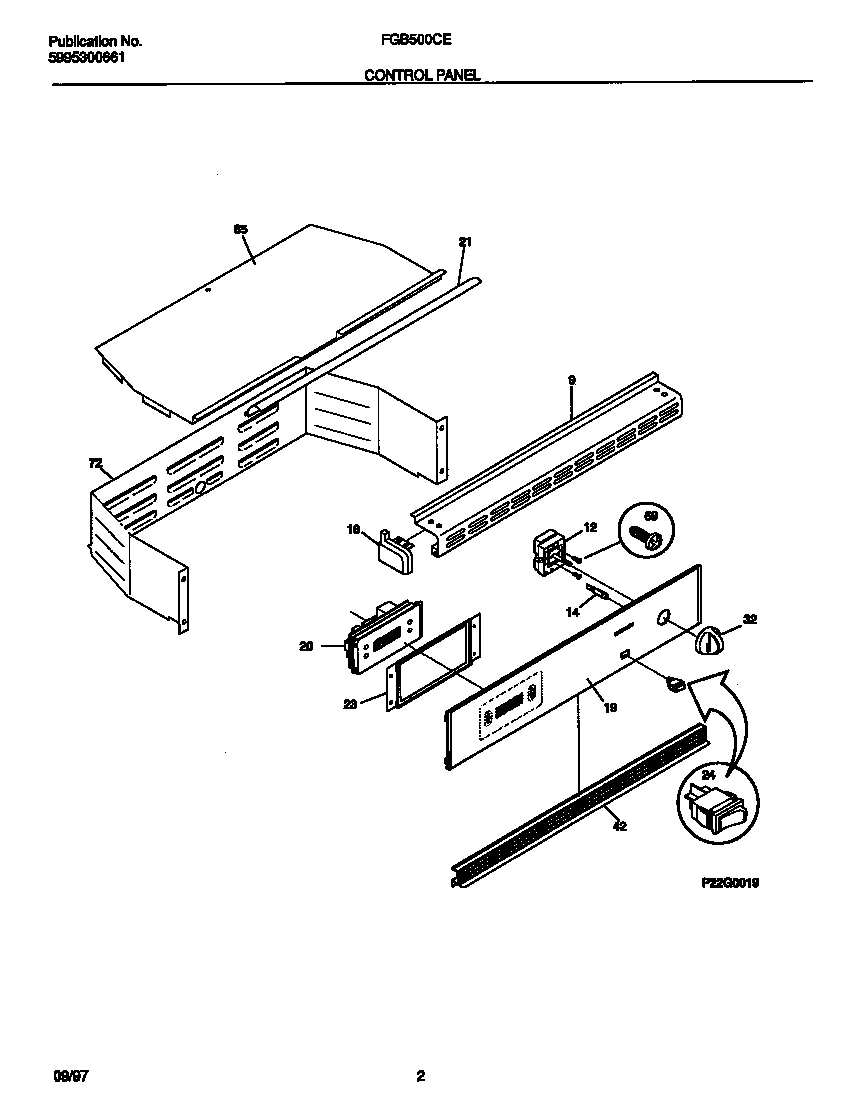

02 - CONTROL PANEL

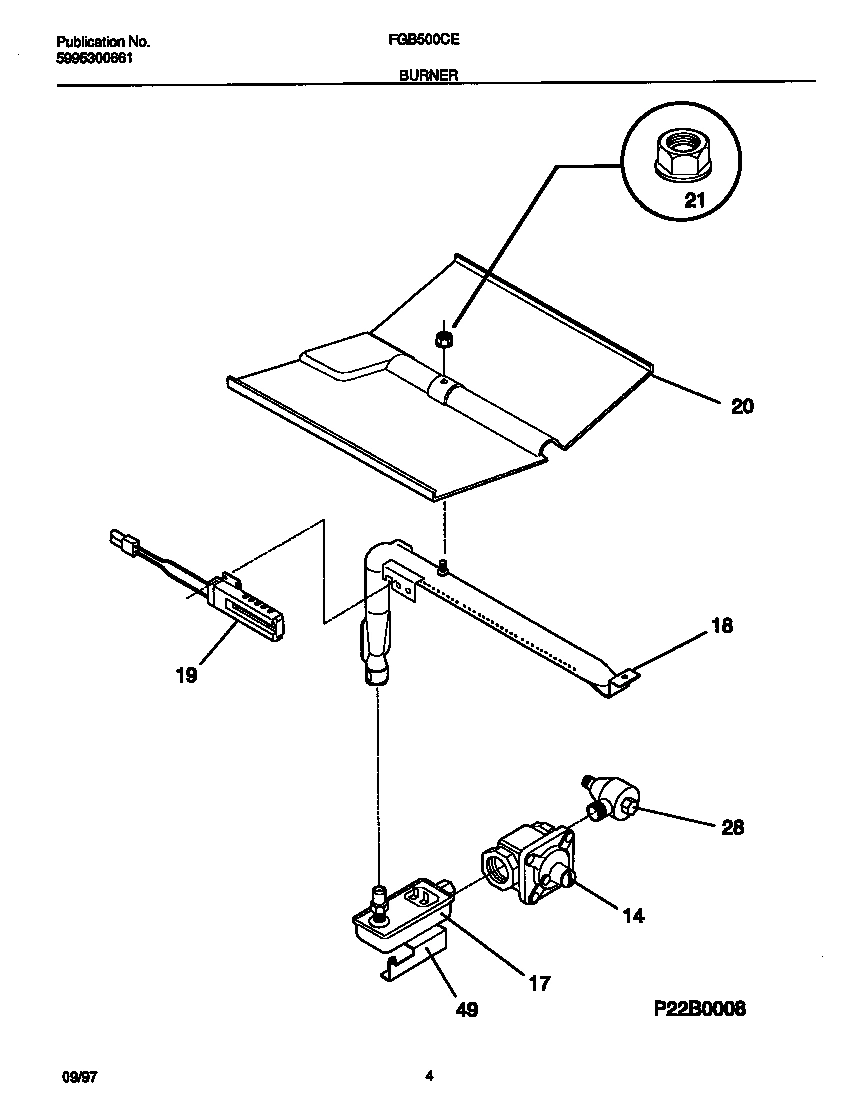

03 - BURNER

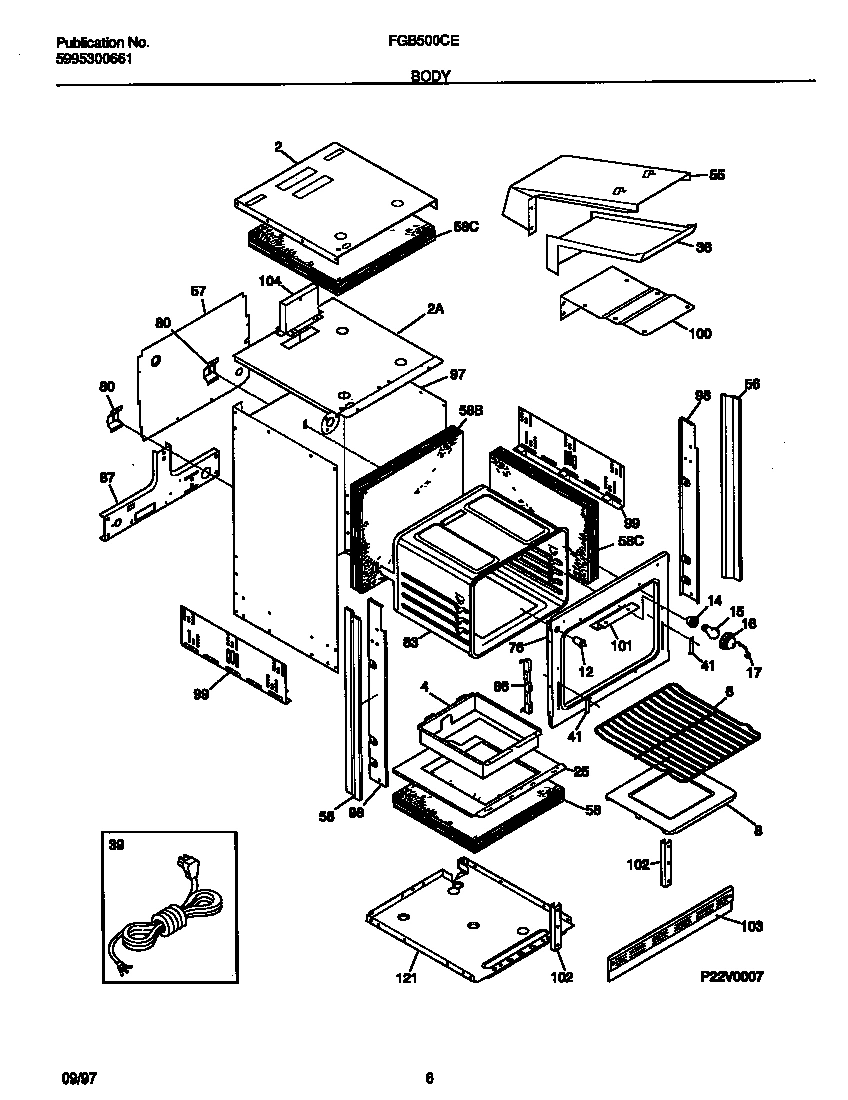

04 - BODY

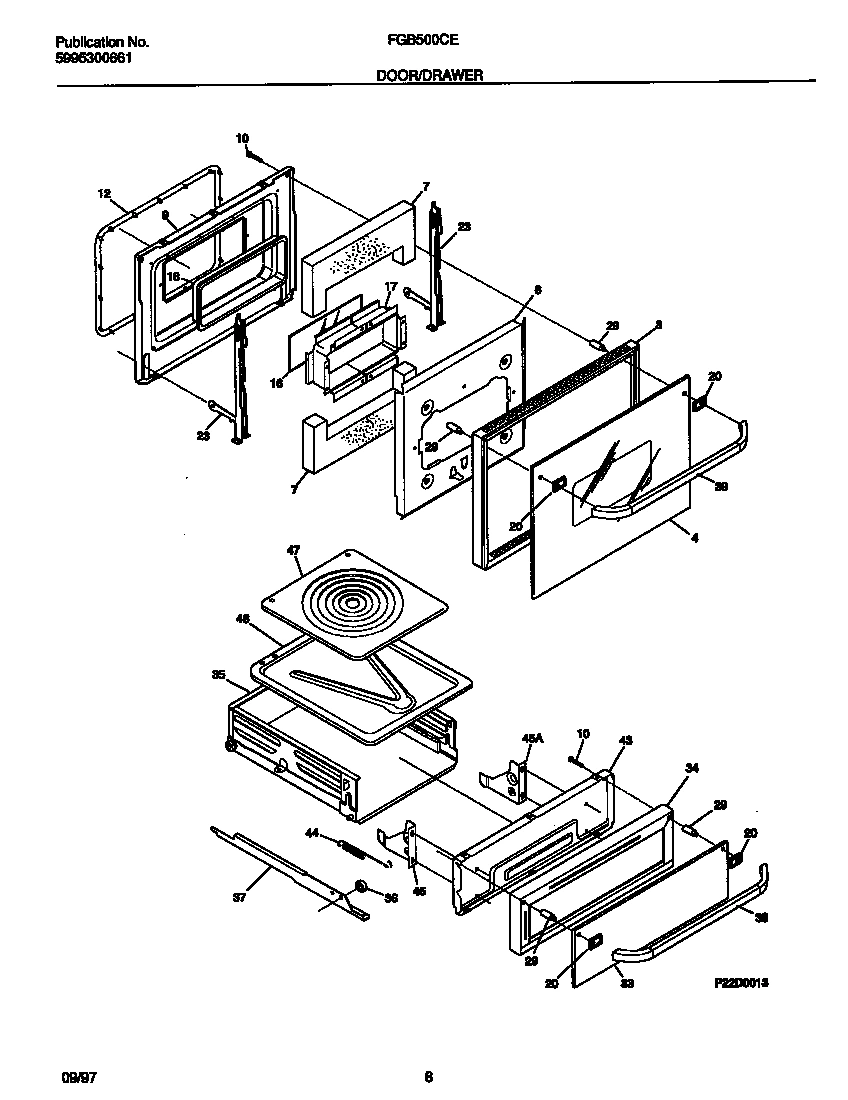

05 - DOOR/DRAWER

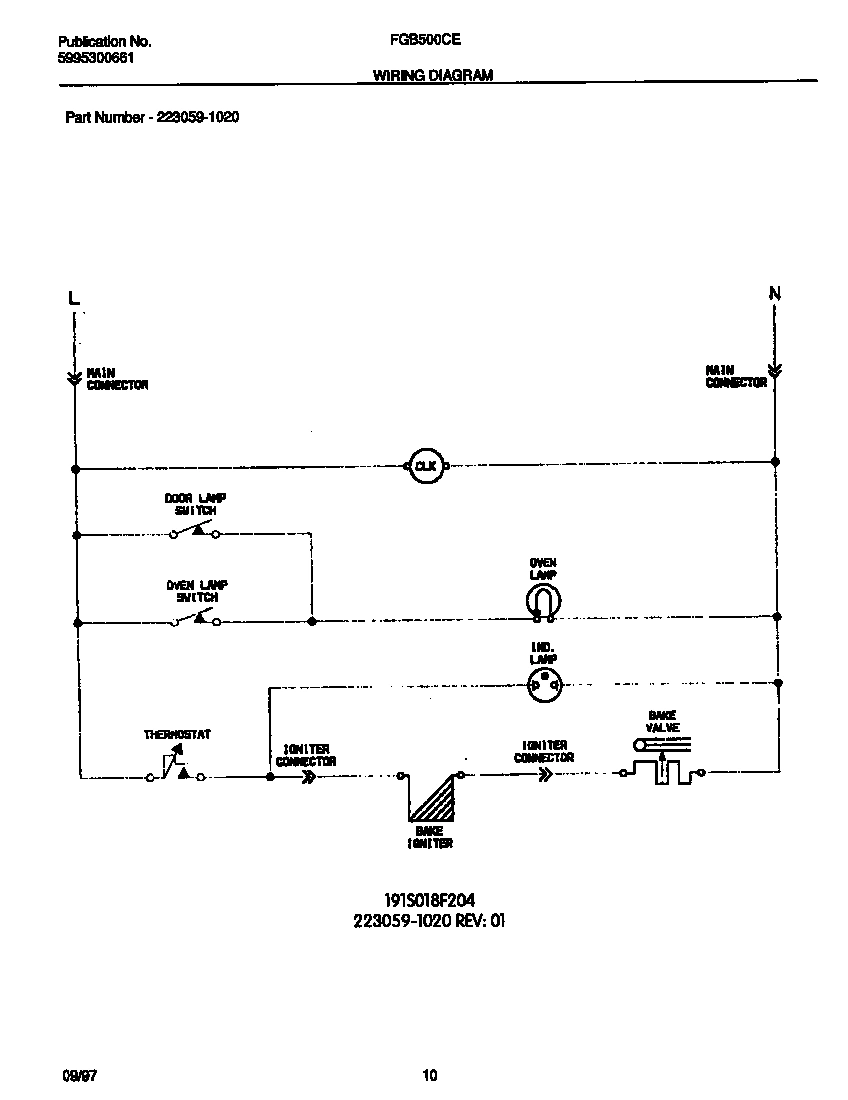

06 - WIRING DIAGRAM
Common parts from model Electrolux FGB500CESC WALL OVEN
*21369
WCI 08002868 WCI 08002868 Contact Us For Availability
*21370
ANGLE-BURNER BOX WCI 5303210705 Contact Us For Availability
*21372
COVER-CAPILLARY WCI 5303300421 Contact Us For Availability
*21378
SPACER-OVEN WCI 3201632 Contact Us For Availability
*21379
WCI 3016303 WCI 3016303 Contact Us For Availability
*21380
WCI 5303300414 WCI 5303300414 Contact Us For Availability
2
WCI 318101900 WCI 318101900 Contact Us For Availability
2
WCI 5303305035 WCI 5303305035 Contact Us For Availability
3
TRIM-OVEN DOOR, BLACK WCI 5303212560 Contact Us For Availability
4
WCI 318161500 WCI 318161500 Contact Us For Availability
4
WCI 5303302707 WCI 5303302707 Contact Us For Availability
6
SHIELD - AIR WASH WCI 5303210005 Contact Us For Availability
7
WCI 5303308470 WCI 5303308470 Contact Us For Availability
8
WCI 318121400 WCI 318121400 Contact Us For Availability
9
WCI 318048400 WCI 318048400 Contact Us For Availability
10
WCI 5303311217 WCI 5303311217 Contact Us For Availability
12
WCI 5303316768 WCI 5303316768 Contact Us For Availability
12
SWITCH-LIGHT WCI 5301314211 Contact Us For Availability
14
Regulator,pressure WCI 5303210167 Contact Us For Availability
14
SOCKET-LIGHT/LAMP, OVEN WCI 08011171 Contact Us For Availability
16
GLASS-OVEN DOOR, HEAT BARRIER WCI 5303016336 Contact Us For Availability
17
WCI 3203702 WCI 3203702 Contact Us For Availability
17
RETAINER-GLASS WCI 318162601 Contact Us For Availability
17
WCI 3204483 WCI 3204483 Contact Us For Availability
18
SEAL-ROPE WCI 3016338 Contact Us For Availability
18B
SCREW-BURNER MTG (NOT ILLUSTRATED) WCI 5303311549 Contact Us For Availability
20
WCI 3203676 WCI 3203676 Contact Us For Availability
20
WCI 318014301 WCI 318014301 Contact Us For Availability
23A
WCI 318074103 WCI 318074103 Contact Us For Availability
25
WCI 5303210706 WCI 5303210706 Contact Us For Availability
28
WCI 5303295305 WCI 5303295305 Contact Us For Availability
29
SPACER-HANDLE MTG, (2) WCI 5303210003 Contact Us For Availability
33
WCI 5303308464 WCI 5303308464 Contact Us For Availability
34
PANEL-INNER DRW WCI 318116000 Contact Us For Availability
35B
PANEL, BROILER DRAWER, BOTTOM (NOT ILLUSTRATE WCI 318136000 Contact Us For Availability
36
WCI 5303935079 WCI 5303935079 Contact Us For Availability
36
WCI 3203725 WCI 3203725 Contact Us For Availability
39
WCI 5303308453 WCI 5303308453 Contact Us For Availability
39
WCI 316091104 WCI 316091104 Contact Us For Availability
41
RETAINER-DOOR WCI 3019063 Contact Us For Availability
43
WCI 318107800 WCI 318107800 Contact Us For Availability
44
SPRING-BROILER WCI 5303131030 Contact Us For Availability
45
HINGE-BROILER, LH WCI 318024400 Contact Us For Availability
45
HINGE-BROILER, RH WCI 318024401 Contact Us For Availability
46
PAN-BROILER WCI 318126200 Contact Us For Availability
47
INSERT-BROILER PAN WCI 318126300 Contact Us For Availability
49
WCI 5303308469 WCI 5303308469 Contact Us For Availability
55
SHIELD-FLUE COVER WCI 3204210 Contact Us For Availability
56
WCI 5303308459 WCI 5303308459 Contact Us For Availability
56
SCREW, 6-20 X 5/16, SIDE TRIM, (4) (NOT ILLUS WCI 5303320422 Contact Us For Availability
57
WCI 5303308476 WCI 5303308476 Contact Us For Availability
58
WCI 318132600 WCI 318132600 Contact Us For Availability
58
WCI 5303280377 WCI 5303280377 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 5303304703 Contact Us For Availability
76
WCI 318056120 WCI 318056120 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
83
WCI 318089400 WCI 318089400 Contact Us For Availability
86
CHANNEL, HINGE WCI 3201631 Contact Us For Availability
87
WCI 5303308475 WCI 5303308475 Contact Us For Availability
97
WCI 318066800 WCI 318066800 Contact Us For Availability
98A
WCI 318029400 WCI 318029400 Contact Us For Availability
98B
WCI 318029401 WCI 318029401 Contact Us For Availability
100
WCI 5303302715 WCI 5303302715 Contact Us For Availability
101
WCI 5303308474 WCI 5303308474 Contact Us For Availability
102
WCI 3203688 WCI 3203688 Contact Us For Availability
103
TRIM-BASE WCI 5303316734 Contact Us For Availability
103
WCI 5303308473 WCI 5303308473 Contact Us For Availability
104
ADAPTER-FLUE WCI 3203730 Contact Us For Availability
121
WCI 318145001 WCI 318145001 Contact Us For Availability
× ![]()
