Model Electrolux FGB24T3EBD WALL OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

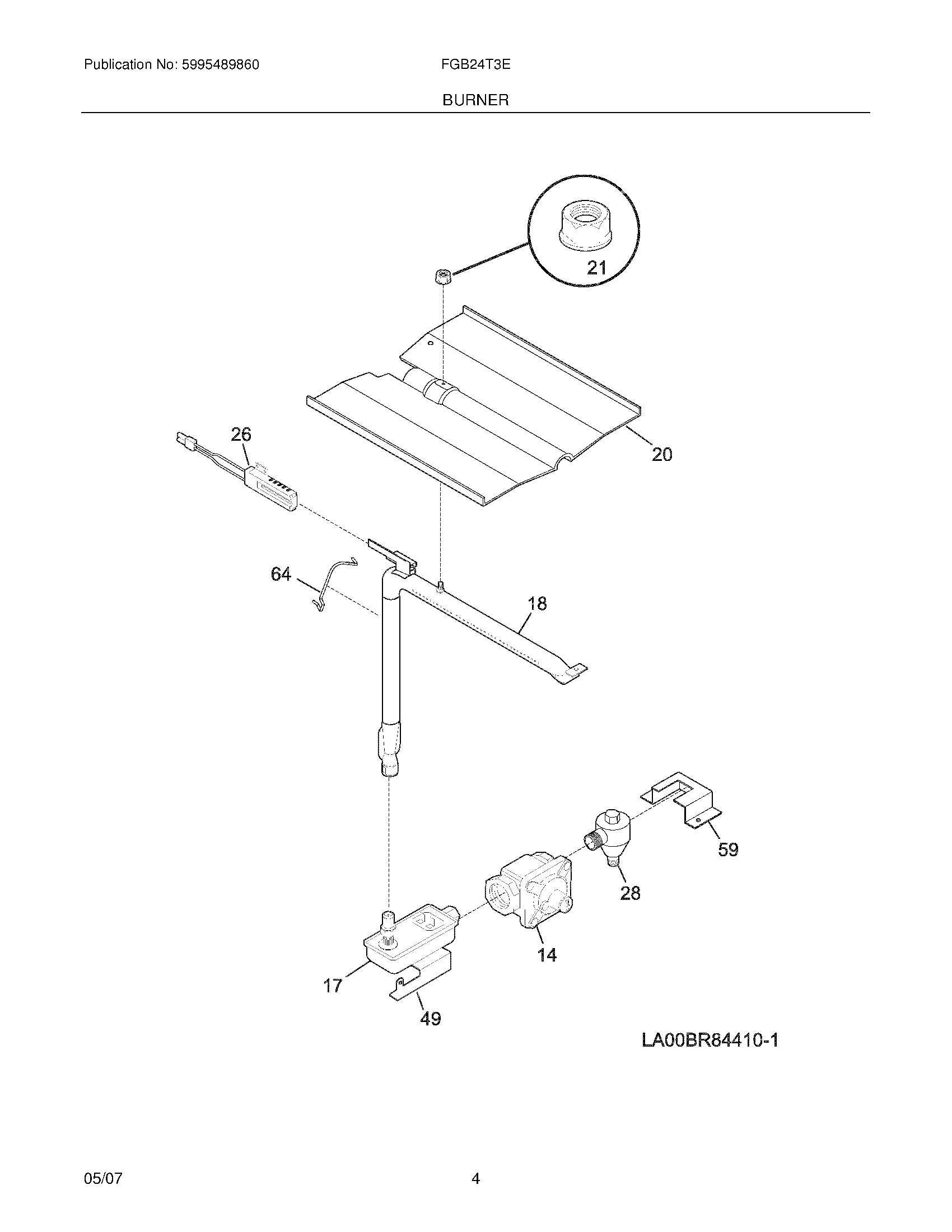

05 - BURNER

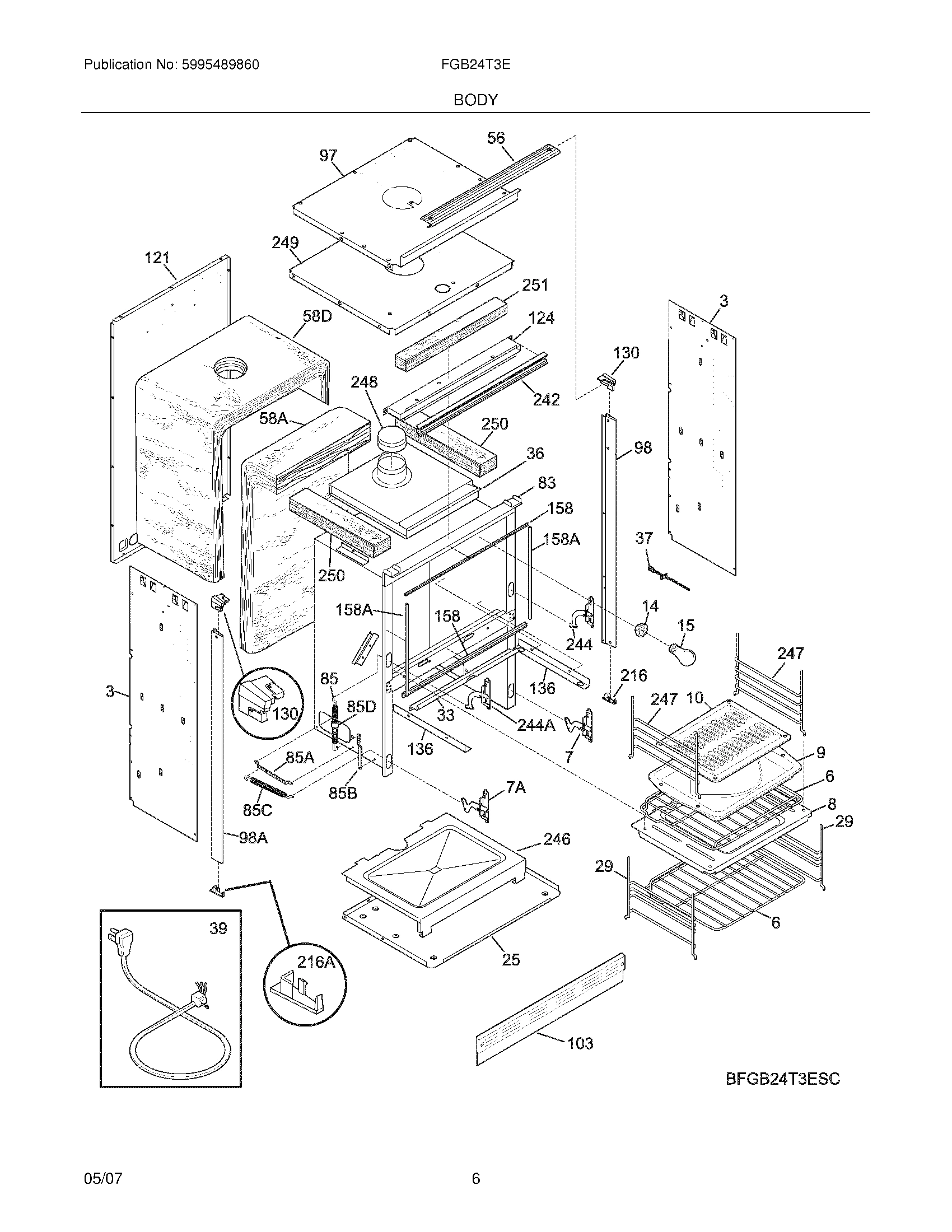

07 - BODY

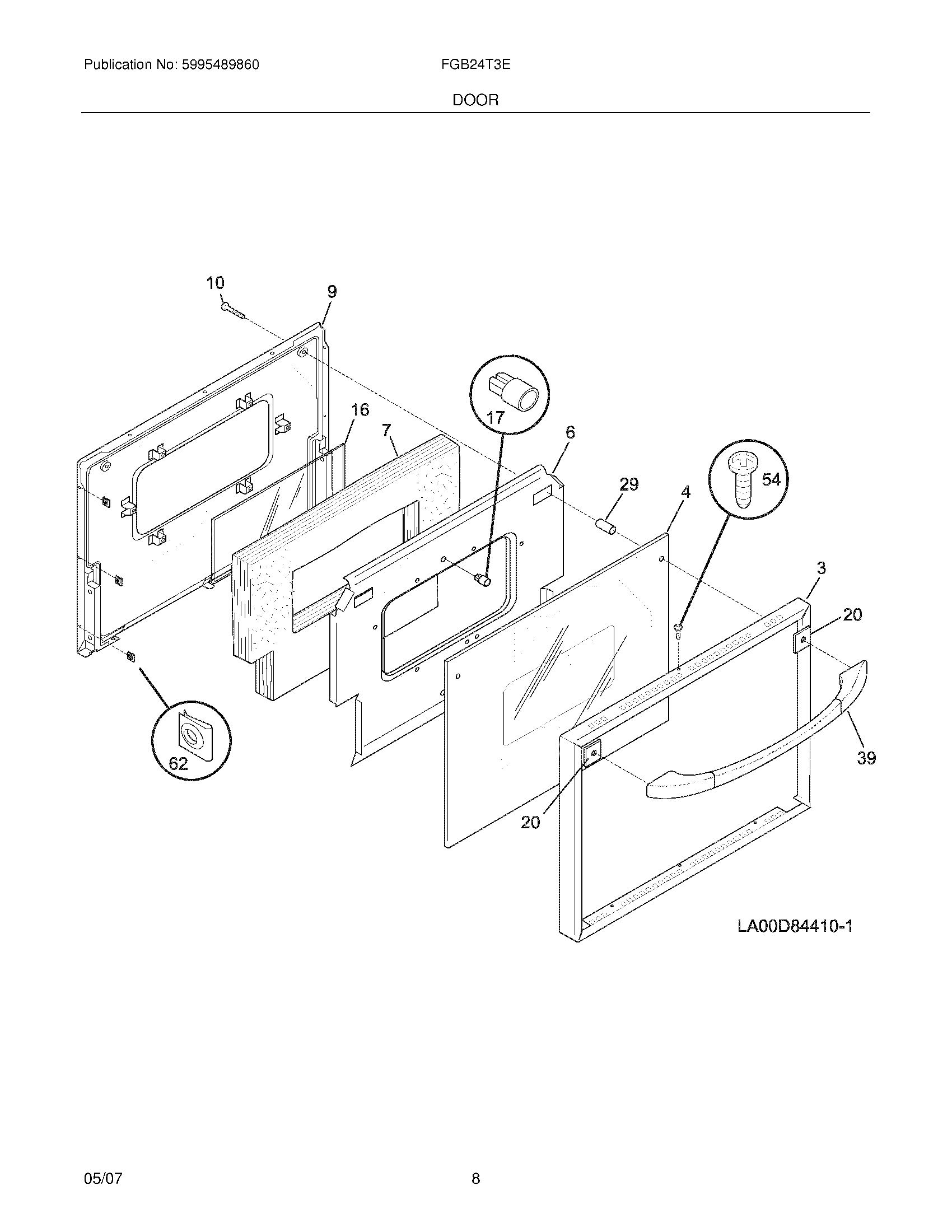

09 - DOORS

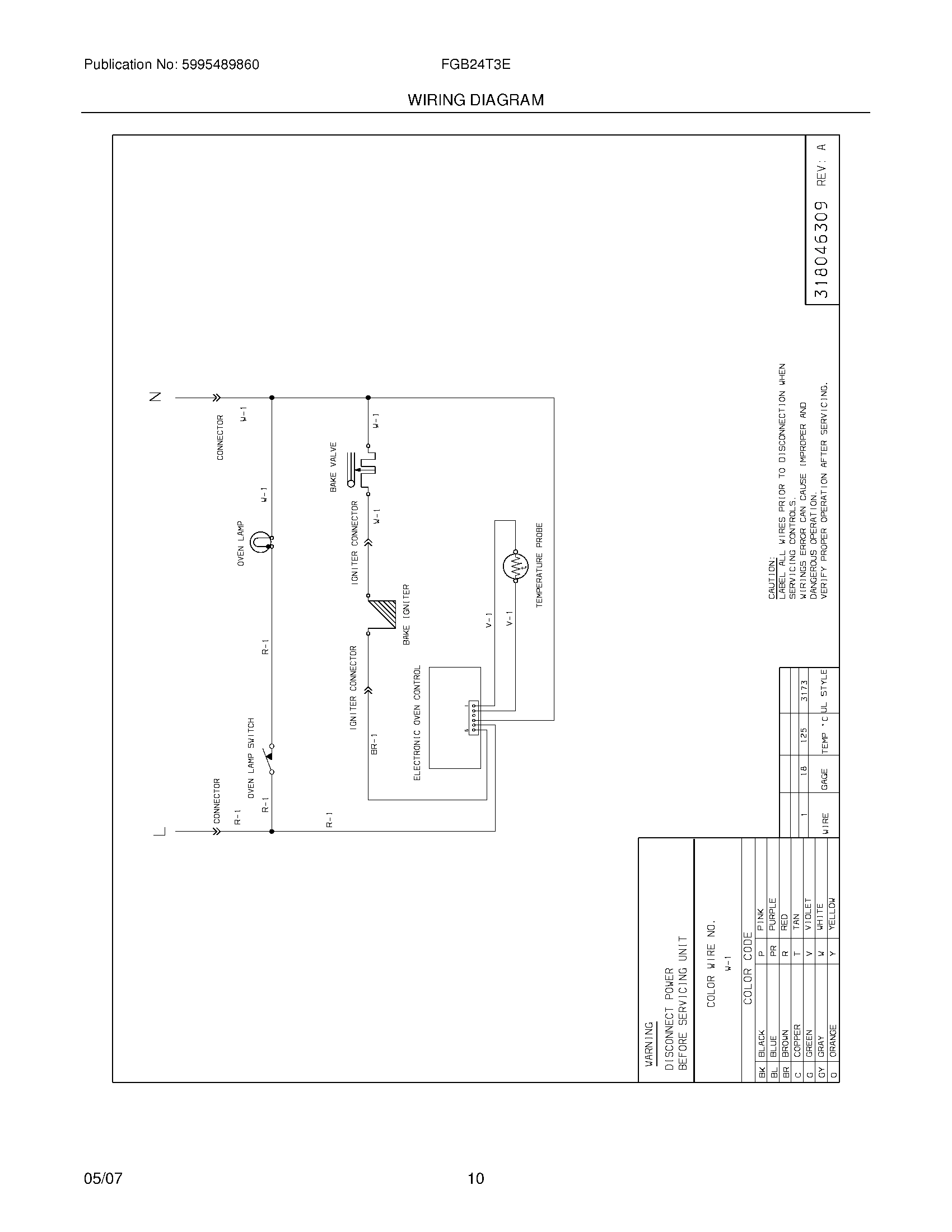

10 - WIRING DIAGRAM
Common parts from model Electrolux FGB24T3EBD WALL OVEN
3
WCI 318026500 WCI 318026500 Contact Us For Availability
4
WCI 318178503 WCI 318178503 Contact Us For Availability
6
WCI 318345800 WCI 318345800 Contact Us For Availability
6
WCI 318116600 WCI 318116600 Contact Us For Availability
7
WCI 5303298313 WCI 5303298313 Contact Us For Availability
7
WCI 318285009 WCI 318285009 Contact Us For Availability
7A
Hinge Assy,LH lower WCI 5303298312 Contact Us For Availability
9
WCI 318048901 WCI 318048901 Contact Us For Availability
14
Regulator,pressure WCI 5303210167 Contact Us For Availability
16
WCI 318042310 WCI 318042310 Contact Us For Availability
17
WCI 5304400397 WCI 5304400397 Contact Us For Availability
18
WCI 5303207603 WCI 5303207603 Contact Us For Availability
20
WCI 5303300175 WCI 5303300175 Contact Us For Availability
24
Switch,oven light ,black WCI 316090900 Contact Us For Availability
28
WCI 5304410865 WCI 5304410865 Contact Us For Availability
29
WCI 318017711 WCI 318017711 Contact Us For Availability
29
WCI 318014401 WCI 318014401 Contact Us For Availability
39
WCI 318186101 WCI 318186101 Contact Us For Availability
62
WCI 08010463 WCI 08010463 Contact Us For Availability
85B
WCI 5303317126 WCI 5303317126 Contact Us For Availability
85C
Spring,oven door ,(1) WCI 5303207651 Contact Us For Availability
103
WCI 5303316735 WCI 5303316735 Contact Us For Availability
130
WCI 318034600 WCI 318034600 Contact Us For Availability
136
WCI 5303317129 WCI 5303317129 Contact Us For Availability
158
SEAL-DOOR,BLACK ,TOP BROILER WCI 5303207644 Contact Us For Availability
158
SEAL-SIDE,BAKE OVEN WCI 5303295311 Contact Us For Availability
216
WCI 318034500 WCI 318034500 Contact Us For Availability
216
WCI 318034501 WCI 318034501 Contact Us For Availability
242
WCI 318027200 WCI 318027200 Contact Us For Availability
244
Hinge Assy,oven door ,LH upper WCI 5303205939 Contact Us For Availability
244
Hinge Assy,oven door ,RH upper WCI 5303205940 Contact Us For Availability
246
WCI 318133600 WCI 318133600 Contact Us For Availability
247
GLIDE-OVEN RACK WCI 3018717 Contact Us For Availability
248
WCI 5303317121 WCI 5303317121 Contact Us For Availability
249
WCI 5304400385 WCI 5304400385 Contact Us For Availability
250
WCI 318285042 WCI 318285042 Contact Us For Availability
251
WCI 318285048 WCI 318285048 Contact Us For Availability
NI
WCI 318232522 WCI 318232522 Contact Us For Availability
NI
SCREW (8-18 X 1 ) WCI 5304400429 Contact Us For Availability
NI
SCREW,TRUSS HEAD,8-18 X 0.375 WCI 08016432 Contact Us For Availability
× ![]()
