Model Electrolux FGB24L2ECB WALL OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

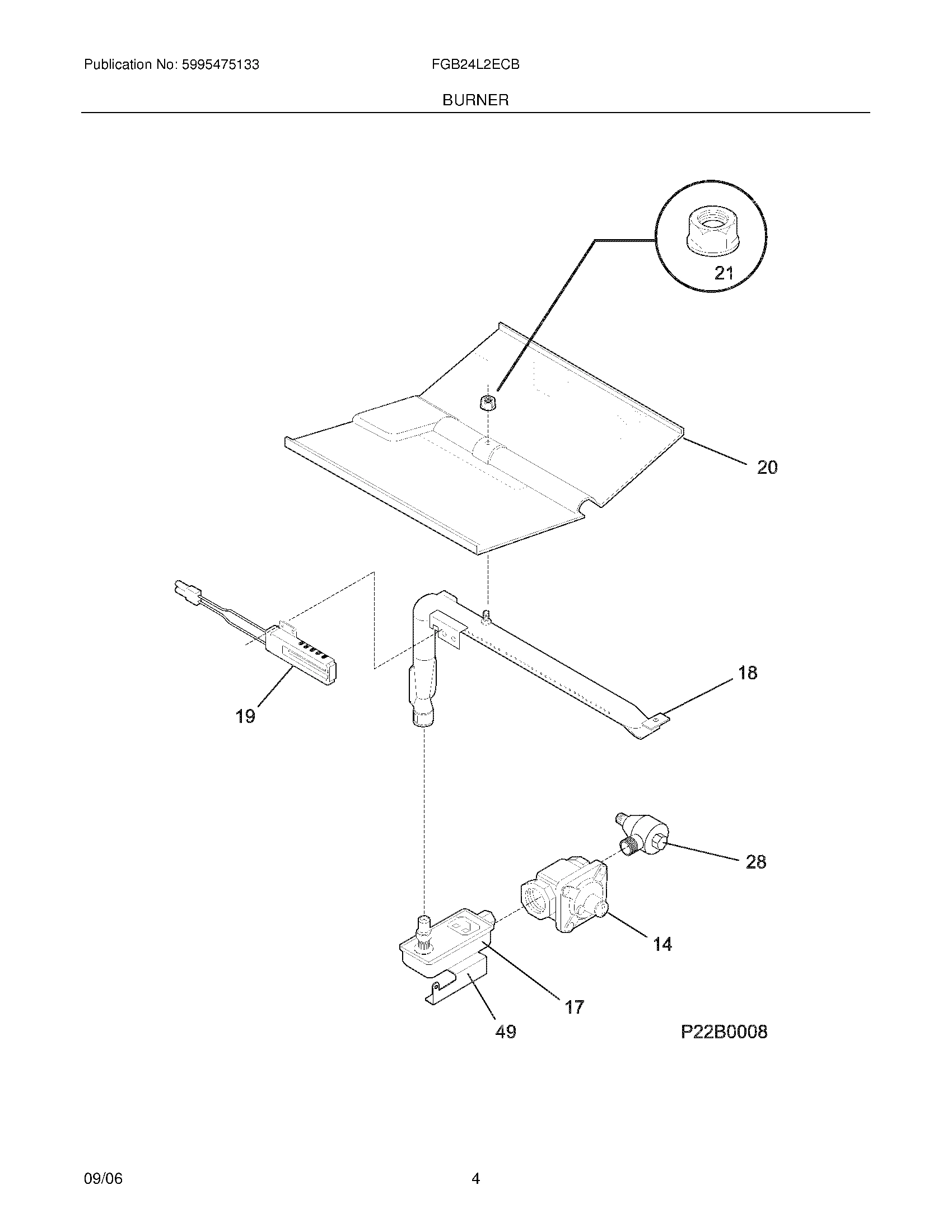

05 - BURNER

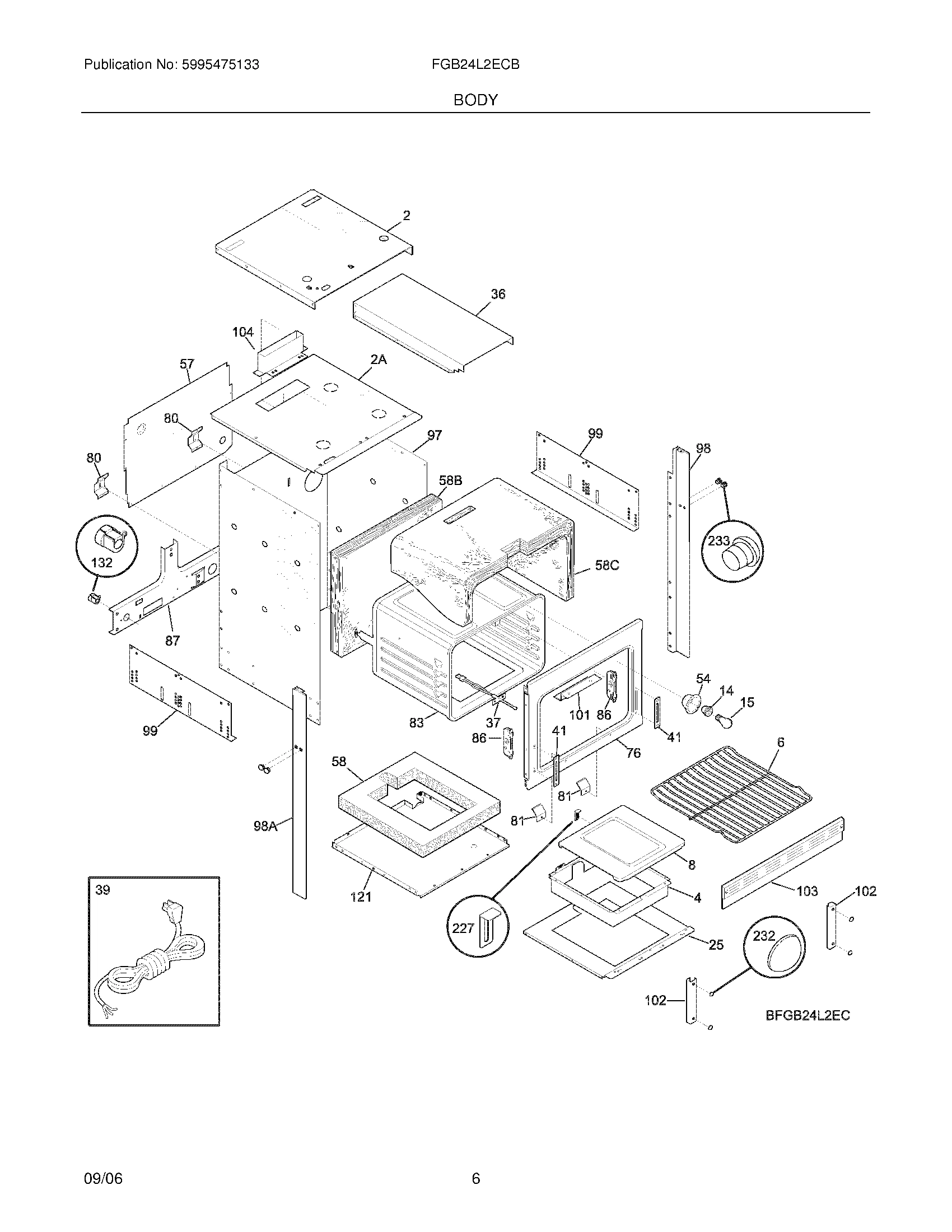

07 - BODY

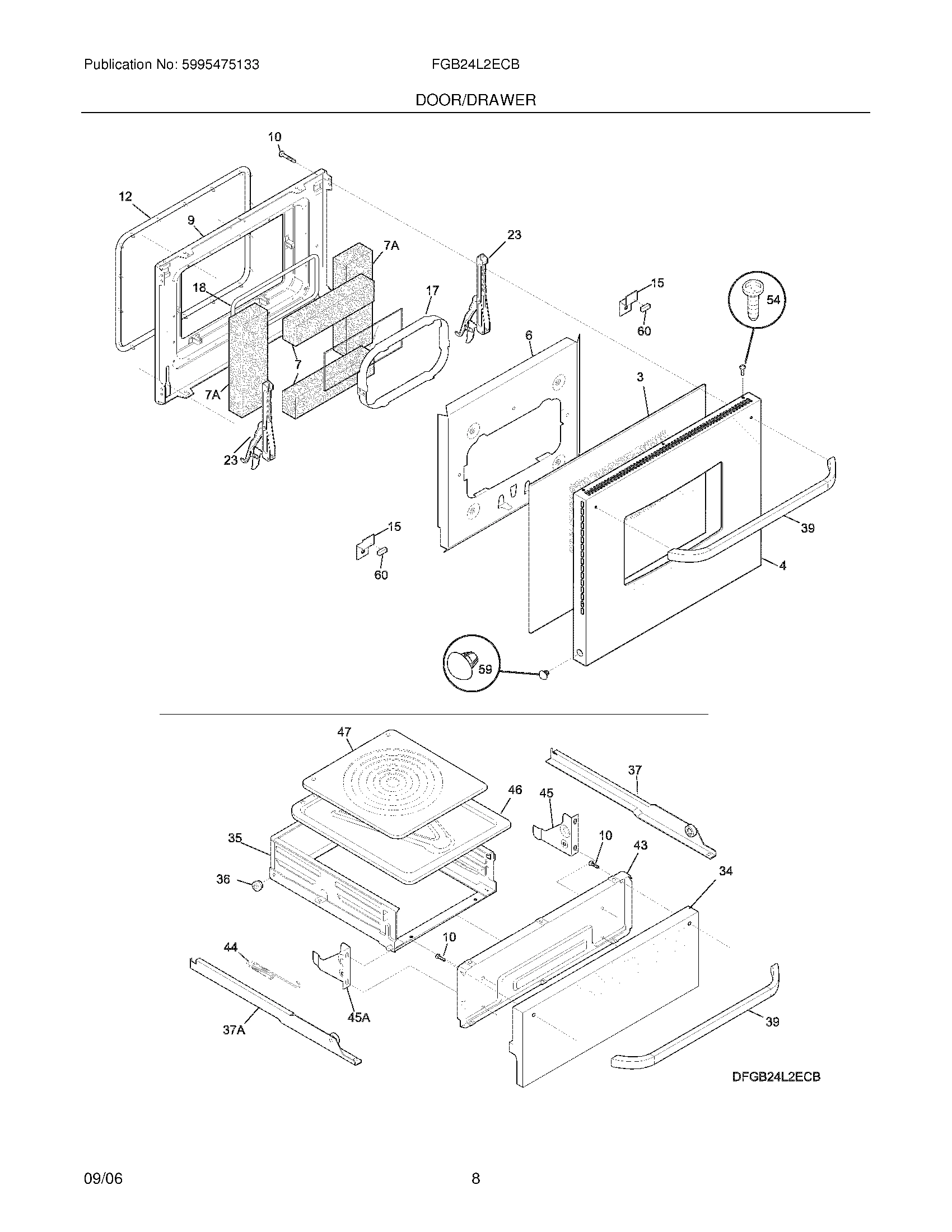

09 - DOOR/DRAWER

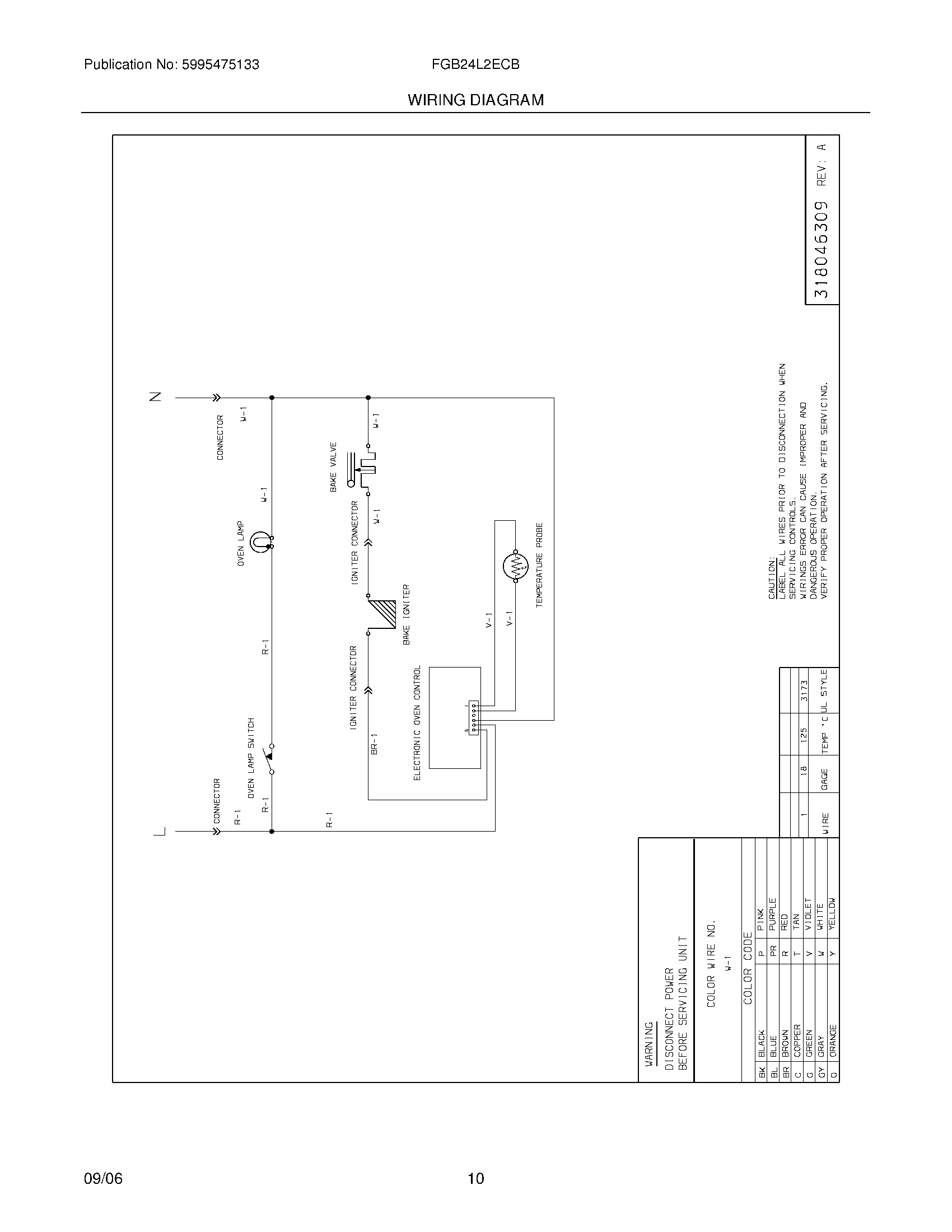

10 - WIRING DIAGRAM
Common parts from model Electrolux FGB24L2ECB WALL OVEN
3
WCI 318051521 WCI 318051521 Contact Us For Availability
4
WCI 318280007 WCI 318280007 Contact Us For Availability
6
WCI 318073600 WCI 318073600 Contact Us For Availability
7
WCI 318362110 WCI 318362110 Contact Us For Availability
7A
WCI 318362111 WCI 318362111 Contact Us For Availability
8
WCI 318121400 WCI 318121400 Contact Us For Availability
8
WCI 5303323828 WCI 5303323828 Contact Us For Availability
9
WCI 318156604 WCI 318156604 Contact Us For Availability
12
SEAL-OVEN DOOR, LOWER OVEN WCI 5303316768 Contact Us For Availability
14
Regulator,pressure WCI 5303210167 Contact Us For Availability
15
BRACKET-GLASS,(3) WCI 318091102 Contact Us For Availability
17
WCI 3203702 WCI 3203702 Contact Us For Availability
17
WCI 318162601 WCI 318162601 Contact Us For Availability
18
WCI 318053204 WCI 318053204 Contact Us For Availability
19
WCI 318234106 WCI 318234106 Contact Us For Availability
20
WCI 3203676 WCI 3203676 Contact Us For Availability
21
WCI 318176500 WCI 318176500 Contact Us For Availability
23
WCI 318024702 WCI 318024702 Contact Us For Availability
34
WCI 318328200 WCI 318328200 Contact Us For Availability
36
WCI 5303935079 WCI 5303935079 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
43
WCI 318107800 WCI 318107800 Contact Us For Availability
44
WCI 318088300 WCI 318088300 Contact Us For Availability
45
WCI 318024400 WCI 318024400 Contact Us For Availability
45A
WCI 318024401 WCI 318024401 Contact Us For Availability
46
PAN-BROILER WCI 318126200 Contact Us For Availability
47
INSERT-BROILER PAN WCI 318126300 Contact Us For Availability
54
WCI 318222400 WCI 318222400 Contact Us For Availability
59
Plug,button WCI 3202113 Contact Us For Availability
60
WCI 5303316982 WCI 5303316982 Contact Us For Availability
80
WCI 318192400 WCI 318192400 Contact Us For Availability
103
WCI 5303316735 WCI 5303316735 Contact Us For Availability
227
WCI 5303323958 WCI 5303323958 Contact Us For Availability
232
WCI 318147412 WCI 318147412 Contact Us For Availability
233
WCI 318166800 WCI 318166800 Contact Us For Availability
NI
Screw,10-24 x 0.500 ,probe,thrm brkt ,shield, WCI 08002868 Contact Us For Availability
NI
SCREW,TRUSS HEAD,8-18 X 0.375 WCI 08016432 Contact Us For Availability
NI
WCI 318232517 WCI 318232517 Contact Us For Availability
NI
WCI 318163602 WCI 318163602 Contact Us For Availability
NI
WCI 5304445498 WCI 5304445498 Contact Us For Availability
× ![]()
