Model Electrolux FFUE2024AWC FREEZER, UPRIGHT OR VERTICAL – Common Parts & Diagrams

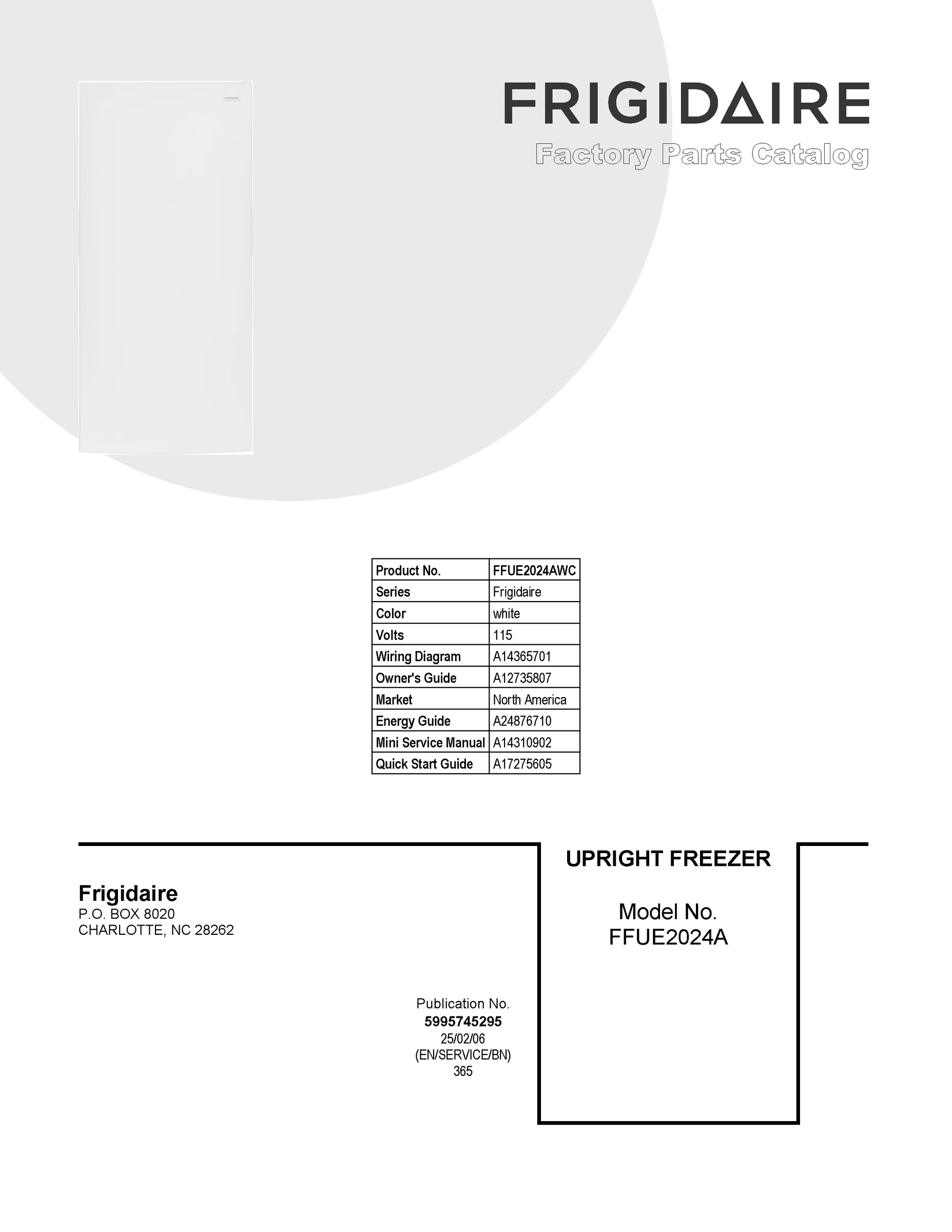

01 - COVER SHEET
02 - DOOR

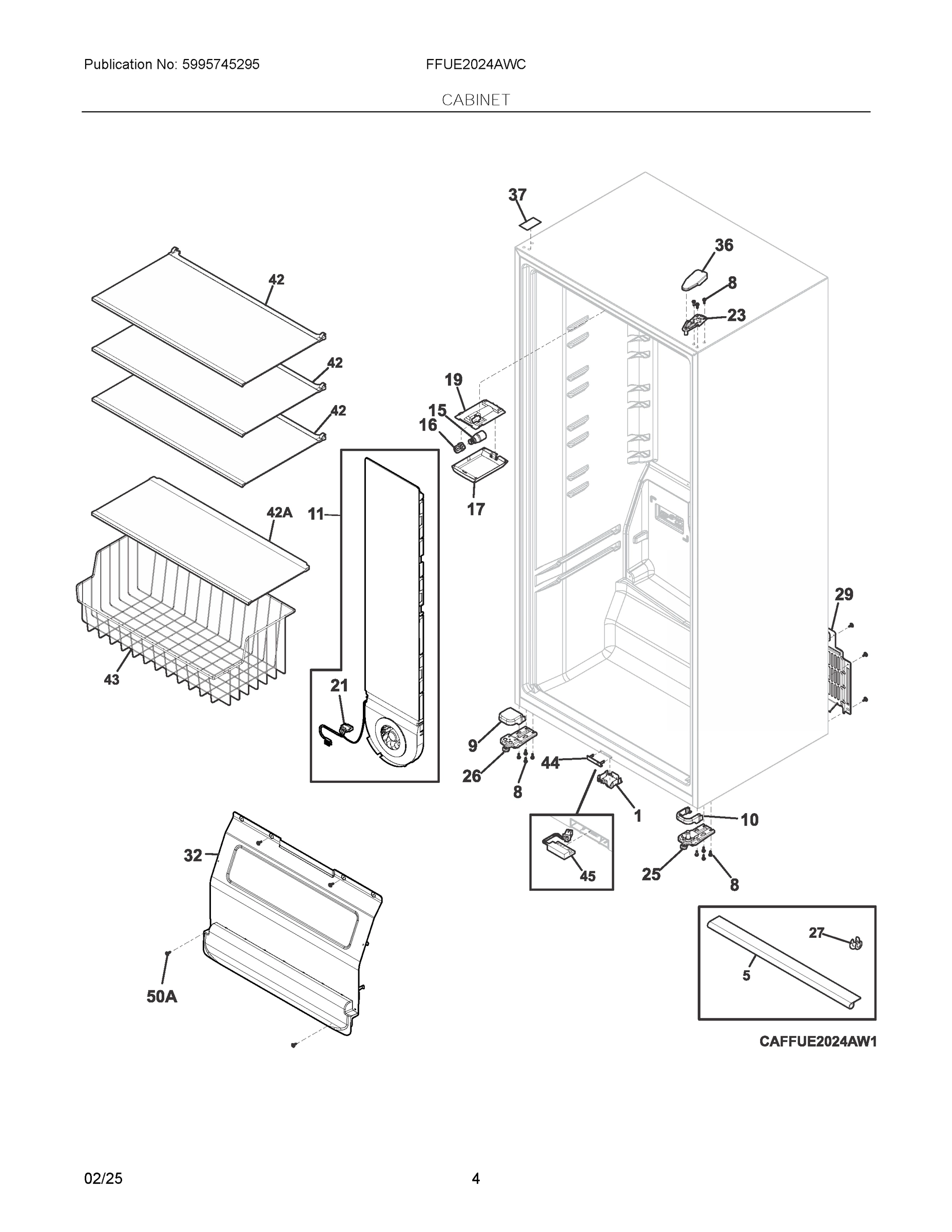

03 - CABINET

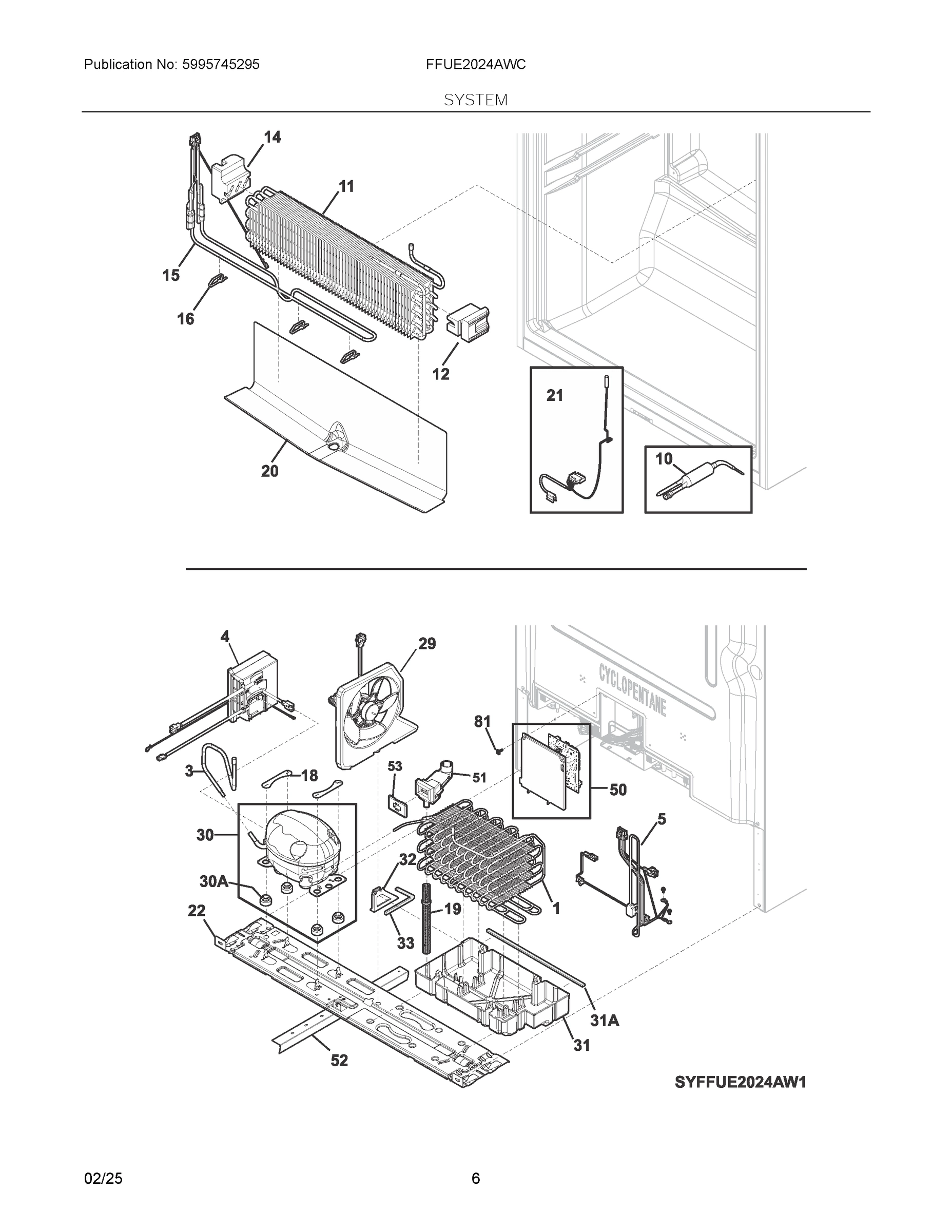

04 - SYSTEM
Common parts from model Electrolux FFUE2024AWC FREEZER, UPRIGHT OR VERTICAL
1
COVER, HOUSING, REED SWITCH WCI 5304523792 Contact Us For Availability
4
INVERTER, FLEXDRIVE 2.2 WCI 5304531506 Contact Us For Availability
5
HARNESS, WIRING, MACHINE COMPT. WCI 5304532290 Contact Us For Availability
8
MAGNET, REED SWITCH WCI 5304519044 Contact Us For Availability
8
SCREW, HEX WSH HD QUAD, M5 X 16 WCI 5304522279 Contact Us For Availability
9
BEARING, HINGE, WHITE WCI 5304519757 Contact Us For Availability
9
COVER, HINGE, WHITE, LOWER, NON HINGED WCI 5304519777 Contact Us For Availability
10
FILTER, DRIER, SERVICE WCI A19676501 Contact Us For Availability
11
HOOK, DOOR CLOSER, WHITE WCI 5304519789 Contact Us For Availability
11
EVAPORATOR, COIL WCI 5304523830 Contact Us For Availability
11A
SCREW, 8-18 X 1.25 WCI 241953905 Contact Us For Availability
12
SUPPORT, EVAPORATOR, RH WCI 5304523831 Contact Us For Availability
14
SUPPORT, EVAPORATOR, LH WCI 5304530284 Contact Us For Availability
15
BULB, LIGHT, E17/12 LED WCI 5304522314 Contact Us For Availability
15
HEATER, DEFROST WCI 5304523833 Contact Us For Availability
16
SOCKET, LED LIGHT WCI 5304522315 Contact Us For Availability
18
CLAMP, COMPRESSOR WCI 5304524607 Contact Us For Availability
19
TUBE, DRAIN, EXTENSION WCI 5304525042 Contact Us For Availability
19
MOUNT, SOCKET WCI 5304523777 Contact Us For Availability
20
BEARING, DOOR, LOWER WCI 5304523784 Contact Us For Availability
20
TROUGH, DRAIN WCI 5304523720 Contact Us For Availability
21
HARNESS ASSEMBLY, TEMP/DEFROST, W/THERMOSTATS WCI 5304523788 Contact Us For Availability
22
BASE ASSEMBLY, COMPRESSOR, W/ROLLERS WCI 5304523693 Contact Us For Availability
24
MOUNT-FAN, EVAPORATOR WCI 5304523722 Contact Us For Availability
26
HINGE-BOTTOM, ASSEMBLY, LH NON HINGED, W/FOOT WCI 5304523747 Contact Us For Availability
29
CONDENSER FAN, ASSEMBLY, 29 #, W/SHROUD WCI 5304535399 Contact Us For Availability
30
COMPRESSOR, ASSEMBLY, VTH1111Y, 230V, W/GROMM WCI 5304530136 Contact Us For Availability
30A
GROMMET, CMPRSR MTG, 23 WCI 5304530281 Contact Us For Availability
31
PAN, DRAIN WCI 5304519674 Contact Us For Availability
31A
SEAL, DRAIN PAN, FOAM WCI 5304523724 Contact Us For Availability
32
BAFFLE, DRAIN PAN, AIR BLOCK WCI 5304519745 Contact Us For Availability
33
SEAL, FOAM, AIR BLOCK WCI 5304519751 Contact Us For Availability
45
REED SWITCH HARNESS, ASSEMBLY WCI 5304527992 Contact Us For Availability
50
BOARD ASSEMBLY, MAIN, ERF300, W/HOUSING WCI 5304529280 Contact Us For Availability
50A
SCREW, HEX WASH HD, M4.2 X 16 WCI 5304523738 Contact Us For Availability
51
DRAIN JUMPER, ASSEMBLY, W/SEAL WCI 5304530111 Contact Us For Availability
52
BAFFLE, DIVIDER WCI 5304523694 Contact Us For Availability
53
COVER, DRAIN JUMPER WCI 5304525744 Contact Us For Availability
81
SCREW, HX WASH HD, M4.2 X 12 WCI 5304519765 Contact Us For Availability
NI
SCREW, HEX WASH HD, M4 X 10 WCI 5304523801 Contact Us For Availability
NI
CLIP, PLASTIC, W/ADHESIVE WCI 30534600 Contact Us For Availability
NI
SCREW, HEX HD, #8-18 X 5/8 WCI 241500305 Contact Us For Availability
NIA
BUTTON, PLUG, WHITE WCI 240494001 Contact Us For Availability
× ![]()
