Model Frigidaire FFUE2022AWR FREEZER – Common Parts & Diagrams

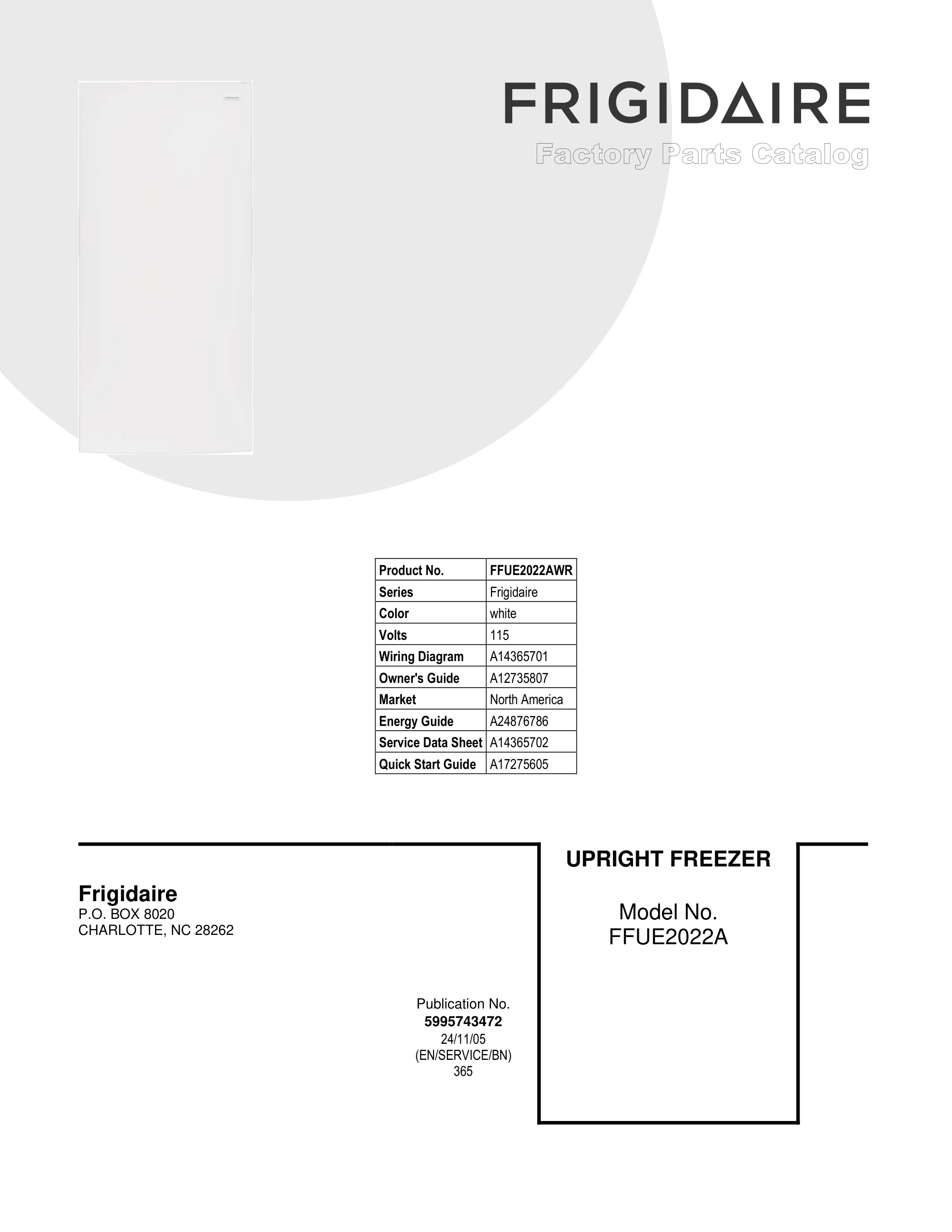

01 - COVER

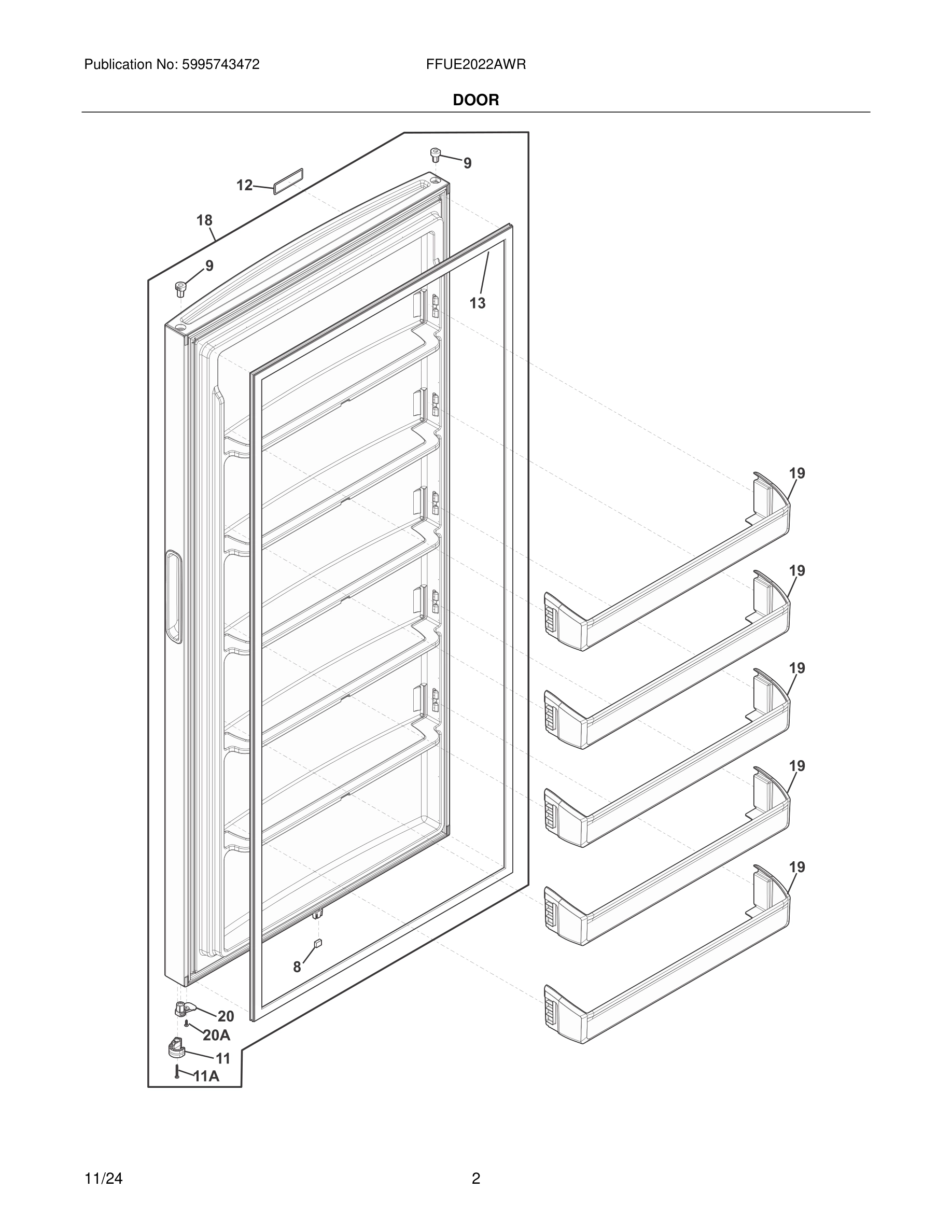

03 - DOOR
05 - CABINET
07 - SYSTEM
Common parts from model Frigidaire FFUE2022AWR FREEZER
1
Cover, housing, reed switch WCI 5304523792 Contact Us For Availability
4
Clip, wire shelf, LH WCI 5304522258 Contact Us For Availability
5
Clip, wire shelf, RH WCI 5304522259 Contact Us For Availability
5#
Harness, wiring, machine compt. WCI 5304532290 Contact Us For Availability
8
Magnet, reed switch WCI 5304519044 Contact Us For Availability
8
Screw, hex wsh hd quad, M5 x 16 WCI 5304522279 Contact Us For Availability
9
Bearing, hinge, white WCI 5304519757 Contact Us For Availability
9
Cover, hinge, white, lower, non hinged WCI 5304519777 Contact Us For Availability
10#
Filter, drier, service WCI A19676501 Contact Us For Availability
11
Hook, door closer, white WCI 5304519789 Contact Us For Availability
11
Evaporator, coil WCI 5304523830 Contact Us For Availability
11A
Screw, 8-18 X 1.25 WCI 241953905 Contact Us For Availability
12
Badge, Frigidaire, white WCI 5304511144 Contact Us For Availability
12
Support, evaporator, RH WCI 5304523831 Contact Us For Availability
13
Gasket, door, gray WCI 5304524887 Contact Us For Availability
14
Support, evaporator, LH WCI 5304530284 Contact Us For Availability
15
BULB, light, E17/12 LED WCI 5304522314 Contact Us For Availability
15
Heater, defrost WCI 5304523833 Contact Us For Availability
16
Strap-evap/heater, aluminum, (2) WCI 5308000110 Contact Us For Availability
16#
Socket, LED light WCI 5304522315 Contact Us For Availability
18
Knob, temp control WCI 5304523758 Contact Us For Availability
18
Clamp, compressor WCI 5304524607 Contact Us For Availability
19
Tube, drain, extension WCI 5304525042 Contact Us For Availability
19
Mount, socket WCI 5304523777 Contact Us For Availability
19
Shelf-door WCI 5304523719 Contact Us For Availability
20
Bearing, door, lower WCI 5304523784 Contact Us For Availability
20
Trough, drain WCI 5304523720 Contact Us For Availability
21#
Harness Assembly, temp/defrost, w/thermostats WCI 5304523788 Contact Us For Availability
22
Base Assembly, compressor, w/rollers WCI 5304523693 Contact Us For Availability
26
Hinge-bottom, assembly, LH non hinged, w/foot WCI 5304523747 Contact Us For Availability
29#
Condenser Fan, assembly, 29 #, w/shroud WCI 5304535399 Contact Us For Availability
30#
Compressor, assembly, VTH1111Y, 230V, w/gromm WCI 5304530136 Contact Us For Availability
30A
Grommet, cmprsr mtg, 34 WCI 5304530281 Contact Us For Availability
31
Pan, drain WCI 5304519674 Contact Us For Availability
31A
Tape, drain pan, foam, front WCI 5304519744 Contact Us For Availability
32
Baffle, drain pan, air block WCI 5304519745 Contact Us For Availability
33
Seal, foam, air block WCI 5304519751 Contact Us For Availability
44
Cover, light guide WCI 5304523785 Contact Us For Availability
50#
Harness, Potentionmeter WCI 5304523789 Contact Us For Availability
50#
S/A-M.BOARD & HOUSE ERF300 VTH, 50 # WCI 5304535530 Contact Us For Availability
50A
Screw, hex wash hd, M4.2 x 16 WCI 5304523738 Contact Us For Availability
51
Drain Jumper, assembly, w/seal WCI 5304530111 Contact Us For Availability
52
Baffle, divider WCI 5304523694 Contact Us For Availability
53
Cover, drain jumper WCI 5304525744 Contact Us For Availability
81
Screw, hx wash hd, M4.2 x 12 WCI 5304519765 Contact Us For Availability
× ![]()
