  • Electrolux FFUE2022AWC Parts List

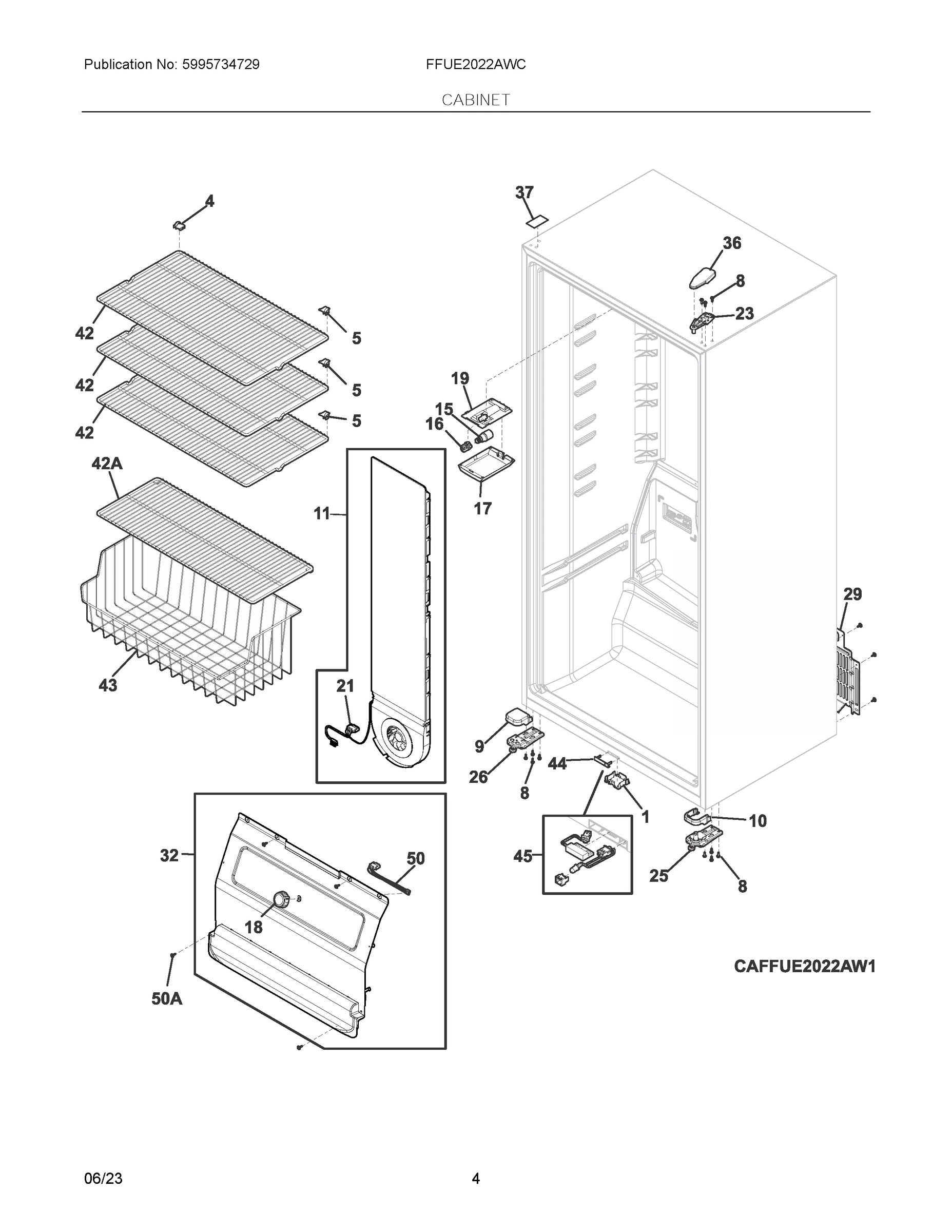

Model Electrolux FFUE2022AWC FREEZER, UPRIGHT OR VERTICAL – Common Parts & Diagrams

1
COVER, HOUSING, REED SWITCH
COVER, HOUSING, REED SWITCH WCI 5304523792 Contact Us For Availability
View on Model
4
CLIP, WIRE SHELF, LH
CLIP, WIRE SHELF, LH WCI 5304522258 Contact Us For Availability
View on Model
5
CLIP, WIRE SHELF, RH
CLIP, WIRE SHELF, RH WCI 5304522259 Contact Us For Availability
View on Model
8
MAGNET, REED SWITCH
MAGNET, REED SWITCH WCI 5304519044 Contact Us For Availability
View on Model
8
SCREW, HEX WSH HD QUAD, M5 X 16
SCREW, HEX WSH HD QUAD, M5 X 16 WCI 5304522279 Contact Us For Availability
View on Model
9
BEARING, HINGE, WHITE
BEARING, HINGE, WHITE WCI 5304519757 Contact Us For Availability
View on Model
9
COVER, HINGE, WHITE, LOWER, NON HINGED
COVER, HINGE, WHITE, LOWER, NON HINGED WCI 5304519777 Contact Us For Availability
View on Model
10
FILTER, DRIER, SERVICE
FILTER, DRIER, SERVICE WCI A19676501 Contact Us For Availability
View on Model
11
HOOK, DOOR CLOSER, WHITE
HOOK, DOOR CLOSER, WHITE WCI 5304519789 Contact Us For Availability
View on Model
11
EVAPORATOR, COIL
EVAPORATOR, COIL WCI 5304523830 Contact Us For Availability
View on Model
12
BADGE, FRIGIDAIRE, WHITE
BADGE, FRIGIDAIRE, WHITE WCI 5304511144 Contact Us For Availability
View on Model
12
SCREW, 8-18 X 1.25
SCREW, 8-18 X 1.25 WCI 241953905 Contact Us For Availability
View on Model
15
BULB, LIGHT, E17/12 LED
BULB, LIGHT, E17/12 LED WCI 5304522314 Contact Us For Availability
View on Model
15
HEATER, DEFROST
HEATER, DEFROST WCI 5304523833 Contact Us For Availability
View on Model
16
STRAP-EVAP/HEATER, ALUMINUM, (2)
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
View on Model
16
SOCKET, LED LIGHT
SOCKET, LED LIGHT WCI 5304522315 Contact Us For Availability
View on Model
18
KNOB, TEMP CONTROL
KNOB, TEMP CONTROL WCI 5304523758 Contact Us For Availability
View on Model
19
TUBE, DRAIN, EXTENSION
TUBE, DRAIN, EXTENSION WCI 5304525042 Contact Us For Availability
View on Model
19
MOUNT, SOCKET
MOUNT, SOCKET WCI 5304523777 Contact Us For Availability
View on Model
19
SHELF-DOOR
SHELF-DOOR WCI 5304523719 Contact Us For Availability
View on Model
20
BEARING, DOOR, LOWER
BEARING, DOOR, LOWER WCI 5304523784 Contact Us For Availability
View on Model
21
HARNESS ASSEMBLY, TEMP/DEFROST, W/THERMOSTATS
HARNESS ASSEMBLY, TEMP/DEFROST, W/THERMOSTATS WCI 5304523788 Contact Us For Availability
View on Model
23
HINGE, UPPER
HINGE, UPPER WCI 5304523689 Contact Us For Availability
View on Model
24
MOUNT-FAN, EVAPORATOR
MOUNT-FAN, EVAPORATOR WCI 5304523722 Contact Us For Availability
View on Model
26
HINGE-BOTTOM, ASSEMBLY, LH NON HINGED, W/FOOT
HINGE-BOTTOM, ASSEMBLY, LH NON HINGED, W/FOOT WCI 5304523747 Contact Us For Availability
View on Model
28
MOTOR-FAN, EVAPORATOR
MOTOR-FAN, EVAPORATOR WCI 5304523741 Contact Us For Availability
View on Model
44
COVER, LIGHT GUIDE
COVER, LIGHT GUIDE WCI 5304523785 Contact Us For Availability
View on Model
50
HARNESS, POTENTIONMETER
HARNESS, POTENTIONMETER WCI 5304523789 Contact Us For Availability
View on Model
50A
SCREW, HEX WASH HD, M4.2 X 16
SCREW, HEX WASH HD, M4.2 X 16 WCI 5304523738 Contact Us For Availability
View on Model
51
DRAIN JUMPER, ASSEMBLY, W/SEAL
DRAIN JUMPER, ASSEMBLY, W/SEAL WCI 5304530111 Contact Us For Availability
View on Model
52
BAFFLE, DIVIDER
BAFFLE, DIVIDER WCI 5304523694 Contact Us For Availability
View on Model
53
COVER, DRAIN JUMPER
COVER, DRAIN JUMPER WCI 5304525744 Contact Us For Availability
View on Model
81
SCREW, HX WASH HD, M4.2 X 12
SCREW, HX WASH HD, M4.2 X 12 WCI 5304519765 Contact Us For Availability
View on Model
NI
SCREW, HEX HD, #8-18 X 5/8
SCREW, HEX HD, #8-18 X 5/8 WCI 241500305 Contact Us For Availability
View on Model
NI
CLIP, PLASTIC, W/ADHESIVE
CLIP, PLASTIC, W/ADHESIVE WCI 30534600 Contact Us For Availability
View on Model
NI
SCREW, HEX WASH HD, M4 X 10
SCREW, HEX WASH HD, M4 X 10 WCI 5304523801 Contact Us For Availability
View on Model
