Model Electrolux FFU20F9CW1 FREEZER – Common Parts & Diagrams
01 - COVER
02 - DOOR

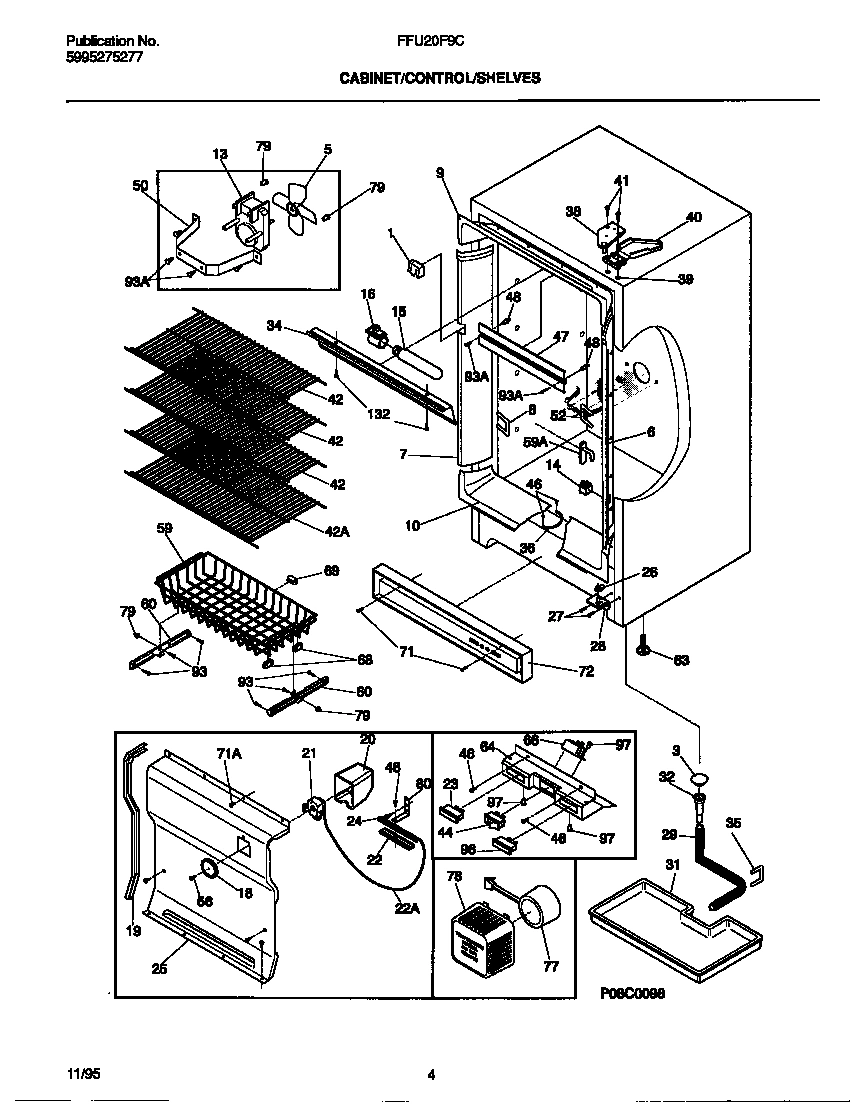

03 - CABINET/CONTROL/SHELVES

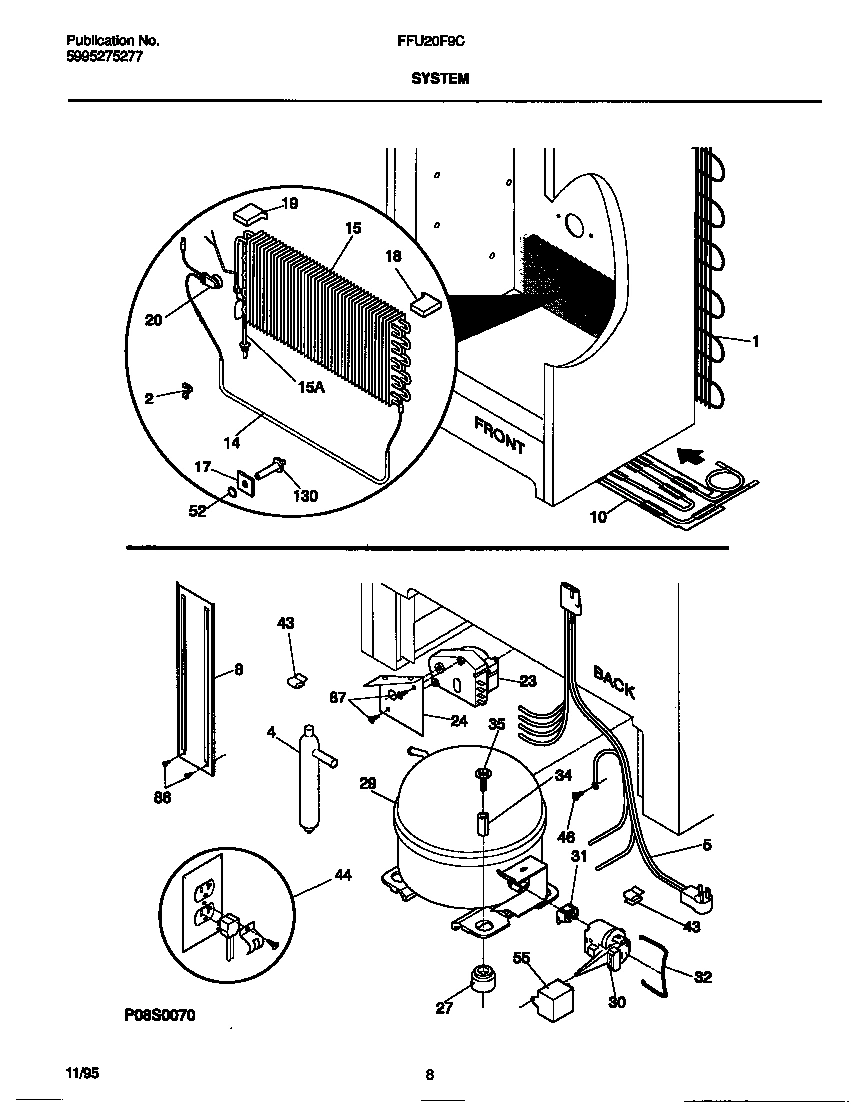

04 - SYSTEM
Common parts from model Electrolux FFU20F9CW1 FREEZER
*66880
INSULATION WCI 5303917276 Contact Us For Availability
*66881
WCI 5303207388 WCI 5303207388 Contact Us For Availability
*66882
WCI 5303212683 WCI 5303212683 Contact Us For Availability
*66883
WCI 5303207297 WCI 5303207297 Contact Us For Availability
*66884
WCI 06594680 WCI 06594680 Contact Us For Availability
*66885
WCI 5303286749 WCI 5303286749 Contact Us For Availability
*66887
CLIP, COMPRESSOR WIRE WCI 05878556 Contact Us For Availability
*66888
WCI 216007500 WCI 216007500 Contact Us For Availability
1
GASKET DOOR WCI 3206261 Contact Us For Availability
1
WCI 216013600 WCI 216013600 Contact Us For Availability
5
WCI 216392300 WCI 216392300 Contact Us For Availability
6
WCI 216107501 WCI 216107501 Contact Us For Availability
7
WCI 216107601 WCI 216107601 Contact Us For Availability
8
CLIP, U, LOCK WCI 216013700 Contact Us For Availability
8
WCI 216009000 WCI 216009000 Contact Us For Availability
9
WCI 216085900 WCI 216085900 Contact Us For Availability
10
WCI 216085800 WCI 216085800 Contact Us For Availability
10
WCI 216377600 WCI 216377600 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
15
WCI 216195900 WCI 216195900 Contact Us For Availability
16
SOCKET, LIGHT/LAMP WCI 5300136117 Contact Us For Availability
17
WCI 216087400 WCI 216087400 Contact Us For Availability
17
WCI 06599546 WCI 06599546 Contact Us For Availability
18
WCI 216008801 WCI 216008801 Contact Us For Availability
18
WCI 06599531 WCI 06599531 Contact Us For Availability
19
WCI 216204901 WCI 216204901 Contact Us For Availability
19
WCI 3017674 WCI 3017674 Contact Us For Availability
20
WCI 216254500 WCI 216254500 Contact Us For Availability
20
WCI 216230300 WCI 216230300 Contact Us For Availability
21
WCI 216303500 WCI 216303500 Contact Us For Availability
22
WCI 05878562 WCI 05878562 Contact Us For Availability
23
WCI 5308002706 WCI 5308002706 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
24
WCI 08016580 WCI 08016580 Contact Us For Availability
25
WCI 216084200 WCI 216084200 Contact Us For Availability
26
RAMP, DOOR WCI 5303210424 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
30
END CAP-WIDE, RH WCI 216334200 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 5308016387 WCI 5308016387 Contact Us For Availability
31
WCI 216100100 WCI 216100100 Contact Us For Availability
32
BREATHER-AIR DUCT, DOOR WCI 5309950074 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
34
WCI 216312206 WCI 216312206 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
35
WCI 06594637 WCI 06594637 Contact Us For Availability
36
WCI 06594651 WCI 06594651 Contact Us For Availability
37
WCI 216211200 WCI 216211200 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
39
FASTENER,DOOR STRIP WCI 08016809 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
42
SHELF, UPPER (3) WCI 216266900 Contact Us For Availability
42
WCI 216267000 WCI 216267000 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
47
WCI 5303288233 WCI 5303288233 Contact Us For Availability
48
WCI 08000456 WCI 08000456 Contact Us For Availability
50
BRACKET-MOTOR MTG FAN WCI 216394000 Contact Us For Availability
51
WIRE, DOOR ADJUSTMNT WCI 08037986 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
52
RETAINER, WIRE, BREAKER WCI 08037401 Contact Us For Availability
52
WCI 08013198 WCI 08013198 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
59
WCI 09948791 No Longer Available
59
WCI 216154400 WCI 216154400 Contact Us For Availability
63
WCI 205363701 WCI 205363701 Contact Us For Availability
64
WCI 08016369 WCI 08016369 Contact Us For Availability
66
BUZZER,ALARM WCI 08016367 Contact Us For Availability
72
WCI 216294418 WCI 216294418 Contact Us For Availability
77
WCI 5308037992 WCI 5308037992 Contact Us For Availability
78
WCI 3205349 WCI 3205349 Contact Us For Availability
80
WCI 06594601 WCI 06594601 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
93
WCI 5303302760 WCI 5303302760 Contact Us For Availability
96
LIGHT-SIGNAL,RED WCI 08016772 Contact Us For Availability
97
WCI 5303308288 WCI 5303308288 Contact Us For Availability
130
WCI 06599544 WCI 06599544 Contact Us For Availability
× ![]()
