Model Electrolux FFU17M8CW0 FREEZER – Common Parts & Diagrams
01 - COVER
02 - DOOR

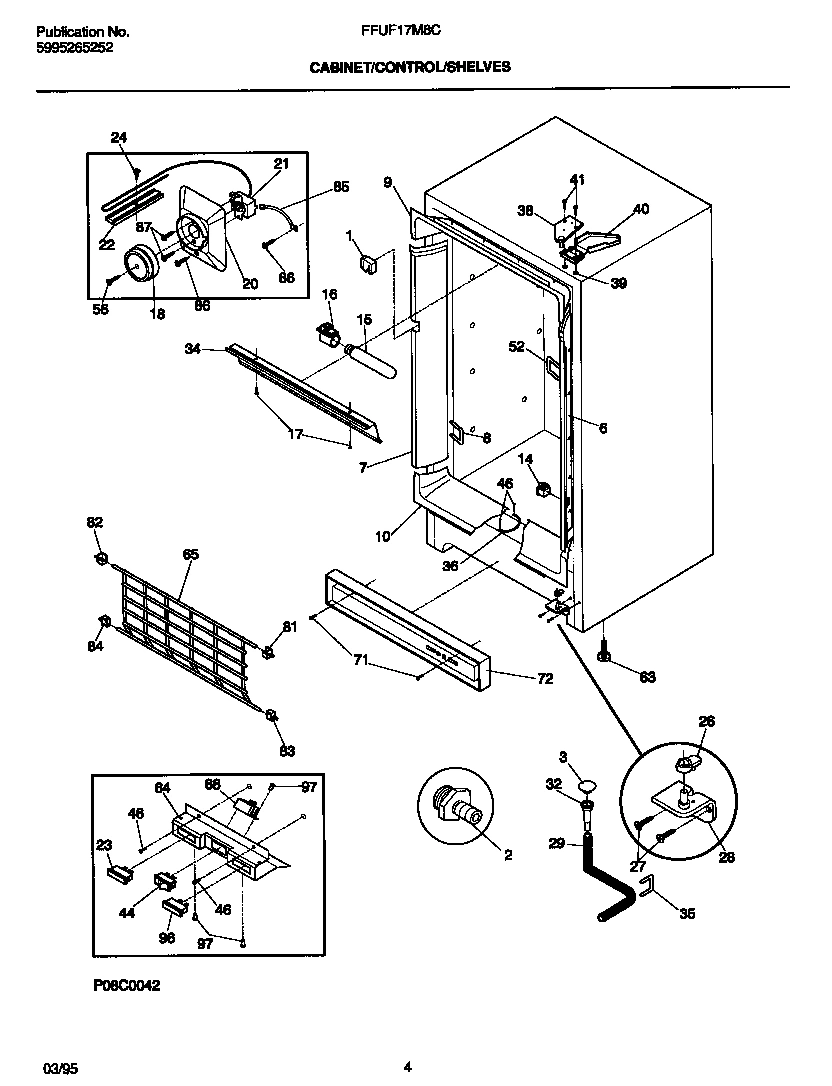

03 - CABINET/CONTROL/SHELVES

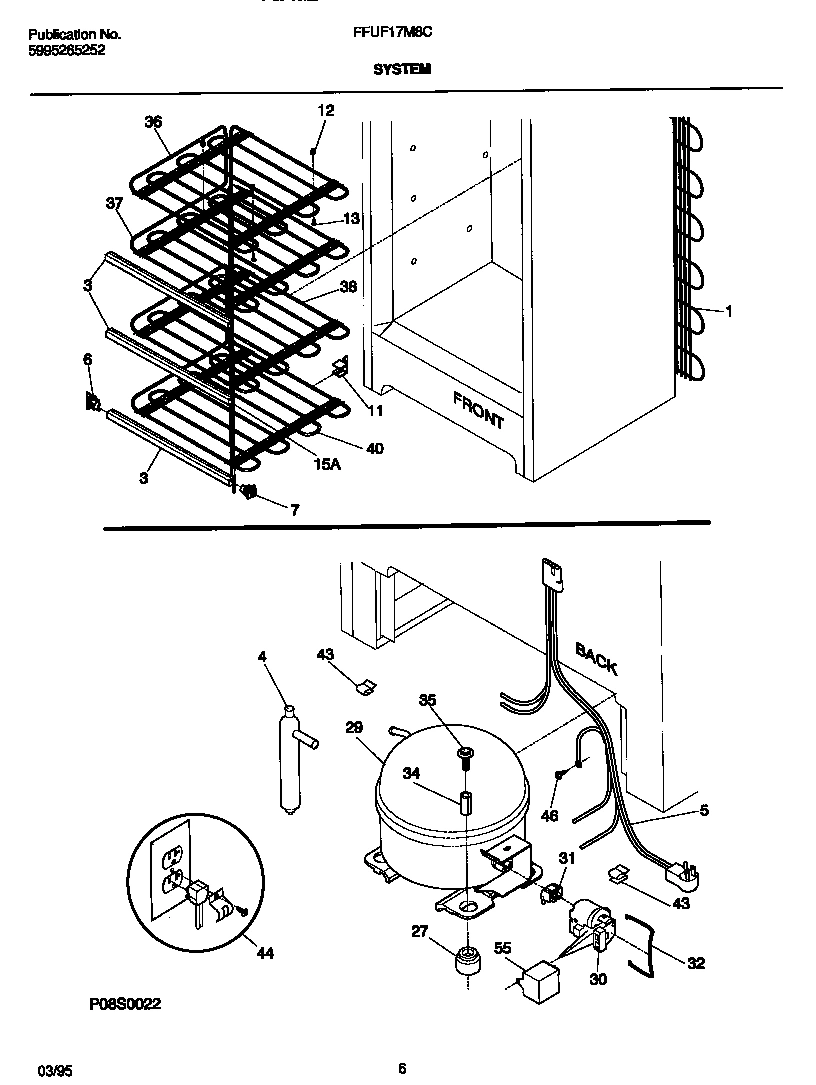

04 - SYSTEM
Common parts from model Electrolux FFU17M8CW0 FREEZER
*00720
INSULATION WCI 5303917276 Contact Us For Availability
*00721
WCI 5303207297 WCI 5303207297 Contact Us For Availability
*00722
WCI 5303286749 WCI 5303286749 Contact Us For Availability
1
WCI 3206256 WCI 3206256 Contact Us For Availability
1
WCI 216013600 WCI 216013600 Contact Us For Availability
2
ADAPTER, DRAIN WCI 216269500 Contact Us For Availability
3
PLUG-DRAIN, WHITE WCI 5306593887 Contact Us For Availability
5
WCI 216371000 WCI 216371000 Contact Us For Availability
6
WCI 216107501 WCI 216107501 Contact Us For Availability
7
WCI 216107601 WCI 216107601 Contact Us For Availability
8
CLIP, U, LOCK WCI 216013700 Contact Us For Availability
9
WCI 216085900 WCI 216085900 Contact Us For Availability
10
WCI 216085800 WCI 216085800 Contact Us For Availability
11
WCI 216225600 WCI 216225600 Contact Us For Availability
12
WCI 216225700 WCI 216225700 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
13
SCREW, HEX SEMS, 8, 18 X 1.00 AB, EVAP WCI 216138900 Contact Us For Availability
15
WCI 08010753 WCI 08010753 Contact Us For Availability
16
SOCKET, LIGHT/LAMP WCI 5300136117 Contact Us For Availability
17
WCI 216087400 WCI 216087400 Contact Us For Availability
17
SCREW, TH TYPE AB, 6-20 X 3/8, SHIELD-LIGHT WCI 5303283898 Contact Us For Availability
18
WCI 216008602 WCI 216008602 Contact Us For Availability
20
WCI 5303288184 WCI 5303288184 Contact Us For Availability
21
WCI 216260300 WCI 216260300 Contact Us For Availability
22
CLAMP, CAP TUBE, COLD CONTROL WCI 08037931 Contact Us For Availability
23
WCI 5308002706 WCI 5308002706 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
26
WCI 5308016356 WCI 5308016356 Contact Us For Availability
26
RAMP, DOOR WCI 5303210424 Contact Us For Availability
28
WCI 216371700 WCI 216371700 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
29
WCI 216340000 WCI 216340000 Contact Us For Availability
29
WCI 5303925126 WCI 5303925126 Contact Us For Availability
30
WCI 216340100 WCI 216340100 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
32
BREATHER-AIR DUCT, DOOR WCI 5309950074 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
33
AIR DUCT WCI 5303212700 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
34
WCI 216312207 WCI 216312207 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
36
WCI 06594651 WCI 06594651 Contact Us For Availability
37
WCI 216087600 WCI 216087600 Contact Us For Availability
37
WCI 216373300 WCI 216373300 Contact Us For Availability
37
WCI 216070600 WCI 216070600 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
38
WCI 216070700 WCI 216070700 Contact Us For Availability
39
FASTENER,DOOR STRIP WCI 08016809 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
51
WCI 08037981 WCI 08037981 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
52
RETAINER, WIRE, BREAKER WCI 08037401 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
63
WCI 205363701 WCI 205363701 Contact Us For Availability
64
WCI 08016369 WCI 08016369 Contact Us For Availability
65
WCI 216250300 WCI 216250300 Contact Us For Availability
66
BUZZER,ALARM WCI 08016367 Contact Us For Availability
72
WCI 216294418 WCI 216294418 Contact Us For Availability
81
WCI 06599973 WCI 06599973 Contact Us For Availability
82
WCI 06599974 WCI 06599974 Contact Us For Availability
83
WCI 06599975 WCI 06599975 Contact Us For Availability
84
WCI 06599976 WCI 06599976 Contact Us For Availability
85
WIRE-GROUND, TEMP CONTROL WCI 5300125347 Contact Us For Availability
87
SCREW, COVER CONTROL WCI 08003539 Contact Us For Availability
96
LIGHT-SIGNAL,RED WCI 08016772 Contact Us For Availability
97
WCI 5303308288 WCI 5303308288 Contact Us For Availability
× ![]()
