Model Electrolux FFU16F6AW5 FREEZER – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

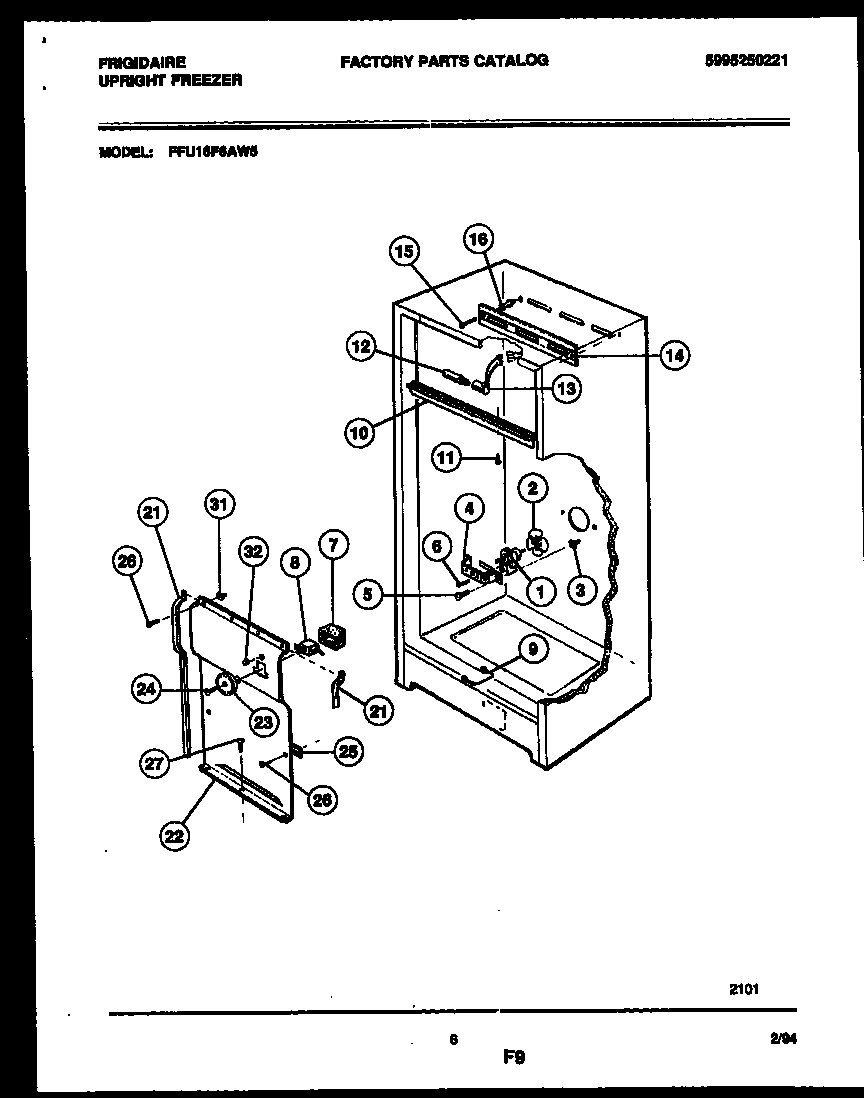

04 - INTERIOR PARTS

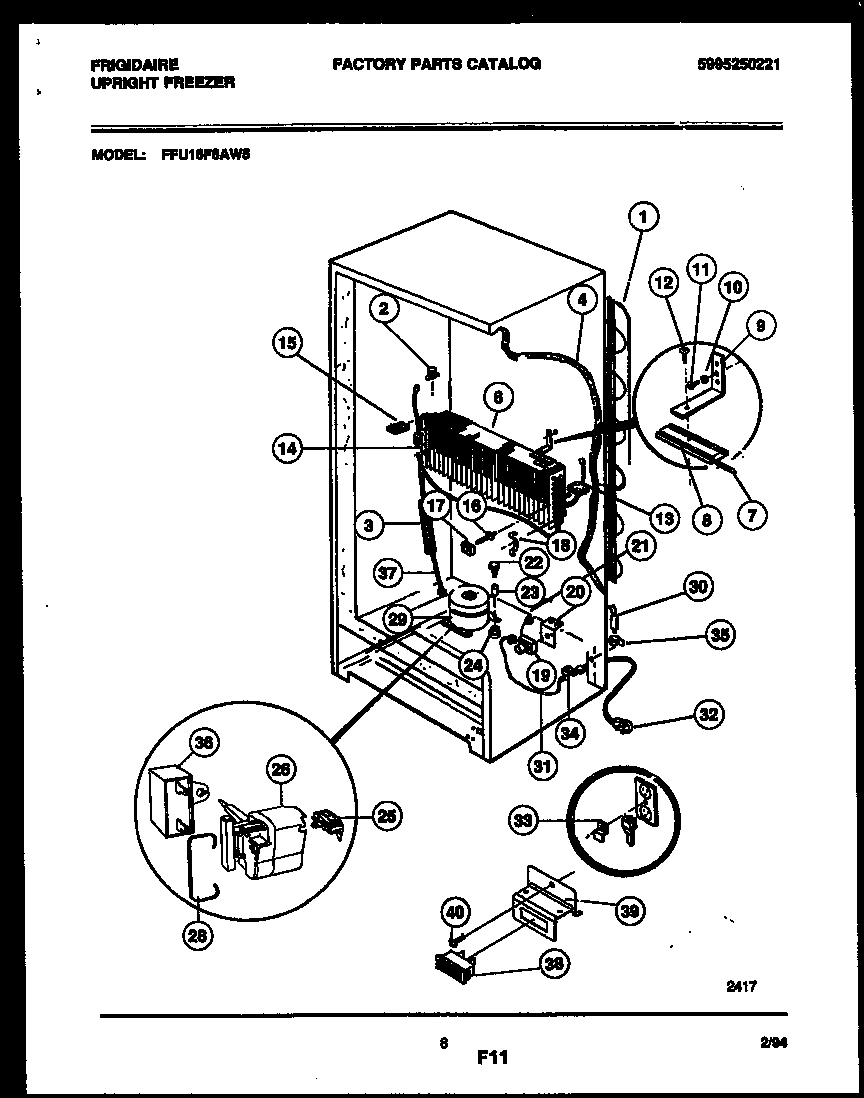

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FFU16F6AW5 FREEZER
*93087
WCI 09948791 No Longer Available
1
WCI 5303212912 WCI 5303212912 Contact Us For Availability
2
END CAP (2) WCI 216087400 Contact Us For Availability
2
SWITCH-TERMINATION WCI 216254500 Contact Us For Availability
2
HINGE, TOP WCI 5303212935 Contact Us For Availability
2
WCI 3205520 WCI 3205520 Contact Us For Availability
3
INSERT, NUT WCI 5303294372 Contact Us For Availability
3
WCI 5303208489 WCI 5303208489 Contact Us For Availability
4
INSULATION WCI 09948773 Contact Us For Availability
4
SCREW WCI 5303210386 Contact Us For Availability
4
BRACKET WCI 08013207 Contact Us For Availability
5
WCI 216085900 WCI 216085900 Contact Us For Availability
5
WCI 06594629 WCI 06594629 Contact Us For Availability
6
WCI 216195900 WCI 216195900 Contact Us For Availability
6
WCI 216108801 WCI 216108801 Contact Us For Availability
6
WCI 82473 WCI 82473 Contact Us For Availability
7
WCI 216108901 WCI 216108901 Contact Us For Availability
7
COVER, CONTROL WCI 216230300 Contact Us For Availability
8
WCI 216085800 WCI 216085800 Contact Us For Availability
8
WCI 216303500 WCI 216303500 Contact Us For Availability
8
WCI 05878562 WCI 05878562 Contact Us For Availability
9
WCI 06594680 WCI 06594680 Contact Us For Availability
9
WCI 06594651 WCI 06594651 Contact Us For Availability
9
WCI 06594601 WCI 06594601 Contact Us For Availability
10
WCI 2162294405 WCI 2162294405 Contact Us For Availability
10
WCI 216241601 WCI 216241601 Contact Us For Availability
10
WCI 5300095480 WCI 5300095480 Contact Us For Availability
11
SCREW, SHIELD WCI 5303283898 Contact Us For Availability
12
LEG LEVELER-ADJ (4) WCI 205363701 Contact Us For Availability
12
SCREW, CLAMP WCI 5300052943 Contact Us For Availability
13
SOCKET, BULB WCI 5300136117 Contact Us For Availability
13
WCI 216247400 WCI 216247400 Contact Us For Availability
13
AIR SEAL, RH WCI 06599531 Contact Us For Availability
14
WCI 5303210424 WCI 5303210424 Contact Us For Availability
14
BAFFLE WCI 5303288233 Contact Us For Availability
15
DOOR STOP WCI 08016354 Contact Us For Availability
15
AIR SEAL, LH WCI 3017674 Contact Us For Availability
16
WCI 216266700 WCI 216266700 Contact Us For Availability
16
SPACER, BAFFLE WCI 08000456 Contact Us For Availability
16
WCI 06599544 WCI 06599544 Contact Us For Availability
17
SPACER, SUPPORT WCI 08013198 Contact Us For Availability
20
WCI 216266800 WCI 216266800 Contact Us For Availability
20
BRACKET, TIMER WCI 08016580 Contact Us For Availability
21
GASKET, COVER WCI 216204900 Contact Us For Availability
21
VALVE BREATHER (2) WCI 5309950074 Contact Us For Availability
22
WCI 216084300 WCI 216084300 Contact Us For Availability
22
SCREW, COMPRESSOR WCI 08002679 Contact Us For Availability
23
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
23
KNOB WCI 216008801 Contact Us For Availability
24
WCI 09950853 WCI 09950853 Contact Us For Availability
25
WCI 5303276514 WCI 5303276514 Contact Us For Availability
25
WCI 05879859 WCI 05879859 Contact Us For Availability
25
WCI 06599547 WCI 06599547 Contact Us For Availability
26
RELAY WCI 216008900 Contact Us For Availability
28
CLAMP WCI 215012000 Contact Us For Availability
29
COMPRESSOR WCI 5303916411 Contact Us For Availability
30
SCREW, PANEL (24) WCI 216022800 Contact Us For Availability
31
GASKET WCI 5308016356 Contact Us For Availability
31
INSERT NUT WCI 09948978 Contact Us For Availability
31
HARNESS WCI 216267700 Contact Us For Availability
32
CATCH, LOCK WCI 216013600 Contact Us For Availability
32
PLUG, INDICATOR CONTROL WCI 5303208663 Contact Us For Availability
32
WCI 5300086065 WCI 5300086065 Contact Us For Availability
33
BEARING, TOP WCI 5303297490 Contact Us For Availability
33
CLIP, LOCK CATCH WCI 216013700 Contact Us For Availability
33
RETAINER-POWER CORD (NOT ORIGINAL EQUIPMENT. WCI 08016777 Contact Us For Availability
34
INSERT, TOP WCI 216208900 Contact Us For Availability
35
INSERT, BOTTOM WCI 216209001 Contact Us For Availability
35
WCI 09950831 WCI 09950831 Contact Us For Availability
36
TRIM, TOP WCI 216211100 Contact Us For Availability
37
TRIM, BOTTOM WCI 216087600 Contact Us For Availability
37
HEAT EXCHANGER WCI 5303272332 Contact Us For Availability
38
CLIP, SCREW WCI 3202683 Contact Us For Availability
38
WCI 5303288196 WCI 5303288196 Contact Us For Availability
38
WCI 06594648 WCI 06594648 Contact Us For Availability
39
WCI 216252001 WCI 216252001 Contact Us For Availability
40
WCI 08037851 WCI 08037851 Contact Us For Availability
× ![]()
