Model Electrolux FFU14M8CW2 FREEZER – Common Parts & Diagrams

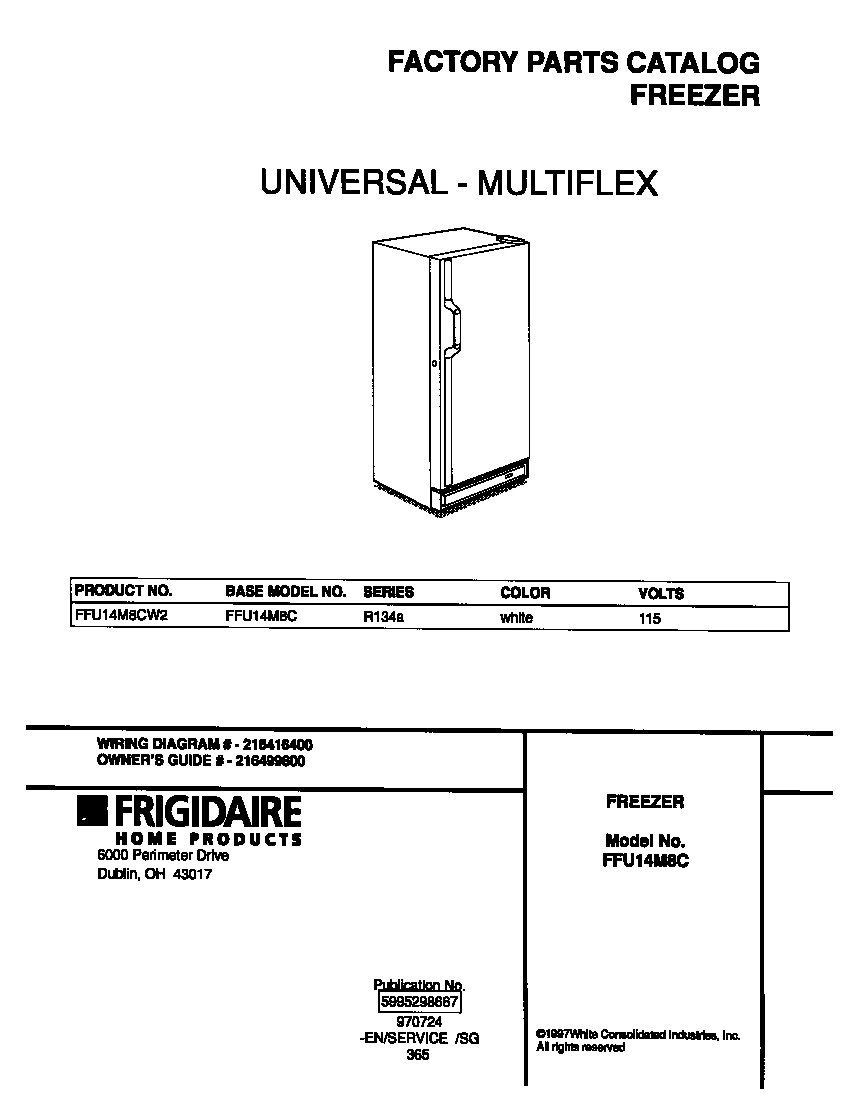

01 - COVER

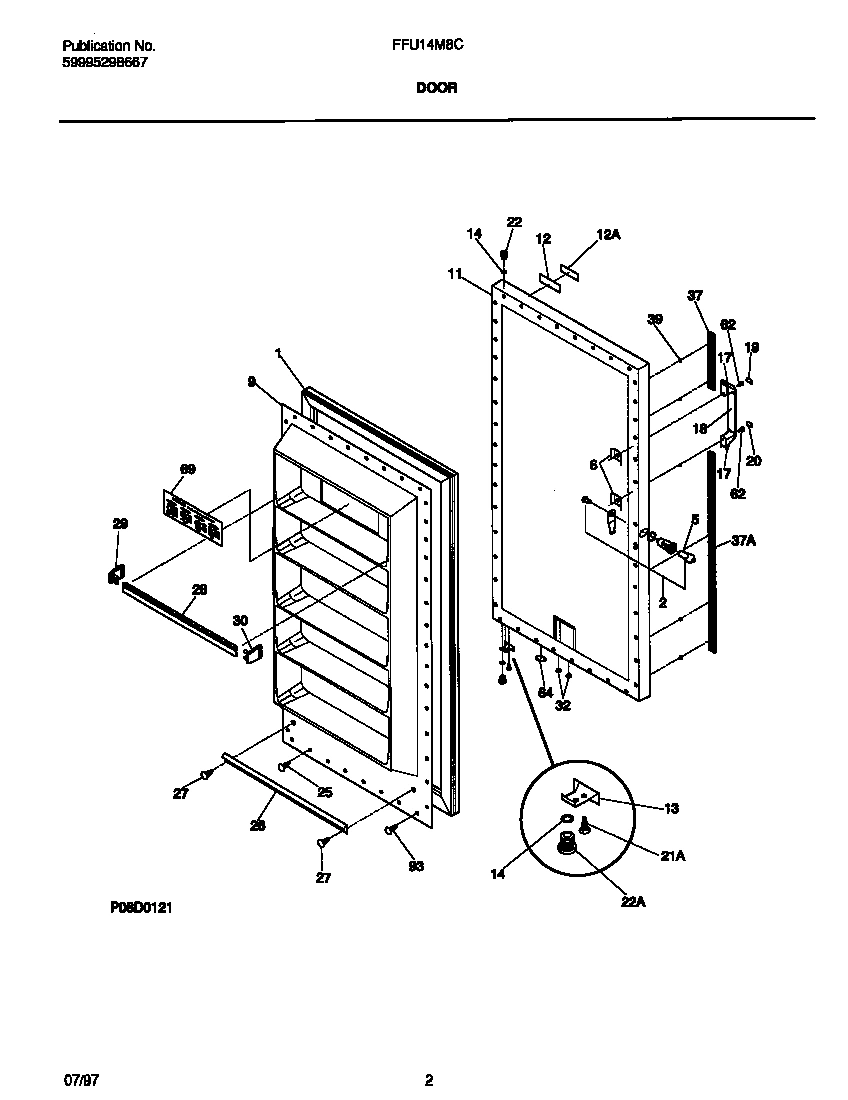

02 - DOOR

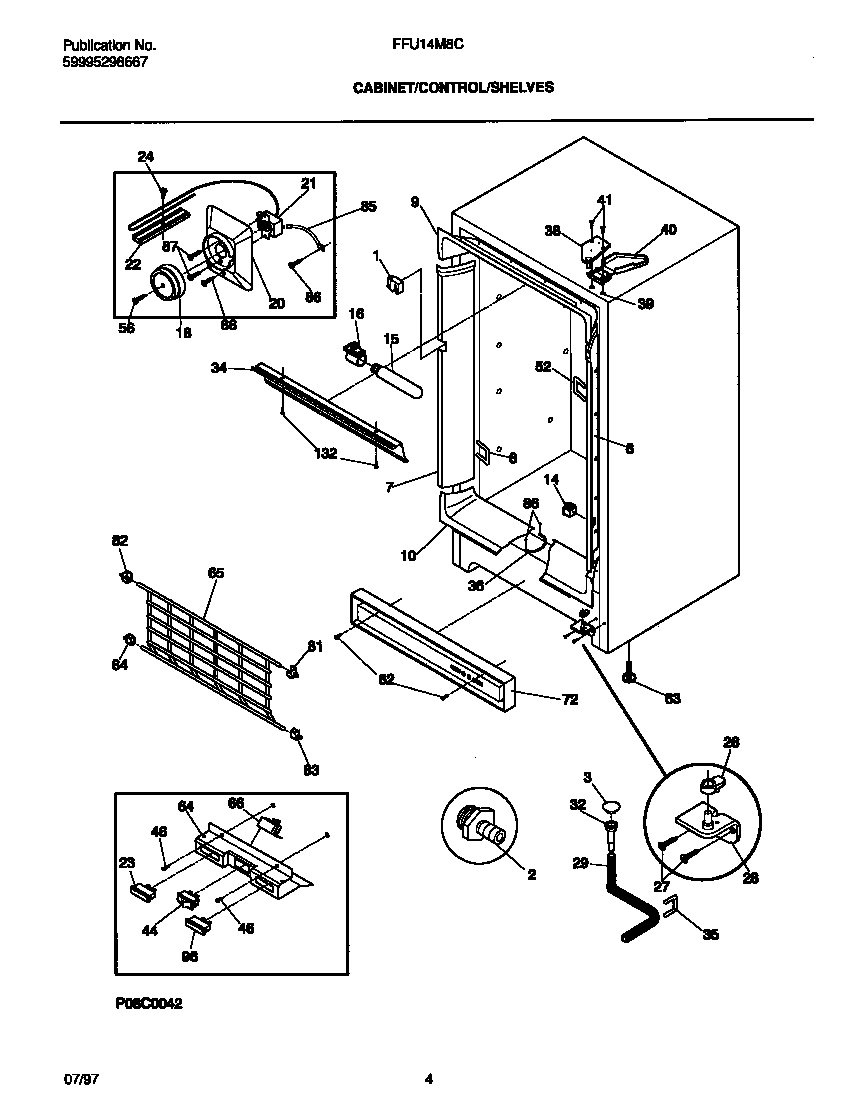

03 - CABINET/CONTROL/SHELVES

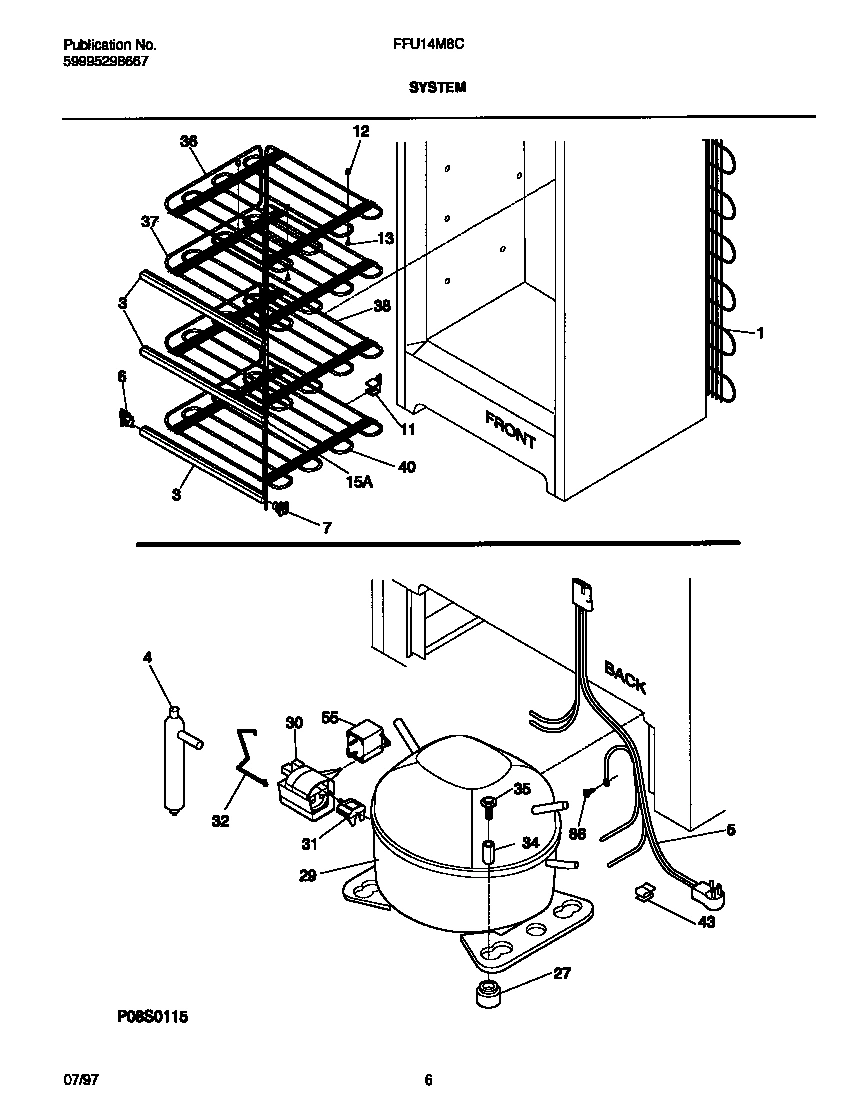

04 - SYSTEM

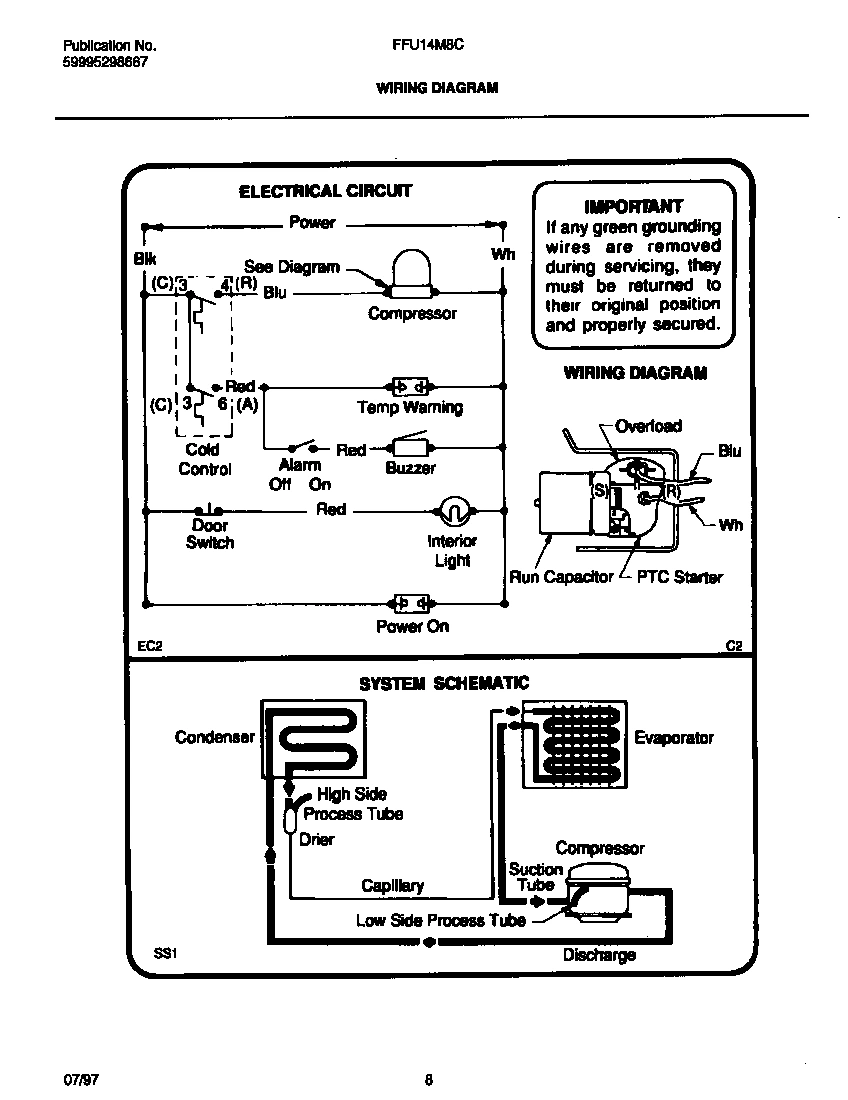

05 - WIRING DIAGRAM
Common parts from model Electrolux FFU14M8CW2 FREEZER
*89521
WCI 09948773 WCI 09948773 Contact Us For Availability
*89524
INSULATION WCI 5303917276 Contact Us For Availability
1
GASKET-DOOR WCI 3206246 Contact Us For Availability
1
WCI 216013600 WCI 216013600 Contact Us For Availability
2
ADAPTER, DRAIN WCI 216269500 Contact Us For Availability
5
WCI 216371000 WCI 216371000 Contact Us For Availability
6
WCI 216108601 WCI 216108601 Contact Us For Availability
7
WCI 216108701 WCI 216108701 Contact Us For Availability
8
CLIP, U, LOCK WCI 216013700 Contact Us For Availability
9
WCI 216073300 WCI 216073300 Contact Us For Availability
10
WCI 216073200 WCI 216073200 Contact Us For Availability
11
WCI 216474600 WCI 216474600 Contact Us For Availability
12
WCI 216225700 WCI 216225700 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
13
WCI 216138900 WCI 216138900 Contact Us For Availability
15
WCI 216404900 WCI 216404900 Contact Us For Availability
16
SOCKET, LIGHT/LAMP WCI 5300136117 Contact Us For Availability
17
WCI 216087400 WCI 216087400 Contact Us For Availability
18
WCI 216008602 WCI 216008602 Contact Us For Availability
20
WCI 5303288184 WCI 5303288184 Contact Us For Availability
21
WCI 216405100 WCI 216405100 Contact Us For Availability
22
CLAMP, CAP TUBE, COLD CONTROL WCI 08037931 Contact Us For Availability
23
WCI 5308002706 WCI 5308002706 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
26
RAMP, DOOR WCI 5303210424 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
30
END CAP-WIDE, RH WCI 216334200 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 216100114 WCI 216100114 Contact Us For Availability
32
VALVE-BREATHER, DOOR WCI 5309950074 Contact Us For Availability
32
WCI 216147800 WCI 216147800 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
34
WCI 216312303 WCI 216312303 Contact Us For Availability
35
SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
36
WCI 06594651 WCI 06594651 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
40
WCI 216070400 WCI 216070400 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
52
RETAINER, WIRE, BREAKER WCI 08037401 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
64
PLUG-BUTTON, BASE DOOR WCI 216403700 Contact Us For Availability
64
BRACKET WCI 08016369 Contact Us For Availability
65
WCI 216250200 WCI 216250200 Contact Us For Availability
66
BUZZER,ALARM WCI 08016367 Contact Us For Availability
72
WCI 216294312 WCI 216294312 Contact Us For Availability
81
WCI 06599973 WCI 06599973 Contact Us For Availability
82
WCI 06599974 WCI 06599974 Contact Us For Availability
83
WCI 06599975 WCI 06599975 Contact Us For Availability
84
WCI 06599976 WCI 06599976 Contact Us For Availability
85
WIRE-GROUND, TEMP CONTROL WCI 5300125347 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
96
LIGHT-SIGNAL,RED WCI 08016772 Contact Us For Availability
132
WCI 5303283898 WCI 5303283898 Contact Us For Availability
× ![]()
