Model Electrolux FFU09M5GW0 FREEZER – Common Parts & Diagrams
01 - COVER
02 - DOOR

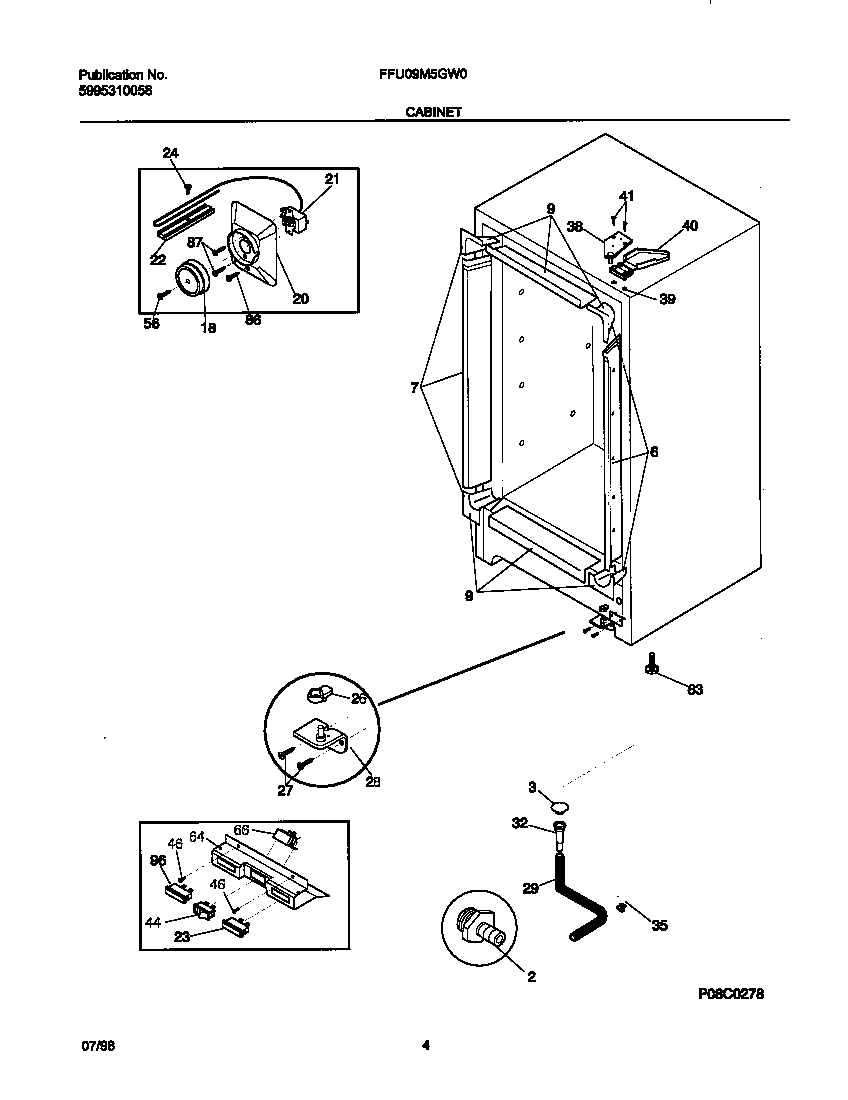

03 - CABINET

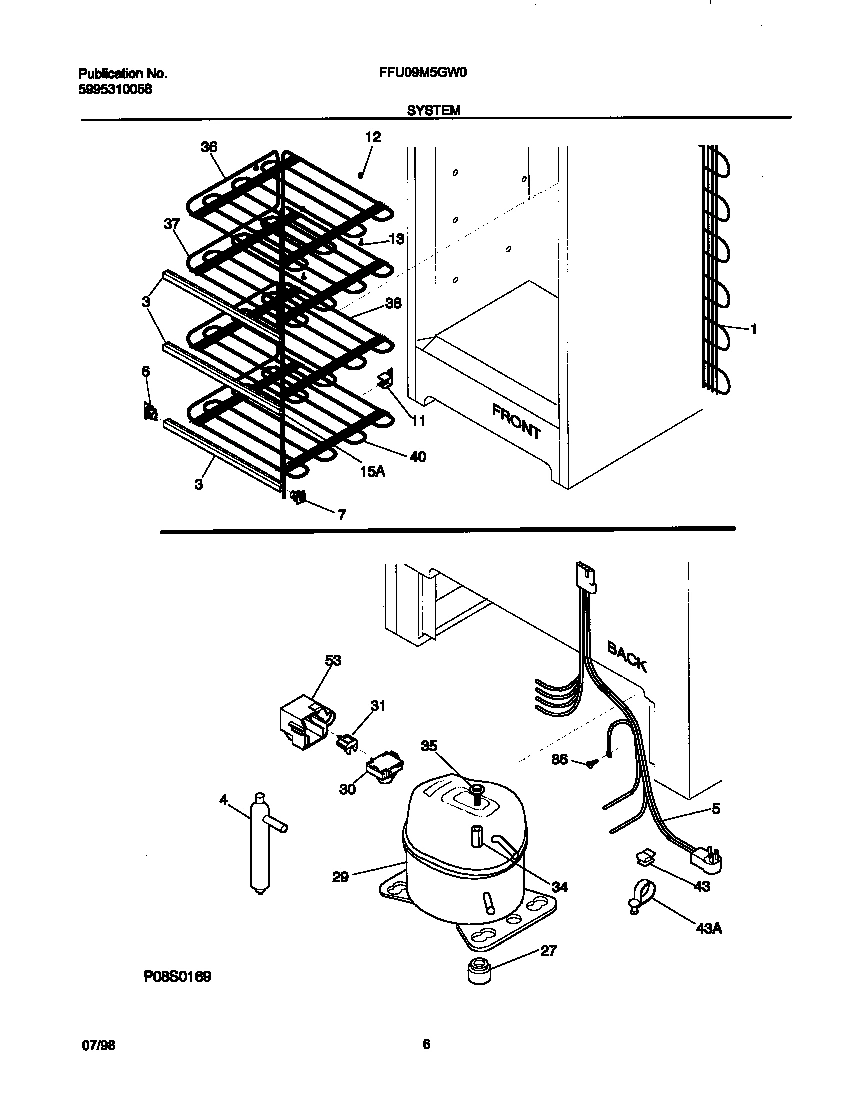

04 - SYSTEM
Common parts from model Electrolux FFU09M5GW0 FREEZER
*11200
WCI 09948773 WCI 09948773 Contact Us For Availability
*11201
WCI 216539100 WCI 216539100 Contact Us For Availability
1
WCI 5303304537 WCI 5303304537 Contact Us For Availability
2
ADAPTER, DRAIN WCI 216269500 Contact Us For Availability
3
PLUG-DRAIN,EXTERIOR WCI 216502600 Contact Us For Availability
3
WCI 216612100 WCI 216612100 Contact Us For Availability
5
WCI 216589700 WCI 216589700 Contact Us For Availability
6
WCI 216509508 WCI 216509508 Contact Us For Availability
7
WCI 216604000 WCI 216604000 Contact Us For Availability
9
WCI 216603500 WCI 216603500 Contact Us For Availability
11
WCI 216474600 WCI 216474600 Contact Us For Availability
12
WCI 216225700 WCI 216225700 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
13
WCI 216138900 WCI 216138900 Contact Us For Availability
15
WCI 216404900 WCI 216404900 Contact Us For Availability
18
WCI 216591802 WCI 216591802 Contact Us For Availability
20
WCI 5303288184 WCI 5303288184 Contact Us For Availability
21
WCI 216620200 WCI 216620200 Contact Us For Availability
22
CLAMP, CAP TUBE, COLD CONTROL WCI 08037931 Contact Us For Availability
23
WCI 5308002706 WCI 5308002706 Contact Us For Availability
24
SCREW, CLAMP, TRUSS HD CR, CONTROL WCI 5300052943 Contact Us For Availability
26
RAMP, CLOSER DOOR WCI 216503300 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
29
COMPRESSOR,W/O ELECTRICALS WCI 216557100 Contact Us For Availability
30
WCI 216596900 WCI 216596900 Contact Us For Availability
31
WCI 216100118 WCI 216100118 Contact Us For Availability
32
WCI 5309950074 WCI 5309950074 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
36
WCI 216069300 WCI 216069300 Contact Us For Availability
37
WCI 216069400 WCI 216069400 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
38
WCI 216069500 WCI 216069500 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
COVER, HINGE WCI 5303212912 Contact Us For Availability
40
WCI 216069600 WCI 216069600 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
43
WCI 09950610 WCI 09950610 Contact Us For Availability
44
WCI 5303017178 WCI 5303017178 Contact Us For Availability
46
SCREW, PH TYPE AB, 8, 32 X 1/2, WIRING HARNES WCI 08037851 Contact Us For Availability
53
COVER, COMPRESSOR WCI 216347800 Contact Us For Availability
56
WCI 09950853 WCI 09950853 Contact Us For Availability
64
PLUG-BUTTON, BASE DOOR WCI 216403700 Contact Us For Availability
64
BRACKET WCI 08016369 Contact Us For Availability
66
BUZZER,ALARM WCI 08016367 Contact Us For Availability
69
WCI 216485600 WCI 216485600 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
96
LIGHT-SIGNAL,RED WCI 08016772 Contact Us For Availability
× ![]()
