Model Electrolux FFTR20D2QS1 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET

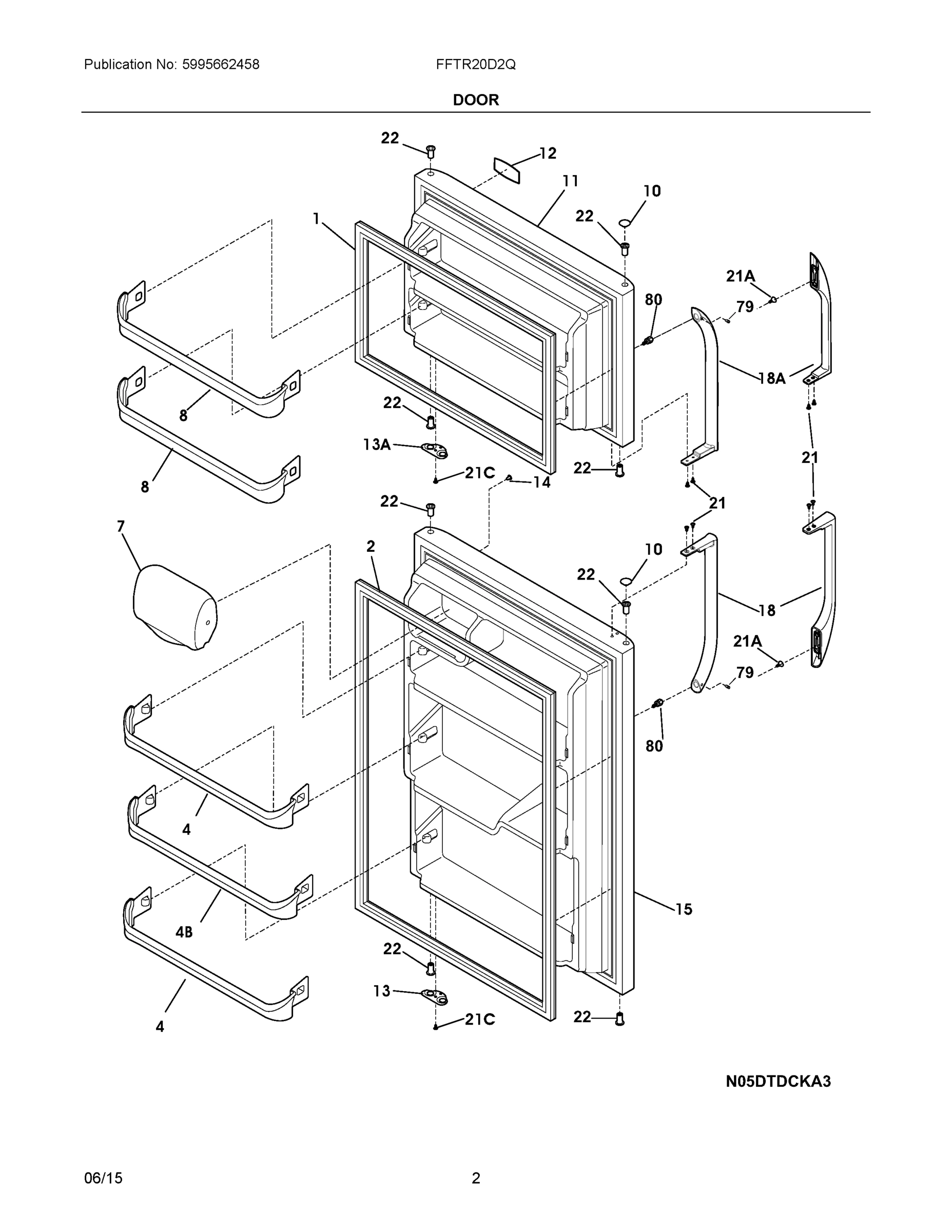

02 - DOOR
03 - CABINET
04 - SHELVES
05 - SYSTEM
06 - WIRING SCHEMATIC
07 - WIRING DIAGRAM
Common parts from model Electrolux FFTR20D2QS1 REFRIGERATOR
1
WCI 242193211 WCI 242193211 Contact Us For Availability
1
WCI 241785405 WCI 241785405 Contact Us For Availability
1A
DEFLECTOR, AIR WCI 242213901 Contact Us For Availability
2
WCI 242193214 WCI 242193214 Contact Us For Availability
2
WCI 242229401 WCI 242229401 Contact Us For Availability
4
WCI 240534901 WCI 240534901 Contact Us For Availability
4B
RACK-DOOR, 4B WCI 240534701 Contact Us For Availability
5
WCI 242219302 WCI 242219302 Contact Us For Availability
6
WCI 5304497413 WCI 5304497413 Contact Us For Availability
7
WCI 242287501 WCI 242287501 Contact Us For Availability
8
WCI 240534801 WCI 240534801 Contact Us For Availability
8
WCI 242237301 WCI 242237301 Contact Us For Availability
9
WCI 242229301 WCI 242229301 Contact Us For Availability
10
WCI 240381307 WCI 240381307 Contact Us For Availability
11
WCI 242178015 WCI 242178015 Contact Us For Availability
12
NAMEPLATE, FRIGIDAIRE WCI 242016301 Contact Us For Availability
12
WCI 242249201 WCI 242249201 Contact Us For Availability
13
WCI 242240602 WCI 242240602 Contact Us For Availability
13A
DOOR STOP, BLACK, FRZR WCI 240312415 Contact Us For Availability
14
WCI 241554901 WCI 241554901 Contact Us For Availability
14
WCI 242044021 WCI 242044021 Contact Us For Availability
14
WCI 240494007 WCI 240494007 Contact Us For Availability
15
WCI 5303918274 WCI 5303918274 Contact Us For Availability
15
WCI 242178112 WCI 242178112 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
WCI 241801301 WCI 241801301 Contact Us For Availability
18
KNOB, COLD CONTROL WCI 242217001 Contact Us For Availability
19
SHIELD, HEAT, EVAP BLOCK WCI 242320401 Contact Us For Availability
21C
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
22
WCI 215774918 WCI 215774918 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
24
WCI 241812301 WCI 241812301 Contact Us For Availability
25
COVER-CRISPER PAN WCI 240364789 Contact Us For Availability
25
WCI 242037701 WCI 242037701 Contact Us For Availability
25C
CONTROL-HUMIDITY, LH WCI 241613502 Contact Us For Availability
26
PAN, CRISPER, (2) WCI 240343803 Contact Us For Availability
26
WCI 807694801 WCI 807694801 Contact Us For Availability
30
WCI 241941005 WCI 241941005 Contact Us For Availability
34
WASHER, HINGE, NYLON, (2) WCI 240311303 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
35
BRACKET-CTR HINGE, BLACK WCI 240313803 Contact Us For Availability
35A
SPACER-HINGE, CENTER, BLACK WCI 240336803 Contact Us For Availability
37
WCI 242161202 WCI 242161202 Contact Us For Availability
38
WCI 240313703 WCI 240313703 Contact Us For Availability
40
COVER-UPPER HINGE, BLACK WCI 240354404 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
47
INSERT-PAN COVER, GLASS WCI 240350609 Contact Us For Availability
50
WCI 5303918671 WCI 5303918671 Contact Us For Availability
55
WCI 297286803 WCI 297286803 Contact Us For Availability
56
WCI 240516502 WCI 240516502 Contact Us For Availability
59
WCI 241946106 WCI 241946106 Contact Us For Availability
59
SCREW-#10-32 X 3/4, BLACK WCI 240442707 Contact Us For Availability
60
WCI 242018301 WCI 242018301 Contact Us For Availability
72
GRILLE/KICKPLATE, BLACK WCI 241839407 Contact Us For Availability
79
SCREW-SET, 10-32 X .500 IN WCI 218755402 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
81
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
82
WCI 240335202 WCI 240335202 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
85
TUBE-CONNECTOR, SUCTION WCI 242014601 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
NI
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
NI
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL WCI 240396801 Contact Us For Availability
NIA
WCI 240568606 WCI 240568606 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 WCI 241500303 Contact Us For Availability
NIA
WCI 241705801 WCI 241705801 Contact Us For Availability
NIA
WCI 218515401 WCI 218515401 Contact Us For Availability
NIA
PLUG, ROUND, FOAM, ICE MAKER, WATER INLET WCI 241586701 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
× ![]()
