Model Electrolux FFTR2021TW4 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams

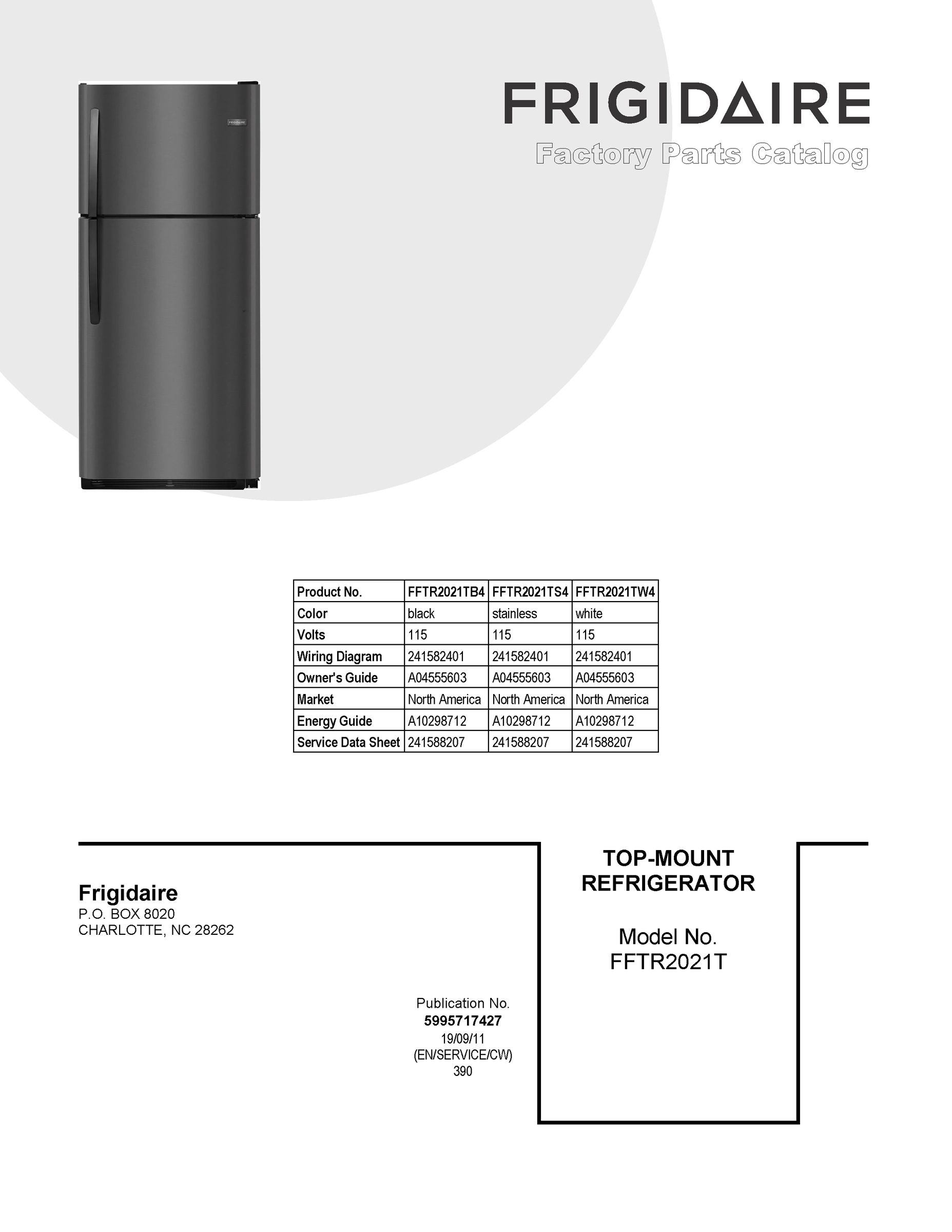

01 - COVER SHEET
02 - DOOR
03 - CABINET
04 - SHELVES
05 - SYSTEM
06 - WIRING SCHEMATIC
07 - WIRING DIAGRAM
Common parts from model Electrolux FFTR2021TW4 REFRIGERATOR, TOP MOUNT
1
CONDENSER, DYNAMIC WCI 241785405 Contact Us For Availability
1
COVER ASSEMBLY, FAN, W/DAMPER-KNOB WCI 242294707 Contact Us For Availability
1A
DEFLECTOR, AIR WCI 242213901 Contact Us For Availability
2
GASKET-REFR DOOR, WHITE, MAGNETIC WCI 242193213 Contact Us For Availability
2
KNOB, SLIDING, DAMPER WCI 242229401 Contact Us For Availability
4
RACK-DOOR WCI 240534901 Contact Us For Availability
4B
RACK-DOOR, 4B WCI 240534701 Contact Us For Availability
5
FAN BLADE, EVAPORATOR WCI 242219302 Contact Us For Availability
6
RING, LOCKING, (2) WCI 5304497413 Contact Us For Availability
7
GROMMET, EVAPORATOR FAN, REAR WCI 242287501 Contact Us For Availability
8
RACK-DOOR WCI 240534801 Contact Us For Availability
8
GROMMET, EVAPORATOR FAN, FRONT WCI 242237301 Contact Us For Availability
9
SHROUD BRACKET, EVAPORATOR FAN WCI 242229301 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE, (2) WCI 240381301 Contact Us For Availability
10
COVER, EVAPORATOR COIL, 21' WCI 242239407 Contact Us For Availability
11
DOOR-FRZR, WHITE, COMPLETE ASSY WCI 241798401 Contact Us For Availability
12
DIFFUSER-AIR, TOP WCI 240545901 Contact Us For Availability
12
BADGE, FRIGIDAIRE, WHITE WCI 5304511144 Contact Us For Availability
12
COVER, CONNECTION, ICE MAKER WCI 242249201 Contact Us For Availability
13
WCI 5304521244 WCI 5304521244 Contact Us For Availability
13
DIFFUSER, AIR, BOTTOM WCI 240362601 Contact Us For Availability
13
DOOR STOP, WHITE, REF WCI 240312421 Contact Us For Availability
13A
DOOR STOP, WHITE, FRZR WCI 240312414 Contact Us For Availability
14
SWITCH-LIGHT/LAMP WCI 241554901 Contact Us For Availability
14
HEATER-DEFROST WCI 242044021 Contact Us For Availability
14
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
15
EVAPORATOR KIT WCI 5303918274 Contact Us For Availability
15
DOOR-REFR, WHITE, COMPLETE ASSY WCI 241798501 Contact Us For Availability
16
SOCKET-LIGHT WCI 241559801 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
BOX-CONTROL, FRONT WCI 240368105 Contact Us For Availability
17
TROUGH-DRAIN WCI 241801301 Contact Us For Availability
18
KNOB, TEMP CONTROL WCI 240360801 Contact Us For Availability
19
SHIELD, HEAT, EVAP BLOCK WCI 242320401 Contact Us For Availability
21
CONTROL-TEMPERATURE WCI 241537103 Contact Us For Availability
21
THERMOSTAT KIT, DEFROST, W/CONNECTOR WCI 5303918634 Contact Us For Availability
21A
SCREW, #10-16 X 1/2 WCI 240521303 Contact Us For Availability
21C
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
22
BEARING-HINGE, NATURAL, (8) WCI 5304507146 Contact Us For Availability
22
PLUG, BUTTON, WHITE, UPR HINGE HOLES WCI 215774901 Contact Us For Availability
22A
TUBE, SENSOR SLEEVE, 31 INCH, PLASTIC, WHITE WCI 240468202 Contact Us For Availability
23
TIMER-DEFROST WCI 241705102 Contact Us For Availability
24
FRAME-SHELF, SLIDING, FULL WIDTH WCI 240372407 Contact Us For Availability
24
WASHER-COMPR MTG WCI 241812301 Contact Us For Availability
24A
FRAME-SHELF, SLIDING, FULL WIDTH, W/HANGER TA WCI 240372408 Contact Us For Availability
25
COVER-CRISPER PAN WCI 240364790 Contact Us For Availability
25
CLIP-COMPRESSOR MTG WCI 242037701 Contact Us For Availability
25B
CONTROL-HUMIDITY, RH WCI 241613501 Contact Us For Availability
25C
CONTROL-HUMIDITY, LH WCI 241613502 Contact Us For Availability
26
PAN, CRISPER, (2) WCI 240343803 Contact Us For Availability
26
PAN-DEFROST WCI 807694801 Contact Us For Availability
29
TRIM-SHELF, FRONT WCI 240357704 Contact Us For Availability
30
CONTROLLER, COMPRESSOR WCI 297259505 Contact Us For Availability
32
CLIP, CONTROLLER WCI 216954300 Contact Us For Availability
34
WASHER, HINGE, NYLON, (2) WCI 240311303 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
35
BRACKET-CTR HINGE, WHITE WCI 240313802 Contact Us For Availability
35A
SPACER-HINGE, CENTER, WHITE WCI 240336802 Contact Us For Availability
37
TRIM-CABINET CORNER, WHITE WCI 5304519616 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 240313703 Contact Us For Availability
40
GLASS-SHELF, 23.78 X 18.02, FULL SHELF WCI 240350621 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 240354401 Contact Us For Availability
41
TRIM-SHELF, REAR WCI 240561502 Contact Us For Availability
41
GROMMET, SHELF MTG WCI 5304500407 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
TRACK, MEAT PAN HANGER, LH WCI 240530601 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
42A
TRACK, MEAT PAN HANGER, RH WCI 240530701 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
47
INSERT-PAN COVER, GLASS WCI 240350609 Contact Us For Availability
55
CAPACITOR-RUN WCI 297286803 Contact Us For Availability
56
PIN-LOWER HINGE WCI 240516502 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
59
SHROUD-COND FAN WCI 241946106 Contact Us For Availability
59
SCREW-#10-32 X 3/4, BLACK WCI 240442707 Contact Us For Availability
60
MOTOR-CONDENSER FAN WCI 242018301 Contact Us For Availability
72
GRILLE/KICKPLATE, WHITE WCI 241839405 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR WCI 240335202 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
89
COVER-ACCESS, W/LABEL WCI 241733911 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
123
SCREW, HANGER/RLR MTG, 8-10 X 7/16 WCI 215005101 Contact Us For Availability
NI
CLIP, GRILLE/TUBE WCI 218515401 Contact Us For Availability
NIA
WCI 240568606 WCI 240568606 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
WCI 241500303 WCI 241500303 Contact Us For Availability
NIA
SPACER-SHELF WCI 241705801 Contact Us For Availability
NIA
WCI 241586701 WCI 241586701 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
× ![]()
