Model Electrolux FFTR1835VS4 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams

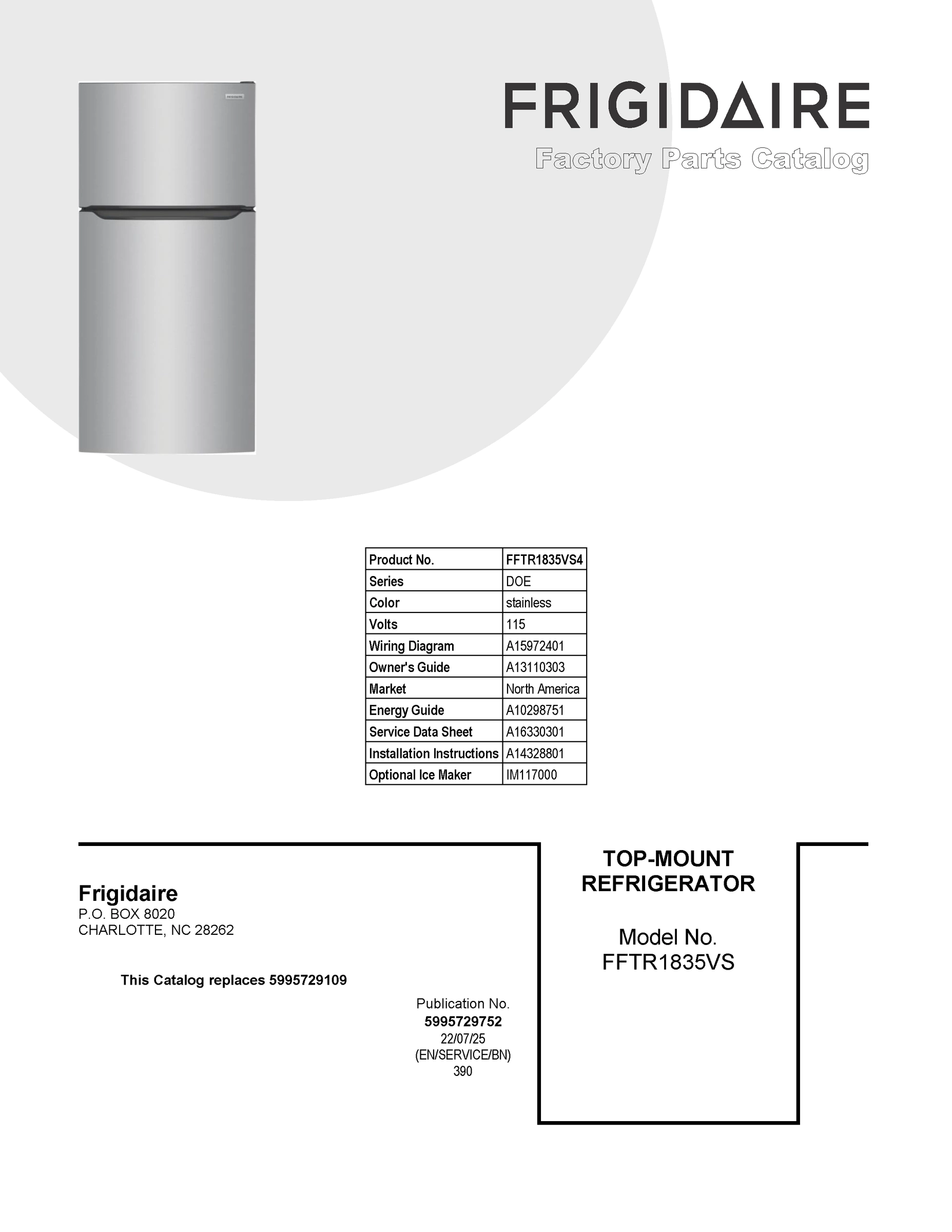

01 - COVER SHEET

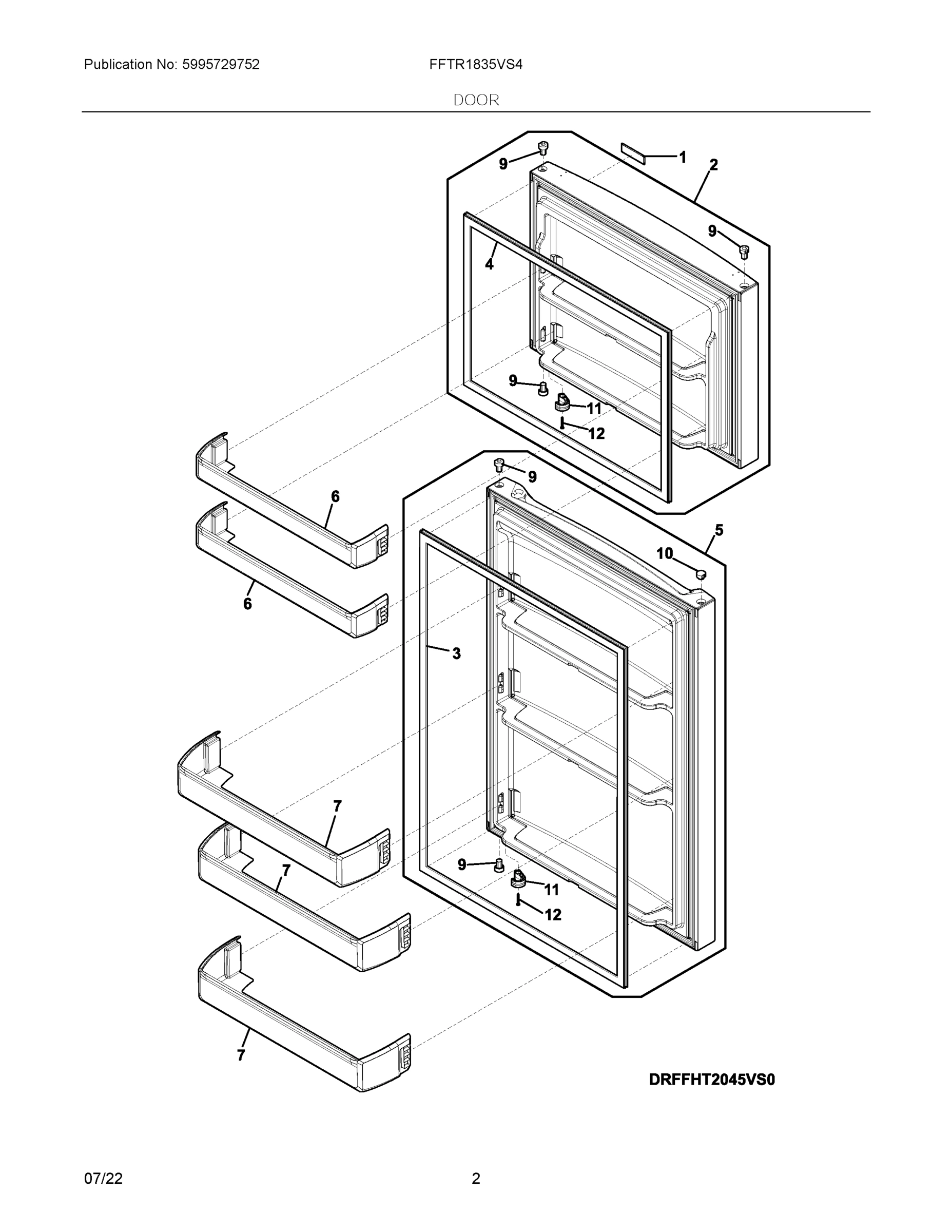

02 - DOOR
03 - CABINET
04 - SHELVES
05 - SYSTEM
06 - WIRING SCHEMATIC
07 - WIRING DIAGRAM
Common parts from model Electrolux FFTR1835VS4 REFRIGERATOR, TOP MOUNT
1
BADGE, FRIGIDAIRE, CHROME WCI 5304511146 Contact Us For Availability
1
SHELF ASSEMBLY, FREEZER, GLASS, W/TRIM WCI 5304519660 Contact Us For Availability
2
HINGE ASSEMBLY, BOTTOM, LH WCI 5304519776 Contact Us For Availability
4
CARRIAGE, DELI DRAWER WCI 5304522177 Contact Us For Availability
6
HARNESS, WIRING, MACHINE COMPT. WCI 5304519649 Contact Us For Availability
6
BIN, DOOR, WHITE, FREEZER WCI 5304519702 Contact Us For Availability
7
BIN, DOOR, 6", WHITE, REFRIGERATOR WCI 5304522123 Contact Us For Availability
7
PAN ASSEMBLY, CRISPER, W/ROLLERS WCI 5304522242 Contact Us For Availability
8
SCREW, HEX WSH HD QUAD, M5 X 16 WCI 5304522279 Contact Us For Availability
8
BIN, DOOR, 4", WHITE, REFRIGERATOR WCI 5304519703 Contact Us For Availability
9
BEARING, HINGE, GRAY WCI 5304522194 Contact Us For Availability
9
COVER, HINGE, GRAY, LOWER, NON-HINGED WCI 5304522221 Contact Us For Availability
10
COVER, HINGE SIDE, GRAY, LOWER WCI 5304522246 Contact Us For Availability
11
HOOK, DOOR CLOSER, GRAY WCI 5304522238 Contact Us For Availability
11
SHROUD, EVAPORATOR FAN WCI 5304519752 Contact Us For Availability
12
SCREW, 8-18 X 1.25 WCI 241953905 Contact Us For Availability
13
GROMMET, EVAPORATOR FAN, REAR WCI 242287501 Contact Us For Availability
14
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
15
FAN BLADE, EVAPORATOR WCI 242219302 Contact Us For Availability
15
BULB, LIGHT, E17/12 LED WCI 5304522314 Contact Us For Availability
17
CONTROLLER, COMPRESSOR PTC WCI 5304522267 Contact Us For Availability
17
HOUSING, CONTROL BOX WCI 5304522329 Contact Us For Availability
18
COLD CONTROL, ASSEMBLY, W/CAPILLARY WCI 5304522330 Contact Us For Availability
18
COVER, I/M CONNECTOR WCI 5304519662 Contact Us For Availability
19
COVER ASSEMBLY, EVAPORATOR, W/FRZ SLIDE WCI 5304519654 Contact Us For Availability
24
CAPACITOR, RUN, 12UF WCI 5304528894 Contact Us For Availability
25
TUBE, DRAIN EXTENSION WCI 5304519743 Contact Us For Availability
28
DIFFUSER, CONTROL BOX, BOTTOM WCI 5304522317 Contact Us For Availability
29
DIFFUSER, CONTROL BOX, TOP WCI 5304522336 Contact Us For Availability
30
FAN ASSEMBLY, CONDENSER, W/SHROUD-FOAM WCI 5304519734 Contact Us For Availability
31
KNOB, CONTROL WCI 5304522337 Contact Us For Availability
32
SWITCH, DOOR/LIGHT, WHITE WCI 5304520495 Contact Us For Availability
35
HINGE, DOOR, UPPER WCI 5304519646 Contact Us For Availability
39
TROUGH, EVAP DRAIN WCI 5304519679 Contact Us For Availability
40
EVAPORATOR, ASSEMBLY WCI 5304522324 Contact Us For Availability
40
HINGE, DOOR, GRAY, CENTER WCI 5304522100 Contact Us For Availability
41
HEATER, EVAP DEFROST, W/THERMOSTAT WCI 5304522340 Contact Us For Availability
41
PIN, CENTER HINGE, DOOR WCI 5304519642 Contact Us For Availability
45
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
89
ACCESS COVER, REAR WCI 5304522114 Contact Us For Availability
× ![]()
