Model Electrolux FFTR1832TS0 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams

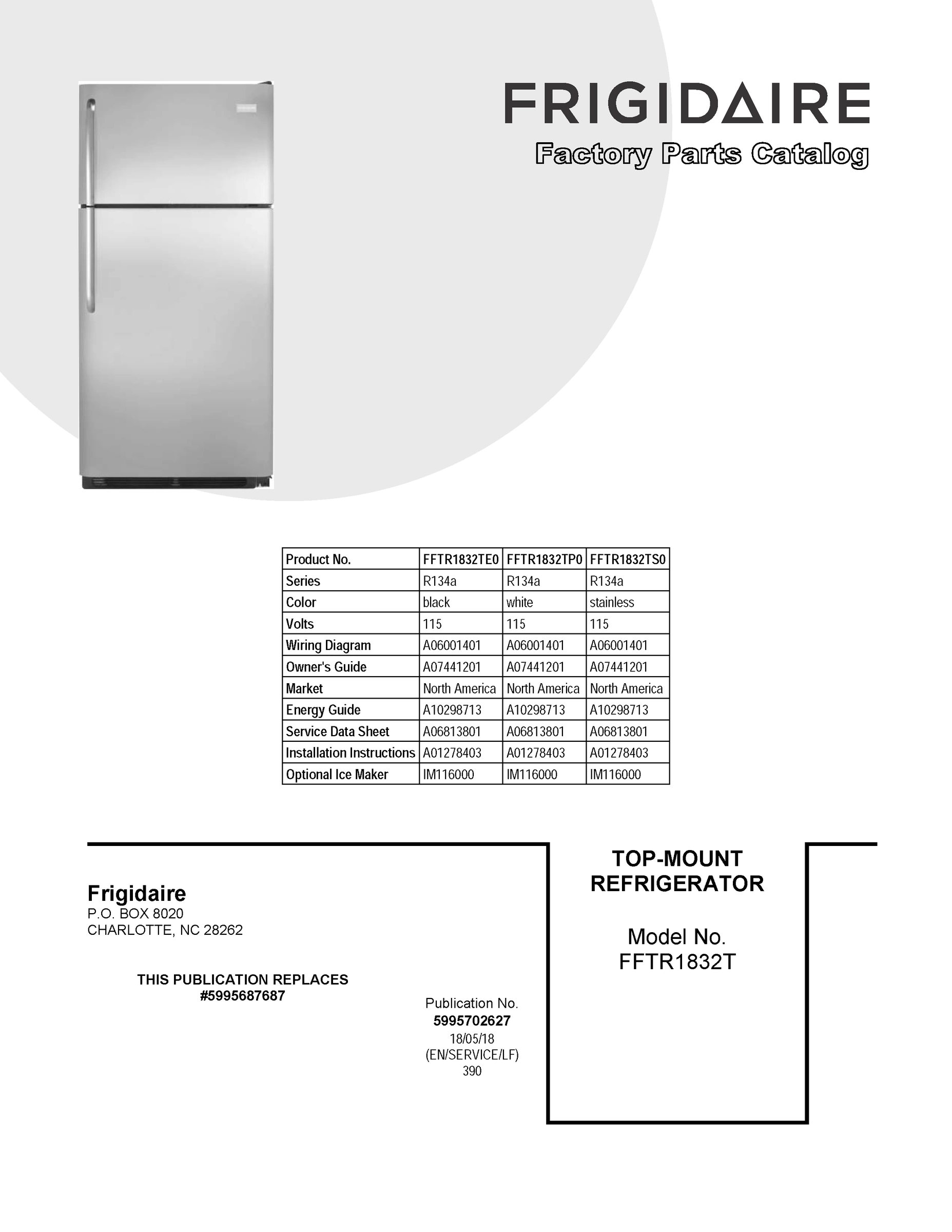

01 - COVER SHEET

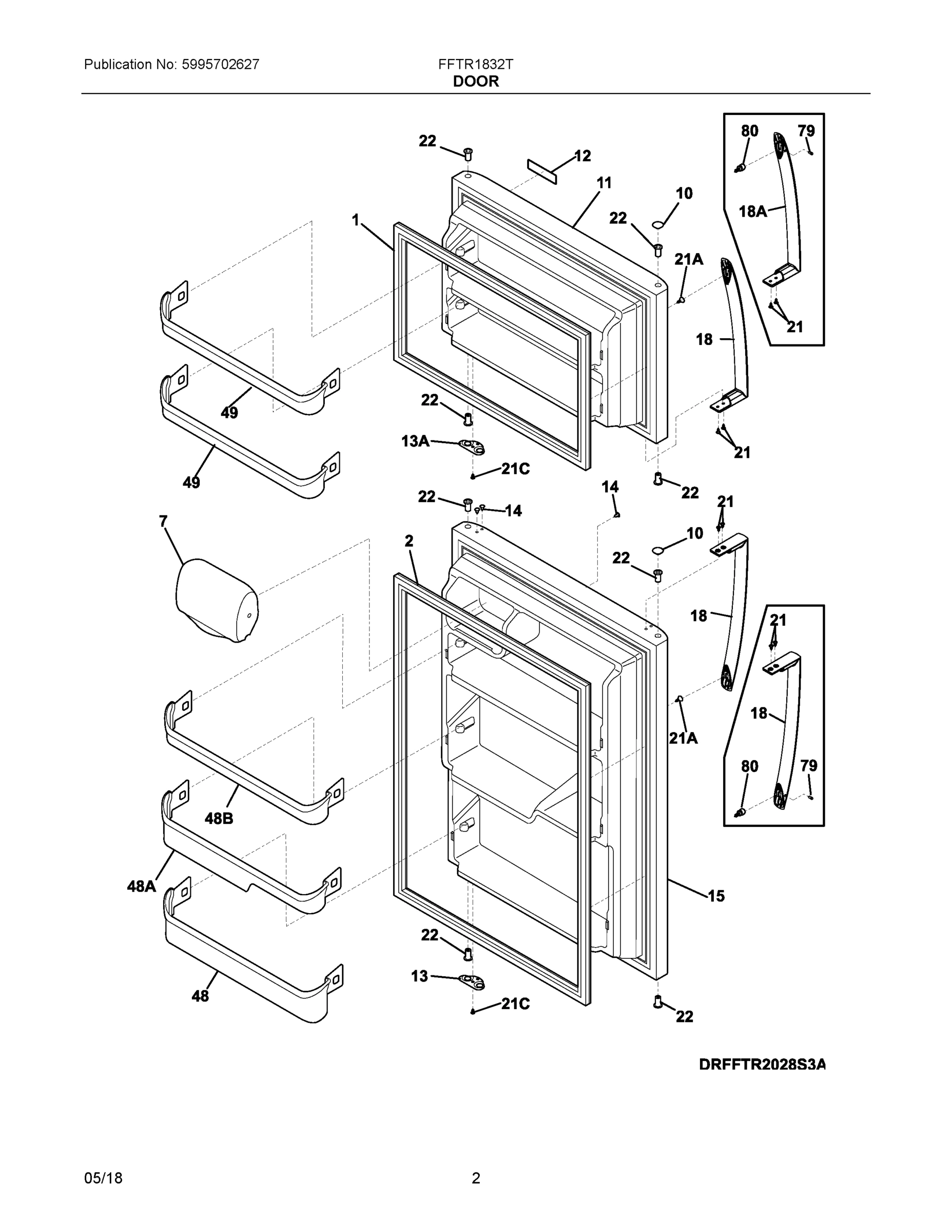

02 - DOOR
03 - CABINET
04 - SHELVES
05 - SYSTEM
06 - WIRING SCHEMATIC
07 - WIRING DIAGRAM
Common parts from model Electrolux FFTR1832TS0 REFRIGERATOR, TOP MOUNT
1
GASKET-FRZR DOOR, BLACK, MAGNETIC WCI 242193209 Contact Us For Availability
1
CONDENSER, HIGH EFFICIENCY WCI 5304502821 Contact Us For Availability
1
COVER, FREEZER EVAPORATOR FAN WCI 5304511140 Contact Us For Availability
2
GASKET-REFR DOOR, BLACK, MAGNETIC WCI 242193212 Contact Us For Availability
2
KNOB, SLIDING, DAMPER WCI 242229401 Contact Us For Availability
4
DAMPER, COVER, EVAPORATOR FAN WCI 5304511141 Contact Us For Availability
5
FAN BLADE, EVAPORATOR WCI 242219302 Contact Us For Availability
6
RING, LOCKING, (2) WCI 5304497413 Contact Us For Availability
6
HARNESS, WIRING, MACHINE COMPT. WCI 241872714 Contact Us For Availability
7
DOOR-DAIRY WCI 240337712 Contact Us For Availability
7
GROMMET, EVAPORATOR FAN, REAR WCI 242287501 Contact Us For Availability
8
GROMMET, EVAPORATOR FAN, FRONT WCI 242237301 Contact Us For Availability
9
SHROUD BRACKET, EVAPORATOR FAN WCI 242229301 Contact Us For Availability
10
PLUG-BUTTON, GRAY, HINGE BRG HOLE, (2) WCI 240381307 Contact Us For Availability
10
COVER-COIL 18'(M/CTRLS) WCI 242239307 Contact Us For Availability
11
SHELF, FREEZER WCI 240358008 Contact Us For Availability
11
DOOR-FRZR, STAINLESS, COMPLETE ASSY WCI 240410206 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
12
NAMEPLATE, CHROME WCI 5304511146 Contact Us For Availability
12
COVER, CONNECTION, ICE MAKER WCI 242249201 Contact Us For Availability
12
DIFFUSER-AIR WCI 5304511163 Contact Us For Availability
12A
PLATE DIFFUSER WCI 5304511164 Contact Us For Availability
13
MOTOR-BLOWER WCI 242219204 Contact Us For Availability
13
DOOR STOP, BLACK, REF WCI 240312422 Contact Us For Availability
13
GASKET SEAL WCI 242240603 Contact Us For Availability
13A
DOOR STOP, BLACK, FRZR WCI 240312415 Contact Us For Availability
14
SWITCH-LIGHT/LAMP WCI 241554901 Contact Us For Availability
14
PLUG-BUTTON, GRAY WCI 240494007 Contact Us For Availability
15
EVAPORATOR KIT WCI 5303918274 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
16
SOCKET-LIGHT WCI 240590403 Contact Us For Availability
17
TROUGH-DRAIN WCI 241801301 Contact Us For Availability
18
KNOB, TEMP CONTROL WCI 240360801 Contact Us For Availability
18
HANDLE, DOOR, STAINLESS, REF RHS, W/SET SCREW WCI 5304511368 Contact Us For Availability
18A
HANDLE, DOOR, STAINLESS, FRZ RHS, W/SET SCREW WCI 5304511369 Contact Us For Availability
19
SHIELD, HEAT, EVAP BLOCK WCI 242320401 Contact Us For Availability
20
HEAT SHIELD WCI 5304511166 Contact Us For Availability
21
THERMOSTAT KIT, DEFROST, W/CONNECTOR WCI 5303918634 Contact Us For Availability
21
CONTROL COLD FOSHAN WCI 241537107 Contact Us For Availability
21C
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
22
BEARING-HINGE, BLACK, (8) WCI 5304507147 Contact Us For Availability
22
PLUG-BUTTON, BLACK, UPR HINGE HOLES WCI 215774918 Contact Us For Availability
22
BASE-COMPRESSOR, W/ROLLERS WCI 241665606 Contact Us For Availability
22A
SLEEVE-PLASTIC WCI 240468203 Contact Us For Availability
23
TIMER-DEFROST WCI 241705102 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
24
WASHER-COMPR MTG WCI 241812301 Contact Us For Availability
24A
SHELF-"SPILL-SAFE", SLIDING, W/PAN HANGER WCI 240358926 Contact Us For Availability
25
COVER-CRISPER PAN WCI 240364787 Contact Us For Availability
25
CLIP-COMPRESSOR MTG WCI 242037701 Contact Us For Availability
25B
CONTROL-HUMIDITY, RH WCI 241613501 Contact Us For Availability
25C
CONTROL-HUMIDITY, LH WCI 241613502 Contact Us For Availability
26
PAN-DEFROST WCI 241920605 Contact Us For Availability
29
COMPRESSOR, W/O ELECTRICALS WCI 5303918659 Contact Us For Availability
30
CONTROLLER, COMPRESSOR WCI 297259528 Contact Us For Availability
31
PAN-MEAT, W/O GRAPHICS, CLEAR WCI 240530811 Contact Us For Availability
32
CLIP, CONTROLLER WCI 5304497418 Contact Us For Availability
34
WASHER, HINGE, NYLON, (2) WCI 240311303 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
35
BRACKET-CTR HINGE, BLACK WCI 240313803 Contact Us For Availability
35A
SPACER-HINGE, CENTER, BLACK WCI 240336803 Contact Us For Availability
37
TRIM-CABINET CORNER, BLACK, (2) WCI 242161202 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 240313703 Contact Us For Availability
40
COVER-UPPER HINGE, BLACK WCI 240354404 Contact Us For Availability
41
GROMMET, SHELF MTG WCI 5304500407 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
43
ROLLER ASSY, FRONT LH, (2) WCI 241889002 Contact Us For Availability
47
INSERT-PAN COVER, 23.82" X 15.50", GLASS WCI 240350608 Contact Us For Availability
48
BIN-DOOR WCI 240338101 Contact Us For Availability
48A
BIN-DOOR WCI 240337901 Contact Us For Availability
48B
BIN-DOOR WCI 240338001 Contact Us For Availability
49
BIN-DOOR, PSEUDO, FRZR WCI 240495805 Contact Us For Availability
55
CAPACITOR-RUN WCI 297286803 Contact Us For Availability
56
PIN-LOWER HINGE WCI 240516502 Contact Us For Availability
56
CLIP-GRILLE WCI 218515401 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
59
SHROUD, CONDENSER FAN WCI 242050604 Contact Us For Availability
59
SCREW-#10-32 X 3/4, BLACK WCI 240442707 Contact Us For Availability
61
BLADE-CONDENSER FAN WCI 241639502 Contact Us For Availability
72
GRILLE/KICKPLATE, BLACK WCI 241839407 Contact Us For Availability
74
LIGHT SHIELD WCI 5304511168 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
81
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR WCI 240335202 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
84
TUBE-DRAIN, RUBBER, LOWER WCI 240500801 Contact Us For Availability
85
TUBE-CONNECTOR, SUCTION WCI 241856910 Contact Us For Availability
89
COVER-ACCESS, W/LABEL WCI 241733911 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE WCI 5303918263 Contact Us For Availability
NI
HOT TUBE REPAIR KIT, SERVICE WCI 5303918222 Contact Us For Availability
NI
PLUG-BUTTON, WHI WCI 240494001 Contact Us For Availability
NI
SCREW, HEX WSHR HD, 8-15A X 0.500 WCI 218843801 Contact Us For Availability
NIA
WCI 241889001 WCI 241889001 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
SPACER-SHELF WCI 241705801 Contact Us For Availability
NIA
WCI 241586701 WCI 241586701 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
× ![]()
