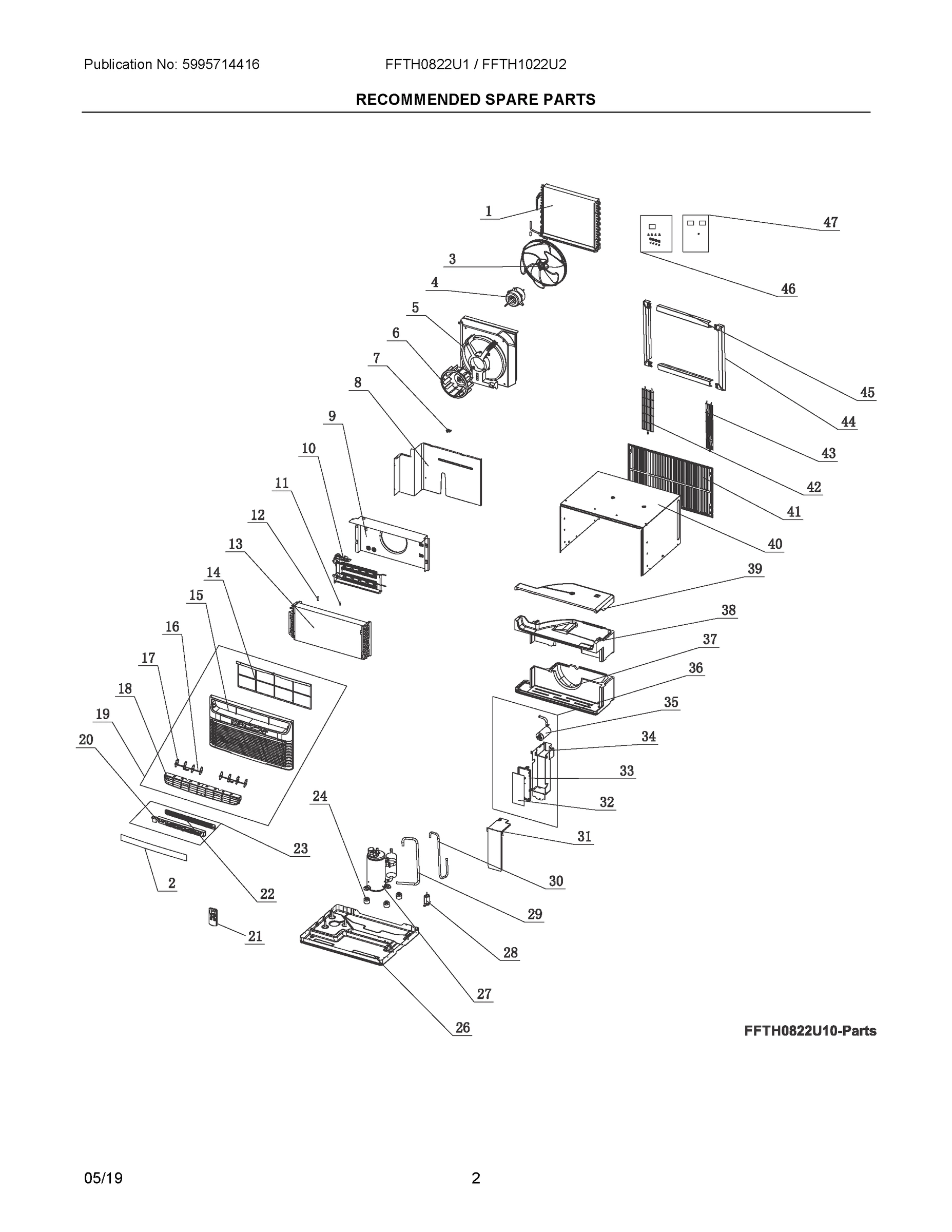

Model Electrolux FFTH1022U20 HEATING/COOLING, AC, TTW3 W/HEAT SERIES – Common Parts & Diagrams

2
OVERLAY, CONTROL
OVERLAY, CONTROL WCI 5304515990 Contact Us For Availability
View on Model
4
MOTOR, FAN
MOTOR, FAN WCI 5304516557 Contact Us For Availability
View on Model
5
SHROUD, CONDENSER FAN
SHROUD, CONDENSER FAN WCI 5304516525 Contact Us For Availability
View on Model
6
WHEEL, BLOWER
WHEEL, BLOWER WCI 5304516526 Contact Us For Availability
View on Model
7
CLAMP, PLASTIC, (2)
CLAMP, PLASTIC, (2) WCI 5304510607 Contact Us For Availability
View on Model
8
BRACKET, CLAPBOARD
BRACKET, CLAPBOARD WCI 5304516527 Contact Us For Availability
View on Model
9
SHIELD, ELECTRIC HEATER
SHIELD, ELECTRIC HEATER WCI 5304516528 Contact Us For Availability
View on Model
10
HEATER, ELECTRIC
HEATER, ELECTRIC WCI 5304467128 Contact Us For Availability
View on Model
11
CLIP, TEMP SENSOR
CLIP, TEMP SENSOR WCI 5304516529 Contact Us For Availability
View on Model
12
SLEEVE, TEMP SENSOR
SLEEVE, TEMP SENSOR WCI 5304502229 Contact Us For Availability
View on Model
13
EVAPORATOR, ASSEMBLY
EVAPORATOR, ASSEMBLY WCI 5304516530 Contact Us For Availability
View on Model
16
LEVER, AIR LOUVER
LEVER, AIR LOUVER WCI 5304516533 Contact Us For Availability
View on Model
24
GASKET, COMPRESSOR
GASKET, COMPRESSOR WCI 5304516558 Contact Us For Availability
View on Model
26
BASE ASSEMBLY, CHASSIS
BASE ASSEMBLY, CHASSIS WCI 5304516560 Contact Us For Availability
View on Model
27
COMPRESSOR, W/OVERLOAD
COMPRESSOR, W/OVERLOAD WCI 5304516561 Contact Us For Availability
View on Model
28
VALVE, DRAIN
VALVE, DRAIN WCI 5304500783 Contact Us For Availability
View on Model
29
TUBE, SUCTION
TUBE, SUCTION WCI 5304516562 Contact Us For Availability
View on Model
30
TUBE, DISCHARGE
TUBE, DISCHARGE WCI 5304516563 Contact Us For Availability
View on Model
31
COVER, ELECTRICAL BOX
COVER, ELECTRICAL BOX WCI 5304516545 Contact Us For Availability
View on Model
32
BOARD ASSEMBLY, MAIN
BOARD ASSEMBLY, MAIN WCI 5304516564 Contact Us For Availability
View on Model
33
BRACKET, BOARD MTG
BRACKET, BOARD MTG WCI 5304516547 Contact Us For Availability
View on Model
34
BOX, ELECTRICAL
BOX, ELECTRICAL WCI 5304516548 Contact Us For Availability
View on Model
36
BOX ASSEMBLY, ELECTRICAL, W/BOARD-CAPACTR
BOX ASSEMBLY, ELECTRICAL, W/BOARD-CAPACTR WCI 5304516566 Contact Us For Availability
View on Model
37
AIR DUCT, VOLUTE, BOTTOM
AIR DUCT, VOLUTE, BOTTOM WCI 5304516551 Contact Us For Availability
View on Model
38
AIR DUCT, VOLUTE, MIDDLE
AIR DUCT, VOLUTE, MIDDLE WCI 5304516552 Contact Us For Availability
View on Model
39
AIR DUCT, VOLUTE, TOP
AIR DUCT, VOLUTE, TOP WCI 5304516553 Contact Us For Availability
View on Model
40
WRAPPER ASSEMBLY, CABINET
WRAPPER ASSEMBLY, CABINET WCI 5304516554 Contact Us For Availability
View on Model
41
GRILLE, AIR DIRECTIONAL, REAR
GRILLE, AIR DIRECTIONAL, REAR WCI 5304516555 Contact Us For Availability
View on Model
42
GRILLE, PROTECTIVE, WIDE, REAR
GRILLE, PROTECTIVE, WIDE, REAR WCI 5304516556 Contact Us For Availability
View on Model
43
GRILLE, PROTECTIVE, NARROW, REAR
GRILLE, PROTECTIVE, NARROW, REAR WCI 5304467092 Contact Us For Availability
View on Model
44
TRIM, CABINET FRAME, SIDE
TRIM, CABINET FRAME, SIDE WCI 5304459820 Contact Us For Availability
View on Model
45
TRIM, CABINET FRAME, TOP/BOTTOM
TRIM, CABINET FRAME, TOP/BOTTOM WCI 5304459821 Contact Us For Availability
View on Model
46
FASTENER KIT, SCREWS, WASHERS
FASTENER KIT, SCREWS, WASHERS WCI 5304459817 Contact Us For Availability
View on Model
47
GROUNDING KIT
GROUNDING KIT WCI 5304459818 Contact Us For Availability
View on Model
