Model Electrolux FFTH1022R22 HEATING/COOLING, AC, TTW3 W/HEAT SERIES – Common Parts & Diagrams

Common parts from model Electrolux FFTH1022R22 HEATING/COOLING, AC, TTW3 W/HEAT SERIES

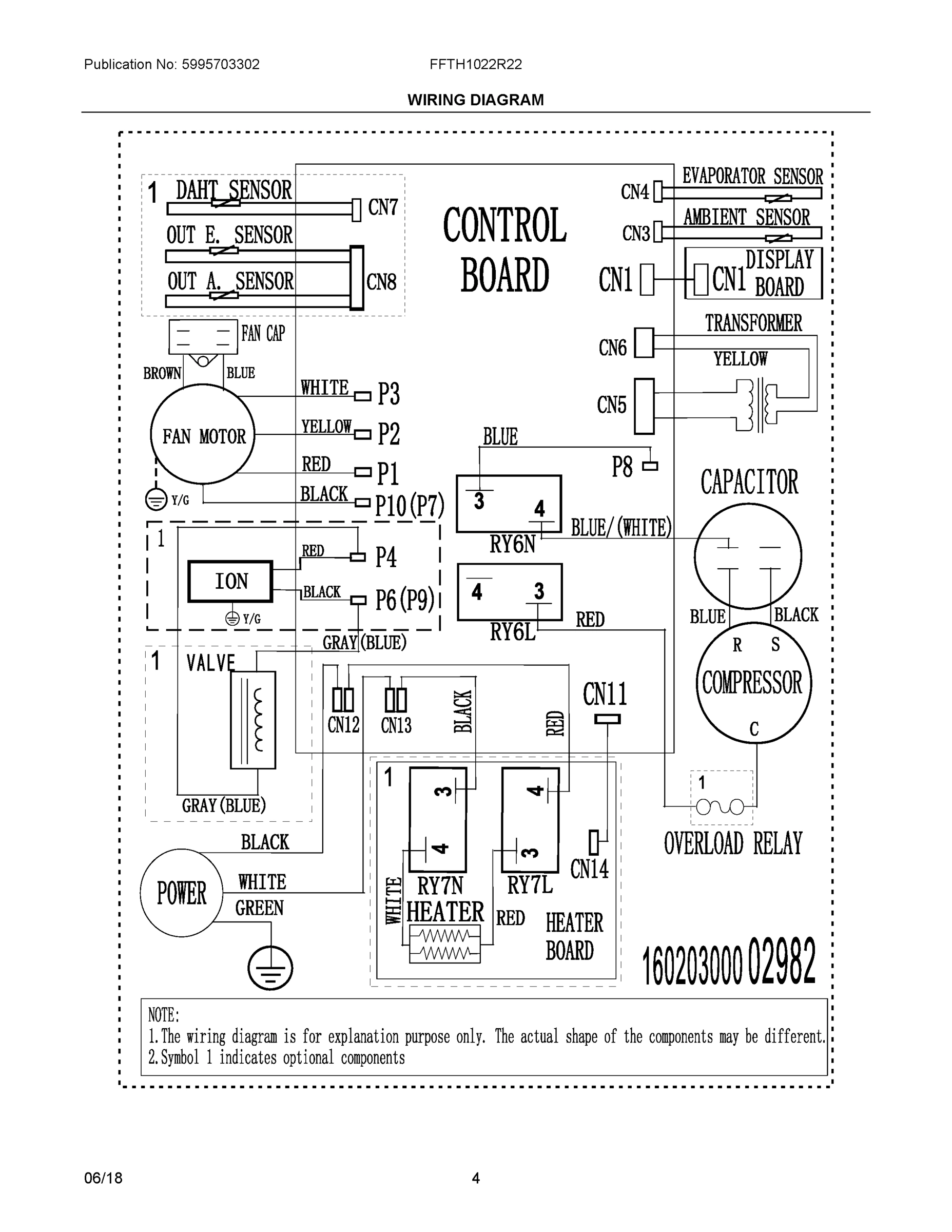

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

3

5304528926 Frigidaire Air Conditioner Filter In Stock WCI 5304528926 View Details $10.70

View on Model

5

5304476390 Frigidaire Air Conditioner Heater Backorder WCI 5304476390 View Details $203.82

View on Model

13

5304470971 Frigidaire Air Conditioner Fan Bla Backorder WCI 5304470971 View Details $50.26

View on Model

14

CABINET, WRAPPER/SLEEVE WCI 5304501087 Contact Us For Availability

View on Model

19

SEAL, STUFFER, FOAM, WALL/SLEEVE WCI 5304470974 Contact Us For Availability

View on Model

20

GRILLE, SLEEVE, ALUMINUM, REAR WCI 5304482549 Contact Us For Availability

View on Model

21

GRILLE, AIR INLET, RIGHT REAR WCI 5304501091 Contact Us For Availability

View on Model

22

GRILLE, AIR INLET, LEFT REAR WCI 5304501092 Contact Us For Availability

View on Model

23

5304470975 Frigidaire Grill Backorder WCI 5304470975 View Details $12.44

View on Model

24

SEAL & SPACER KIT WCI 5304470979 Contact Us For Availability

View on Model

25

FASTENER KIT, REAR GRILLE, SCREWS WCI 5304470978 Contact Us For Availability

View on Model

26

5304501103 Frigidaire Air Conditioner Condens Backorder WCI 5304501103 View Details $211.35

View on Model

27

COMPRESSOR, WITH OVERLOAD WCI 5304496471 Contact Us For Availability

View on Model

28

OVERLOAD PROTECTOR, COMPRESSOR WCI 5304496482 Contact Us For Availability

View on Model

29

TUBE, DISCHARGE WCI 5304496468 Contact Us For Availability

View on Model

30

5304476367 Frigidaire Air Conditioner Filter In Stock WCI 5304476367 View Details $28.07

View on Model

32

TUBE, CAPILLARY WCI 5304501970 Contact Us For Availability

View on Model

33

EVAPORATOR WCI 5304501971 Contact Us For Availability

View on Model

34

CONTROL PANEL, WITH OVERLAY WCI 5304492064 Contact Us For Availability

View on Model

35

5304501982 Frigidaire Air Conditioner PCB Backorder WCI 5304501982 View Details $88.76

View on Model

36

5304480400 Frigidaire Air Conditioner Wire Backorder WCI 5304480400 View Details $17.37

View on Model

37

COVER, CONTROL BOX WCI 5304501097 Contact Us For Availability

View on Model

38

5304512376 Frigidaire Air Conditioner Transfo Backorder WCI 5304512376 View Details $78.48

View on Model

39

CAPACITOR, FAN MOTOR WCI 5304512430 Contact Us For Availability

View on Model

40

WCI 5304512469 WCI 5304512469 Contact Us For Availability

View on Model

41

5304512422 Frigidaire Clamp Assembly Backorder WCI 5304512422 View Details $5.33

View on Model

42

WCI 5304512470 WCI 5304512470 Contact Us For Availability

View on Model

43

5304512471 Frigidaire Air Conditioner Electri Backorder WCI 5304512471 View Details $137.87

View on Model

44

HOLDER, MOUNTING PLATE, CONTROL WCI 5304495029 Contact Us For Availability

View on Model

45

5304505896 Frigidaire Air Conditioner Sensor Backorder WCI 5304505896 View Details $18.26

View on Model

46

5304512374 Frigidaire Air Conditioner Sensor Backorder WCI 5304512374 View Details $19.59

View on Model

47

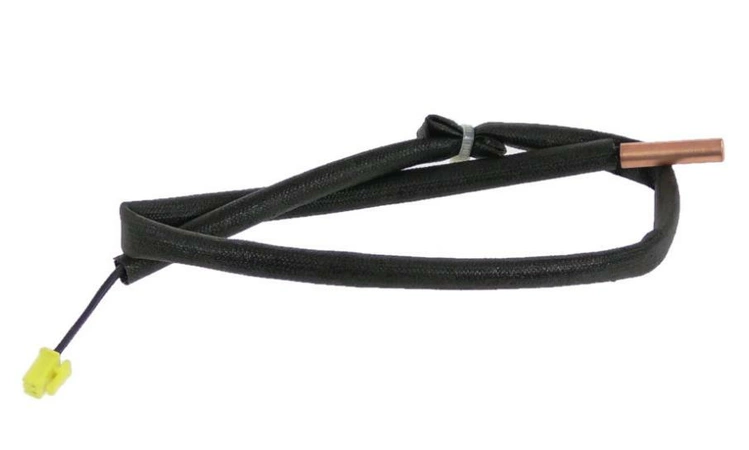

5304512401 Frigidaire Air Conditioner Sensor Backorder WCI 5304512401 View Details $22.26

View on Model

48

5304476631 Frigidaire Air Conditioner Remote Backorder WCI 5304476631 View Details $74.48

View on Model

49

5304536813 Frigidaire Power Cord Backorder WCI 5304536813 View Details $83.60

View on Model

NI

WCI 5304512468 WCI 5304512468 Contact Us For Availability

View on Model

×
