Model Electrolux FFTH0822R11 HEATING/COOLING, AC, TTW3 W/HEAT SERIES – Common Parts & Diagrams

Common parts from model Electrolux FFTH0822R11 HEATING/COOLING, AC, TTW3 W/HEAT SERIES

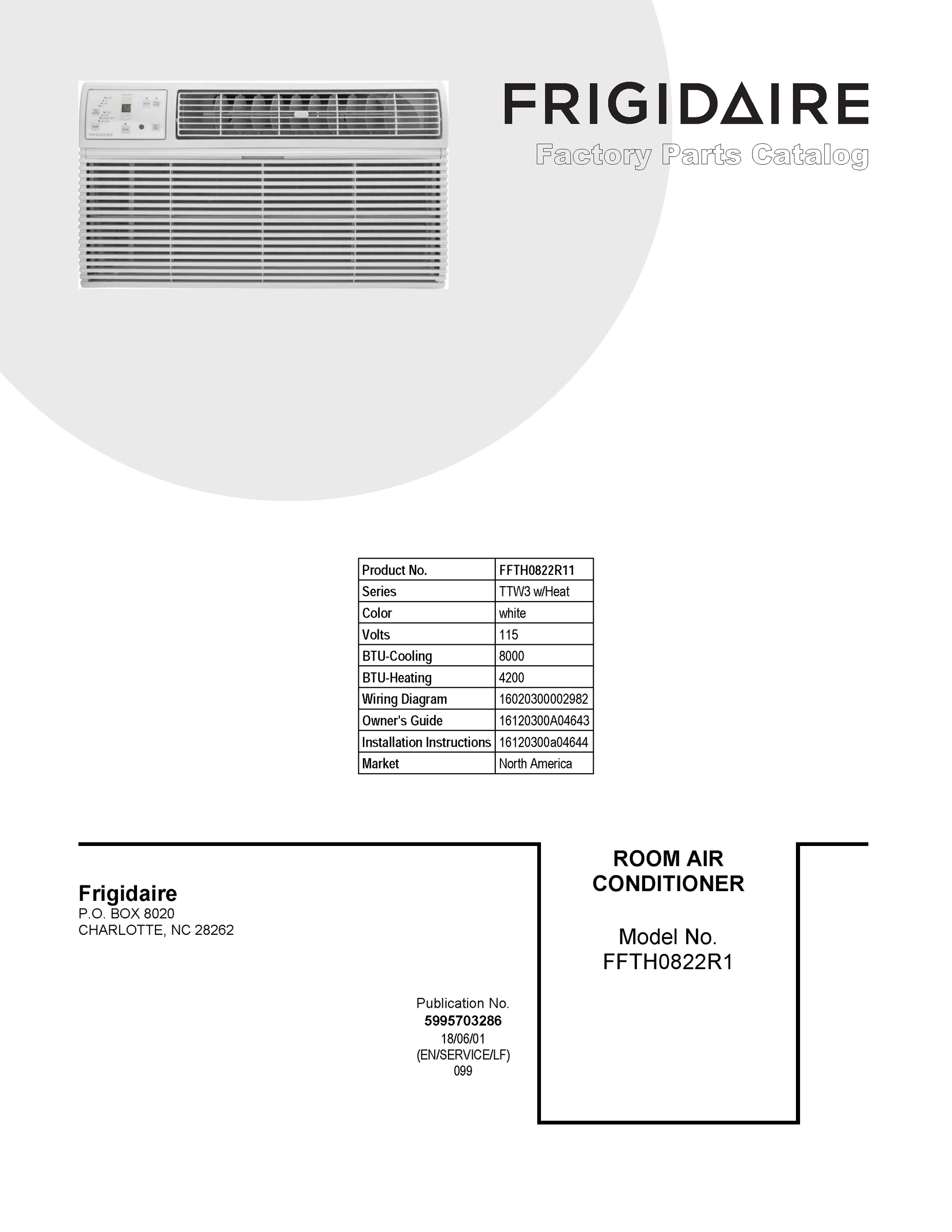

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

3

5304528926 Frigidaire Air Conditioner Filter In Stock WCI 5304528926 View Details $10.87

View on Model

12

SHROUD, FAN HOUSING, CONDENSER WCI 5304501088 Contact Us For Availability

View on Model

13

5304470971 Frigidaire Air Conditioner Fan Bla Backorder WCI 5304470971 View Details $51.10

View on Model

14

CABINET, WRAPPER/SLEEVE WCI 5304501087 Contact Us For Availability

View on Model

15

5304476624 Frigidaire Valve Backorder WCI 5304476624 View Details $35.78

View on Model

16

BASE, UNIT CHASSIS WCI 5304501981 Contact Us For Availability

View on Model

17

TRAY, DRIP PAN, FOAM WCI 5304501090 Contact Us For Availability

View on Model

18

TRIM, FRAME, TOP/BOTTOM/SIDE WCI 5304476442 Contact Us For Availability

View on Model

19

SEAL, STUFFER, FOAM, WALL/SLEEVE WCI 5304470974 Contact Us For Availability

View on Model

20

GRILLE, SLEEVE, ALUMINUM, REAR WCI 5304482549 Contact Us For Availability

View on Model

21

GRILLE, AIR INLET, RIGHT REAR WCI 5304501091 Contact Us For Availability

View on Model

22

GRILLE, AIR INLET, LEFT REAR WCI 5304501092 Contact Us For Availability

View on Model

23

5304470975 Frigidaire Grill In Stock WCI 5304470975 View Details $12.65

View on Model

24

SEAL & SPACER KIT WCI 5304470979 Contact Us For Availability

View on Model

25

FASTENER KIT, REAR GRILLE, SCREWS WCI 5304470978 Contact Us For Availability

View on Model

26

5304501093 Frigidaire Condenser Backorder WCI 5304501093 View Details $182.20

View on Model

27

5304489721 Frigidaire Air Conditioner Compres Backorder WCI 5304489721 View Details $107.44

View on Model

28

5304492022 Frigidaire Air Conditioner Overloa Backorder WCI 5304492022 View Details $82.41

View on Model

29

TUBE, DISCHARGE WCI 5304495506 Contact Us For Availability

View on Model

30

5304476367 Frigidaire Air Conditioner Filter In Stock WCI 5304476367 View Details $28.53

View on Model

32

5304501094 Frigidaire Tube Assembly Backorder WCI 5304501094 View Details $36.75

View on Model

33

EVAPORATOR, +CAPILLARY TUBE WCI 5304501095 Contact Us For Availability

View on Model

34

CONTROL PANEL, WITH OVERLAY WCI 5304492064 Contact Us For Availability

View on Model

35

CONTROL-ELECTRICAL Backorder WCI 4056015268 View Details $21.10

View on Model

36

5304480400 Frigidaire Air Conditioner Wire Backorder WCI 5304480400 View Details $17.66

View on Model

37

COVER, CONTROL BOX WCI 5304501097 Contact Us For Availability

View on Model

38

5304512409 Frigidaire Air Conditioner Transfo Backorder WCI 5304512409 View Details $73.51

View on Model

39

CAPACITOR, FAN MOTOR WCI 5304502021 Contact Us For Availability

View on Model

40

CAPACITOR, COMPRESSOR WCI 5304502065 Contact Us For Availability

View on Model

41

WCI 5304512465 WCI 5304512465 Contact Us For Availability

View on Model

42

WCI 5304512466 WCI 5304512466 Contact Us For Availability

View on Model

43

5304512467 Frigidaire Electrical Control Backorder WCI 5304512467 View Details $147.90

View on Model

44

HOLDER, MOUNTING PLATE, CONTROL WCI 5304495029 Contact Us For Availability

View on Model

45

5304505896 Frigidaire Air Conditioner Sensor Backorder WCI 5304505896 View Details $18.56

View on Model

46

5304512374 Frigidaire Air Conditioner Sensor Backorder WCI 5304512374 View Details $19.91

View on Model

47

5304512401 Frigidaire Air Conditioner Sensor Backorder WCI 5304512401 View Details $22.63

View on Model

48

5304476631 Frigidaire Air Conditioner Remote Backorder WCI 5304476631 View Details $6.67

View on Model

49

5304536809 Frigidaire Power Cord In Stock WCI 5304536809 View Details $117.17

View on Model

NI

WCI 5304512468 WCI 5304512468 Contact Us For Availability

View on Model

×
