Model Electrolux FFRP152HT70 HEATING/COOLING, AIR CONDITIONER, SERIES, PTAC – Common Parts & Diagrams
01 - COVER SHEET
02 - RECOMMENDED SPARE PARTS

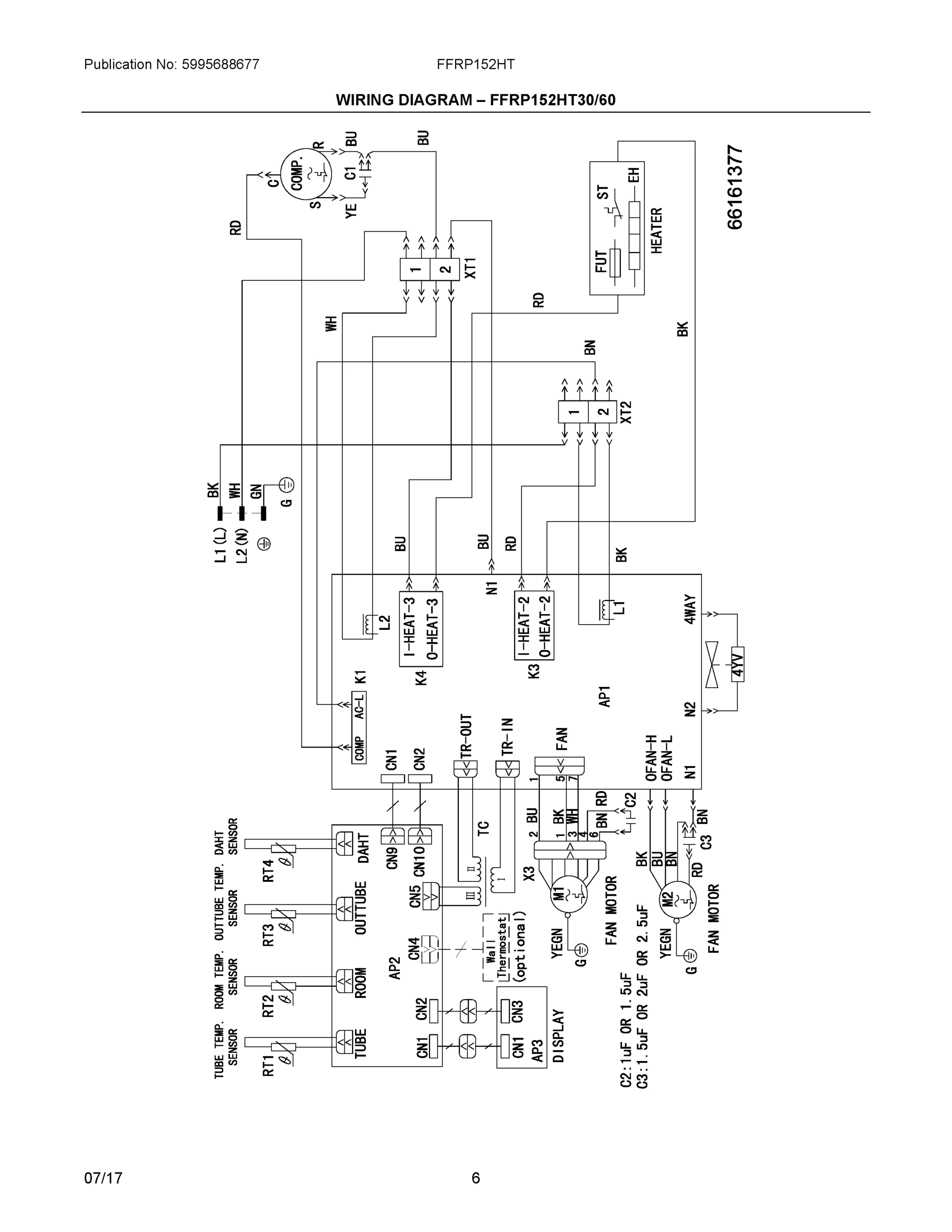

03 - WIRING DIAGRAM, FFRP152HT30/60

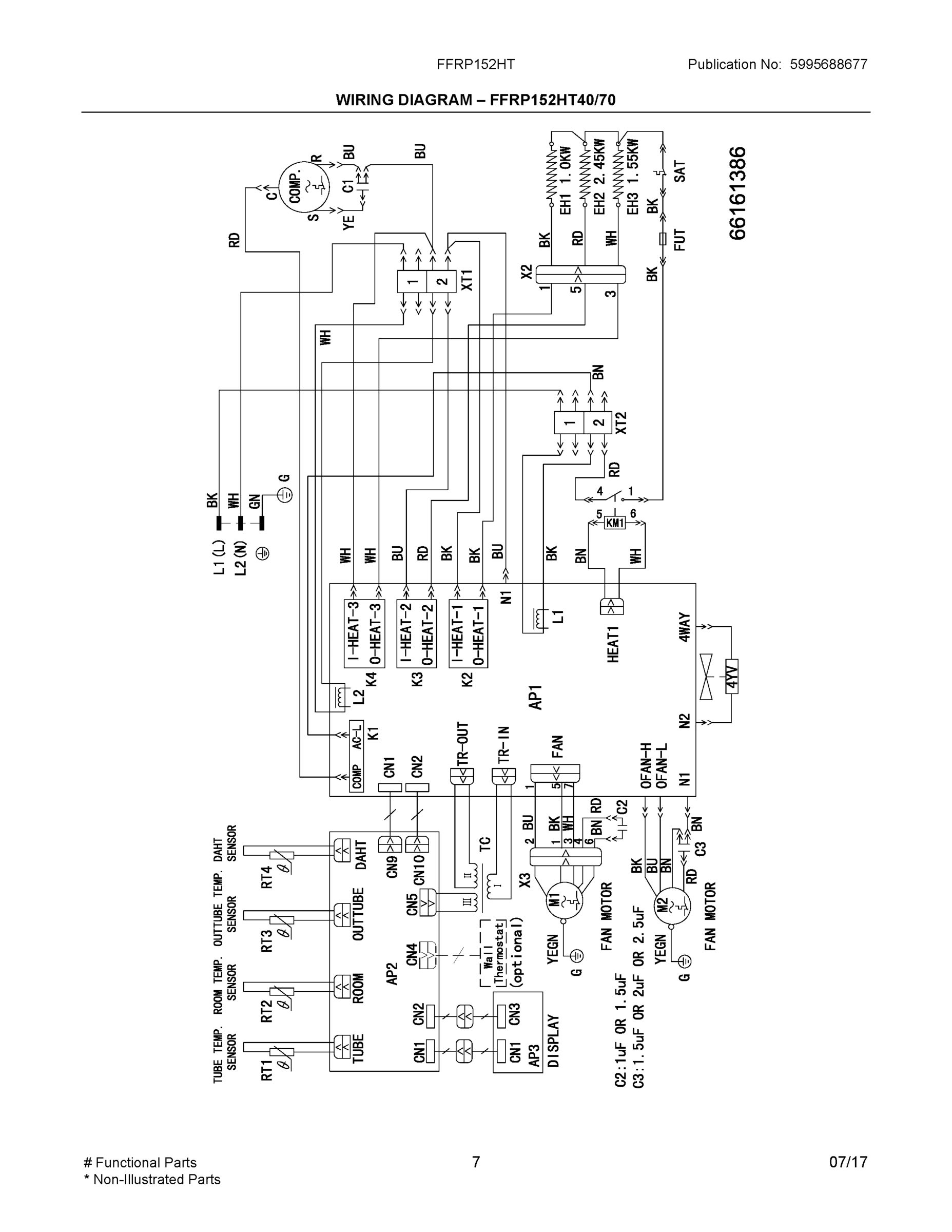

04 - WIRING DIAGRAM, FFRP152HT40/70
Common parts from model Electrolux FFRP152HT70 HEATING/COOLING, AIR CONDITIONER, SERIES, PTAC
2
TUBE, TEMP SENSOR, CONDENSER WCI 5304510599 Contact Us For Availability
16
BAFFLE WCI 5304510611 Contact Us For Availability
17
COVER, SCROLL, CORNER WCI 5304510612 Contact Us For Availability
18
GRILL, PROTECTIVE WCI 5304510613 Contact Us For Availability
19
SENSOR, TEMP DETECTING, DISCHARGE AIR WCI 5304510614 Contact Us For Availability
20
AIR DUCT, ASSEMBLY, W/FAN WCI 5304510615 Contact Us For Availability
21
HOUSING, BEARING BLOCK WCI 5304483809 Contact Us For Availability
22
HOLDER, BEARING WCI 5304510616 Contact Us For Availability
23
WCI 5304510807 WCI 5304510807 Contact Us For Availability
24
WCI 5304510676 WCI 5304510676 Contact Us For Availability
28
CLIP, MOUNTING, FRONT PANEL WCI 5304483946 Contact Us For Availability
30
CONTROL PANEL, ASSEMBLY, W/BOARD-OVERLAY WCI 5304510762 Contact Us For Availability
31
OVERLAY, TOUCH PAD WCI 5304510620 Contact Us For Availability
35
FRONT PANEL, ASSEMBLY, W/FILTERS WCI 5304510763 Contact Us For Availability
36
SUPPORT PLATE, PC BOARD WCI 5304510623 Contact Us For Availability
37
WCI 5304510702 WCI 5304510702 Contact Us For Availability
38
BRACKET, PC BOARD WCI 5304510625 Contact Us For Availability
39
WCI 5304510808 WCI 5304510808 Contact Us For Availability
42
WCI 5304510809 WCI 5304510809 Contact Us For Availability
43
BRACKET, FIXING, HEATER WCI 5304510628 Contact Us For Availability
45
BRACKET, MOTOR SUPPORT WCI 5304483957 Contact Us For Availability
46
BRACKET, FIXING, CONDENSER WCI 5304510630 Contact Us For Availability
48
CLAPBOARD WCI 5304510632 Contact Us For Availability
50
WCI 5304510812 WCI 5304510812 Contact Us For Availability
51
SUPPORT, BULKHEAD, OUTER RIGHT WCI 5304500778 Contact Us For Availability
52
BRACKET, FIXING, WIRE WCI 5304510635 Contact Us For Availability
53
FLITER, AIR INLET DOOR WCI 5304510636 Contact Us For Availability
54
DOOR, AIR INLET WCI 5304510637 Contact Us For Availability
55
VALVE, 1-WAY WCI 5304483992 Contact Us For Availability
56
WCI 5304510813 WCI 5304510813 Contact Us For Availability
57
COIL, 4-WAY VALVE, MAGNETIC WCI 5304485191 Contact Us For Availability
59
GROMMET, C WCI 5304460010 Contact Us For Availability
60
WCI 5304510802 WCI 5304510802 Contact Us For Availability
61
WCI 5304500783 WCI 5304500783 Contact Us For Availability
62
WCI 5304510806 WCI 5304510806 Contact Us For Availability
63
WCI 5304510642 WCI 5304510642 Contact Us For Availability
64
WCI 5304510814 WCI 5304510814 Contact Us For Availability
77
WCI 5304510811 WCI 5304510811 Contact Us For Availability
× ![]()
