Model Electrolux FFRE15L3Q10 ROOM AIR CONDITIONER – Common Parts & Diagrams

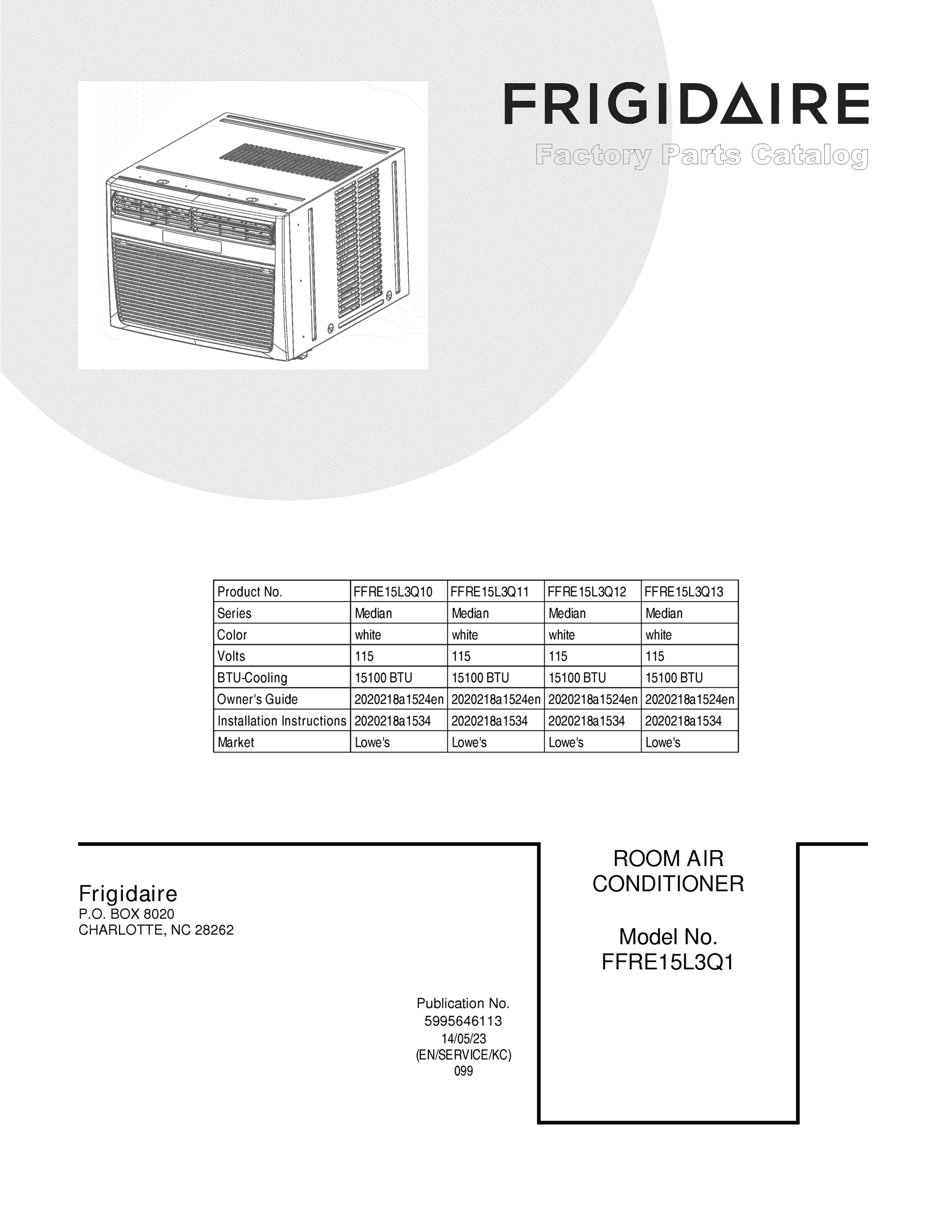

01 - COVER
03 - RECOMMENDED SPARE PARTS
04 - WIRING DIAGRAM
Common parts from model Electrolux FFRE15L3Q10 ROOM AIR CONDITIONER
4
WCI 5304496313 WCI 5304496313 Contact Us For Availability
8
PC Board,display/input WCI 5304495622 Contact Us For Availability
9
· Wire,connector ,pc boards WCI 5304495009 Contact Us For Availability
10
Handle,vent control WCI 5304495010 Contact Us For Availability
11
Link,lever/vent door ,detente WCI 5304476359 Contact Us For Availability
12
Door,vent control ,with lever WCI 5304476950 Contact Us For Availability
13
WCI 5304487535 WCI 5304487535 Contact Us For Availability
14
Power Cord,electric ,LCDI WCI 5304476180 Contact Us For Availability
20
WCI 5304470989 WCI 5304470989 Contact Us For Availability
22
Capacitor,fan motor WCI 5304483052 Contact Us For Availability
23
Capacitor,compressor WCI 5304471214 Contact Us For Availability
27
Tube,suction WCI 5304495626 Contact Us For Availability
30
Tube,condensate evap ,drain pan WCI 5304495628 Contact Us For Availability
31
WCI 5304495629 WCI 5304495629 Contact Us For Availability
32
Filter-dryer WCI 5304476367 Contact Us For Availability
36
Scroll,blower housing ,front WCI 5304495631 Contact Us For Availability
39
Blower Wheel,centrifugal fan WCI 5304486010 Contact Us For Availability
41
Motor,fan WCI 5304483055 Contact Us For Availability
43
Shroud,condenser/fan WCI 5304495634 Contact Us For Availability
45
Cabinet,wrapper/sleeve WCI 5304486012 Contact Us For Availability
46
Rail,shutter track ,top angle WCI 5304476333 Contact Us For Availability
50
Window Filler Kit,slider panels ,accordion WCI 5304476267 Contact Us For Availability
51
Bracket,sill angle WCI 5304472360 Contact Us For Availability
52
Bracket,mounting ,right window WCI 5304482508 Contact Us For Availability
53
Bracket,mounting ,left windo WCI 5304482509 Contact Us For Availability
× ![]()
