Model Electrolux FFRA1011Q14 ROOM AIR CONDITIONER – Common Parts & Diagrams

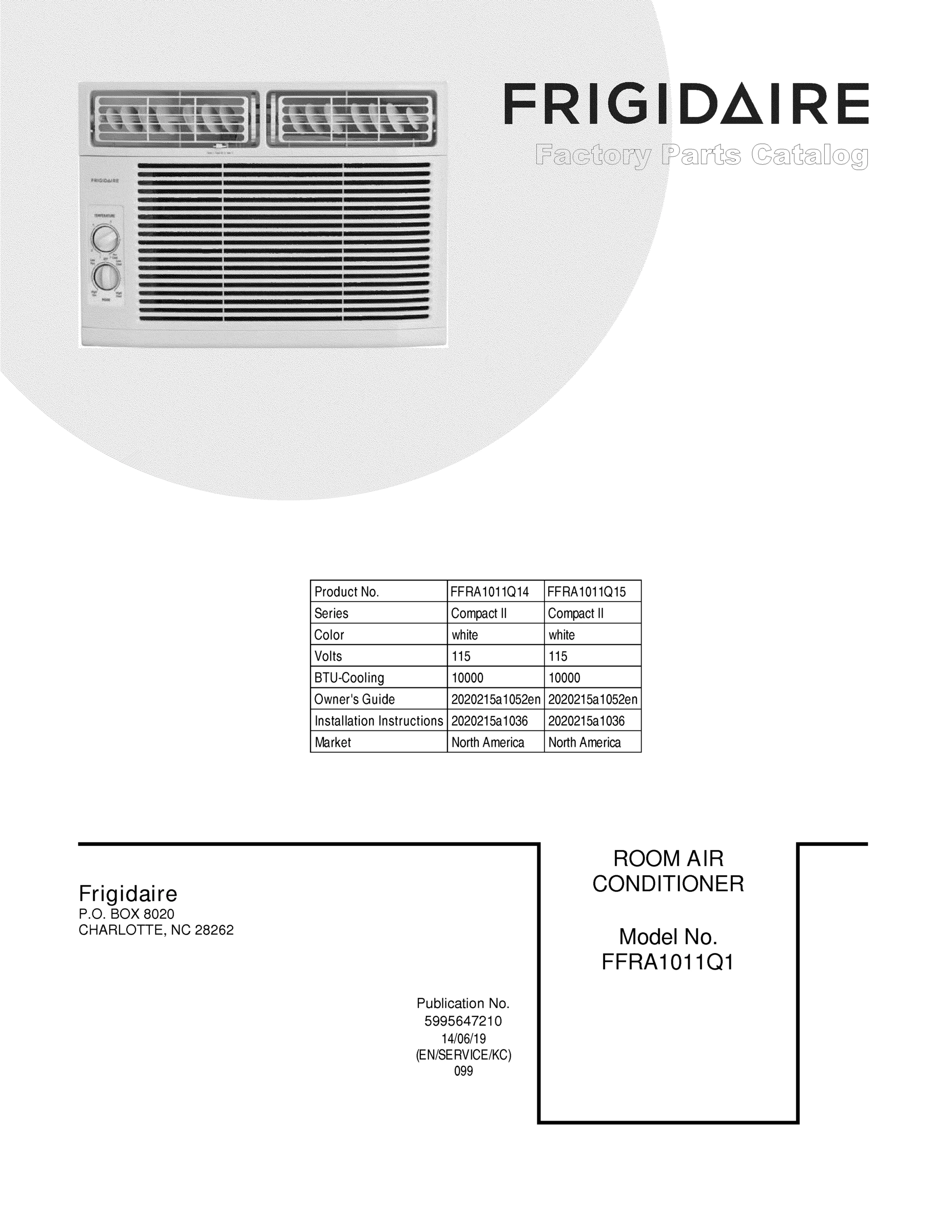

01 - COVER

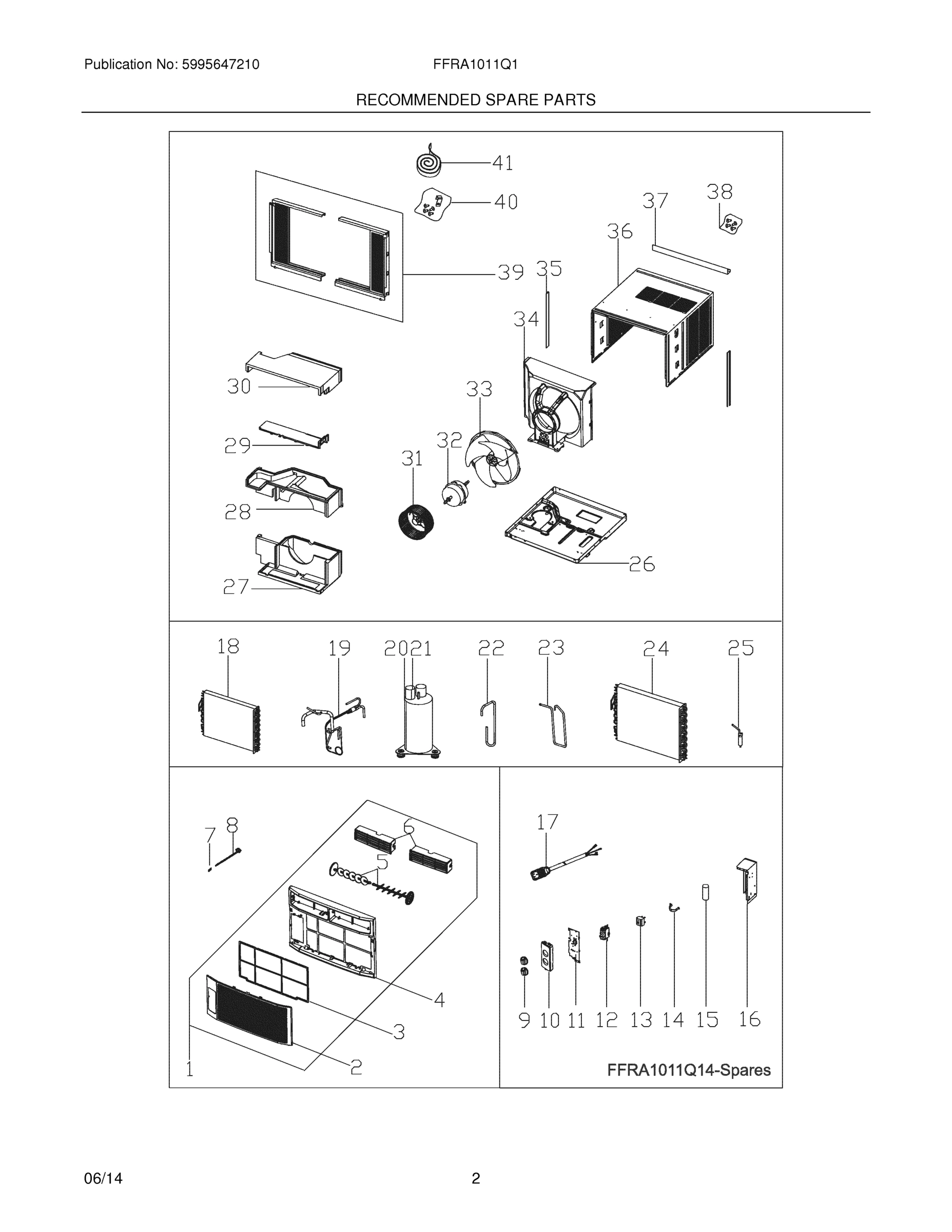

03 - RECOMMENDED SPARE PARTS

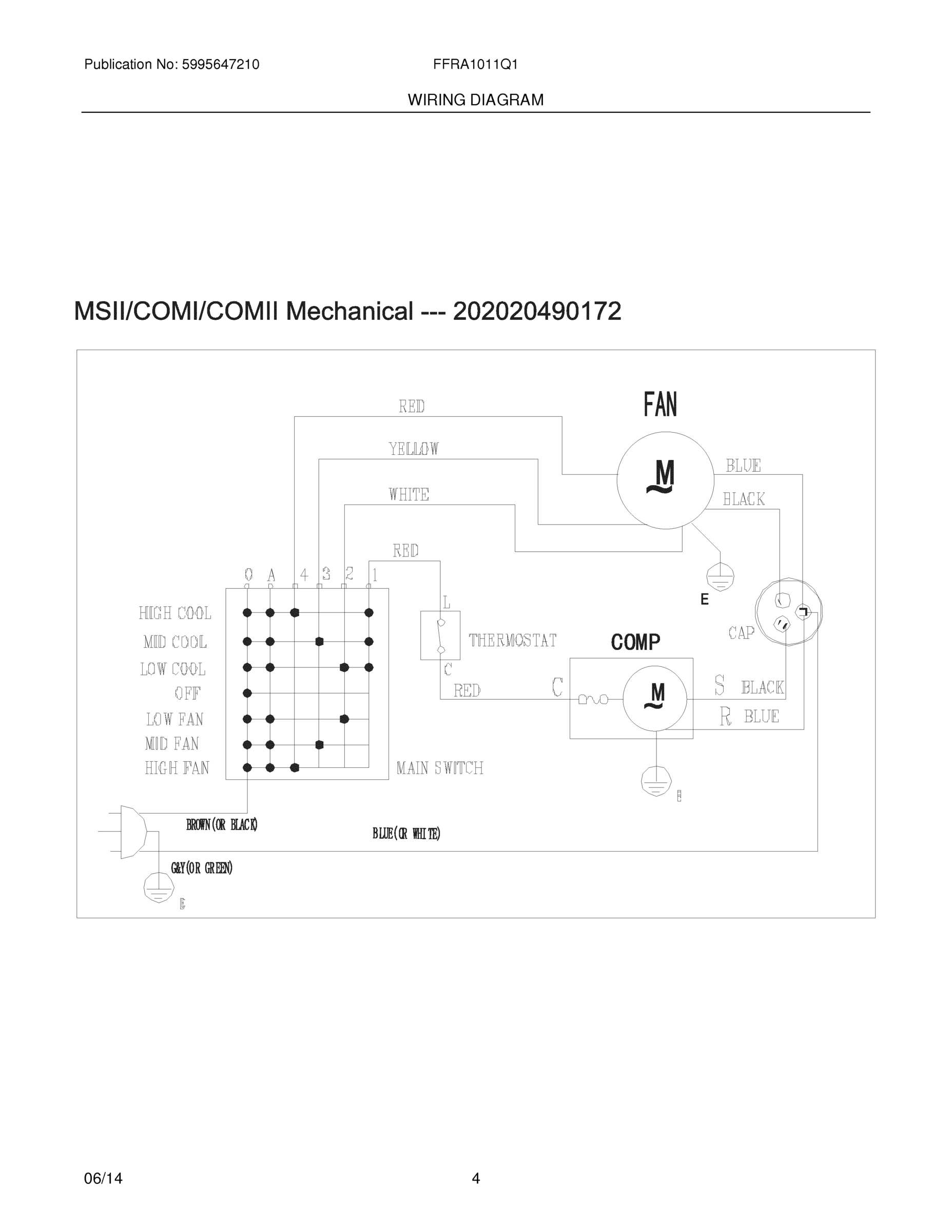

04 - WIRING DIAGRAM
Common parts from model Electrolux FFRA1011Q14 ROOM AIR CONDITIONER
3
Filter,air WCI 5304482739 Contact Us For Availability
12
Sensor Assembly,temperature WCI 5304476765 Contact Us For Availability
13
Switch,master ,rotary WCI 5304476766 Contact Us For Availability
16
WCI 5304492004 WCI 5304492004 Contact Us For Availability
18
Evaporator,+capillary tube WCI 5304495096 Contact Us For Availability
19
· Tube,capillary WCI 5304495097 Contact Us For Availability
20
Compressor,with overload WCI 5304476613 Contact Us For Availability
21
· Overload Protector,compressor WCI 5304495098 Contact Us For Availability
22
Tube,suction WCI 5304495099 Contact Us For Availability
23
Tube,discharge WCI 5304495100 Contact Us For Availability
24
WCI 5304491952 WCI 5304491952 Contact Us For Availability
26
Base,unit chassis WCI 5304495101 Contact Us For Availability
27
Scroll,blower housing ,bottom WCI 5304485967 Contact Us For Availability
28
Scroll,blower housing ,middle WCI 5304495102 Contact Us For Availability
29
Enclosure,air duct WCI 5304495103 Contact Us For Availability
30
Scroll,blower housing ,top WCI 5304485969 Contact Us For Availability
32
Motor,fan WCI 5304493236 Contact Us For Availability
34
Shroud,condenser/fan WCI 5304495104 Contact Us For Availability
35
Retainer,shutter ,cabinet sides WCI 5304476197 Contact Us For Availability
36
Cabinet,wrapper/sleeve WCI 5304476198 Contact Us For Availability
37
Rail,shutter track ,top angle WCI 5304476199 Contact Us For Availability
38
Screw Kit,top rail mount WCI 5304472191 Contact Us For Availability
41
Seal kit,foam ,sash filler WCI 5304472211 Contact Us For Availability
× ![]()
