Model Electrolux FFRA0811Q10 ROOM AIR CONDITIONER – Common Parts & Diagrams

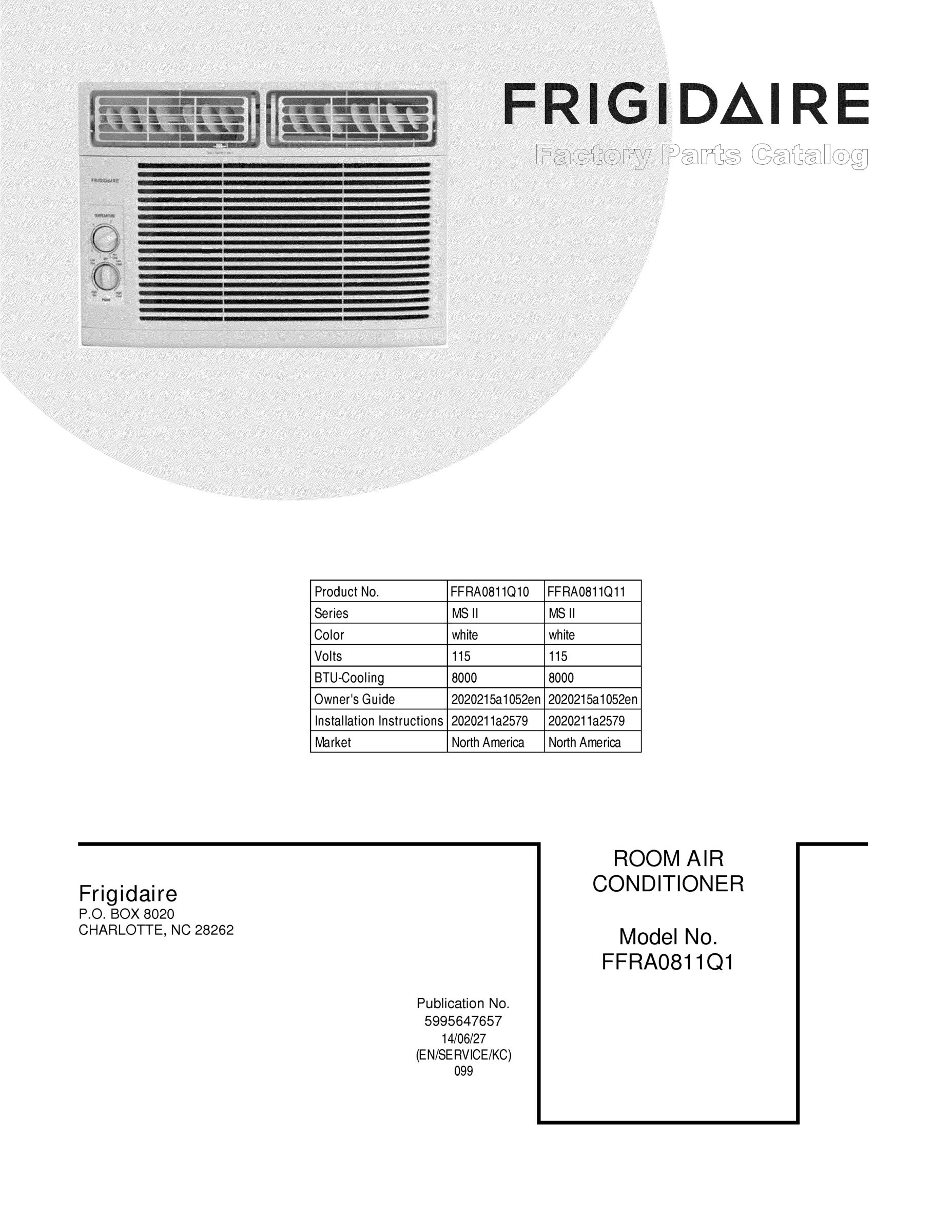

01 - COVER

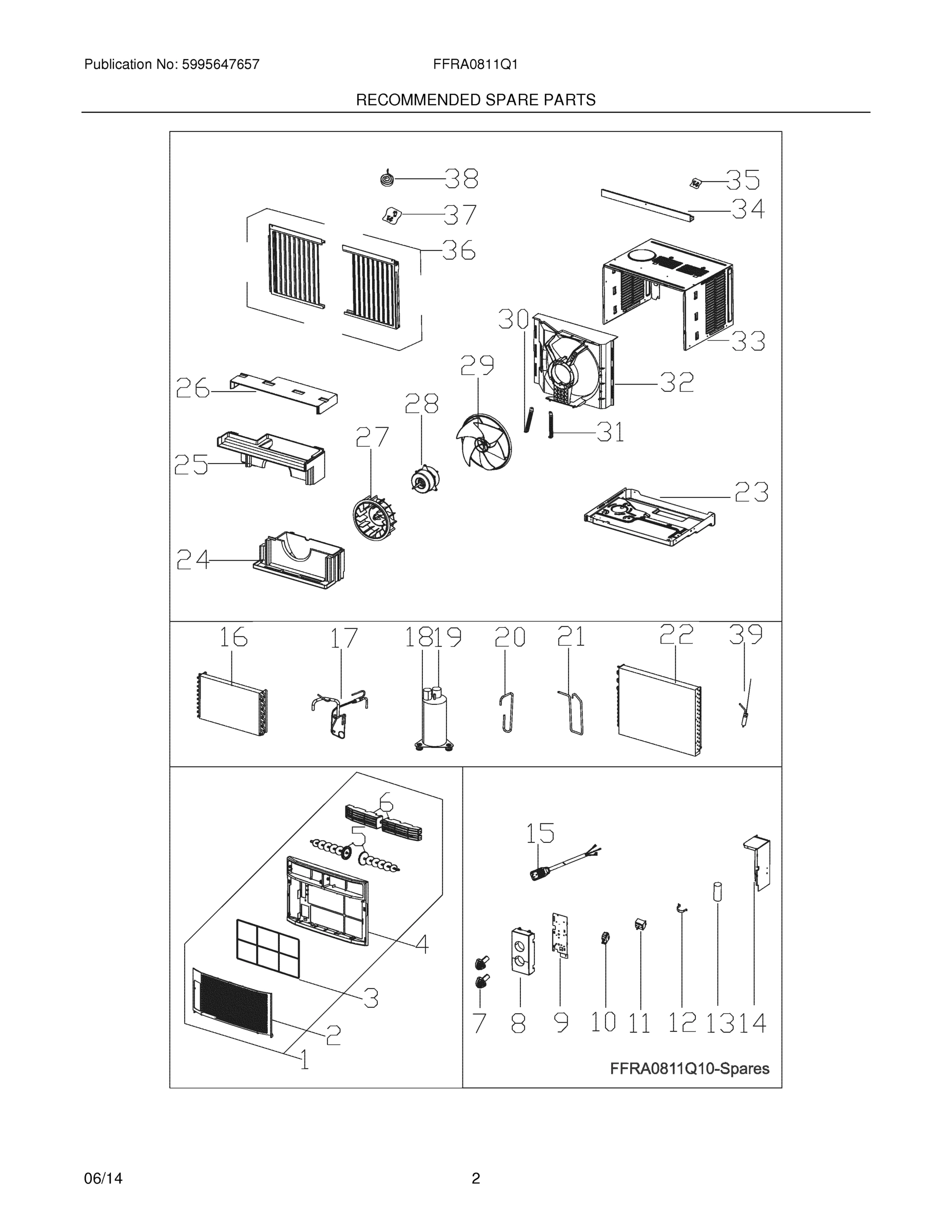

03 - RECOMMENDED SPARE PARTS

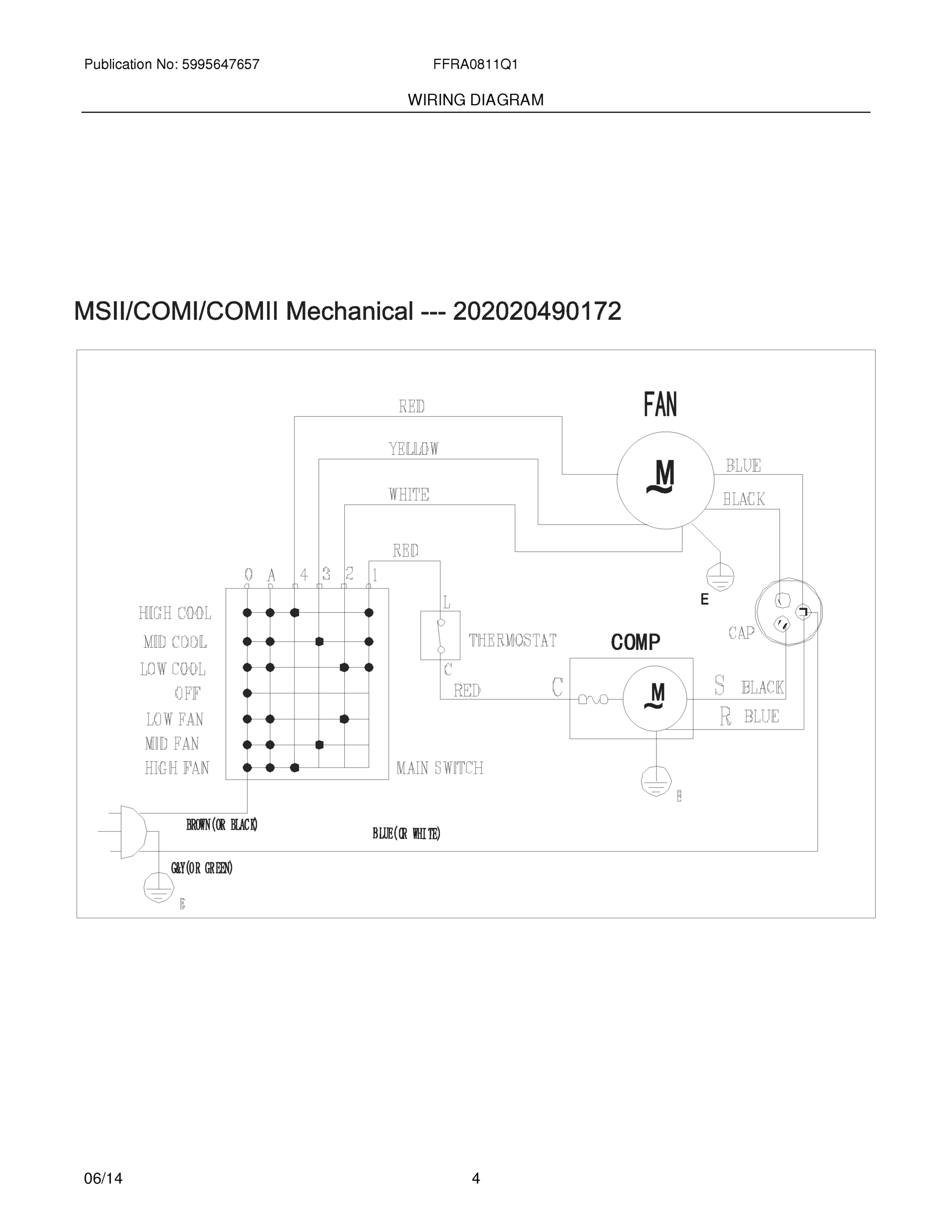

04 - WIRING DIAGRAM
Common parts from model Electrolux FFRA0811Q10 ROOM AIR CONDITIONER
1
Front Assembly,complete panel WCI 5304492076 Contact Us For Availability
3
· Filter,air ,plastic frame WCI 5304492078 Contact Us For Availability
10
Sensor Assembly,temperature WCI 5304476765 Contact Us For Availability
11
Switch,master ,rotary WCI 5304476766 Contact Us For Availability
13
WCI 5304476003 WCI 5304476003 Contact Us For Availability
16
WCI 5304495922 WCI 5304495922 Contact Us For Availability
17
· Tube,capillary WCI 5304495923 Contact Us For Availability
20
Tube,suction WCI 5304492023 Contact Us For Availability
21
Tube,discharge WCI 5304495924 Contact Us For Availability
22
WCI 5304495925 WCI 5304495925 Contact Us For Availability
23
Base,unit chassis WCI 5304496354 Contact Us For Availability
24
Scroll,blower housing ,bottom WCI 5304495926 Contact Us For Availability
25
Scroll,blower housing ,middle WCI 5304495927 Contact Us For Availability
26
Scroll,blower housing ,top WCI 5304495928 Contact Us For Availability
27
Blower Wheel,centrifugal fan WCI 5304485436 Contact Us For Availability
28
Motor,fan WCI 5304485435 Contact Us For Availability
30
Support,motor mount ,left WCI 5304476574 Contact Us For Availability
31
Support,motor mount ,right WCI 5304476575 Contact Us For Availability
32
Shroud,condenser/fan WCI 5304483090 Contact Us For Availability
33
Cabinet,wrapper/sleeve WCI 5304495916 Contact Us For Availability
34
Rail,shutter track ,top WCI 5304477054 Contact Us For Availability
35
Screw Kit,top rail mount WCI 5304472191 Contact Us For Availability
38
Seal kit,foam ,sash filler WCI 5304472211 Contact Us For Availability
× ![]()
