Model Electrolux FFPT12F3NM0 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

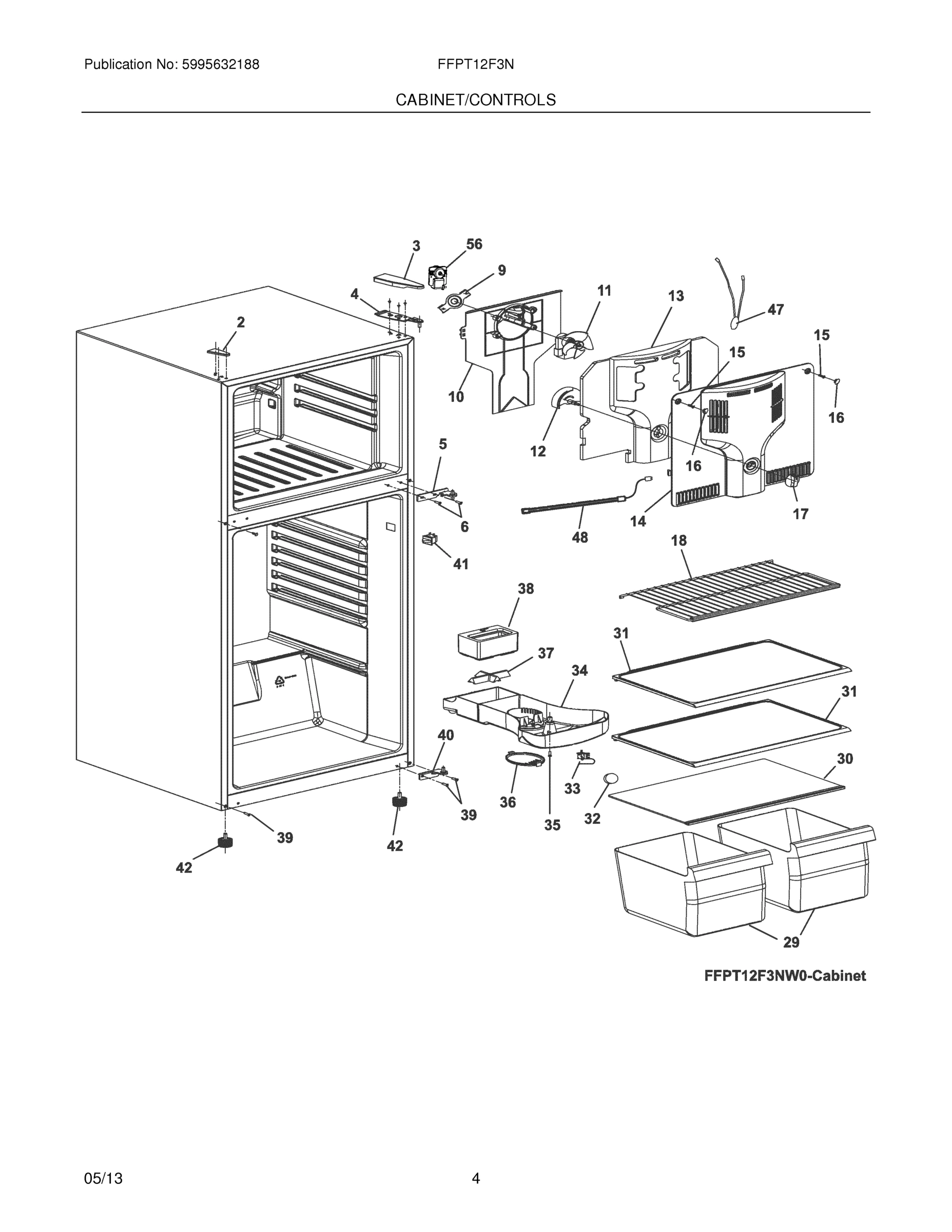

05 - CABINET/CONTROLS

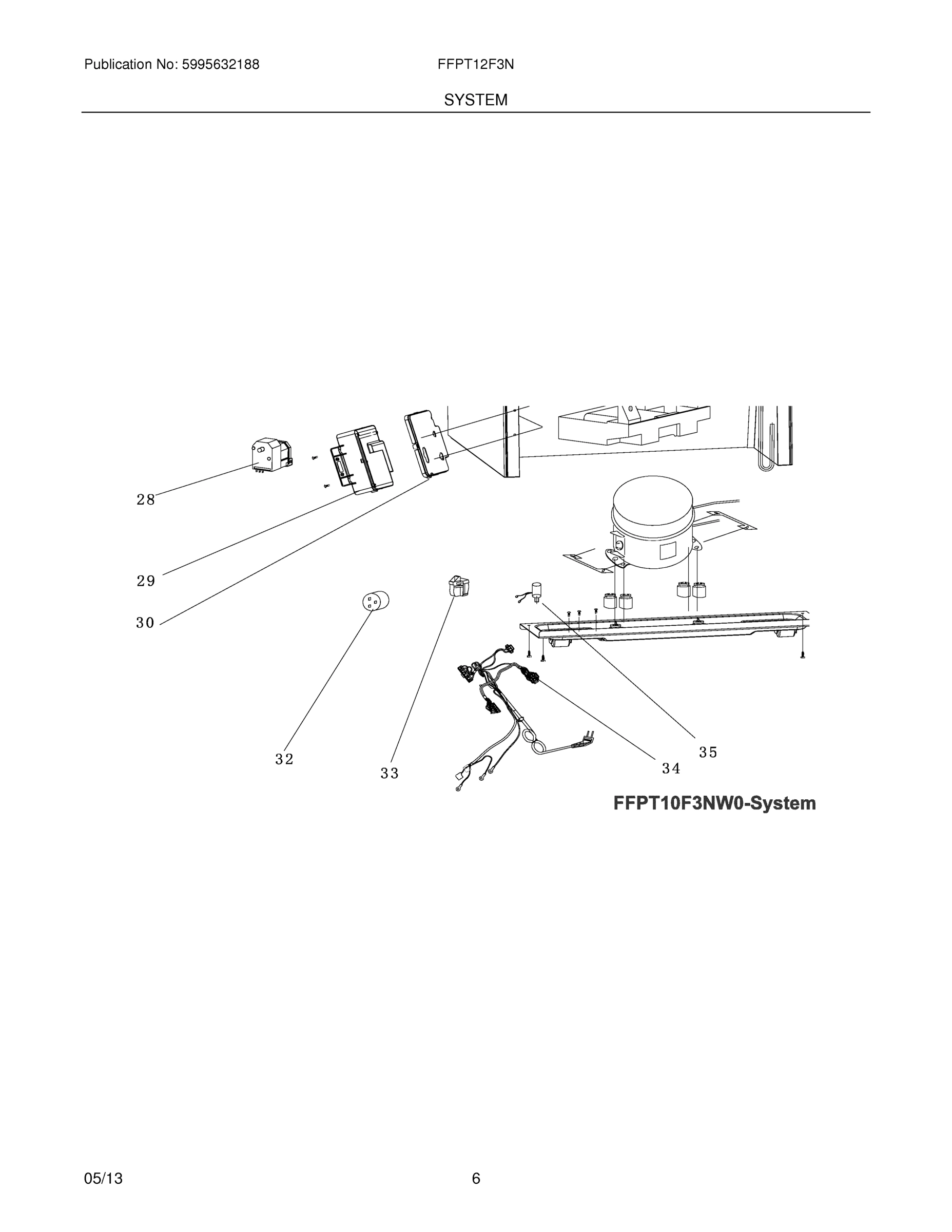

07 - SYSTEM

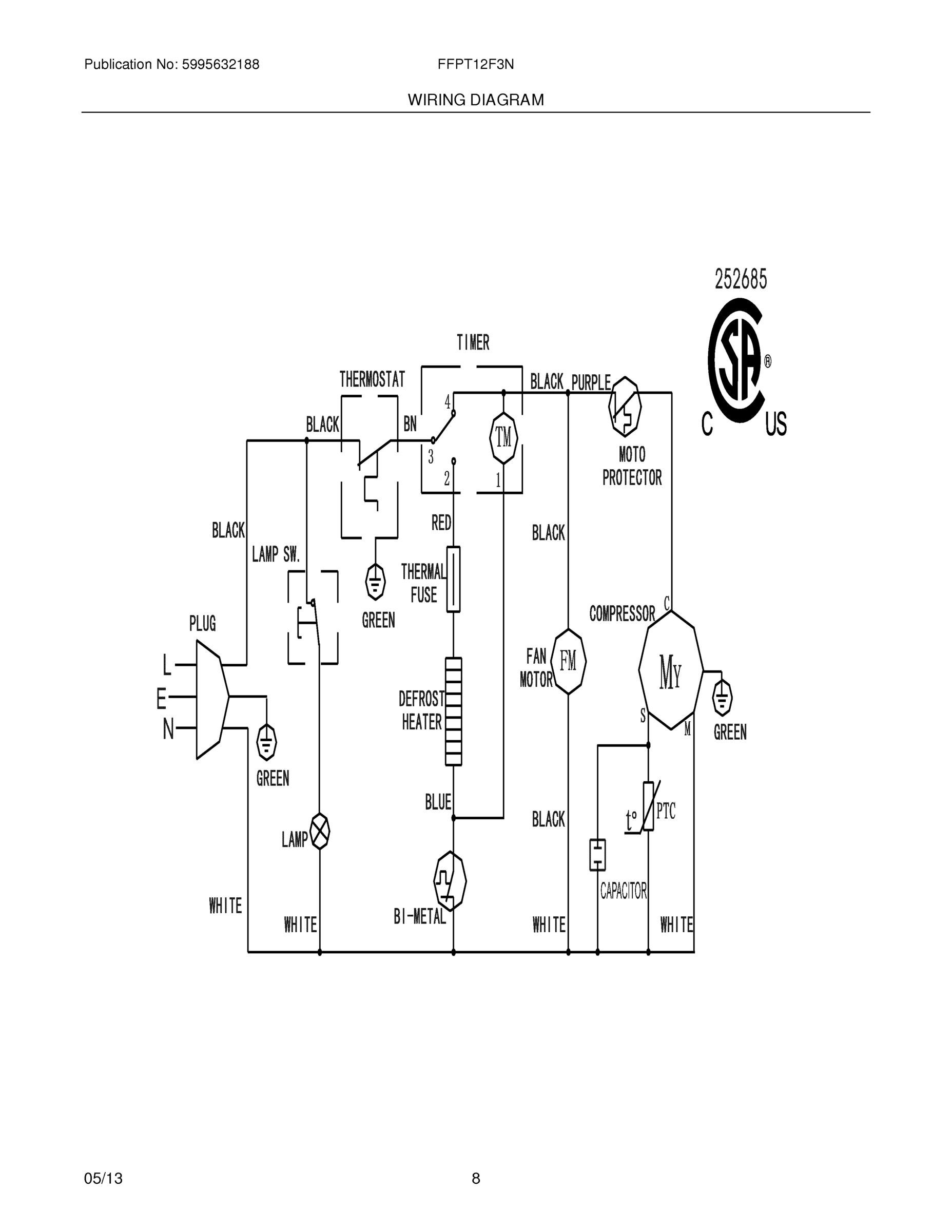

08 - WIRING DIAGRAM
Common parts from model Electrolux FFPT12F3NM0 REFRIGERATOR
3
Cover,top hinge ,black WCI 5304486197 Contact Us For Availability
4
Hinge,top WCI 5304470307 Contact Us For Availability
5
Hinge,middle WCI 5304486754 Contact Us For Availability
12
Damper,fan air WCI 5304490958 Contact Us For Availability
14
Cover,fan air duct ,front WCI 5304491325 Contact Us For Availability
16
Cover,screw WCI 5304490962 Contact Us For Availability
19
Rack,door ,frzr/refr WCI 5304490985 No Longer Available
21
WCI 5304491298 WCI 5304491298 Contact Us For Availability
22
Closer,door stop ,w/hinge pin WCI 5304490968 Contact Us For Availability
25
WCI 5304491483 WCI 5304491483 Contact Us For Availability
27
Seal,inner door WCI 5304491326 Contact Us For Availability
28
WCI 5304491321 WCI 5304491321 Contact Us For Availability
28
Bin,refr door ,large WCI 5304490973 Contact Us For Availability
29
WCI 5304490982 WCI 5304490982 Contact Us For Availability
30
Shelf,crisper cover ,glass WCI 5304490974 Contact Us For Availability
32
WCI 5304491481 WCI 5304491481 Contact Us For Availability
33
WCI 5304470321 WCI 5304470321 Contact Us For Availability
33
WCI 5304491322 WCI 5304491322 Contact Us For Availability
35
WCI 5304491480 WCI 5304491480 Contact Us For Availability
37
Duct,air ,rear ,inner WCI 5304491050 Contact Us For Availability
38
Duct,air ,rear ,outer WCI 5304491051 Contact Us For Availability
39
Screw,bottom hinge WCI 5304491052 Contact Us For Availability
40
Hinge,bottom WCI 5304490979 Contact Us For Availability
47
WCI 5304491702 WCI 5304491702 Contact Us For Availability
48
Heater,defrost WCI 5304491703 Contact Us For Availability
56
WCI 5304491053 WCI 5304491053 Contact Us For Availability
× ![]()
