Model Electrolux FFPA1422R13 HEATING/COOLING, AC, PORTABLE SERIES – Common Parts & Diagrams

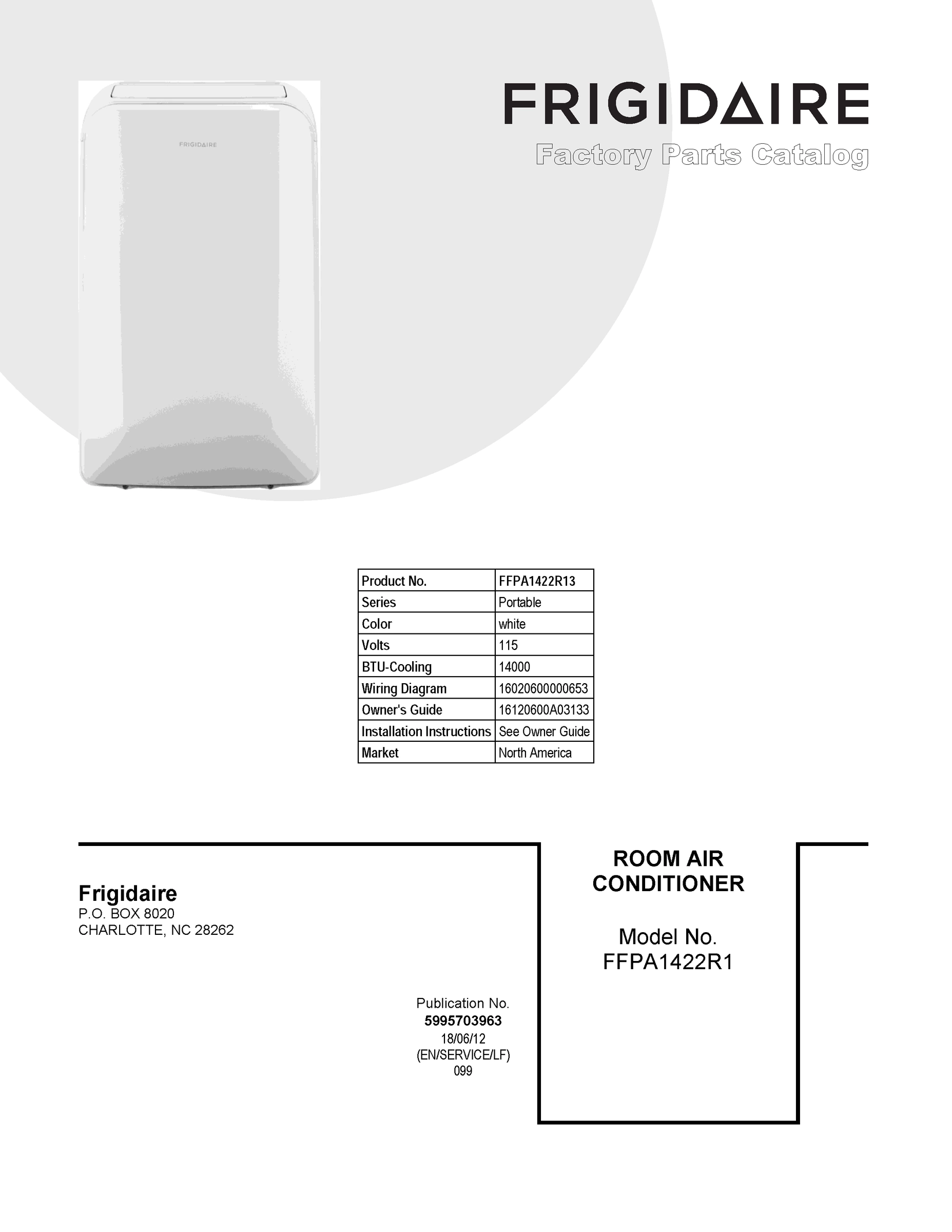

01 - COVER SHEET

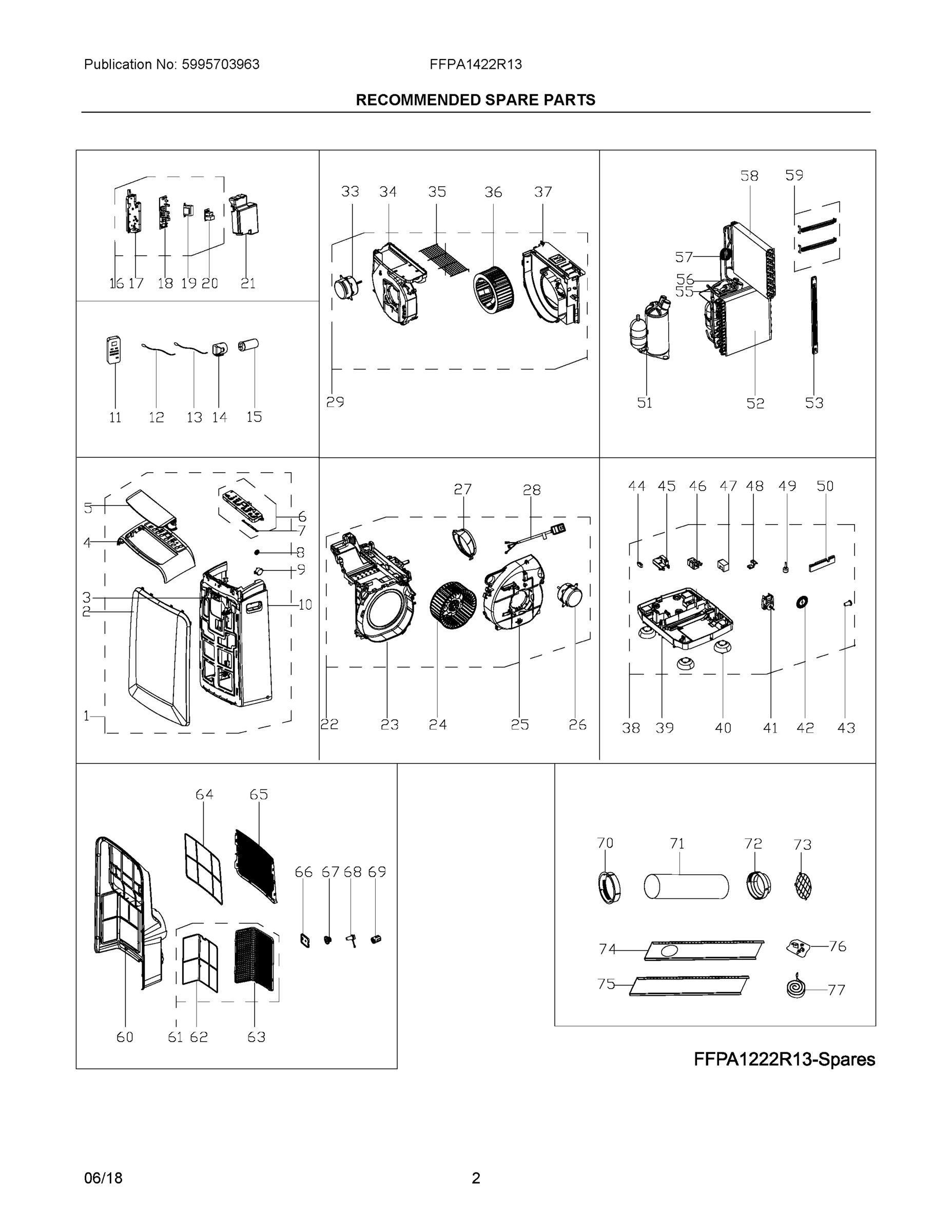

02 - RECOMMENDED SPARE PARTS

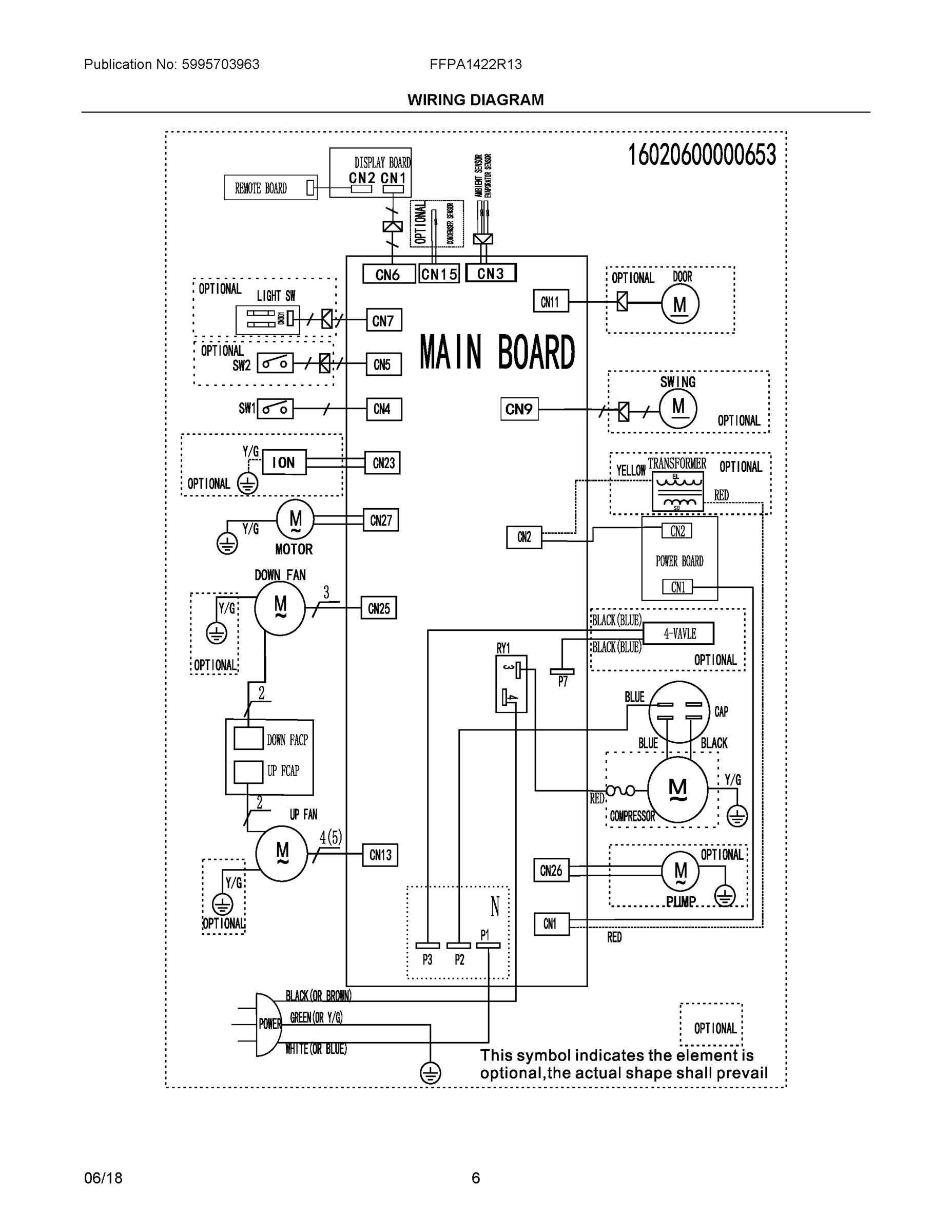

03 - WIRING DIAGRAM
Common parts from model Electrolux FFPA1422R13 HEATING/COOLING, AC, PORTABLE SERIES
5
LOUVER, AIR DISCHARGE, TOP, SWING WCI 5304502087 Contact Us For Availability
7
CONNECTOR, DISPLAY BOARD, WIRE WCI 5304502089 Contact Us For Availability
8
GEAR, SWING MOTOR WCI 5304502090 Contact Us For Availability
9
MOTOR, LOUVER SWING, STEPPING WCI 5304502091 Contact Us For Availability
10
WRAPPER, CABINET, FRONT WCI 5304502092 Contact Us For Availability
11
WCI 5304517043 WCI 5304517043 Contact Us For Availability
13
SENSOR, TEMPERATURE, EVAPORATOR WCI 5304502098 Contact Us For Availability
14
WCI 5304517044 WCI 5304517044 Contact Us For Availability
15
CAPACITOR, COMPRESSOR WCI 5304509283 Contact Us For Availability
16
CONTROL ASSEMBLY WCI 5304506031 Contact Us For Availability
17
CONTROL BOX WCI 5304506033 Contact Us For Availability
19
TRANSFORMER WCI 5304502103 Contact Us For Availability
20
CAPACITOR ASSEMBLY, BOARD WCI 5304506035 Contact Us For Availability
21
WCI 5304517045 WCI 5304517045 Contact Us For Availability
22
SCROLL ASSEMBLY, AIR EXHAUST WCI 5304506048 Contact Us For Availability
23
SCROLL, EXHAUST WCI 5304502107 Contact Us For Availability
25
WCI 5304517046 WCI 5304517046 Contact Us For Availability
26
MOTOR, EXHAUST FAN WCI 5304506037 Contact Us For Availability
27
WCI 5304517047 WCI 5304517047 Contact Us For Availability
29
SCROLL ASSEMBLY, AIR INLET WCI 5304506038 Contact Us For Availability
33
MOTOR, AIR INLET FAN WCI 5304506039 Contact Us For Availability
34
SCROLL, AIR INLET WCI 5304502115 Contact Us For Availability
35
GRILLE, AIR INLET, INDOOR WCI 5304502116 Contact Us For Availability
37
COVER, AIR INLET, SCROLL WCI 5304502118 Contact Us For Availability
38
BASE ASSEMBLY, CHASSIS WCI 5304506049 Contact Us For Availability
39
BASE, UNIT CHASSIS WCI 5304502120 Contact Us For Availability
41
MOTOR, SLINGER, SHADED POLE WCI 5304506041 Contact Us For Availability
42
SLINGER, WATER WHEEL, CONDENSATE WCI 5304502039 Contact Us For Availability
44
MICROSWITCH WCI 5304502126 Contact Us For Availability
45
BRACKET, SWITCH HOLDER WCI 5304502127 Contact Us For Availability
46
HOUSING, FLOAT CASE WCI 5304502128 Contact Us For Availability
47
FLOAT, BOBBER WCI 5304502129 Contact Us For Availability
48
BRACKET, FLOAT SWITCH WCI 5304502130 Contact Us For Availability
49
SWITCH, FLOAT, LOWER, PUMP OUT WCI 5304502131 Contact Us For Availability
50
SPLASH GUARD, CONDENSATE, FOAM WCI 5304502132 Contact Us For Availability
51
WCI 5304517048 WCI 5304517048 Contact Us For Availability
52
CONDENSER WCI 5304502134 Contact Us For Availability
53
BRACKET, CONDENSER, VERTICAL WCI 5304502135 Contact Us For Availability
55
WCI 5304517049 WCI 5304517049 Contact Us For Availability
56
WCI 5304517050 WCI 5304517050 Contact Us For Availability
58
EVAPORATOR WCI 5304502182 Contact Us For Availability
59
BRACKET, CONDENSER WCI 5304502141 Contact Us For Availability
60
WCI 5304502174 WCI 5304502174 Contact Us For Availability
61
WCI 5304502175 WCI 5304502175 Contact Us For Availability
62
WCI 5304502176 WCI 5304502176 Contact Us For Availability
63
WCI 5304502178 WCI 5304502178 Contact Us For Availability
65
WCI 5304502148 WCI 5304502148 Contact Us For Availability
66
WCI 5304502149 WCI 5304502149 Contact Us For Availability
67
WCI 5304502183 WCI 5304502183 Contact Us For Availability
68
WCI 5304502184 WCI 5304502184 Contact Us For Availability
69
WCI 5304502044 WCI 5304502044 Contact Us For Availability
73
WCI 5304517054 WCI 5304517054 Contact Us For Availability
74
WCI 5304517055 WCI 5304517055 Contact Us For Availability
× ![]()
