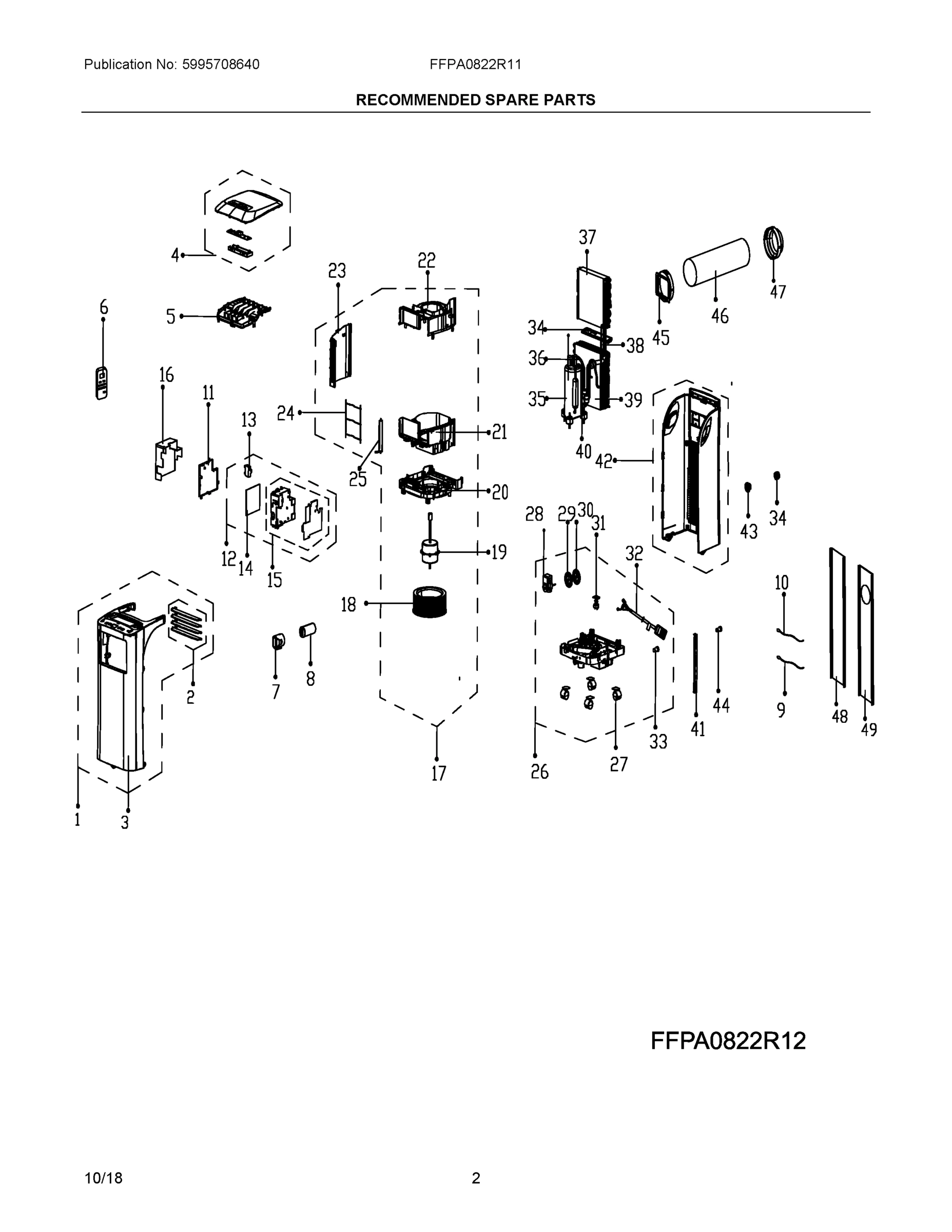

Model Electrolux FFPA0822R11 HEATING/COOLING, AC, PORTABLE SERIES – Common Parts & Diagrams

2
LOUVER, HORIZONTAL
LOUVER, HORIZONTAL WCI 5304502004 Contact Us For Availability
View on Model
7
COVER, COVER, CAPACITO
COVER, COVER, CAPACITO WCI 5304517060 Contact Us For Availability
View on Model
8
CAPACITOR, COMPRESSOR
CAPACITOR, COMPRESSOR WCI 5304502065 Contact Us For Availability
View on Model
9
SENSOR, ROOM TEMP. SEN
SENSOR, ROOM TEMP. SEN WCI 5304517061 Contact Us For Availability
View on Model
10
SENSOR, PIPE, TEMP SNS
SENSOR, PIPE, TEMP SNS WCI 5304517062 Contact Us For Availability
View on Model
11
SHIELD
SHIELD WCI 5304517063 Contact Us For Availability
View on Model
12
BOX
BOX WCI 5304517064 Contact Us For Availability
View on Model
13
CAPACITOR, FAN MOTOR
CAPACITOR, FAN MOTOR WCI 5304502021 Contact Us For Availability
View on Model
14
CONTROL-ELECTRICAL
CONTROL-ELECTRICAL WCI 5304517065 Contact Us For Availability
View on Model
15
BOX, W/SHIELD
BOX, W/SHIELD WCI 5304517067 Contact Us For Availability
View on Model
17
BLOWER, AIR, EXHAUST
BLOWER, AIR, EXHAUST WCI 5304517068 Contact Us For Availability
View on Model
20
COVER, EXHAUST SCROLL
COVER, EXHAUST SCROLL WCI 5304502028 Contact Us For Availability
View on Model
21
SCROLL, AIR INLET
SCROLL, AIR INLET WCI 5304502029 Contact Us For Availability
View on Model
22
COVER, SCROLL, AIR INLET
COVER, SCROLL, AIR INLET WCI 5304502031 Contact Us For Availability
View on Model
23
PANEL, RIGHT SIDE
PANEL, RIGHT SIDE WCI 5304502032 Contact Us For Availability
View on Model
24
GRILLE, AIR OUTLET
GRILLE, AIR OUTLET WCI 5304502033 Contact Us For Availability
View on Model
25
LOUVER, VERTICAL
LOUVER, VERTICAL WCI 5304502034 Contact Us For Availability
View on Model
26
BASE, BASE PAN ASSY
BASE, BASE PAN ASSY WCI 5304517069 Contact Us For Availability
View on Model
28
MOTOR, SLINGER, SHADED POLE
MOTOR, SLINGER, SHADED POLE WCI 5304502038 Contact Us For Availability
View on Model
29
SLINGER, WATER WHEEL, CONDENSATE
SLINGER, WATER WHEEL, CONDENSATE WCI 5304502039 Contact Us For Availability
View on Model
30
WHEEL, WATER WHEEL II
WHEEL, WATER WHEEL II WCI 5304517070 Contact Us For Availability
View on Model
34
COVER, DRAIN CONNECTOR
COVER, DRAIN CONNECTOR WCI 5304502044 Contact Us For Availability
View on Model
35
COMPRESSOR
COMPRESSOR WCI 5304502076 Contact Us For Availability
View on Model
36
TUBE, COMP. DISCHRARG
TUBE, COMP. DISCHRARG WCI 5304517072 Contact Us For Availability
View on Model
37
EVAPORATOR
EVAPORATOR WCI 5304502071 Contact Us For Availability
View on Model
38
TUBE, CAPILLARY
TUBE, CAPILLARY WCI 5304502079 Contact Us For Availability
View on Model
40
TUBE, COMP. SUCTION P
TUBE, COMP. SUCTION P WCI 5304517074 Contact Us For Availability
View on Model
45
EXHAUST ADAPTER A, CABINET, BACK
EXHAUST ADAPTER A, CABINET, BACK WCI 5304502053 Contact Us For Availability
View on Model
46
EXHAUST HOSE, CONDENSER MTG.
EXHAUST HOSE, CONDENSER MTG. WCI 5304502052 Contact Us For Availability
View on Model
48
WINDOW SLIDING KIT 1
WINDOW SLIDING KIT 1 WCI 5304517055 Contact Us For Availability
View on Model
