Model Frigidaire FFHT2117LB6 REFRIGERATOR – Common Parts & Diagrams

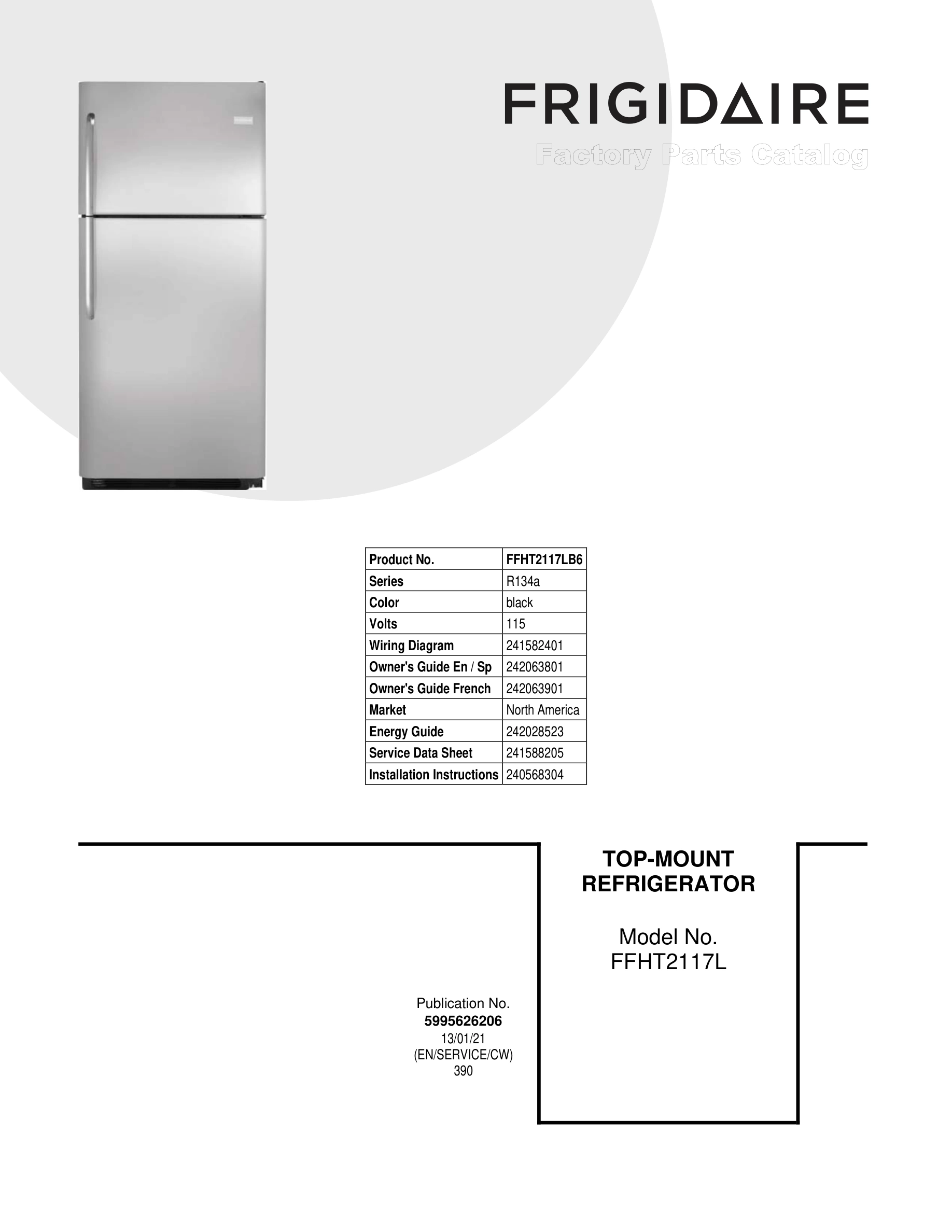

01 - COVER

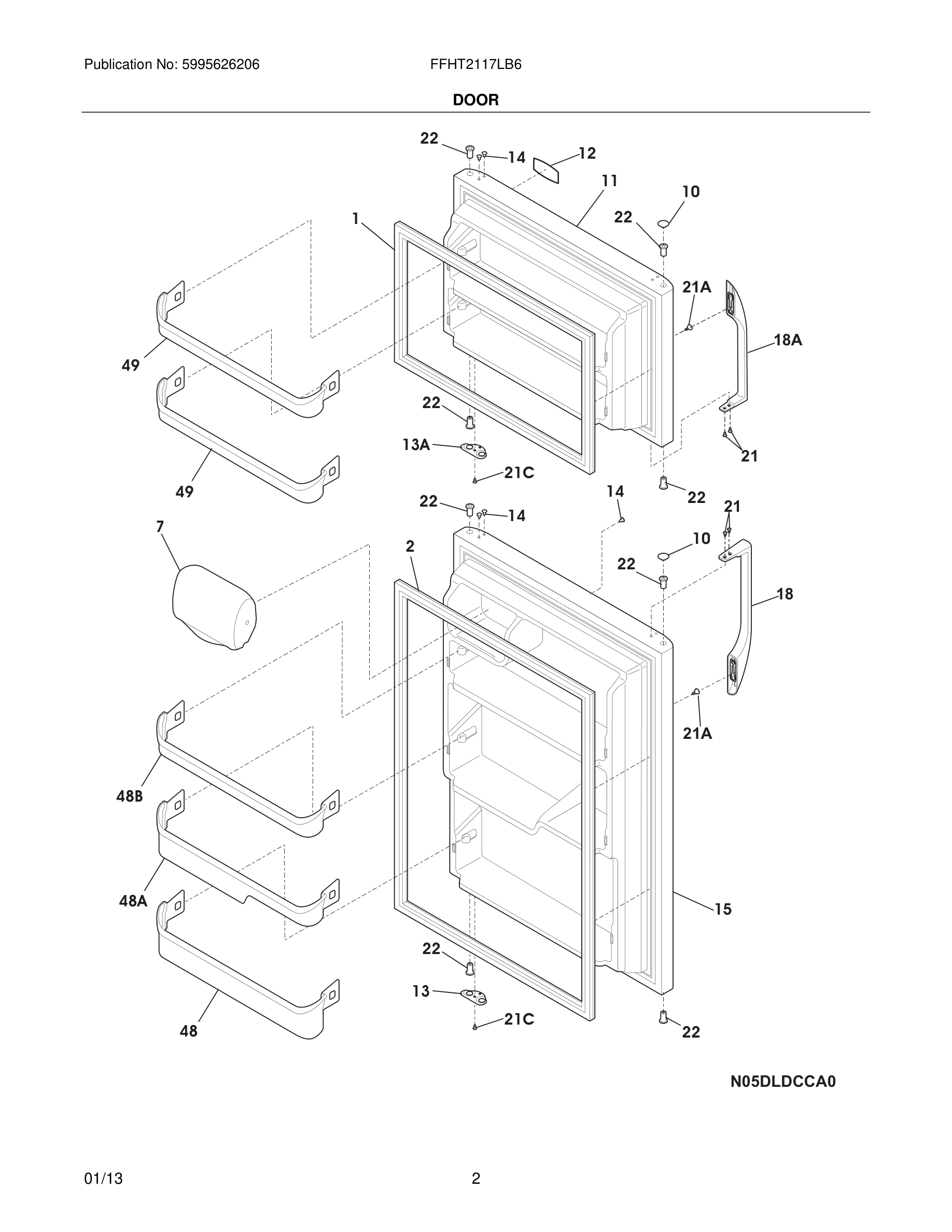

03 - DOOR
05 - CABINET
07 - SHELVES
09 - SYSTEM
10 - WIRING SCHEMATIC
11 - WIRING DIAGRAM
Common parts from model Frigidaire FFHT2117LB6 REFRIGERATOR
*
Paint, touch-up, black WCI 5303321321 Contact Us For Availability
1A
Deflector, air WCI 242213901 Contact Us For Availability
2
Knob-damper control WCI 240367001 Contact Us For Availability
4
Damper-fan cover WCI 241523701 Contact Us For Availability
5#
Fan Blade, red, evaporator fan WCI 5308000010 Contact Us For Availability
9
Bracket-motor mtg, front WCI 5303292396 Contact Us For Availability
11
Plug-hole, factory test WCI 5303208309 Contact Us For Availability
11
Door-frzr, black, complete assy WCI 240450313 Contact Us For Availability
12
Nameplate WCI 242016301 Contact Us For Availability
13
Diffuser, air, bottom WCI 240362601 Contact Us For Availability
13#
Motor-fan, w/frzr harness WCI 241854401 Contact Us For Availability
13A
Door Stop, black, frzr WCI 240312415 Contact Us For Availability
14
Plug-button, black WCI 240494003 Contact Us For Availability
14#
Heater-defrost WCI 242044021 Contact Us For Availability
15#
Evaporator Kit WCI 5303918274 Contact Us For Availability
16
Strap-evap/heater, aluminum, (2) WCI 5308000110 Contact Us For Availability
17*
Wiring Harness, control box WCI 240388701 Contact Us For Availability
18
Knob, temp control WCI 240360801 Contact Us For Availability
21#
Thermostat-defrost, kit WCI 5303918202 Contact Us For Availability
22A
Tube, sensor sleeve, 31 inch, plastic, white WCI 240468202 Contact Us For Availability
23
Grommet-compr mtg, (4) WCI 218513300 Contact Us For Availability
24
Frame-shelf, sliding, full width WCI 240372407 Contact Us For Availability
24
Washer-compr mtg WCI 241812301 Contact Us For Availability
25
Cover-crisper pan WCI 240364790 Contact Us For Availability
25
Clip-compressor mtg WCI 242037701 Contact Us For Availability
26
Pan, crisper, (2) WCI 240343803 Contact Us For Availability
29
Trim-shelf, front WCI 240357704 Contact Us For Availability
30#
Starter WCI 241941005 Contact Us For Availability
32
Clamp, elec cont mtg, compressor WCI 297030500 Contact Us For Availability
37
Trim-cabinet corner, black, (2) WCI 242161202 Contact Us For Availability
38
Bracket-upper hinge WCI 240313703 Contact Us For Availability
40
Cover-upper hinge, black WCI 240354404 Contact Us For Availability
41
Screw-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
Track, meat pan hanger, RH WCI 240530701 Contact Us For Availability
42
Track, meat pan hanger, LH WCI 240530601 Contact Us For Availability
47
Insert-pan cover, glass WCI 240350609 Contact Us For Availability
48
Bin-door, pseudo, bottom WCI 240338101 Contact Us For Availability
48A
Bin-door, refr WCI 240337901 Contact Us For Availability
48B
Bin-door, pseudo, gallon, refr WCI 240338001 Contact Us For Availability
49
Rack-door WCI 240534801 Contact Us For Availability
55#
Capacitor-run WCI 297286803 Contact Us For Availability
59
Shroud-cond fan WCI 241946106 Contact Us For Availability
59
Screw-#10-32 X 3/4, black WCI 240442707 Contact Us For Availability
59*
Screw-fan shroud, (2) WCI 240359403 Contact Us For Availability
60#
Motor-condenser fan WCI 242018301 Contact Us For Availability
82
Roller, compressor base, rear, (2) WCI 5304418225 Contact Us For Availability
85
Tube-connector, suction WCI 241871501 Contact Us For Availability
86
Spacer-cond tube, black WCI 240409302 Contact Us For Availability
123
Screw, hanger/rlr mtg, 8-10 x 7/16 WCI 215005101 Contact Us For Availability
× ![]()
