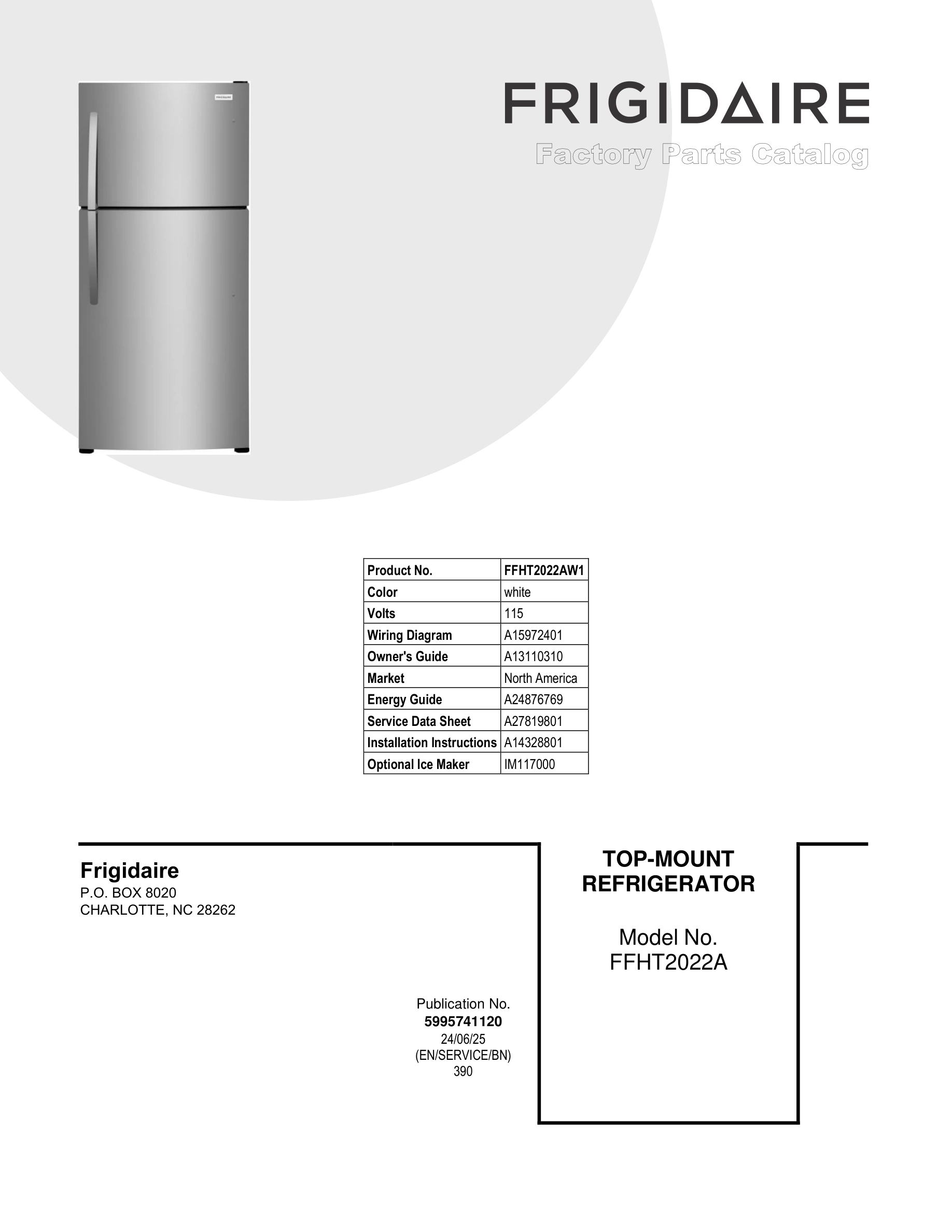

Model Frigidaire FFHT2022AW1 REFRIGERATOR – Common Parts & Diagrams
01 - COVER

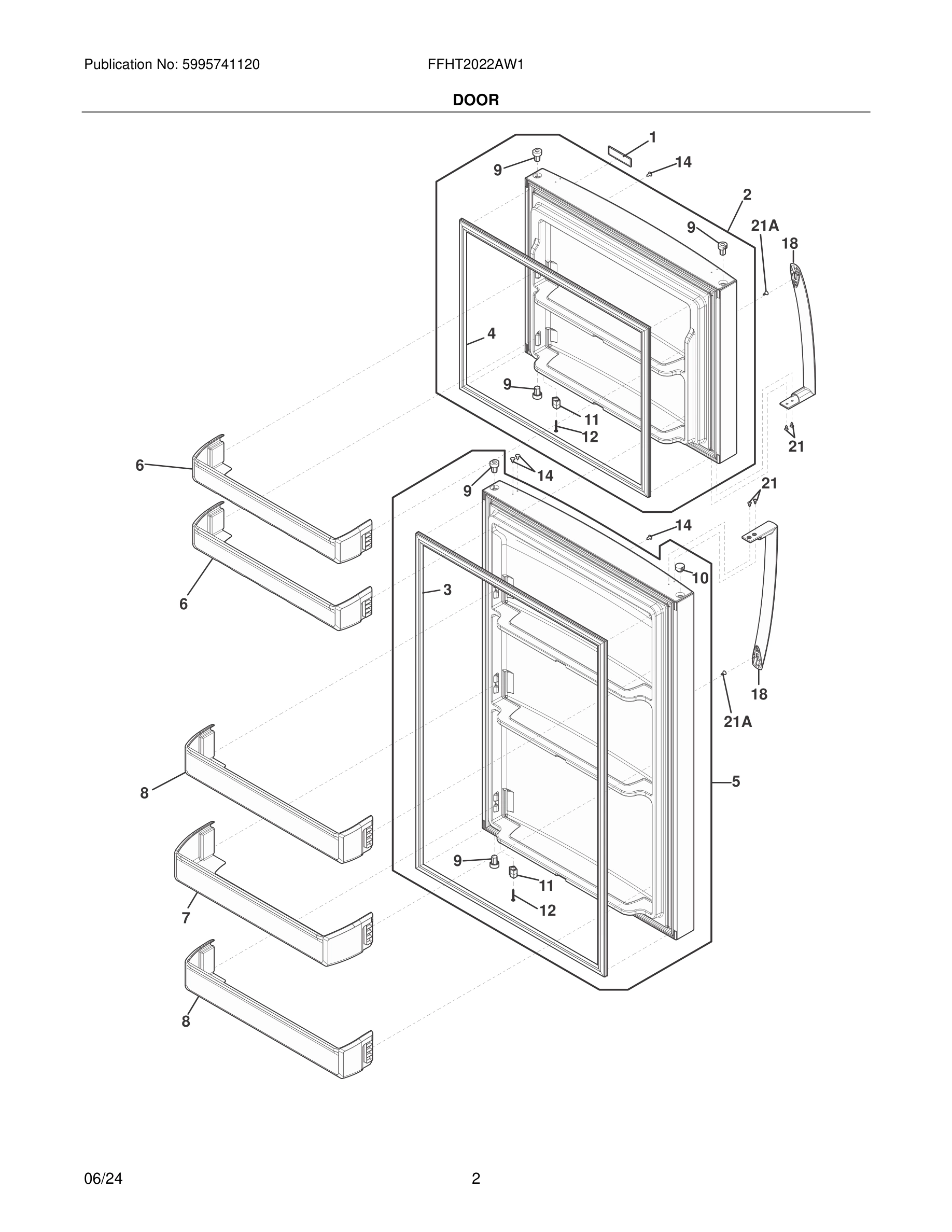

03 - DOOR
05 - CABINET
07 - SHELVES
09 - SYSTEM
10 - WIRING SCHEMATIC
11 - WIRING DIAGRAM
Common parts from model Frigidaire FFHT2022AW1 REFRIGERATOR
1
Badge, Frigidaire, white WCI 5304511144 Contact Us For Availability
2
Hinge Assembly, bottom, LH WCI 5304519776 Contact Us For Availability
6
Bin, door, white, freezer WCI 5304519702 Contact Us For Availability
6#
Harness, wiring, machine compt. WCI 5304519649 Contact Us For Availability
7
Bin, door, 6", white, refrigerator WCI 5304522123 Contact Us For Availability
8
Screw, hex wsh hd quad, M5 x 16 WCI 5304522279 Contact Us For Availability
8
Bin, door, 4", white, refrigerator WCI 5304519703 Contact Us For Availability
9
Bearing, hinge, white WCI 5304519757 Contact Us For Availability
9
Cover, hinge, white, lower, non hinged WCI 5304519777 Contact Us For Availability
10
Cover, hinge bearing, white WCI 5304519747 Contact Us For Availability
11
Shroud, evaporator fan WCI 5304519752 Contact Us For Availability
12
Screw, 8-18 X 1.25 WCI 241953905 Contact Us For Availability
13
Grommet, evaporator fan, rear WCI 242287501 Contact Us For Availability
14
Button, plug, white WCI 240494001 Contact Us For Availability
14
Washer, "slinger", nylon, evap fan shaft WCI 215474201 Contact Us For Availability
15
Fan Blade, evaporator WCI 242219302 Contact Us For Availability
15
BULB, light, E17/12 LED WCI 5304522314 Contact Us For Availability
18
Cold Control, assembly, w/capillary WCI 5304522330 Contact Us For Availability
18
Cover, I/M Connector WCI 5304519662 Contact Us For Availability
19
Cover Assembly, evaporator, w/frz slide WCI 5304519654 Contact Us For Availability
21
Clamp, compressor WCI 5304524607 Contact Us For Availability
21A
Screw, #10-16 x 1/2 WCI 240521303 Contact Us For Availability
22
Base Assembly, compressor, w/rollers WCI 5304519667 Contact Us For Availability
24#
Capacitor, run, 12uF WCI 5304528894 Contact Us For Availability
25
Tube, drain extension WCI 5304519743 Contact Us For Availability
26
Pan, drain WCI 5304519674 Contact Us For Availability
27
Seal, foam, drain pan WCI 5304519750 Contact Us For Availability
28
Diffuser, control box, bottom WCI 5304522317 Contact Us For Availability
29
Diffuser, control box, top WCI 5304522336 Contact Us For Availability
29#
S/A PUR COMP ESC55CBT GEN2 MX WCI 5304537795 Contact Us For Availability
30#
Fan Assembly, condenser, w/shroud-foam WCI 5304519734 Contact Us For Availability
31
Knob, control WCI 5304522337 Contact Us For Availability
32#
Switch, door/light, white WCI 5304520495 Contact Us For Availability
35
Hinge, door, upper WCI 5304519646 Contact Us For Availability
39
Trough, evap drain WCI 5304519679 Contact Us For Availability
40
Hinge, door, white, center WCI 5304519647 Contact Us For Availability
40#
Evaporator, assembly WCI 5304529495 Contact Us For Availability
41
Pin, center hinge, door WCI 5304519642 Contact Us For Availability
41#
Heater, evap defrost, w/thermostat WCI 5304522340 Contact Us For Availability
42
Support, evaporator, RH WCI 5304522326 Contact Us For Availability
43
Support, evaporator, LH WCI 5304522327 Contact Us For Availability
45
Strap-evap/heater, aluminum, (2) WCI 5308000110 Contact Us For Availability
89
Access Cover, rear WCI 5304522114 Contact Us For Availability
× ![]()
