Model Electrolux FFHT1835VB2 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams
01 - COVER SHEET

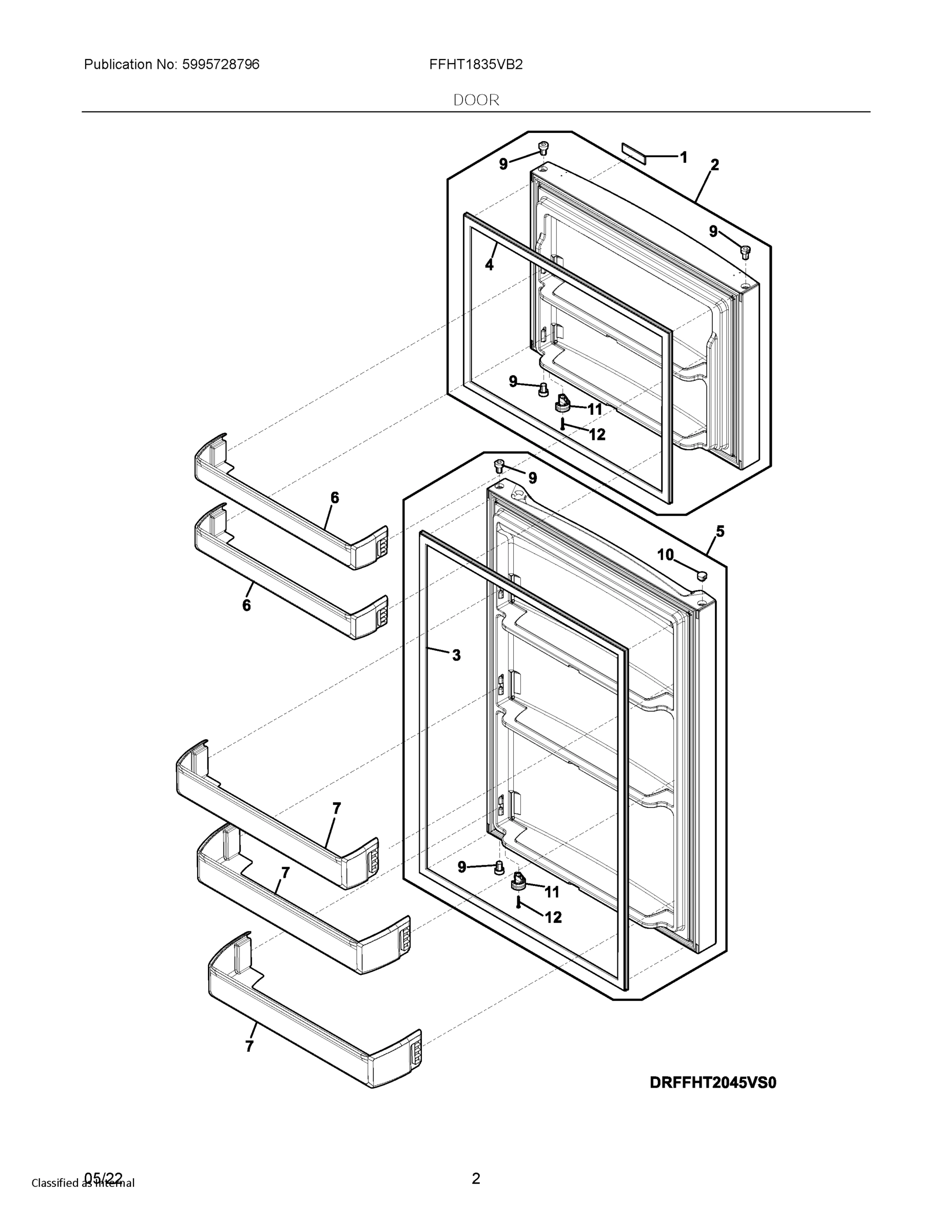

02 - DOOR
03 - CABINET
04 - SHELVES
05 - SYSTEM
06 - WIRING SCHEMATIC
07 - WIRING DIAGRAM
Common parts from model Electrolux FFHT1835VB2 REFRIGERATOR, TOP MOUNT
1
SHELF ASSEMBLY, FREEZER, GLASS, W/TRIM WCI 5304519660 Contact Us For Availability
1
BADGE, FRIGIDAIRE, BLACK WCI 5304511145 Contact Us For Availability
2
HINGE ASSEMBLY, BOTTOM, LH WCI 5304519776 Contact Us For Availability
4
CARRIAGE, DELI DRAWER WCI 5304522177 Contact Us For Availability
6
HARNESS, WIRING, MACHINE COMPT. WCI 5304519649 Contact Us For Availability
6
BIN, DOOR, WHITE, FREEZER WCI 5304519702 Contact Us For Availability
7
BIN, DOOR, 6", WHITE, REFRIGERATOR WCI 5304522123 Contact Us For Availability
7
PAN ASSEMBLY, CRISPER, W/ROLLERS WCI 5304522242 Contact Us For Availability
8
SCREW, HEX WSH HD QUAD, M5 X 16 WCI 5304522279 Contact Us For Availability
8
BIN, DOOR, 4", WHITE, REFRIGERATOR WCI 5304519703 Contact Us For Availability
9
BEARING, HINGE, BLACK WCI 5304522193 Contact Us For Availability
10
COVER, HINGE BEARING, BLACK WCI 5304522186 Contact Us For Availability
11
SHROUD, EVAPORATOR FAN WCI 5304519752 Contact Us For Availability
11
HOOK, DOOR CLOSER, BLACK WCI 5304522237 Contact Us For Availability
12
SCREW, 8-18 X 1.25 WCI 241953905 Contact Us For Availability
13
THERMISTOR KIT, EVAPORATOR, W/CONNECTOR WCI 5303918645 Contact Us For Availability
13
GROMMET, EVAPORATOR FAN, REAR WCI 242287501 Contact Us For Availability
14
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
15
FAN BLADE, EVAPORATOR WCI 242219302 Contact Us For Availability
15
BULB, LIGHT, E17/12 LED WCI 5304522314 Contact Us For Availability
16
MOTOR, EVAPORATOR FAN, BLOWER WCI 242219206 Contact Us For Availability
16
SOCKET, LED LIGHT WCI 5304522315 Contact Us For Availability
18
COVER, I/M CONNECTOR WCI 5304519662 Contact Us For Availability
19
COVER ASSEMBLY, EVAPORATOR, W/FRZ SLIDE WCI 5304519654 Contact Us For Availability
24
CAPACITOR, RUN, 12UF WCI 5304528894 Contact Us For Availability
25
TUBE, DRAIN EXTENSION WCI 5304519743 Contact Us For Availability
28
DIFFUSER, CONTROL BOX, BOTTOM WCI 5304522317 Contact Us For Availability
30
FAN ASSEMBLY, CONDENSER, W/SHROUD-FOAM WCI 5304522173 Contact Us For Availability
32
SWITCH, DOOR/LIGHT, WHITE WCI 5304520495 Contact Us For Availability
33
HARNESS, WIRING, CONTROL BOX, W/TEMP SENSOR WCI 5304522320 Contact Us For Availability
35
HINGE, DOOR, UPPER WCI 5304519646 Contact Us For Availability
39
TROUGH, EVAP DRAIN WCI 5304519679 Contact Us For Availability
40
EVAPORATOR, ASSEMBLY WCI 5304522324 Contact Us For Availability
40
HINGE, DOOR, BLACK, CENTER WCI 5304522099 Contact Us For Availability
41
HEATER, DEFROST WCI 5304522325 Contact Us For Availability
41A
PIN, CENTER HINGE, DOOR WCI 5304519642 Contact Us For Availability
45A
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
89
ACCESS COVER, REAR WCI 5304522114 Contact Us For Availability
NI
SPACER, HEAT EXCHANGER WCI 241947701 Contact Us For Availability
× ![]()
