Model Electrolux FFHT1822UV REFRIGERATOR, ALL – Common Parts & Diagrams
01 - COVER SHEET

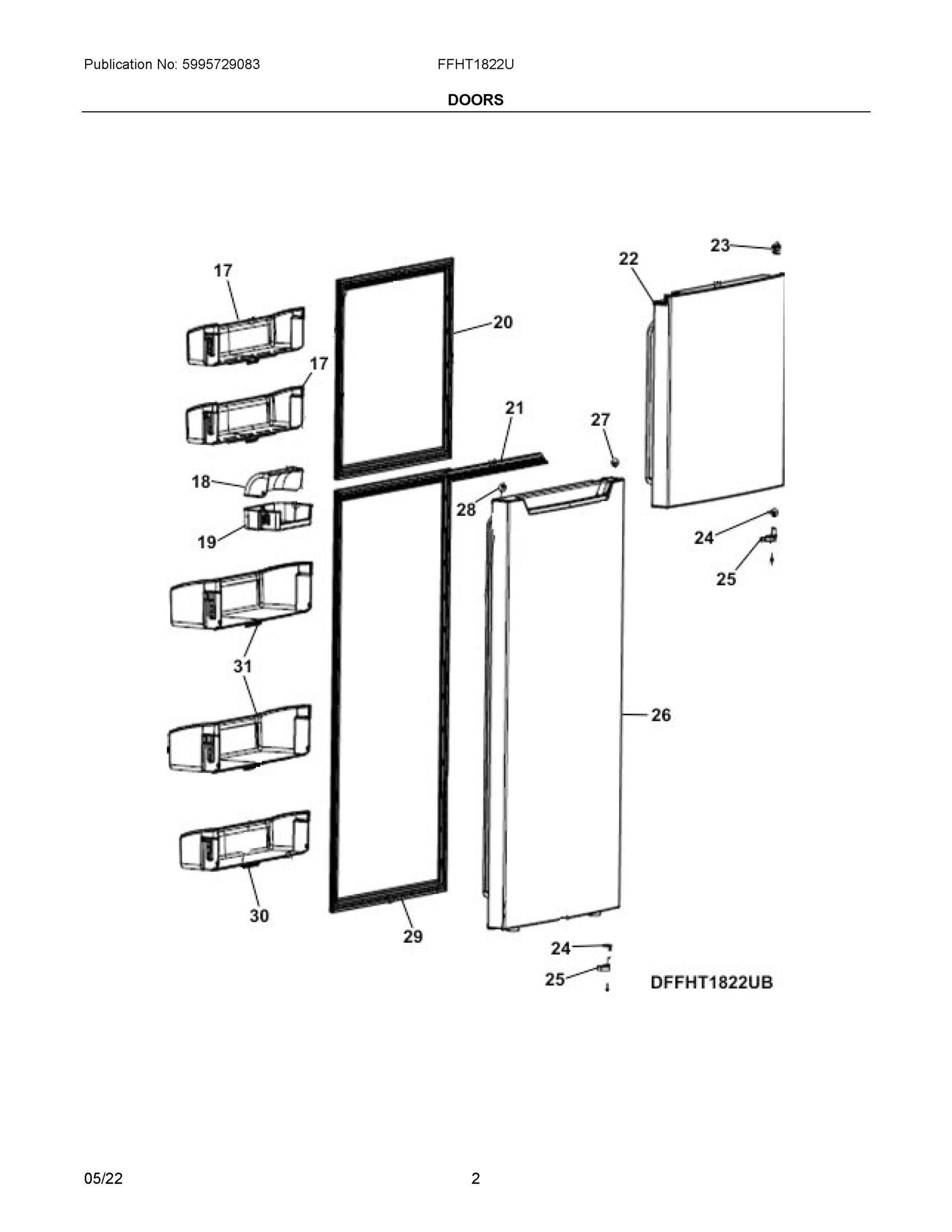

02 - DOORS

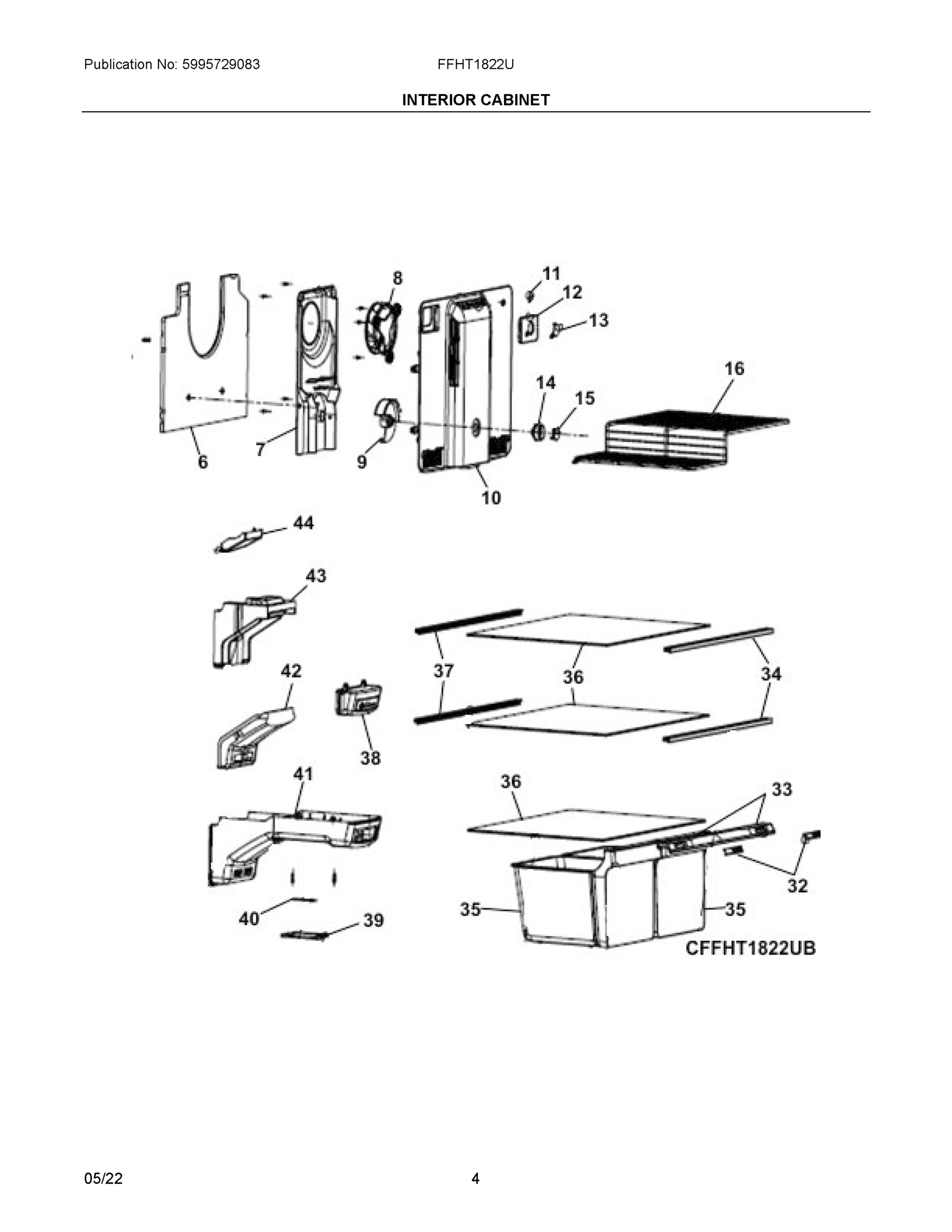

03 - INTERIOR CABINET
04 - SYSTEM/EXTERIOR CABINET

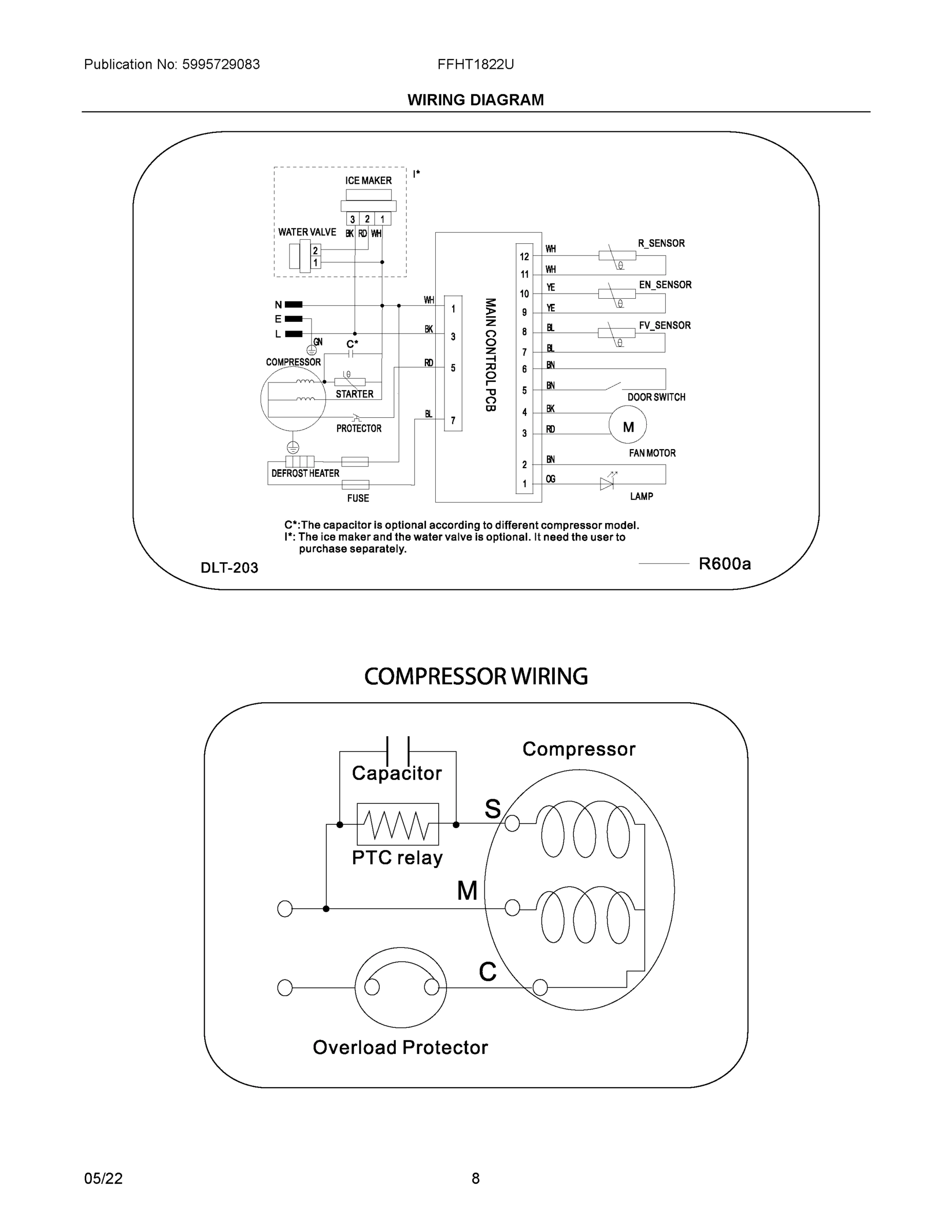

05 - WIRING DIAGRAM
Common parts from model Electrolux FFHT1822UV REFRIGERATOR, ALL
2
COVER, HINGE HOLES, GRAY, UPPER WCI 5304518569 Contact Us For Availability
3
COVER, HINGE, GRAY, RH UPPER WCI 5304531817 Contact Us For Availability
4
HINGE, UPPER, RH WCI 5304529312 Contact Us For Availability
5
EVAPORATOR, FIN WCI 5304529313 Contact Us For Availability
6
INSULATION, AIR DUCT, REAR FREEZER WCI 5304529314 Contact Us For Availability
7
COVER, AIR DUCT, BACK WCI 5304529315 Contact Us For Availability
9
DAMPER, AIR DUCT, FREEZER WCI 5304529316 Contact Us For Availability
10
COVER, AIR DUCT, FRONT WCI 5304529317 Contact Us For Availability
11
CAP, SCREW WCI 5304518561 Contact Us For Availability
12
COVER, ICE MAKER HOLE, FREEZER WCI 5304529318 Contact Us For Availability
13
COVER, CROSSING, AIR DUCT WCI 5304529319 Contact Us For Availability
14
KNOB, AIR DUCT, FREEZER WCI 5304529320 Contact Us For Availability
15
COVER, KNOB WCI 5304529321 Contact Us For Availability
16
SHELF, FREEZER WCI 5304529322 Contact Us For Availability
20
GASKET, DOOR, GRAY, FREEZER WCI 5304531822 Contact Us For Availability
21
GASKET, SEALING STRIP WCI 5304529326 Contact Us For Availability
22
DOOR ASSEMBLY, STAINLESS, FREEZER WCI 5304529366 Contact Us For Availability
23
BEARING, HINGE, UPPER DOOR WCI 5304529328 Contact Us For Availability
24
BLOCK, DOOR, METAL, RH, LIMIT WCI 5304529329 Contact Us For Availability
25
STOPPER, DOOR, RH WCI 5304529330 Contact Us For Availability
26
DOOR ASSEMBLY, STAINLESS, FRESH FOOD WCI 5304529367 Contact Us For Availability
27
BEARING, HINGE, LOWER DOOR, RH WCI 5304529332 Contact Us For Availability
28
PLUG BUTTON, HINGE BEARING WCI 5304529333 Contact Us For Availability
30
RACK, LOWER, FRESH FOOD WCI 5304529335 Contact Us For Availability
31
RACK, UPPER, FRESH FOOD WCI 5304529336 Contact Us For Availability
32
SLIDE, CONTROL, HUMIDITY WCI 5304529337 Contact Us For Availability
33
COVER, CONTROL, HUMIDITY WCI 5304529338 Contact Us For Availability
34
TRIM, SHELF, FRONT WCI 5304529339 Contact Us For Availability
35
DRAWER, CRISPER WCI 5304529340 Contact Us For Availability
36
GLASS, SHELF WCI 5304529341 Contact Us For Availability
37
TRIM, SHELF, REAR WCI 5304529342 Contact Us For Availability
38
CONTROL ASSEMBLY, MAIN WCI 5304529343 Contact Us For Availability
39
COVER, LIGHT WCI 5304518511 Contact Us For Availability
40
LIGHT, LED WCI 5304518510 Contact Us For Availability
41
HOUSING, CONTROL BOX WCI 5304518509 Contact Us For Availability
42
INSULATION, CONTROL BOX, LOWER WCI 5304518505 Contact Us For Availability
43
INSULATION, CONTROL BOX, UPPER WCI 5304518504 Contact Us For Availability
44
TROUGH, WATER COLLECTOR WCI 5304518512 Contact Us For Availability
45
TROUGH, DRAIN, EVAPORATOR WCI 5304529344 Contact Us For Availability
47
HINGE, DOOR, LOWER WCI 5304529346 Contact Us For Availability
49
HINGE, DOOR, MIDDLE WCI 5304529347 Contact Us For Availability
50
SPACER, HINGE, MIDDLE WCI 5304529348 Contact Us For Availability
51
COVER, SCREW, MIDDLE HINGE WCI 5304529349 Contact Us For Availability
52
BASE, COMPRESSOR WCI 5304521532 Contact Us For Availability
54
TRAY, WATER WCI 5304521531 Contact Us For Availability
56
DRAIN PIPE WCI 5304518525 Contact Us For Availability
57
CONDENSER, EVAPORATIVE WCI 5304529351 Contact Us For Availability
59
PIPE, SUCTION WCI 5304521528 Contact Us For Availability
60
WIRE, GROUNDING WCI 5304518526 Contact Us For Availability
61
COVER, WATER VALVE WCI 5304529352 Contact Us For Availability
62
TUBE, PROCESS WCI 5304529353 Contact Us For Availability
63
HOUSING, WATER VALVE WCI 5304529354 Contact Us For Availability
64
SPONGE, FILLER, WATER INLET WCI 5304529355 Contact Us For Availability
65
TUBE, FILL, WATER WCI 5304529356 Contact Us For Availability
NI
BADGE, NAMEPLATE, SS, FRIGIDAIRE WCI 5304518568 Contact Us For Availability
NI
COVER, HINGE, GRAY, LH UPPER, (OPTIONAL) WCI 5304531819 Contact Us For Availability
× ![]()
