Model Electrolux FFHT1821TS0 REFRIGERATOR, TOP MOUNT – Common Parts & Diagrams

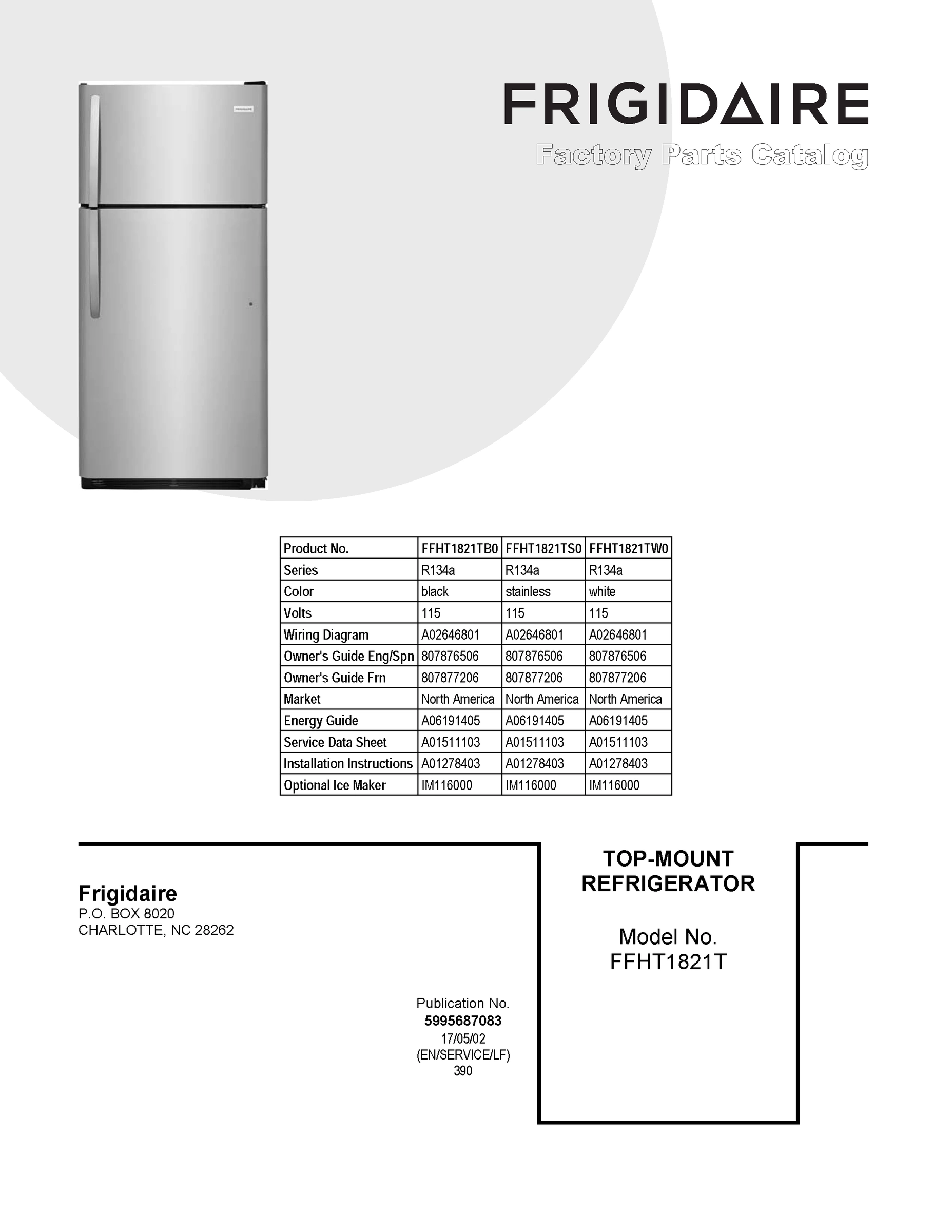

01 - COVER SHEET

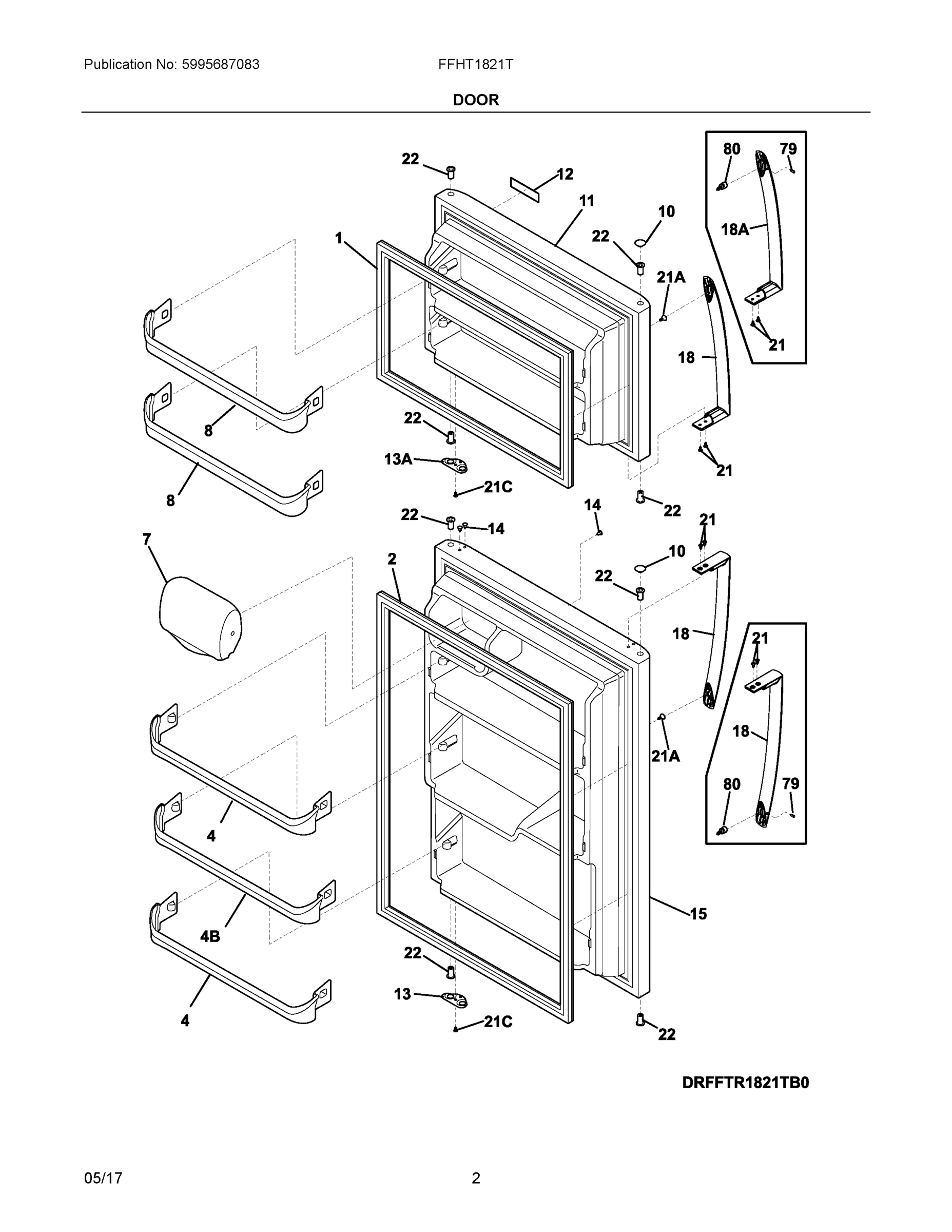

02 - DOOR

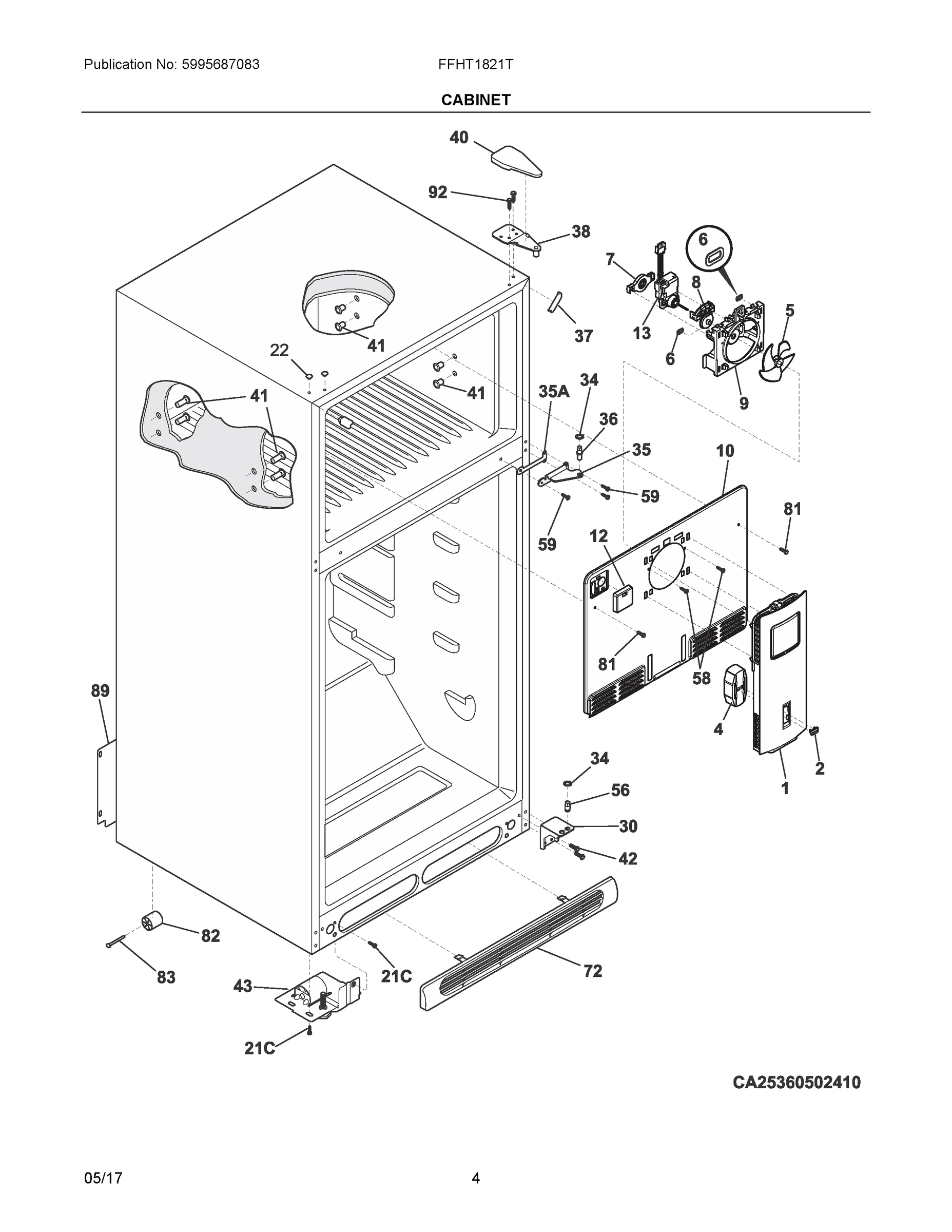

03 - CABINET

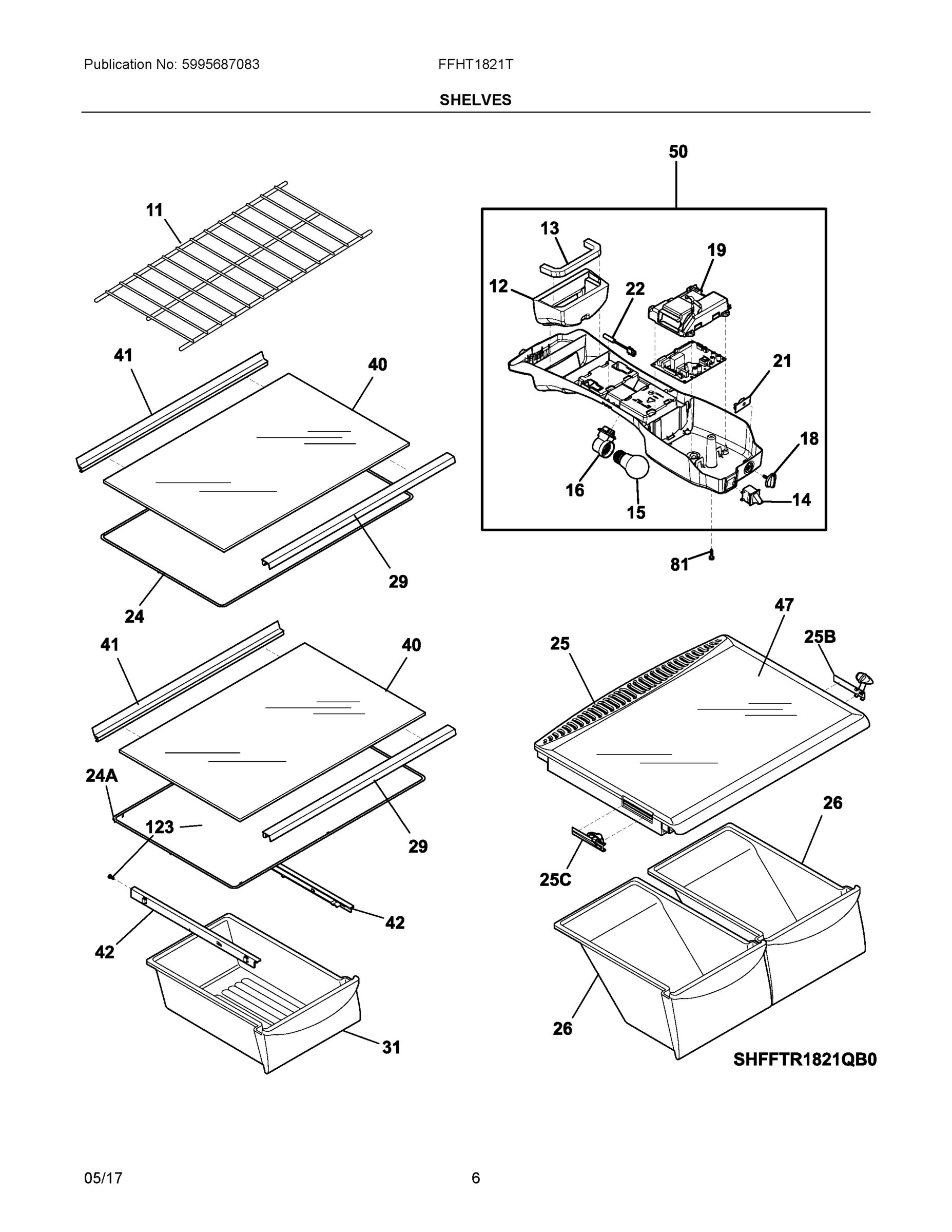

04 - SHELVES

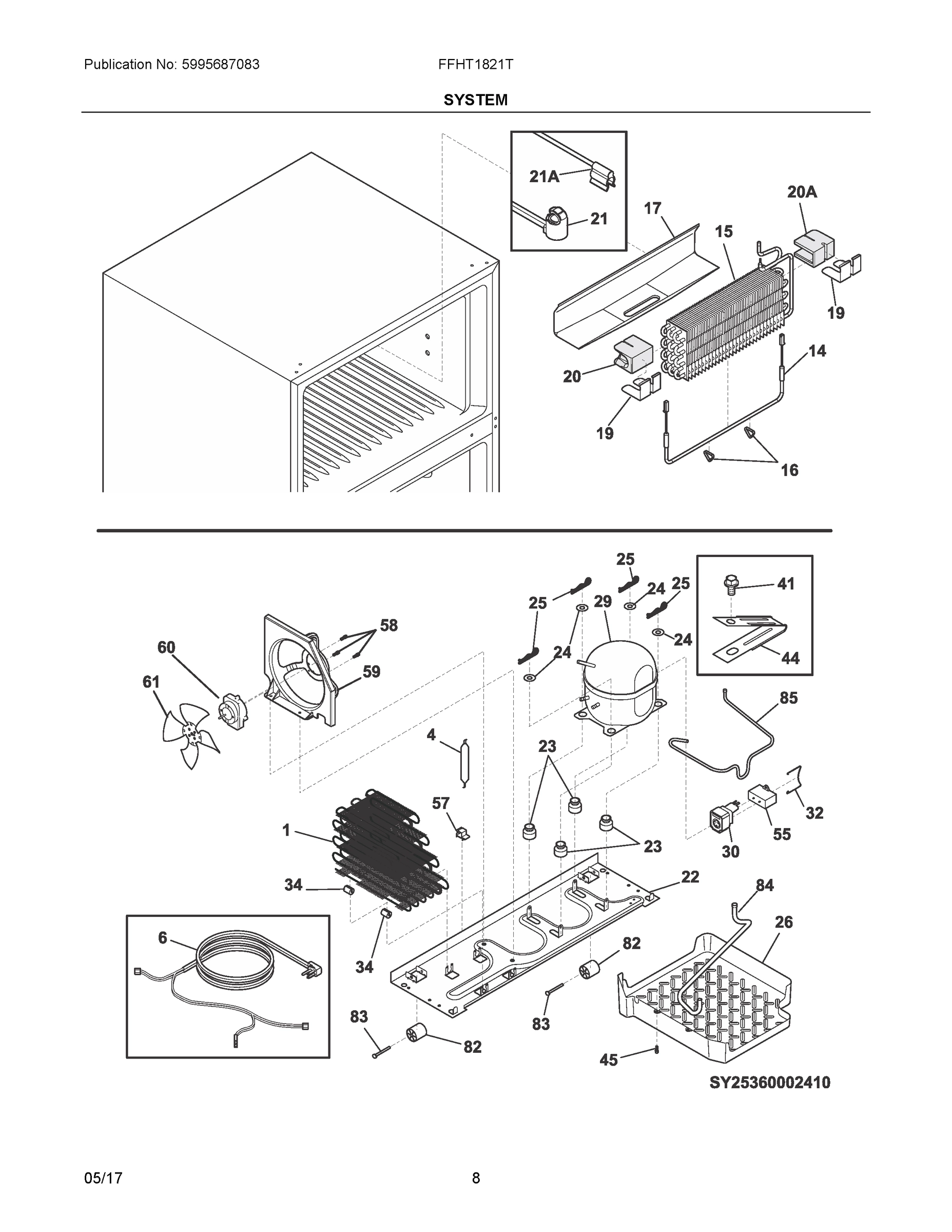

05 - SYSTEM

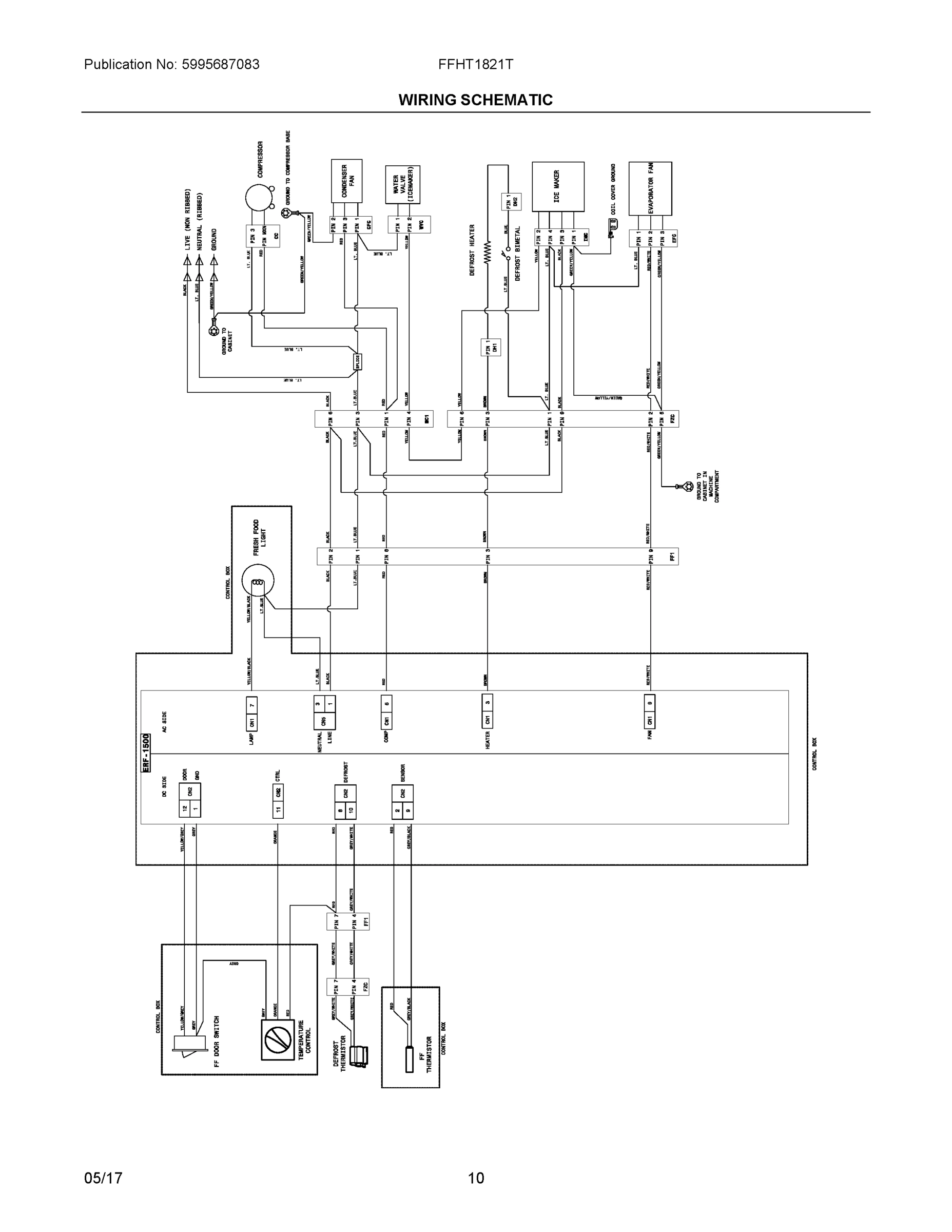

06 - WIRING SCHEMATIC

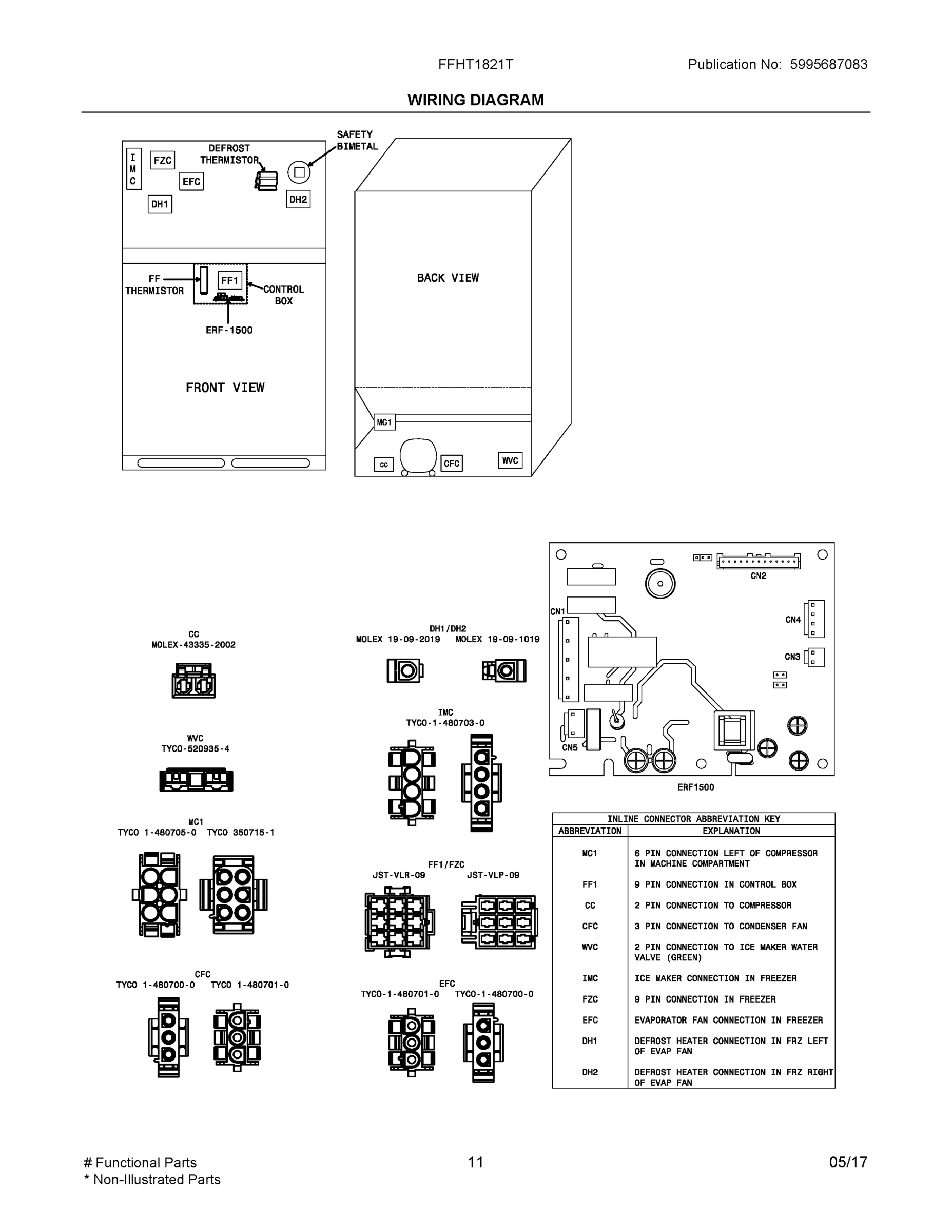

07 - WIRING DIAGRAM
Common parts from model Electrolux FFHT1821TS0 REFRIGERATOR, TOP MOUNT
1
GASKET-FRZR DOOR, BLACK, MAGNETIC WCI 242193209 Contact Us For Availability
1
CONDENSER, HIGH EFFICIENCY WCI 5304502821 Contact Us For Availability
1
COVER, EVAPORATOR FAN WCI 242230902 Contact Us For Availability
2
GASKET-REFR DOOR, BLACK, MAGNETIC WCI 242193212 Contact Us For Availability
2
KNOB, SLIDING, DAMPER WCI 242229401 Contact Us For Availability
4
RACK-DOOR WCI 240534901 Contact Us For Availability
4B
RACK-DOOR, 4B WCI 240534701 Contact Us For Availability
5
FAN BLADE, EVAPORATOR WCI 242219302 Contact Us For Availability
6
RING, LOCKING, (2) WCI 5304497413 Contact Us For Availability
7
GROMMET, EVAPORATOR FAN, REAR WCI 242287501 Contact Us For Availability
8
RACK-DOOR WCI 240534801 Contact Us For Availability
8
GROMMET, EVAPORATOR FAN, FRONT WCI 242237301 Contact Us For Availability
9
SHROUD BRACKET, EVAPORATOR FAN WCI 242229301 Contact Us For Availability
10
PLUG-BUTTON, GRAY, HINGE BRG HOLE, (2) WCI 240381307 Contact Us For Availability
10
COVER, COIL, WHITE WCI 242239304 Contact Us For Availability
11
SHELF, FREEZER WCI 240358008 Contact Us For Availability
11
DOOR-FRZR, STAINLESS, COMPLETE ASSY WCI 240410206 Contact Us For Availability
12
WCI 5304511146 WCI 5304511146 Contact Us For Availability
12
COVER, CONNECTION, ICE MAKER WCI 242249201 Contact Us For Availability
13
MOTOR-BLOWER WCI 242219204 Contact Us For Availability
13
GASKET, AIR DIFFUSER WCI 242240602 Contact Us For Availability
13
WCI 240312422 WCI 240312422 Contact Us For Availability
13A
DOOR STOP, BLACK, FRZR WCI 240312415 Contact Us For Availability
14
PLUG-BUTTON, GRAY WCI 240494007 Contact Us For Availability
15
EVAPORATOR KIT WCI 5303918274 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
18
WCI 5304511368 WCI 5304511368 Contact Us For Availability
18
KNOB, COLD CONTROL WCI 242217001 Contact Us For Availability
18A
WCI 5304511369 WCI 5304511369 Contact Us For Availability
19
SHIELD, HEAT, EVAP BLOCK WCI 242320401 Contact Us For Availability
21
THERMOSTAT, ASSEMBLY, SAFETY WCI 5303918638 Contact Us For Availability
21A
THERMISTOR KIT, EVAPORATOR, W/CONNECTOR WCI 5303918645 Contact Us For Availability
22
BEARING-HINGE, BLACK, (8) WCI 5304507147 Contact Us For Availability
22
BASE-COMPRESSOR, W/ROLLERS WCI 241665606 Contact Us For Availability
24
FRAME, SLIDING SHELF, FULL WIDTH WCI 240372409 Contact Us For Availability
24
WASHER-COMPR MTG WCI 241812301 Contact Us For Availability
24A
FRAME, SLIDING SHELF, FULL WIDTH, W/HANGER TA WCI 240372410 Contact Us For Availability
25
COVER-CRISPER PAN WCI 240364787 Contact Us For Availability
25
CLIP-COMPRESSOR MTG WCI 242037701 Contact Us For Availability
25B
CONTROL-HUMIDITY, RH WCI 241613501 Contact Us For Availability
25C
CONTROL-HUMIDITY, LH WCI 241613502 Contact Us For Availability
26
PAN-CRISPER, CLEAR, (2), NO GRAPHICS WCI 240337103 Contact Us For Availability
26
PAN-DEFROST WCI 241920605 Contact Us For Availability
29
TRIM-SHELF, FRONT WCI 240357704 Contact Us For Availability
30
STARTER WCI 241941005 Contact Us For Availability
32
CLAMP, ELEC CONT MTG, COMPRESSOR WCI 297030500 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
37
TRIM-CABINET CORNER, BLACK, (2) WCI 242161202 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 240313703 Contact Us For Availability
40
GLASS-SHELF, 23.78" X 16.34" WCI 240350620 Contact Us For Availability
40
COVER-UPPER HINGE, BLACK WCI 240354404 Contact Us For Availability
41
GROMMET, SHELF MTG WCI 5304500407 Contact Us For Availability
42
TRACK, MEAT PAN HANGER, LH WCI 240530601 Contact Us For Availability
42A
TRACK, MEAT PAN HANGER, RH WCI 240530701 Contact Us For Availability
43
ROLLER ASSY, FRONT LH, (2) WCI 241889002 Contact Us For Availability
47
INSERT-PAN COVER, 23.82" X 15.50", GLASS WCI 240350608 Contact Us For Availability
50
CONTROL BOX, ASSEMBLY, COMPLETE, W/BOARD & HA WCI 5304507171 Contact Us For Availability
55
CAPACITOR-RUN WCI 297286803 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
59
SHROUD, CONDENSER FAN WCI 242050604 Contact Us For Availability
59
SCREW-#10-32 X 3/4, BLACK WCI 240442707 Contact Us For Availability
60
MOTOR-CONDENSER FAN WCI 242018301 Contact Us For Availability
61
BLADE-CONDENSER FAN WCI 241639502 Contact Us For Availability
84
TUBE-DRAIN, RUBBER, LOWER WCI 240500801 Contact Us For Availability
85
TUBE-CONNECTOR, SUCTION WCI 5304502967 Contact Us For Availability
89
COVER-ACCESS, W/LABEL WCI 241733911 Contact Us For Availability
123
SCREW, HANGER/RLR MTG, 8-10 X 7/16 WCI 215005101 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE WCI 5303918263 Contact Us For Availability
NI
HOT TUBE REPAIR KIT, SERVICE WCI 5303918222 Contact Us For Availability
NI
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
NIA
RO WCI 241889001 Contact Us For Availability
NIA
SPACER-SHELF WCI 241705801 Contact Us For Availability
NIA
CLIP-GRILLE WCI 218515401 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
× ![]()
